Sealey CP20VCP Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Keep away from
instructions rain and moisture
1. SAFETY
Inspect the unit for wear and damage to ensure the item is safe before connecting to the battery. If worn or damaged DO NOT use.
9
DO NOT use the unit in damp conditions.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the unit.
8
DO NOT use the unit if you suspect that the battery or the unit casing is damaged.
8
DO NOT leave batteries in a discharged state, recharge batteries immediately. Before storage, fully recharge the battery,
8
subsequently recharge the battery at least once every six months of non-use.
DO NOT attempt to open, disassemble, modify or service the unit.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°).
8
Recycle or dispose of unit as stipulated by local regulation.
9
2. INTRODUCTION

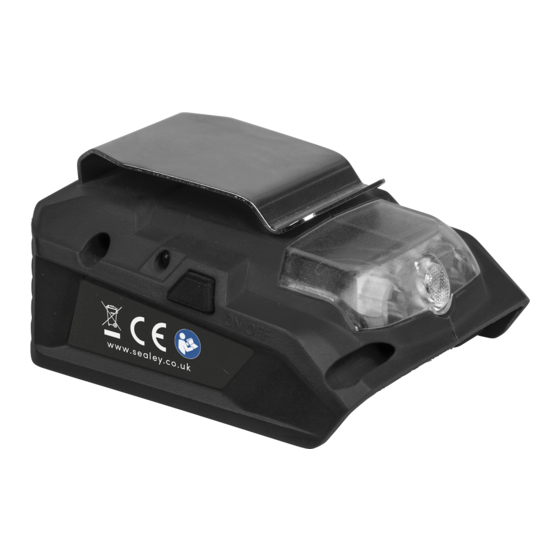

Slides on to Sealey 20V batteries Model No. CP20VBP2, CP20VBP & CP20VBP4 to provide a 5V charging output. Built-in 30 Lumen
LED light controlled by on/off switch. Fitted with belt hook for charging on the go.
3. SPECIFICATION
MODEL No.: ..........................................................CP20VCP
Applications: ..................CP20VBP2, CP20VBP, CP20VBP4
Battery: ...........................20V 2Ah - 4Ah Li-ion (not included)
Input: ............................................................................... 20V
LED Light ....................................................................... 30lm
Output: .......................................................................5V 1.5A
4. OPERATION
fig.1
4.1. 5V CHARGING (fig.1, fig.3)
4.1.1. Press On/Off switch (fig.1) to use 5V charging socket (fig.3). When socket is available for use the On/Off LED (fig.1) is lit.
4.2. LED HEADLIGHT (fig.2)
4.2.1. Press LED light switch to illuminate the LED headlight. Press again to switch LED off.
5. MAINTENANCE
5.1. To clean unit, use only a lightly damped, clean cloth. DO NOT allow the unit to get wet.
© Jack Sealey Limited
CHARGE PAL FOR 20V ONE BATTERY
SYSTEM
CP20VCP
MODEL NO:
fig.2
Original Language Version
fig.3
CP20VCP Issue 1 28/05/20
