Sealey SUPERSNAP RE83/4 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Only fully trained and qualified persons should use this equipment. These instructions are not a substitute for user receiving full
supervised training by a qualified person. It is important the user understands the applications, limitations and potential hazards of the product.
1. SAFETY INSTRUCTIONS
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
F
p
Familiarise yourself with product application and limitations, as well as the specific potential hazards peculiar to the repair kit.
!
WARNING! No part of this unit or any accessory relating to the repair kit is designed for lifting loads. It is intended only as a
F
p
pushing device and must be used as such, with care.
WARNING! Disconnect the repair kit from the hydraulic pump before servicing or performing any maintenance on the unit.
F
p
Maintain repair kit in good order. Replace/repair with genuine parts only. Non-genuine parts may be dangerous and will invalidate the warranty.
!
Use qualified person to lubricate and maintain the hydraulic pump. DO NOT use brake fluid to top up hydraulic unit. Use Sealey hydraulic oil only.
!
Keep the repair kit clean for best and safest performance.
!
WARNING! Ensure you know how much load you are pushing. Never exceed the maximum pushing capacity.
F
p
Use only with the supplied Sealey hydraulic pump and accessories. Wrong equipment may damage unit and invalidate your warranty.
!
The kit accessories may be used with other popular makes of kit.
!
We recommend the use of BS approved safety impact goggles and heavy duty gloves when working with this kit. Both are available from your
!
authorised Sealey dealer.
Ensure there is positive engagement of repair kit accessories to the vehicle body before pushing.
!
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
!
If working on an ‘off centre’ load, pump with care. If you feel undue resistance, stop and re-adjust the set-up.
!
WARNING! Keep your hands, body and clothing away from the repair kit and accessories when in use. Take any necessary
F
p
precautions to protect your personal safety whilst using the repair kit.
Ensure the hydraulic hose is not bent or kinked but laid out correctly.
!
Keep non-essential persons away from the operating area. Be aware of the locations of other persons assisting you.
!
When releasing tension from the load be sure to undo the hydraulic valve VERY slowly.
!
DO NOT operate the repair kit if any parts are damaged or missing as this may cause failure and/or personal injury.
%
WARNING! DO NOT use repair kit as a lifting device of any type. DO NOT use for any purpose other than for which it is designed.
F
p
DO NOT overextend the ram as the plunger may be forced out of the ram end.
%
DO NOT heat accessories as this may weaken them.
%
DO NOT modify accessories for use with this kit.
%
When not in use, place dust cap in end of hydraulic hose and store the kit, in the case, in a safe, dry, childproof location.
!

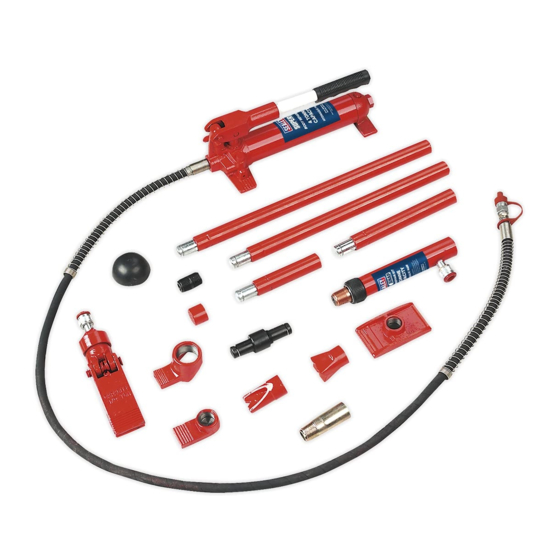

2. CONTENTS
RE83/4 4 ton capacity kit
ITEM PART NO. DESCRIPTION
1 604/1P PLASTIC BOX
A2 604/A2 21” SUPERSNAP
A3 604/A3 18” SUPERSNAP
A4 604/A4 10” SUPERSNAP
A5 604/A5 6-1/2” SUPERSNAP
A6 604/A6 3-1/4” TUBE ADAPTOR
7 604/7 SERRATED SADDLE
8 604/8 MALE CONNECTOR
A9 604/A9 MALE ADAPTOR
SUPERSNAP
RE83/4
Model:
ITEM
A10
TUBING 11
®
TUBING 12
®
TUBING 13
®
TUBING 14
®
15
16
17
40
41
42
BODY REPAIR KIT
®
PART NO. DESCRIPTION
604/A10 FEMALE ADAPTOR
604/11 SPREADER RAM
604/12 2-3/4” RUBBER HEAD
604/13 FLAT BASE
604/14 SPREADER RAM TOE
604/15 SPREADER PLUNGER TOE
604/16 WEDGE HEAD
604/17 90 V-BASE
O
604/40 10 TON HYDRAULIC UNIT
604/41 RAM
604/42 HOSE
RE83/4 - 3 - 221203
