CAPTUR
vehicle user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Captur and is the answer not in the manual?

Questions and answers

Shirley Russen
February 5, 2025

On the auto gear change what does the position "B" do?

0
1 comments:
Mr. Anderson
February 10, 2025

The "B" position on the automatic gear selector of a Renault Captur increases regenerative braking. This means that when the driver lifts off the accelerator, the vehicle slows down more quickly while recovering energy to recharge the battery.

This answer is automatically generated

0
mduduzi
March 11, 2025

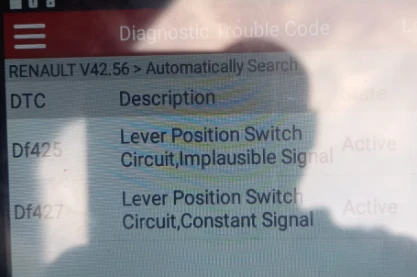

guys i have a problem with my 2016 Renault Captur 1.2T Dynamique DCT

User image 67d007f51c154
0
1 comments:
Mr. Anderson
March 11, 2025

Common problems with the 2016 Renault Captur 1.2T Dynamique DCT include:

- Issues with the automatic transmission (DCT), including early breakdowns in some cases.
- Variator (CVT) concerns, requiring regular oil and transmission fluid changes every 30,000–40,000 km to maintain reliability.
- Stabilizer bushings fused to the suspension bar, making them non-removable and prone to wear around 25,000 km.
- Potential failure of the electromagnetic clutch for the rear wheels.
- Suspension components like shock absorbers, ball joints, and front hubs may need replacement after 100,000 km.
- Minor problems with rubber elements such as rear gear seals and CV joint anthers, especially in cold conditions.

Regular maintenance and timely fluid changes can help prevent some of these issues.

This answer is automatically generated

0
Peter
April 12, 2025

Airbag light on diagnostic saying front door impact sensor configuration have a code 809155 can you tell me what that mean!

0

Related Manuals for Renault Captur

Summary of Contents for Renault Captur

  • Page 1 CAPTUR vehicle user manual...
  • Page 2 Castrol, exclusive Renault partner Benefit from cutting-edge technology born out of competition to ensure the performance and longevity of your Renault thanks to wide range of engine lubricants developed specially by Renault and Castrol. Renault recommends renault.com...
  • Page 3 Welcome to your new vehicle This driver’s handbook contains the information necessary: – for you to familiarise yourself with your vehicle, to use it to its best advantage and to benefit fully from the all the functions and the technical developments it incorporates. –...
  • Page 4 EXTERIOR Rear view mirrors ➥ 1.90 Electric windows ➥ 3.20 Wiper ➥ 1.101 and ➥ 1.106 Demisting ➥ 3.5 and ➥ 3.11 Key/Remote control ➥ 1.2 Map ➥ 1.6 Locking/unlocking the doors ➥ 1.16 Bodywork maintenance ➥ 4.16 Tyres ➥ 5.12 Lights: operation ➥...
  • Page 5 PASSENGER COMPARTMENT Adjusting your driving po- Passenger compartment storage/fit- sition ➥ 1.23 tings ➥ 3.29 Rear bench seat ➥ 3.35 Rear headrests ➥ 3.34 Front seats ➥ 1.21 Front headrests ➥ 1.92 Child safety ➥ 1.37 Luggage compartment stor- age/fittings ➥ 3.39...
  • Page 6 DRIVER’S POSITION Trip computer controls Instrument panel ➥ 1.58 ➥ 1.71 Exterior lighting ➥ 1.93 Multimedia screen ➥ 3.17 Cruise control ➥ 2.98 Stop and Go adaptive cruise control ➥ 2.103 Heated seat(s) ➥ 1.21 Speed limiter ➥ 2.94 Heating/Air conditioning GPL Command ➥...
  • Page 7 DRIVING AIDS ABS (anti-lock braking system) Speed limiter ➥ 2.94 ESC (electronic stability control) Braking assistance Detection of road signs ➥ 2.90 Hill start assistance ➥ 2.46 Cruise control ➥ 2.98 AUTOHOLD ➥ 2.29 Stop and Go adaptive cruise con- trol ➥...
  • Page 8 SAFETY ON BOARD Inhibiting the front pas- senger airbag ➥ 1.51 Front Airbags ➥ 1.28 Curtain Airbags ➥ 1.35 Side Airbags ➥ 1.35 Seat belts ➥ 1.23...
  • Page 9 IDENTIFYING A VEHICLE - LABELS Review of a vehicle identification number ➥ 6.2 Vehicle identification plate ➥ 6.2 Technical Information for the emergency services ➥ 6.3 Engine identification ➥ 6.4 Tyre pressure labels ➥ 2.40 ➥ 4.11...
  • Page 10 THE ENGINE COMPARTMENT (routine maintenance) Opening the bonnet ➥ 4.2 Brake fluid ➥ 4.8 Coolant level ➥ 4.8 Engine oil filler cap ➥ 4.5 Engine oil dipstick ➥ 4.4 Battery ➥ 4.13 Windscreen washer fluid ➥ 4.8...
  • Page 11 BREAKDOWN RECOVERY Replacing windscreen wiper Puncture: blade(s) ➥ 1.101 Tools ➥ 5.7 Emergency spare wheel ➥ 5.2 Changing a wheel ➥ 5.10 Front towing point ➥ 5.36 Replacing the rear screen wiper blade ➥ 1.106 Replacement of the direc- tion indicator lights ➥ 5.16 Fuses ➥...
  • Page 12 THE LPG VEHICLE Starting/stopping the engine: vehicle with key ➥ 2.4 Starting, stopping the engine: vehicle with card ➥ 2.6 Trip computer ➥ 2.20 GPL Command ➥ 2.20  LPG filling ➥ 1.108 0.10...
  • Page 13 Sections Getting to know your vehicle ....... Driving ..............Your comfort ............Maintenance ............Practical advice ............ Technical specifications ........Alphabetical index ..........0.11...
  • Page 14 0.12...

  • Page 15: Table Of Contents

    Section 1: Getting to know your Vehicle Key, radio frequency remote control: general information, use, deadlocking ....Card: general information, use, deadlocking ......... . . Opening and closing the doors .
  • Page 16 KEY, RADIO FREQUENCY REMOTE CONTROL: general information (1/2) Driver’s responsibility when parking or stopping the vehicle Never leave an animal, child or adult who is not self-suffi- cient alone on your vehicle, even for a short time. They may pose a risk to themselves or to others by starting the engine, 1 Locks all the opening elements.
  • Page 17 KEY, RADIO FREQUENCY REMOTE CONTROL: general information (2/2) Radio frequency remote control operating range This varies according to the surround- ings: take care not to lock or unlock the doors by inadvertently pressing the but- tons on the remote control. Replacement and additional keys Note: if a door or the boot is open or not or remote controls.
  • Page 18 RADIO FREQUENCY REMOTE CONTROL: use Unlocking the doors The remote control A can be used to lock or unlock the doors and boot. It is Pressing button 2 unlocks the doors powered by a battery which can be re- and tailgate. placed.
  • Page 19 RADIO FREQUENCY REMOTE CONTROL UNIT: deadlocking To activate deadlocking Press button 1 twice in quick succes- sion. Locking is confirmed by two slow flashes and three quick flashes of the hazard warning lights and side indica- tor lights. Depending on the vehicle, the door mir- rors fold in automatically when the vehi- cle is locked ➥...
  • Page 20 CARD: general information (1/3) Battery life Make sure that the correct battery type is being used, and that the battery is in good condition and inserted correctly. Its service life is approximately two years: it should be replaced when the message “Keycard Battery Low”...
  • Page 21 CARD: general information (2/3) Interference Interference by factors in the immediate vicinity (external installations or the use Advice of equipment operating on the same frequency as the card) may disrupt its Avoid leaving the card in hot, cold or operation. humid areas.
  • Page 22 CARD: general information (3/3) Fitting a strap 7 Insert the strap into the 8 component and pass the end of the strap through Slide the rear casing 5 downwards the buckle. while pressing on zone A. Position the strap at the 6 opening and close the cartridge.
  • Page 23 “HANDS-FREE” CARD: use (1/4) Deactivating/activating the «hands-free» mode Depending on the vehicle, you can de- Never leave your vehicle activate/activate: with the card inside. – unlocking when approaching and locking when moving away from the vehicle; Driver’s responsibility – locking and unlocking by pressing on when parking or stopping the buttons on the door handle.
  • Page 24 “HANDS-FREE” CARD: use (2/4) Hands-free unlocking, when Hands-free locking when If the card has been within the detec- tion area 3 for approximately 15 min- approaching the vehicle; moving away from the utes, remote locking is disabled. To lock vehicle With the card in access zone 3, the ve- the vehicle, press the 5 button on the hicle will unlock.
  • Page 25 “HANDS-FREE” CARD: use (3/4) The hazard warning lights flash twice to indicate that the vehicle is locked and, depending on the vehicle, the door mirrors automatically fold in. Special features of the unlocking system Under certain circumstances, approach unlocking is deactivated: –...
  • Page 26 “HANDS-FREE” CARD: use (4/4) Locking using the card With the doors and boot closed, press button 5: the vehicle locks. The hazard warning lights flash twice to indicate that the vehicle is locked and, depending on the vehicle, the door mirrors automatically fold in.
  • Page 27 “HANDS-FREE” CARD: DEADLOCKING To activate deadlocking Press button 2 twice in quick succes- sion. Locking is confirmed by two slow flashes and three quick flashes of the hazard warning lights and side indica- tor lights. Depending on the vehicle, the door mir- rors fold in automatically when the vehi- cle is locked ➥...

  • Page 28: Opening And Closing The Doors

    OPENING AND CLOSING THE DOORS (1/2) Opening the doors from the Opening from the inside Rear doors outside With the doors unlocked or the card on Pull handle 3. you, hold the 2 handle and pull towards Depending on the vehicle, it may be Front doors you.
  • Page 29 OPENING AND CLOSING THE DOORS (2/2) Lights-on reminder buzzer If you have switched off the ignition and left the lights switched on, a re- minder buzzer will sound when a door is opened. Door/tailgate open buzzer Driver’s responsibility when parking or stopping When the vehicle is stationary, the the vehicle warning light appears on the instrument...
  • Page 30 LOCKING, UNLOCKING THE DOORS (1/4) If the remote control or, depending on the vehicle, the card does not work In some cases, the radio frequency remote control or the card may not work: – card or radio frequency remote con- trol battery worn or run flat, vehicle battery flat etc;...
  • Page 31 LOCKING, UNLOCKING THE DOORS (2/4) Using the key integrated in Vehicles with key/remote the card control – Pull handle 3; Using the key – press the cover B on the driver’s – Pull handle 3; door down; – press the cover B on the driver’s –...
  • Page 32 LOCKING, UNLOCKING THE DOORS (3/4) Locking the doors manually Interior locking/unlocking door control Turn screw 5 with the door open (using the end of the key) and close the door. Switch 6 controls the doors, the boot and the fuel filler flap simultaneously. This means that the doors are then locked from the outside.
  • Page 33 LOCKING, UNLOCKING THE DOORS (4/4) Door and tailgate status Locking the opening indicator elements without the card or the key When the ignition is on, the 6 switch warning light indicates the locking For example, in the event of a dis- status of the opening elements: charged battery or the card or key tem- porarily not working etc.

  • Page 34: Automatic Locking When Driving

    AUTOMATIC LOCKING WHEN DRIVING Operating faults NB: if a door is opened or closed, it will automatically lock again when the If you experience an operating fault vehicle reaches a speed of 6 mph (10 (no central locking, the indicator light 1 km/h).
  • Page 35 FRONT SEATS (1/2) After making adjustments, make sure that the seat- backs are correctly locked in place. Adjusting the seat position Adjusting the seatback For safety reasons, carry To move the seat forwards or back To tilt the seatback adjustments when the vehicle is not Move the 1 switch forwards or back- Activate the 2 switch forwards or back-...
  • Page 36 FRONT SEATS (2/2) Central armrest 6 Heated seats Operating faults (depending on the vehicle) When an operating fault is detected, With the ignition on: the warning light of the 8 switch for the To adjust the position of the central arm- –...

  • Page 37: Seat Belts

    SEAT BELTS (1/5) Adjusting your driving Always wear your seat belt when trav- elling in your vehicle. You must also position comply with the legislation of the par- – Sit well back in your seat (having ticular country you are in. first removed your coat or jacket).
  • Page 38 SEAT BELTS (2/5) Locking – move the shoulder strap 1 as close as possible to the base of the neck Unwind the belt slowly and smoothly without it actually resting against it and ensure that buckle 3 locks into (if necessary, adjust the height of the catch 5 (check that it is locked by pull- seat belt if available) and make sure ing on buckle 3).
  • Page 39 SEAT BELTS (3/5) ß Driver’s seat belt reminder It is accompanied by the 6 symbol which and, depending on the vehi- appears for approximately 60 seconds cle, front passenger seat belt re- each time one of the rear seat belts is minder fastened or unfastened.
  • Page 40 SEAT BELTS (4/5) Adjusting the height of the Rear side seat belts 8 Rear centre seat belt front seat belts The belts are locked, unlocked and Slowly unwind belt 9. adjusted in the same way as the front Use button 7 to adjust the seat belt Click buckle 10 into black catch 11.
  • Page 41 SEAT BELTS (5/5) The following information applies to the vehicle’s front and rear seat belts. – No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer. –...
  • Page 42 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6) Depending on the vehicle, they will con- – Have the entire restraint sist of: system checked following – seat belt inertia reel pretension- an accident. ers; – No operation whatso- –...
  • Page 43 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6) Load limiter driver and passenger front Airbags Above a certain severity of impact, this mechanism is used to limit the force of Fitted to the driver and passenger the belt against the body so that it is at sides.
  • Page 44 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6) Operating faults å This warning light comes on when the engine is started and then goes out after approximately three sec- onds. If it does not come on when the ignition is switched on or if it stays on, there is a fault in the system.
  • Page 45 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6) The following conditions will trigger In a frontal impact with another vehi- In a side impact with another vehicle the pretensioners or airbags. cle of an equivalent or higher category, of an equivalent or higher category, at with an impact area equal to or greater an impact speed equal to or greater...
  • Page 46 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6) In the following examples, the pre- In the following examples, there is a – side impact to the front or rear of the tensioners or the airbags could op- risk that pretensioners orairbags may vehicle;...
  • Page 47 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6) All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent the risk of serious injuries caused by items which may be dislodged when it inflates. Warnings concerning the driver’s airbag –...
  • Page 48 METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS Depending on the vehicle, they will con- – Have the entire restraint sist of: system checked following – side seat belt inertia reel preten- an accident. sioners; – No operation whatso- –...
  • Page 49 SIDE PROTECTION DEVICES Side Airbag This airbag may be fitted to each of the front seats and is activated at the sides of the seats (door side) to protect the occupants in the event of a severe side impact. Curtain Airbag This is an airbag fitted (depending on the vehicle) along the upper sides of the vehicle –...

  • Page 50: Additional Methods Of Restraint

    ADDITIONAL METHODS OF RESTRAINT All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent the risk of serious injuries caused by items which may be dislodged when it inflates. The airbag is designed to complement the action of the seat belt.

  • Page 51: Child Safety: General Information

    CHILD SAFETY: General information (1/2) Carrying children Please ensure that you comply with the legislation of your country. Children, and adults, must be correctly seated and strapped in for all journeys. The children being carried in your vehi- cle are your responsibility. Driver’s responsibility A child is not a miniature adult.
  • Page 52 CHILD SAFETY: General information (2/2) Using a child seat Before fitting a child seat, read the manual and respect its instructions. If The level of protection offered by the you experience any difficulties during child seat depends on its ability to re- installation, contact the manufacturer strain your child and on its installation.
  • Page 53 CHILD SAFETY: choosing a child seat Rear-facing child seats Forward-facing child seats Booster cushions A baby’s head is, proportionally, heavier Up to 18 kg or 4 years, the child may From 15 kg or 4 years, the child can than that of an adult and its neck is very travel on a forward-facing seat.

  • Page 54: Choosing A Child Seat Mounting

    CHILD SAFETY: choosing a child seat mounting (1/3) There are two ways of attaching child Attachment via the seat belt seats: via the seat belt or using the The seat belt must be adjusted to ISOFIX system. ensure that it is effective in the event of harsh braking or an impact.
  • Page 55 CHILD SAFETY: choosing a child seat mounting (2/3) Attachment using the ISOFIX Attach the child seat with the ISOFIX system locks, if these are provided. The ISOFIX system allows quick, easy, safe fitting. Approved child seats ISOFIX are stand- ardised in accordance with current reg- The ISOFIX system consists of 2 rings ulations if any of the four cases below and, in some cases, a third ring.
  • Page 56 CHILD SAFETY: choosing a child seat mounting (3/3) The ISOFIX anchorage points have been exclu- sively designed for child seats with the ISOFIX system. Never fit a different type of child seat, seat belt or other objects to these anchorage points. Check that nothing is obstructing the anchorage points.

  • Page 57: Fitting A Child Seat, General Information

    CHILD SAFETY: fitting a child seat, general information (1/2) Some seats are not suitable for fitting The types of child seat indicated may After installing the child seat, when this child seats. The diagram on the follow- not be available. Before using a differ- is possible, you can move the vehi- ing page shows you how to attach a ent child seat, check with the manufac-...
  • Page 58 CHILD SAFETY: fitting a child seat, general information (2/2) In the rear side seat Always remove the headrest from the rear seat on which the child seat is A carrycot can be installed across the positioned. ➥ 3.34. If necessary, posi- vehicle and will take up at least two tion the rear seat as far back as pos- seats.
  • Page 59 CHILD SEATS: attachment by seat belt (1/3) Fitting diagram ³ Check the status of the airbag before fitting a child seat or allowing a passenger to use the seat. ² Seat not suitable for fitting child seats. Child seat attached using the belt ¬...
  • Page 60 CHILD SEATS: attachment by seat belt (2/3) The table below summarises the information already shown on the diagram on the previous page, to ensure the regula- tions in force are respected. Five-seater version Front passenger seat Rear side Rear centre Type of child seat Weight of the child seats...
  • Page 61 CHILD SEATS: attachment by seat belt (3/3) X = Seat not suitable for fitting child seats of this type. U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted. B2 = Booster seats in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).
  • Page 62 CHILD SEATS: fitted using the ISOFIX SYSTEM (1/3) The table below summarises the information already shown in the diagram on the following pages, to ensure the appli- cable regulations are respected. Front passenger seat Weight of Seat size Rear side Rear centre Type of child seat Without airbag...
  • Page 63 CHILD SEATS: fitted using the ISOFIX SYSTEM (2/3) X = Seat not suitable for fitting child seats of this type. IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at- tached using the ISOFIX system; check that it can be fitted. i-U = Suitable for “universal”...
  • Page 64 CHILD SEATS: fitted using the ISOFIX SYSTEM (3/3) ² Fitting diagram Seat which does not allow a child seat to be fitted. Child seat fitted using the ISOFIX mounting  Seat which allows an ISOFIX child seat to be fitted. ±...
  • Page 65 CHILD SAFETY: deactivating, activating AIRBAG front passenger (1/3) The passenger airbag may only be activated or deacti- vated when the vehicle is stationary, with the igni- tion off. If it is interfered with when the ve- hicle is being driven, indicator lights å...
  • Page 66 CHILD SAFETY: deactivating, activating AIRBAG front passenger (2/3) The markings on the dashboard and labels A on each side of the passen- ger sun visor 3 (example: label shown above) remind you of these instruc- tions. DANGER Since operation of the front passenger airbag is not compatible with the po- sition of a rear-facing child seat,...
  • Page 67 CHILD SAFETY: deactivating, activating AIRBAG front passenger (3/3) Operating faults It is forbidden to fit a rear-facing child seat to the front passenger seat if the airbag activation/deactivation system is faulty. Allowing any other passenger to sit in that seat is not recommended. Contact your approved dealer as soon as possible.

  • Page 68: Driving Position

    DRIVING POSITION: LEFT-HAND DRIVE (1/2) 1.54...

  • Page 69: Instrument Panel

    DRIVING POSITION: LEFT-HAND DRIVE (2/2) The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY. 1 Side air vents. 12 Controls for: 20 Charging zone/telephone storage. 2 Stalk for: – front seat heating; 21 Accessories socket. – direction indicator lights; –...
  • Page 70 DRIVING POSITION: RIGHT-HAND DRIVE (1/2) 11 12 1.56...
  • Page 71 DRIVING POSITION: RIGHT-HAND DRIVE (2/2) The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY. 14 LPG control. 1 Side air vents. 8 Main switch and controls for the 2 Passenger airbag location. Cruise control/speed limiter, adap- 15 Automatic gearbox paddles. 3 Heating or air conditioning con- tive cruise control and “Lane 16 Control for adjusting steering...
  • Page 72 WARNING LIGHTS (1/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Instrument panel A, B or C : it illumi- In some cases, the appearance of a nates when the ignition is switched on. warning light is accompanied by a mes- Press or lift the 1 switch as many times sage on the instrument panel.
  • Page 73 WARNING LIGHTS (2/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. š å Side light warning light Indicator lightairbag Brake circuit fault warning light It lights up when the ignition or á Main beam headlight tell- the engine is switched on and goes off It lights up when the ignition or the tale...
  • Page 74 WARNING LIGHTS (3/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. À Oil pressure warning light Warning light If you fail to follow this recommenda- © It lights up when the ignition or tion, you risk damaging your vehicle. This lights up when the igni- the engine is switched on and goes off tion or engine is switched on and goes...
  • Page 75 WARNING LIGHTS (4/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. É Anti-lock braking warning Preheating warning light If the light becomes orange while driv- light (Diesel version) ing and a beep sounds, fill up with fuel as soon as possible.
  • Page 76 WARNING LIGHTS (5/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Ô Ð  Coolant temperature warn- Speed limiter warning light Assisted parking brake fault ing light ➥ 2.94 light ➥ 2.147 Ï  This lights up blue when you switch on Cruise control warning light Overspeed warning light the ignition or start the engine.
  • Page 77 WARNING LIGHTS (6/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. ß Seat belt reminder warning lights ➥ 1.23 On display D  Passenger Airbag ON ➥ 1.51 ¹ Passenger Airbag OFF ➥ 1.51 1.63...

  • Page 78: Displays And Indicators

    DISPLAYS AND INDICATORS (1/7) Instrument panel A Rev counter 2 Total mileage recorder 4 ➥ 1.75 (graduations x 1000) It lights up when the ignition is switched Trip computer 5 ➥ 1.71 Depending on the selected customisa- on. In some cases, the appearance of a tion, it may not be displayed.
  • Page 79 DISPLAYS AND INDICATORS (2/7) Coolant temperature indicator 9 Fuel gauge 10 In normal use, indicator 9 should be If the level is at the minimum, warn- before area 8. Under “intensive” oper- ing light integrated in the indica- ating conditions, the needle may ap- tor comes on orange, accompanied by proach this zone.
  • Page 80 DISPLAYS AND INDICATORS (3/7) Instrument panel B Coolant temperature indicator 11 Overspeed buzzer Depending on the vehicle and coun- In normal use, indicator 11 should be It lights up when the ignition is switched  before area 12. Under “intensive” op- on.
  • Page 81 DISPLAYS AND INDICATORS (4/7) Multimedia information 16 Fuel gauge 20 Depending on the vehicle, you can dis- If the level is at the minimum, warn- play information from the multimedia screen (the compass, telephone, navi- ing light integrated in the indica- gation, etc.).

  • Page 82: Trip Computer 24

    DISPLAYS AND INDICATORS (5/7) Instrument panel C Rev counter 21 Trip computer 24 (graduations x 1000) ➥ 1.71 It lights up when the ignition is switched on. In some cases, the appearance of a Coolant temperature indicator 23 Estimated mileage with remaining warning light is accompanied by a mes- fuel 25 In normal use, the indicator 23 should...
  • Page 83 DISPLAYS AND INDICATORS (6/7) Fuel gauge 29 If the level is at the minimum, warn- ing light integrated in the indica- tor comes on orange, accompanied by a beep. Fill up as soon as possible. Speedometer 28 Driving style indicator 27 ➥ 2.30 Overspeed buzzer Depending on the vehicle and coun- ...
  • Page 84 DISPLAYS AND INDICATORS (7/7) Instrument panel in miles (option to switch to km/h) Vehicles not fitted with a multimedia screen – With the ignition off, press the 31 switch as many times as required to reach the vehicle tab 34; –...
  • Page 85 TRIP COMPUTER: general information (1/4) Trip computer A, B or C Depending on the vehicle, this includes the following functions: – distance travelled; – journey settings; – information messages; – operating fault messages (con- © nected to the warning light); –...
  • Page 86 TRIP COMPUTER: general information (2/4) Vehicle fitted with Ainstrument panel The functions will be distributed in zones 5, 6, 7, and 8. The location of the zones differs depending on the style selected. Press the 1 switch to browse between areas 5 and 6, then select the functions by pressing the 2 or 3 switch repeat- edly.
  • Page 87 TRIP COMPUTER: general information (3/4) Vehicle fitted with Binstrument Vehicle fitted with Cinstrument panel panel The functions will be distributed in Press the switch 1 as many times as re- zones 5, 6, 7, and 8. quired to reach the “Vehicle” tab. Press switch 1 to browse between the Press repeatedly using control 2 or 3, zones and select the functions by re-...
  • Page 88 TRIP COMPUTER: general information (4/4) Interpreting some of the Selections (the display depends on the vehicle values displayed after equipment and country) resetting a) Trip log, operating faults and infor- The values showing average fuel con- mation message readout; sumption, range and average speed b) Journey settings: will become more stable and reliable –...
  • Page 89 TRIP COMPUTER: journey parameters (1/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected a) Trip log. Successive display: Vehicle Systems OK – information messages (passenger airbag OFF etc.); –...
  • Page 90 TRIP COMPUTER: journey parameters (2/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected Average LPG d) Average LPG fuel consumption. –-.- L/100 Range LPG Estimated range with remaining LPG fuel. –-- km Distance LPG Distance travelled on LPG fuel since the last reset.
  • Page 91 TRIP COMPUTER: journey parameters (3/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected Tyre pressure init. d) Reset the tyre pressure. long press ➥ 2.40 e) Setting the time. 16:30 ➥...
  • Page 92 TRIP COMPUTER: journey parameters (4/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected On-board computer with mileage- before-service message f) Mileage before service and oil change. Mileage before service Service in With the ignition on and engine not running, access the “Mileage 30 000 km / 12 months...
  • Page 93 TRIP COMPUTER: journey parameters (5/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected On-board computer with distance before next service message (cntd.) f) Mileage before service or oil change. Mileage before service Oil change in With the ignition on and the engine not running, access the mileage...
  • Page 94 TRIP COMPUTER AND WARNING SYSTEM: information messages These can help in the vehicle starting phase, or give information about a selection or a driving status. Examples of information messages are given in the following pages. Examples of messages Interpreting the display selected “Parking Brake ON”...
  • Page 95 TRIP COMPUTER AND WARNING SYSTEM: operating fault messages © These appear with the warning light and mean that you should drive very carefully to an authorised dealer as soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle. They disappear when the display selection key is pressed or after several seconds and are stored in the computer log.
  • Page 96 TRIP COMPUTER AND WARNING SYSTEM: warning message ® These appear with the warning light and require you to stop immediately, for your own safety, as soon as traffic conditions allow. Stop your engine and do not restart it. Contact an approved Dealer. Examples of warning messages are given in the following pages.
  • Page 97 VEHICLE SETTINGS CUSTOMISATION MENU (1/3) Adjusting the settings d) “Welcome”: – External welcome; Select a menu then the function to be – Automatic fold-out of mirrors; modified (the display depends on the – Interior welcome; vehicle equipment and country): – Courtesy light auto mode. a) “Driving”: Depending on the function, select: –...
  • Page 98 VEHICLE SETTINGS CUSTOMISATION MENU (2/3) Adjusting the settings d) “DRIVING ASSIST”: – Lane departure warning sound Navigate using the 4 or 5 control to volume; select the function to be modified and – Lane departure warning sensitiv- press 6 “OK” to confirm (display may ity;...
  • Page 99 VEHICLE SETTINGS CUSTOMISATION MENU (3/3) To exit the menu, press 4 or 5 to access “BACK” and confirm by pressing 6 “OK”. It may be necessary to carry out this operation more than once. Once a line has been selected, press 6 “OK”...
  • Page 100 CLOCK AND EXTERIOR TEMPERATURE (1/2) Vehicles fitted with a multimedia Vehicles not fitted with a multimedia Set the hour using the 3 or 4 control, screen screen then wait for three seconds: the min- utes will flash. The time and exterior temperature are Press the switch 2 as many times as re- displayed on the multimedia screen 1.
  • Page 101 CLOCK AND EXTERIOR TEMPERATURE (2/2) External temperature indicator Depending on the vehicle, If the Special note: electrical supply is cut (battery dis- connected, broken supply wire, When the external temperature is be- etc.), the clock will automatically tween -3°C and +3°C, the °C symbols go back to the right time after a few flash (indicates risk of ice).

  • Page 102: Steering Wheel, Power-Assisted Steering

    STEERING-WHEEL, POWER-ASSISTED STEERING (1/2) Activating the function With the ignition on, press the switch 3, the warning light integrated in the switch lights up. Deactivating the function - Automatic: The function switches off automatically after the regulation phase of approxi- mately 30 minutes.
  • Page 103 STEERING-WHEEL, POWER-ASSISTED STEERING (2/2) Power-assisted steering Note: the power-assisted steering de- pends on the driving mode selected in Never drive with an inadequately the “MULTI-SENSE” menu (➥ 3.2). charged battery. Variable power-assisted steering The variable power assisted steering system is equipped with an electronic control system which alters the level of assistance to suit the vehicle speed.

  • Page 104: Rear View Mirrors

    REAR VIEW MIRRORS (1/2) Electrical folding mirrors Special case The door mirrors will fold-out automati- When the rear view mirror has been cally when the vehicle is unlocked. The manually deployed or folded back, it is door mirrors fold in when the vehicle is possible to reset it to a usage position.
  • Page 105 REAR VIEW MIRRORS (2/2) Interior rear view mirror Its position can be adjusted. For safety reasons, carry Rear view mirror with lever 4 out any adjustments when the vehicle is not being When driving at night, to avoid being driven. dazzled by the headlights of the vehicle behind, depress the little lever located behind rear view mirror 4.
  • Page 106 FRONT HEADRESTS To raise the headrest Raise it to its highest position (tilt the seatback backwards if necessary). Press button 2 and lift the headrest to release it. To refit the headrest Check that the headrest rods are clean 3. Insert the headrest rods into the holes 1 (tilt the seatback backwards if neces- sary).

  • Page 107: Exterior Lighting And Signals

    EXTERIOR LIGHTING AND SIGNALS (1/6) Depending on the vehicle, the dipped beam headlights will appear automati- cally after several sweeps of the wind- screen wiper blades. Side lights Dipped beam š headlights Turn ring 2 until the symbol is Manual operation opposite mark 3.
  • Page 108 EXTERIOR LIGHTING AND SIGNALS (2/6) During deactivation of the main beam The main beam headlights come on au- headlights, the dipped beam headlights tomatically if: return to their original position. – exterior light is weak; – no other vehicles or lighting are de- tected;...
  • Page 109 EXTERIOR LIGHTING AND SIGNALS (3/6) Operating faults When the message “Check Automatic Lighting” appears on the instrument panel, the system is deactivated. Consult an approved dealer. Using the portable naviga- tion system at night in the windscreen area below the ...
  • Page 110 EXTERIOR LIGHTING AND SIGNALS (4/6) Lights-on reminder buzzer Welcome and goodbye function If the lights are on after the engine is (depending on the vehicle) switched off, a warning beep sounds when the driver’s door is opened to Once the function is activated, the day- warn you that the lights are still on.
  • Page 111 EXTERIOR LIGHTING AND SIGNALS (5/6) With the engine and lights switched off, the 2 ring in AUTO position (or, de- pending on the vehicle, in 0 position) pull the stalk 1 towards you: the side lights and dipped beam headlights will switch on for approximately 30 seconds š...
  • Page 112 EXTERIOR LIGHTING AND SIGNALS (6/6) Switching off the lights Turn the centre ring 4again until the 3 symbol is opposite the symbol for the fog lights. The corresponding indicator light on the instrument panel goes out. The rear fog lights switch off when the exterior lights are switched off.

  • Page 113: Audible And Visual Signals

    AUDIBLE AND VISUAL SIGNALS Direction indicators Move the stalk 1 in the same direc- tion as you want to move the steering wheel. One-touch mode Briefly shift the stalk 1 upwards or downwards, not exceeding the point of resistance, then release it: the stalk will return to its original position and the direction indicator light concerned will flash three times.

  • Page 114: Headlight Beam Adjustment

    HEADLIGHT BEAM ADJUSTMENT Examples of positions for adjusting control A according to the load Driver alone or with front passenger All seats occupied Switch A is used to adjust the height of Driver with passengers and luggage the headlight beams according to the (or load) reaching the maximum load.
  • Page 115 WINDSCREEN WASH, WIPE (1/5) Vehicle fitted with intermittent Special note windscreen wipers When driving the vehicle, the wiping speed slows down whenever the vehi- A single sweep cle stops. A short push will trigger one sweep For example, fast wiping speed will of the wipers.
  • Page 116 WINDSCREEN WASH, WIPE (2/5) When activating automatic wiping or when increasing sensitivity, one sweep of the blades is performed. Note: – the rain sensor is only intended as a driving aid. In the event of reduced visibility, the driver should manually activate the wipers.
  • Page 117 WINDSCREEN WASH, WIPE (3/5) Operating faults Special note When driving the vehicle, the wiping In the event of a malfunction of the au- tomatic wiping, the wiper is set to inter- speed slows down whenever the vehi- mittent wiping. cle stops. Call an approved Dealer.
  • Page 118 WINDSCREEN WASH, WIPE (4/5) Specific front wiper position (service position) This position enables the blades to be lifted to remove them from the winds- creen. It may be useful to: – to clean the blades; – to release the blades from the wind- screen in winter;...
  • Page 119 WINDSCREEN WASH, WIPE (5/5) Note: in temperatures below zero, the washer liquid may freeze on the wind- screen, reducing visibility. Heat the windscreen using the demister control before cleaning. Efficiency of a wiper blade Check the condition of the wiper blades.
  • Page 120 REAR SCREEN WASHER, WIPER (1/2) To stop the operation, pivot ring 3 again. Note: When washing using a roller type car wash, return the ring 3 on the stalk 1 to the stop position to deactivate auto- matic wiping. Efficiency of a wiper blade Follow usage recommendations.
  • Page 121 REAR SCREEN WASHER, WIPER (2/2) Activation/deactivation of the rear In the event of obstacles present on the screen wiper rear window (dirt, snow, etc.), the wiper will try to sweep away all the obstacles. Engaging reverse gear triggers inter- If an obstacle prevents the blade from mittent wiping (if the front wipers are in moving, it can be stopped.

  • Page 122: Fuel Tank (Filling With Fuel)

    FUEL TANK (1/5) Fuel grade Use a high-grade fuel that complies with the legislation in force in each country and which must comply with the specifications given on the label on the cover 1. ➥ 6.6. Fuel types that conform to European standards with which the engines of vehicles sold in Europe are compat- ible: refer to the table ➥...
  • Page 123 FUEL TANK (2/5) Filling with fuel If it is not possible to add at least 1.10 gallons (5 litres) of fuel due to the With the ignition off, insert the nozzle fuel level in the tank, drive the vehicle and insert it fully before turning it on to until the tank has capacity.
  • Page 124 FUEL TANK (3/5) Vehicles with card With the card in the passenger com- No modifications what- partment, press the start button 4 with- soever are permitted on out pressing any of the pedals. Wait a any part of the fuel supply few minutes before starting.
  • Page 125 FUEL TANK (4/5) Useable capacity of the LPG tank: ap- proximately 7.04 gallons (32 litres). Filling up with LPG Apply the parking brake, stop the engine, switch off the ignition and switch off the lights. Always respect the safety instructions given at filling stations.
  • Page 126 FUEL TANK (5/5) Depending on the type of station, it may be necessary to perform press and hold the station button before filling will start. When the pump stops supplying LPG, or when the pump flow reduces sig- nificantly, the maximum tank level has been reached.

  • Page 127: Reagent Tank

    REAGENT TANK (1/4) Please ensure that you comply with the legislation of your country. It is impor- tant to remember that failure to respect regulations in force could lead to legal action being taken against the vehicle To fill up with reagent, the engine owner.
  • Page 128 REAGENT TANK (2/4) Filling (continued) If the reagent overflows, or contami- nates any paintwork, clean the affected The tank can be filled at the pump. With area quickly with plenty of cold water the ignition off, insert the nozzle fully and a soft cloth.
  • Page 129 REAGENT TANK (3/4) Maintenance/Range The information displayed on the instrument panel may be accompanied by a beep. Indicator Message What to do? lights When the message is displayed when the ignition is switched on, you have less than 1,488 miles (2,400 km) range. –...
  • Page 130 REAGENT TANK (4/4) System faults When the indicator lights light up, this may be accompanied by a beep. Indicator lights Message Readings “Check Anti- Pollution System” Indicates a fault in the system. Contact your approved  “AdBlue quality to check” ©...
  • Page 131 Section 2: Driving Running in ..............Ignition switch .

  • Page 132: Running In

    RUNNING IN Petrol version Diesel version For the first 600 miles (1,000 km), do For the first 930 miles (1,500 km), do not exceed 78 mph (130 km/h) in the not exceed 80 mph (130 km/h) in the highest gear, or 3,000 to 3,500 rpm. highest gear, or 2,500 rpm.

  • Page 133: Ignition Switch

    IGNITION SWITCH: vehicle with key “Ignition” position ON 2 The ignition is switched on: Any acces- sories (radio etc.) can be used. “Start” position START 3 If the engine fails to start at the first attempt, the key must be turned back before the starter can be activated again.

  • Page 134: Starting, Stopping The Engine

    STARTING, STOPPING THE ENGINE: vehicle with key (1/2) Petrol versions Note: on vehicles equipped with a manual gearbox, in the event of engine – Activate the starter without acceler- stalling the message “Press Clutch” will ating; be displayed on the instrument panel. –...
  • Page 135 STARTING, STOPPING THE ENGINE: vehicle with key (2/2) LPG versions The engine is always started using petrol. Driver’s responsibility when parking or stopping the vehicle Never leave an animal, child or adult who is not self-suffi- cient alone in your vehicle, even for a short time.
  • Page 136 STARTING, STOPPING THE ENGINE: vehicle with card (1/6) Note: on vehicles equipped with a manual gearbox, in the event of engine stalling the message “Press Clutch” will be displayed on the instrument panel. Fully press the clutch pedal to restart the engine.
  • Page 137 STARTING, STOPPING THE ENGINE: vehicle with card (2/6) LPG versions The engine is always started using petrol. Driver’s responsibility when parking or stopping the vehicle Never leave an animal, child or adult who is not self-suffi- cient alone in your vehicle, even for a short time.
  • Page 138 STARTING, STOPPING THE ENGINE: vehicle with card (3/6) “Hands-free” starting with Operating faults The message “Place card on zone + START” appears on the instrument the tailgate open In certain cases, the hands-free card panel. may not work: In this case, the card should not be lo- Press the brake or clutch pedal, then cated in the luggage compartment, to –...
  • Page 139 STARTING, STOPPING THE ENGINE: vehicle with card (4/6) If the card is no longer in the passen- When you leave your vehi- ger compartment or if the card’s bat- cle, especially if you have tery is flat, when the vehicle is station- your card with you, check ary and you try to switch the engine off, that the engine is com-...
  • Page 140 STARTING, STOPPING THE ENGINE: vehicle with card (5/6) Note: once the function has been acti- vated, it cannot be deactivated. We advise you to contact an Approved Dealer. Operation To start the engine remotely, press the locking button 8 then within an- other 2 seconds, press the remote start button 6 for approximately 2 seconds.
  • Page 141 STARTING, STOPPING THE ENGINE: vehicle with card (6/6) Remote engine start performance The remote engine start-up operates if: Do not use the engine varies according to surroundings such – the gearbox is in P or N position remote start-up function or on vehicles fitted with an automatic its programming when: –...

  • Page 142: Stop And Start Function

    STOP AND START FUNCTION (1/4) This system enables a reduced fuel The vehicle equipment remain opera- consumption and lower greenhouse – the speed is zero or, depending on tional while the engine is stopped. gas emissions. The system is acti- the vehicle, as soon as the speed is When the engine switches to standby, vated automatically when the vehicle...
  • Page 143 STOP AND START FUNCTION (2/4) Conditions of standby at high Preventing the engine from Conditions for coming out of speed standing by engine standby Depending on the vehicle, standby may In certain situations, such as negotiat- For automatic gearboxes: be activated in freewheel mode ➥ 1.58. ing a crossroads for instance, it is pos- –...
  • Page 144 STOP AND START FUNCTION (3/4) Conditions preventing the For manual gearboxes: – the gradient is too steep for vehicles fitted with an automatic gearbox; standby of the engine – when opening the driver’s door, with- out any gear engaged and the clutch –...
  • Page 145 STOP AND START FUNCTION (4/4) Deactivating, activating the Special feature of the automatic engine re-start function Under certain conditions, the engine Press 1 to deactivate the function. The can restart on its own in order to guar- message “Stop & Start deactivated” ap- antee your safety and comfort.
  • Page 146 SPECIAL FEATURES OF PETROL VERSIONS (1/2) The following operating conditions If you notice any of the above operat- should be avoided: ing faults, have the necessary repairs carried out as soon as possible by an – driving for long periods when the low approved dealer.
  • Page 147 SPECIAL FEATURES OF PETROL VERSIONS (2/2) Particle filter Note: the indicator light may go out If the filter becomes saturated, the © after 20 minutes if the driving condi- warning light and, depending The particle filter is used in the treat- ...
  • Page 148 SPECIAL FEATURES OF DIESEL VERSIONS: PARTICLE FILTER (1/2) Diesel engine speed Precautions to be taken in winter Diesel engines are fitted with an injec- tion pump which prevents the engine To avoid any faults in icy weather: speed being exceeded irrespective of –...
  • Page 149 SPECIAL FEATURES OF DIESEL VERSIONS: PARTICLE FILTER (2/2) Particle filter Note: the warning light may reappear If the filter becomes saturated, the © if the driving conditions are not fully warning light and, depending The particle filter is used in the treat- ...

  • Page 150: Special Features Of Lpg Versions

    SPECIAL FEATURES OF LPG VERSIONS (1/4) Yellow warning light B A constant warning light indicates that petrol mode is active. Fuel gauge warning light A The warning lights A (four green lights and one red light) indicate the level in the LPG tank.
  • Page 151 SPECIAL FEATURES OF LPG VERSIONS (2/4) Starting the engine The engine is always started using petrol. – For vehicles with a key ➥ 2.4. While the fuel tank is empty, the – For vehicles with a card ➥ 2.6. vehicle cannot start or drive in Note: if LPG mode is active when the LPG mode only.
  • Page 152 SPECIAL FEATURES OF LPG VERSIONS (3/4) Changing fuel mode during Operating faults driving (continued) In the event of a fault which may affect the correct operation of the engine, the Automatically switching from LPG system automatically switches from mode to petrol mode LPG to petrol mode.
  • Page 153 SPECIAL FEATURES OF LPG VERSIONS (4/4) If driving under severe conditions cold weather (temperatures below 10°C) and depending on the quality of the gas used, the system may automatically manage the conditions for switching between LPG mode and petrol mode. Note: for vehicles that are equipped, it is recommended that you use the ECO mode in these conditions (particularly...

  • Page 154: Gear Lever, Handbrake

    GEAR LEVER, HANDBRAKE Handbrake To release: Pull the lever 3 up slightly, press button 2 and then lower the lever to the floor. When stationary and de- The warning light on the instru- pending on the slope and/or ment panel will go out. vehicle load, it may be nec- The red warning light on the instrument essary to pull up the hand-...

  • Page 155: Electronic Parking Brake

    ELECTRONIC PARKING BRAKE (1/4) In all other instances, for example the engine has stalled or is in standby due to the Stop and Start ➥ 2.12, the assisted parking brake is not ap- plied automatically. Manual mode must be used. For certain country-specific model versions, the assisted brake ap- plication function is not activated.
  • Page 156 ELECTRONIC PARKING BRAKE (2/4) Assisted operation (continued) Note: in some situations (electronic parking brake failure, manual release of the parking brake, etc.), a beep sounds and the message “WARNING: Apply Parking Brake” appears on the instru- ment panel to warn you that the elec- tronic parking brake has been released.
  • Page 157 ELECTRONIC PARKING BRAKE (3/4) – manually release the electronic park- ing brake (please see the informa- tion on “Manually releasing the elec- tronic parking brake” on the previous page); – depending on the vehicle, the elec- tronic parking brake is applied auto- matically.
  • Page 158 ELECTRONIC PARKING BRAKE (4/4) Versions with an automatic Operating faults gearbox © – If there is a fault, the warning light illuminates on the instrument For safety reasons, automatic release panel accompanied by the “Check is deactivated when the driver’s door Parking Brake”...

  • Page 159: Autohold" Function

    “AUTOHOLD” FUNCTION Vehicle stopped (e.g. at a red light, an Conditions for interrupting the intersection, a traffic jam, etc.), the func- braking force tion ensures braking force even when The following conditions must be met: the driver releases the brake pedal. –...

  • Page 160: Eco-Driving

    DRIVING ADVICE, ECO DRIVING (1/8) Fuel consumption is accredited in ac- Depending on the vehicle, you will have cordance with a standard regulatory various functions which enable you to method. lower your fuel consumption: Identical for all manufacturers, this ena- –...
  • Page 161 DRIVING ADVICE, ECO DRIVING (2/8) On the instrument panel A, B Gear change indicator 1 or C Depending on the vehicle, to obtain op- timum consumption levels, a warning Depending on the vehicle, the informa- light on the instrument panel lets you tion display can be organised and cus- know the best time to move up or down tomised based on the instrument panel...
  • Page 162 DRIVING ADVICE, ECO DRIVING (3/8) Driving style indicator 2 Informs you about the driving style adopted in real time. This is shown by indicator light 2. The more petals displayed on 2, the more your driving is flexible and eco- nomical.
  • Page 163 DRIVING ADVICE, ECO DRIVING (4/8) Acceleration indicator Eco 3 This informs you in real time whether you are accelerating moderately or strongly. This is shown by the 3 warning light: – green: acceleration is moderate and correct; – white: acceleration is too high; –...
  • Page 164 DRIVING ADVICE, ECO DRIVING (5/8) An overall rating from 0 to 100 is dis- played to let you assess your eco driv- ing performance. The higher the rating, the lower the fuel consumption. Eco advice is given to help improve your performance.
  • Page 165 DRIVING ADVICE, ECO DRIVING (6/8) ECO mode Free-wheel function ECO mode is a function which opti- Depending on the vehicle, for vehicles mises fuel consumption. fitted with an automatic gearbox, in the deceleration phases (with the foot fully It affects certain driving operations (ac- off the accelerator pedal), switching to celeration, shifting gears, cruise con- freewheeling (automatic neutral) de-...
  • Page 166 DRIVING ADVICE, ECO DRIVING (7/8) – High speeds significantly affect the – Do not try to maintain the same vehicle’s fuel consumption. speed up a hill, accelerate no more than you would on flat ground. Keep Examples (at a steady speed): your foot in the same position on the –...
  • Page 167 DRIVING ADVICE, ECO DRIVING (8/8) – On vehicles equipped with non-au- tomatic air conditioning, switch off the air conditioning when it is not re- quired. Advice for reducing consumption and therefore helping to preserve the environment: If the vehicle has been parked in the sun, open the doors for a few mo- ments to let the hot air escape before starting the engine.

  • Page 168: Maintenance And Antipollution Advice

    MAINTENANCE AND ANTIPOLLUTION ADVICE Your vehicle complies with criteria for In addition, replacing engine, fuel – Air filter, fuel filter: a choked ele- recycling and recovering vehicles at the supply system and exhaust compo- ment will reduce efficiency. It must end of their service life, which entered nents with parts other than those origi- be replaced.

  • Page 169: Environment

    ENVIRONMENT Emissions Your vehicle has been designed with – At the end of the vehicle’s service respect for the environment in mind for life, it should be sent to approved Your vehicle has been designed to emit its entire service life: during production, centres to ensure that it is recycled.

  • Page 170: Tyre Pressure Loss Warning

    TYRE PRESSURE LOSS WARNING (1/6) When fitted to the vehicle, this system Operating principle notifies the driver if one or more tyres This system detects a loss of pressure lose pressure. in one of the tyres by measuring the The system can be identified by the 1 wheel speed while driving.
  • Page 171 TYRE PRESSURE LOSS WARNING (2/6) Operating conditions Resetting the standard level – significant change in load or distribu- tion of load on one side of the vehi- for the tyre pressures The system should be reset with a cle; pressure equal to that stated on the tyre This should be done: –...
  • Page 172 TYRE PRESSURE LOSS WARNING (3/6) Tyre pressure init. long press Resetting procedure – briefly press the 3 or 4 switch to reach the “Tyre pressure init. long Ignition on, vehicle stopped: press” page; – for vehicles fitted with a type A or C –...
  • Page 173 TYRE PRESSURE LOSS WARNING (4/6) The table below shows the possible messages related to the tyre resetting procedure. Steps Messages Readings – Tyre pressure init. at stop The message is displayed during driving. If you want to reset the pressure of the four tyres, stop the vehicle.
  • Page 174 TYRE PRESSURE LOSS WARNING (5/6) Readjustment of tyre After each change of wheel/tyre, read- just the tyre pressure and launch the pressures reset of the tyre pressure reference The pressure of the four tyres must value. be set when cold (refer to the label lo- cated on the edge of the driver’s door).
  • Page 175 TYRE PRESSURE LOSS WARNING (6/6) The information on the instrument panel signals any potential tyre pressure faults (e.g. deflated or punctured tyre). Indicator Messages Readings lights This indicates that tyre under-inflation or puncture has been detected.  Inflate tyres and init. Check and adjust the pressure of the four tyres when cold and reset the system.
  • Page 176 DRIVING CORRECTION DEVICES AND AIDS (1/5) Anti-lock braking system Depending on the vehicle, this is com- posed of: (ABS) – anti-lock braking system (ABS); Under heavy braking, the ABS prevents the wheels from locking, allowing the – electronic stability program (ESC) stopping distance to be managed and with understeer control and trac- keeping control of the vehicle.
  • Page 177 DRIVING CORRECTION DEVICES AND AIDS (2/5) Operating faults: © – lit up on the in- strument panel accompanied by the messages “Check ABS”, “WARNING: Check Braking System” and “Check ESC”: this indicates that the ABS, the ESC and the emer- gency brake assist are disabled.
  • Page 178 DRIVING CORRECTION DEVICES AND AIDS (3/5) Electronic stability program Understeer control In some situations (driving on very wet ground: snow, mud, etc. or driving with (ESC) with understeer control This system optimises the action of the snow chains fitted), the system may and traction control ESC in the case of pronounced under- reduce the engine output to limit wheel-...
  • Page 179 DRIVING CORRECTION DEVICES AND AIDS (4/5) Emergency brake assist Braking anticipation Depending on the vehicle, when you This system supplements the ABS rapidly release the accelerator, the and helps reduce vehicle stopping dis- system anticipates the braking ma- tances. noeuvre in order to reduce stopping Operating principle distances.
  • Page 180 DRIVING CORRECTION DEVICES AND AIDS (5/5) Hill start assistance Depending on the gradient of the in- cline, this system assists the driver when starting on a hill. It prevents the vehicle from rolling backwards by au- The hill start assistance tomatically applying the brakes when system cannot completely the driver lifts his/her foot off the brake...

  • Page 181: Lane Departure Warning

    LANE DEPARTURE WARNING (1/5) Location of the camera 1 Make sure the windscreen is not ob- scured (dirt, mud, snow, condensation etc.). Using information from the 1 camera, the function warns the driver when a continuous or broken line is crossed or when approaching the roadside (di- vider, barrier, pavement, embankment, etc.) without the direction indicator...
  • Page 182 LANE DEPARTURE WARNING (2/5) Operation When the function is activated, the  warning light and the left and right lines 3 are displayed in grey on the instrument panel. The function is set to notify the driver if: – speed is between approximately 43 mph (70 km/h) and 112 mph (180 km/h);...
  • Page 183 LANE DEPARTURE WARNING (3/5) Temporarily not available Conditions for non-activation of the system – very fast lane departure; The system cannot be activated when: – driving continuously on a line; – reverse gear is engaged; – four seconds approximately after changing lanes;...
  • Page 184 LANE DEPARTURE WARNING (4/5) Operating faults – press control 6 or 7 repeatedly to reach the “DRIVING ASSIST” menu. In the event of a malfunction, the left Press the switch 8 OK; and right line indicators (and, depend-  – press the 6 or 7 control repeat- ing on display style, the warning edly to reach the “Lane Departure...
  • Page 185 LANE DEPARTURE WARNING (5/5) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. System servicing/repairs –...

  • Page 186: Lane Keeping Assist

    LANE KEEPING ASSIST (1/6) Location of the camera 1 Make sure the windscreen is not ob- scured (dirt, mud, snow, condensation etc.). Using information from the 1 camera, the function triggers corrective action on the vehicle steering system when a continuous or broken line is crossed or when approaching the roadside (di- vider, barrier, pavement, embankment, etc.) without the direction indicator...
  • Page 187 LANE KEEPING ASSIST (2/6) To disable the function, press the 2 switch as many times as required to select “Lane Keeping deactivated” on the instrument panel.  Warning light goes out on the in- strument panel. Note: deactivating the “Lane Keeping Assist”...
  • Page 188 LANE KEEPING ASSIST (3/6) In these cases: Special cases – the function triggers an action on the When using the function: vehicle’s steering system to correct – If the system can no longer detect the vehicle trajectory; any action by the driver on the steer- ...
  • Page 189 LANE KEEPING ASSIST (4/6) Temporarily not available Conditions for non-activation of the system – Very fast lane departure; The system cannot be activated when: – driving continuously on a line; – reverse gear is engaged; – four seconds approximately after –...
  • Page 190 LANE KEEPING ASSIST (5/6) Operating faults – press the 6 or 7 control repeatedly to reach the “DRIVING ASSIST” menu. When the system detects an operating Press the switch 8 OK; © fault, the warning light lights up – press the 6 or 7 control repeatedly to on the instrument panel, with the mes- reach the “Lane Keeping sensitivity”...
  • Page 191 LANE KEEPING ASSIST (6/6) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. System servicing/repairs –...

  • Page 192: Blind Spot Warning

    BLIND SPOT WARNING (1/7) Special feature Using information from the sensors in- stalled on each side of the rear bumper Ensure that the area C around the (area C), the function warns the driver: radars on each side of the rear bumper –...
  • Page 193 BLIND SPOT WARNING (2/7) – press the switch 5 OK again to acti- vate or deactivate the function: function activated < function deactivated Activation/deactivation – press the 3 or 4 control repeatedly to reach the “Settings” menu. Press the Vehicles fitted with a multimedia switch 5 OK;...
  • Page 194 BLIND SPOT WARNING (3/7) Indicator 6 Operation An indicator light 6 is located on each The function warns you when the speed rear view mirror 7. of your vehicle is over 9 mph (15 km/h): – when another vehicle is in the blind Note: clean the rear view mirrors 7 reg- spot area A and travelling in the ularly so that the indicators 6 can be...
  • Page 195 BLIND SPOT WARNING (4/7) Display E Conditions for non-function Direction indicator activated, the 6 – When driving on a road with tight warning light flashes when the func- bends; tion detects a vehicle in the blind spot – in reverse. warning area and/or a vehicle is rapidly If the vehicle is equipped with a towbar approaching from the rear on the side...
  • Page 196 BLIND SPOT WARNING (5/7) Operating faults If the system detects a fault, the mes- sage “Side radars to check” is displayed on the instrument panel. Consult an ap- proved dealer. – The system’s detection range operates according to a standard lane width. If you are driving in wide traf- fic lanes, the system might not be able to detect a vehicle in the...
  • Page 197 BLIND SPOT WARNING (6/7) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. The driver should always adapt their speed to the traffic conditions, regardless of the system indications.
  • Page 198 BLIND SPOT WARNING (7/7) Limitation of the system operation – The radar area should be kept clean and free of any modifications in order to ensure the proper operation of the system. – Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system. –...

  • Page 199: Safe Distance Alert

    SAFE DISTANCE ALERT (1/4) The function is activated when the vehi- cle speed is between about 19 and 124 mph (30 and 200 km/h). Location of the camera 1 Make sure the windscreen is not ob- scured (by dirt, mud, snow, condensa- tion etc.).
  • Page 200 SAFE DISTANCE ALERT (2/4) – press the 5 or 6 control repeatedly to reach the “Distance warning” menu. Press the switch 7 OK; – Press the switch 7 OK again to acti- vate or deactivate the function: function activated < function deactivated Activating/deactivating the Vehicles not fitted with a multimedia...
  • Page 201 SAFE DISTANCE ALERT (3/4) – C (orange): the time interval falls be- tween around 1 and 2 seconds (in- sufficient distance between the two vehicles); – D (red): the time interval is less than or equal to around one second (very insufficient distance between the two The measurement is dis- vehicles).
  • Page 202 SAFE DISTANCE ALERT (4/4) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. System servicing/repairs –...

  • Page 203: 360° Camera

    360° CAMERA (1/9) Operation Using information from cameras 1, 2, – front side view (depending on the ve- and 3 located in the front bumper, door hicle): using camera 2 (passenger The cameras transmit four separate mirrors and on the tailgate, as well as side).
  • Page 204 360° CAMERA (2/9) Front view 1 Rear view 3 The view of the front camera is dis- The view of the rear camera is dis- played on the multimedia screen 5. played on the multimedia screen 5. In front view or rear view: when manoeuvring on a slope, objects shown on the multimedia screen may...
  • Page 205 360° CAMERA (3/9) The front, rear and side view guide- lines are a representation projected onto flat ground; this information must not be taken into account when superimposed on a vertical object or an object on the ground. Objects displayed on the edge of the multimedia screen may appear distorted.
  • Page 206 360° CAMERA (4/9) Bird’s eye view Front side view on passenger side 2 The bird’s eye view is a combined rep- (depending on the vehicle) resentation from cameras 1, 2 and 3. The camera, fitted in the door mirror, It displays a view of the top of the vehi- transmits a side view to the multimedia cle and its surroundings.
  • Page 207 360° CAMERA (5/9) In addition to the sound alert, these in- dicator lines show the proximity of ob- stacles via different colours: – Green: obstacle between approxi- mately 50 and 70 cm; – Yellow: obstacle between approxi- mately 30 and 50 cm; –...
  • Page 208 360° CAMERA (6/9) Automatic mode is disabled: – when the gear lever is in neutral (manual gearbox) or in position N or P (automatic gearbox) for approxi- mately three seconds; – when the vehicle speed moving for- ward exceeds 6 mph (10 km/h). Manual mode To activate manual mode, with the ve- hicle stopped and the engine running,...
  • Page 209 360° CAMERA (7/9) Difference between the Driving or reversing towards a steep Driving or reversing towards a downhill slope protruding object estimated distance and actual distance The fixed guidelines 15 show the dis- Position H seems further than posi- tances as further than they actually are. tion J on the screen.
  • Page 210 360° CAMERA (8/9) Adjusting the display Limitation of the system operation The system is unable to display objects With the ignition on, press the 14 switch located in certain areas. or move the selection lever to position R (on an automatic gearbox) or to re- In the front or rear view mode, the verse gear (on a manual gearbox) in system cannot be used to view an...
  • Page 211 360° CAMERA (9/9) Adjusting the camera If the gear lever is in position R (on an When shifting from reverse gear to po- automatic gearbox) or in reverse (on a sition D (on an automatic gearbox) or settings manual gearbox), the following views into a gear (on a manual gearbox), the The following settings can be modified: are available:...

  • Page 212: Active Emergency Braking

    ACTIVE EMERGENCY BRAKING (1/8) Depending on the reactivity of the driver, the system can assist with brak- ing in order to limit damage or prevent a collision. Note: ensure that the windscreen and front bumper are not obstructed (by dirt, mud, snow, condensation, number plate, etc.).
  • Page 213 ACTIVE EMERGENCY BRAKING (2/8) Operation Special features of warnings Depending on the speed, the warning Detection of vehicles and braking may be activated simulta- When driving at a speed between ap- neously. proximately 4 mph (7 km/h) and 105 mph (170 km/h), if there is a risk of Special features of stationary collision with the vehicle in front, the vehicles...
  • Page 214 ACTIVE EMERGENCY BRAKING (3/8) Detection of pedestrians and Special features of warnings cyclists Depending on the speed, the warning (depending on the vehicle) and braking may be activated simulta- When driving at a speed between ap- neously. proximately 4 mph (7 km/h) and 50 mph (80 km/h), if there is a risk of col- lision with a cyclist or a pedestrian, the system:...
  • Page 215 ACTIVE EMERGENCY BRAKING (4/8) – press the 6 or 7 control repeatedly to reach the “Active braking” menu and press the 8 OK switch. Press the switch 8 OK again to activate or deactivate the function: function activated < function deactivated Upon deactivation of the system, the ...
  • Page 216 ACTIVE EMERGENCY BRAKING (5/8) Temporarily not available Operating faults  If the system detects a temporary fault ©  or, depending on the  warning light illuminates, or ©  vehicle, illuminates depending on the vehicle, the on the instrument panel: this indicates warning light illuminates on the instru- that the system has detected an oper- ment panel.
  • Page 217 ACTIVE EMERGENCY BRAKING (6/8) Active emergency braking This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. The triggering of this function may be delayed or prevented when the system detects clear signs of control of the vehicle by the driver (action on the steer- ing wheel, pedals etc.).
  • Page 218 ACTIVE EMERGENCY BRAKING (7/8) System disturbance Some conditions can disturb or damage the operation of the system, such as: – a complex environment (metal bridge, tunnel etc.); – poor weather conditions (snow, hail, black ice etc.); – poor visibility (night, fog etc.); –...
  • Page 219 ACTIVE EMERGENCY BRAKING (8/8) Deactivating the function You must disable the function if: – the brake lights are not functioning; – the area of the camera has been damaged (e.g. on the inside or outside of the windscreen); – the front of the vehicle was damaged (impact, scratch on the radar, etc.); –...

  • Page 220: Detection Of Road Signs

    DETECTION OF ROAD SIGNS (1/4) Note: make sure the windscreen is not For vehicles equipped with a navigation obscured (dirt, mud, snow, condensa- system and if the vehicle is travelling in tion etc.). a country where the speed units differ from those of the vehicle, the system For vehicles which are equipped with it, displays the speed limit sign in the unit...
  • Page 221 DETECTION OF ROAD SIGNS (2/4) Vehicles not fitted with a multimedia screen – With the vehicle stopped, press the switch 3 as many times as required to reach the “Vehicle” tab; – press the 4 or 5 control repeatedly to reach the “Settings”...
  • Page 222 DETECTION OF ROAD SIGNS (3/4) If the speed limit is exceeded, the circle around the panel flashes (7 warning light) along with a sound signal to warn the driver. Operation Varying the limit speed If the speed limit notification differs from Warning lights the detected speed value, press and The function displays the following...
  • Page 223 DETECTION OF ROAD SIGNS (4/4) Operating faults The system cannot detect the speed limit if: – the windscreen is not clean; – the camera is blinded by the sun; – there is insufficient visibility (night, fog etc.) ; – the signs are not legible (snow, etc.) or are hidden (by another vehicle or by trees);...
  • Page 224 SPEED LIMITER (1/4) Controls 1 Speed limiter On/Off switch. 2 Cruise control On/Off switch. 3 Switch to activate and decrease the limit speed (SET/-). 4 Switch to activate and increase the limit speed or to set the stored limit speed (RES/+). 5 Speed limiter function standby (with limited speed memory) (0).
  • Page 225 SPEED LIMITER (2/4) Driving Switching on To store the current speed, press the 4 switch (RES/+) or the 3 switch (SET/-  ) :  When a limit speed has been set but Press switch 1. The 7 warning light ap- the limit speed replaces the dashes not yet reached, driving is similar to pears in grey.
  • Page 226 SPEED LIMITER (3/4) Exceeding the limit speed Limited speed cannot be maintained When driving down a steep gradient, It is possible to exceed the limit speed the system may not maintain the limit at any time. To do this: press the accel- speed: the limit speed flashes in red erator pedal firmly and fully (beyond on the instrument panel and an audi-...
  • Page 227 SPEED LIMITER (4/4) Putting the function on Switching off the function standby The speed limiter function is inter- rupted: The speed limiter function is suspended when you press switch 5 (0). The limit – when you press the 1 switch. In this speed is stored and displayed in grey case, the speed is no longer stored;...
  • Page 228 CRUISE CONTROL (1/5) Controls 1 Cruise control On/Off switch. 2 Switch to activate and decrease cruising speed (SET/-). 3 Switch to activate and increase cruising speed or to recall the mem- orised cruising speed (RES/+). 4 Switch the function to standby (with cruising speed saved) (0).
  • Page 229 CRUISE CONTROL (2/5) Switching on Activating cruise control Driving Press switch 1. While the vehicle is moving a steady Once a cruising speed is registered speed above approximately 19 mph and the cruise control function is active, The 7 warning light appears in grey. (30 km/h), press the 2 (SET/-) switch you may lift your foot off the accelera- The “Cruise control ON”...
  • Page 230 CRUISE CONTROL (3/5) Exceeding the cruising speed The cruising speed may be exceeded at any time by depressing the accelera- tor pedal. While it is being exceeded, the cruising speed flashes in red on the instrument panel. Then, release the accelerator pedal: after a few seconds, the vehicle will automatically return to its set cruis- ing speed.
  • Page 231 CRUISE CONTROL (4/5) Putting the function on Returning to the cruising speed NB: if the speed previously stored is much higher than the current speed, standby If a speed is stored, it can be recalled, the vehicle will accelerate more rapidly once you are sure that the road condi- The function is set to standby if you: to reach this threshold.
  • Page 232 CRUISE CONTROL (5/5) Switching off the function The warning light 7 disappears from the instrument panel to confirm that the The cruise control function is inter- function is no longer active. rupted: – when you press the 1 switch. In this case, the speed is no longer stored;...
  • Page 233 ADAPTIVE CRUISE CONTROL (1/14) Based on information from a radar According to conditions on the road or camera, the adaptive cruise con- (traffic, weather etc.), the “Adaptive trol function (or Stop and Go adap- cruise control” function can be acti- tive cruise control function on vehicles vated: equipped with an automatic gearbox)
  • Page 234 ADAPTIVE CRUISE CONTROL (2/14) Location of the camera 1 Controls Make sure the windscreen is not ob- 3 Safe distance settings scured (by dirt, mud, snow, condensa- 4 Switch the function to standby (with tion etc.). cruising speed saved) (0). 5 Adaptive cruise control main stop/ Location of the radar 2 ...
  • Page 235 ADAPTIVE CRUISE CONTROL (3/14) Switching on The cruising speed 11 replaces the dashes and cruise control is confirmed Press switch 5. by the appearance of the cruising speed   Warning light appears in grey, in green and warning light and the message “Adaptive Cruise Ctl If you try to activate the function when ON”...
  • Page 236 ADAPTIVE CRUISE CONTROL (4/14) Safe distance control activation As soon as cruise control is activated, the default safe distance 10 is displayed in green on the instrument panel. The default safe distance corresponds to approximately two seconds (see follow- ing pages). If the system detects a vehicle in your lane, an outline of a vehicle 9 appears above the distance gauge 10 on the in-...
  • Page 237 ADAPTIVE CRUISE CONTROL (5/14) Adjusting the safe distance (cont.) – distance gauge B: intermediate dis- tance 2 (corresponding to approxi- mately 2 seconds); – distance gauge C: intermediate dis- tance 1 (corresponding to approxi- mately 1.6 seconds); – distance gauge D: short distance (corresponding to approximately 1.2 seconds).
  • Page 238 ADAPTIVE CRUISE CONTROL (6/14) Stop and start Putting the function on On vehicles fitted with an automatic standby gearbox, if the vehicle in front slows You can set the function to standby down, the system adapts its speed to a when: complete stop if necessary (in the event of a traffic jam, etc.).
  • Page 239 ADAPTIVE CRUISE CONTROL (7/14) Exit from standby Depending on the situation, the system sounds a beep associated with: Based on the stored cruising speed – the orange alert E if the situation re- If a speed is stored, it can be recalled, quires the driver’s attention;...
  • Page 240 ADAPTIVE CRUISE CONTROL (8/14) Operating faults If the radar detection area is obstructed or the radar signal is disrupted, the If an “Adaptive cruise control” function message “Front radar no visibility” is operating fault is detected, the mes- displayed on the instrument panel and sage “Check Adaptive Cruise control”...
  • Page 241 ADAPTIVE CRUISE CONTROL (9/14) Limitations of system The system cannot detect: Detection during cornering operation – vehicles arriving at intersections: slip When entering a corner or bend, the road (e.g. H) etc; radar and/or camera may temporarily Vehicle detection not be able to detect the vehicle in front –...
  • Page 242 ADAPTIVE CRUISE CONTROL (10/14) Detection of vehicles in adjacent Vehicles hidden due to variations in – vehicles transporting long objects lanes ground relief which exceed the line; The system may detect vehicles driving The system will not detect vehicles – the actual length of tall vehicles on an adjacent lane when: hidden due to variations in ground relief (e.g.
  • Page 243 ADAPTIVE CRUISE CONTROL (11/14) Stationary and slow moving – vehicles in front 12 that change lane, vehicles discovering a stationary vehicle 13 (e.g. P); When your speed is over approximately 31 mph (50 km/h), the system does – when the vehicle is stationary 14, not detect: when you change lane (e.g.
  • Page 244 ADAPTIVE CRUISE CONTROL (12/14) Non-detection of fixed obstacles Detection of vehicles moving into and objects of a small size lane at high speed The system cannot detect: If your vehicle is overtaken by another vehicle driving at high speed 15 (motor- –...
  • Page 245 ADAPTIVE CRUISE CONTROL (13/14) This function is an additional driving aid. It can under no circumstances replace the driver’s responsibility to respect speed limits and safe distances and to be vigilant. The driver must always be in control of the vehicle. The driver must always adapt their speed to the surroundings and driving conditions, regardless of system indications.
  • Page 246 ADAPTIVE CRUISE CONTROL (14/14) In the event of system disturbance Some conditions can disturb or damage the operation of the system, such as: – the windscreen or radar area is obscured (by dirt, ice, snow, condensation, number plate etc.); – a complex environment (tunnel etc.); –...
  • Page 247 MOTORWAY AND TRAFFIC ASSISTANT (1/16) The “Stop and Go adaptive The Motorway and Traffic Assistant is a Note: driving aid system designed for use on cruise control” function – the driver must observe the maxi- long motorway journeys, where traffic is mum speed limit and safe distances Based on information from a radar or flowing or in jams.
  • Page 248 MOTORWAY AND TRAFFIC ASSISTANT (2/16) The “Lane centring” function Additional information Using information from a camera, the Depending on the vehicle, the “Lane Centring” function manipulates “Motorway and Traffic Assistant” func- the steering system to direct the vehi- tion may be used with other driving aid cle to the middle of the lane.
  • Page 249 MOTORWAY AND TRAFFIC ASSISTANT (3/16) 2.119...
  • Page 250 MOTORWAY AND TRAFFIC ASSISTANT (4/16) Computer 1 Power-assisted steering 4 Active vehicle control 7 Receives information from the radar Operates the front wheels to assist the This system provides information on and camera to determine the vehi- trajectory of your vehicle according to vehicle dynamics to the computer 1 cle trajectory and speed (acceleration details transmitted by the 1 computer.
  • Page 251 MOTORWAY AND TRAFFIC ASSISTANT (5/16) 2.121...

  • Page 252: Stop And Go Adaptive Cruise Control

    MOTORWAY AND TRAFFIC ASSISTANT (6/16) Controls Displays on the instrument Steering wheel 21 panel Safe distance settings The driver must always keep their hands on the steering wheel. If too “Stop and Go adaptive cruise con- Set active functions to standby ...
  • Page 253 MOTORWAY AND TRAFFIC ASSISTANT (7/16) Note: if you press button 11 when the Stop and Go adaptive cruise control is not activated, the message: “First acti- vate Adapt. cruise ct” appears on the instrument panel. Activating the “Lane Note: you must keep your hands on the driving wheel when using the “Lane Centring”...
  • Page 254 MOTORWAY AND TRAFFIC ASSISTANT (8/16) “Lane Centring” function on Certain actions carried out by the driver also suspend the “Lane Centring” func- standby tion: The “Lane Centring” function is put on – activating the indicators; standby automatically when: – too much force is used when han- –...
  • Page 255 MOTORWAY AND TRAFFIC ASSISTANT (9/16) Note: in some situations, the “Lane Centring” function may no longer detect your hands on the steering wheel and may sound a signal: – the vehicle is moving along a long straight lane and the driver’s hands are immobile on the steering wheel;...
  • Page 256 MOTORWAY AND TRAFFIC ASSISTANT (10/16) If the vehicle crosses a line com- pletely and moves out of lane, the “Lane Centring” function is put on standby. Standby of the function is  confirmed by the 15 warning light and the left-hand and right-hand line indicators 17 appearing in grey on the instrument panel.
  • Page 257 MOTORWAY AND TRAFFIC ASSISTANT (11/16) – the Stop and Go adaptive cruise control is deactivated ➥ 2.103;  Note: pressing the 10 button once deactivates both the “Stop and Go adaptive cruise control” function and the “Lane Centring” function. – the system will no longer detect the driver’s hands on the steering wheel for a period over 45 seconds approx- imately.
  • Page 258 MOTORWAY AND TRAFFIC ASSISTANT (12/16) Temporary unavailability Conditions in certain geographical If a “Stop and Go adaptive cruise con- areas may hinder the function, for ex- trol” function operating fault is detected, The radar is able to detect vehicles ample: the “Check Adaptive Cruise control”...
  • Page 259 MOTORWAY AND TRAFFIC ASSISTANT (13/16) The “Motorway and Traffic Assistant” function is an additional driving aid. it can under no circumstances replace the driver’s responsibility to respect speed limits and safe distances and to be vigilant. The driver must always be in control of the vehicle. The driver must always adapt their trajectory and speed according to the surroundings and traffic conditions.
  • Page 260 MOTORWAY AND TRAFFIC ASSISTANT (14/16) The “Motorway and Traffic Assistant” function is an additional driving aid. it can under no circumstances replace the driver's responsibility to respect speed limits and safe distances and to be vigilant. The driver must always be in control of the vehicle. The driver must always adapt their trajectory and speed according to the surroundings and driving conditions, regardless of system indications.
  • Page 261 MOTORWAY AND TRAFFIC ASSISTANT (15/16) Deactivating the system You must deactivate the system if: – the vehicle is travelling on a windy road; – the vehicle is being towed (breakdowns); – the vehicle is being driven with an emergency spare wheel; –...
  • Page 262 MOTORWAY AND TRAFFIC ASSISTANT (16/16) Some conditions can disrupt or damage the operation of the system, for example: – obstruction of the windscreen or the radar area (by dirt, ice, snow, condensation etc.). Frequently check the cleanli- ness and condition of the windscreen, front wiper blades and front bumper; –...

  • Page 263: Parking Distance Control

    PARKING DISTANCE CONTROL (1/7) Location of the ultrasonic Depending on the vehicle, the system detects obstacles to the front, the rear sensors 1 and the sides of the vehicle. Ensure that the ultrasonic sensors indi- The parking distance control system cated by the arrows 1 are not obscured is only activated when the vehicle is (by dirt, mud, snow, a badly fitted/at-...
  • Page 264 PARKING DISTANCE CONTROL (2/7) Note: for vehicles fitted with the “360° camera” function ➥ 2.73, analysis of the vehicle surroundings (areas A and B) is not displayed in “Bird’s eye view” or “Side view” mode. Operation Most objects located less near the front, rear and sides of the vehicle are detected.
  • Page 265 PARKING DISTANCE CONTROL (3/7) If a side obstacle is detected: – the beeps become faster and then sound continuously as the obstacle gets nearer. Green, orange and red zones will be displayed on the dis- play D; – if there is no risk of collision, no beep will sound when approaching the ob- stacle.
  • Page 266 PARKING DISTANCE CONTROL (4/7) Vehicles not fitted with a multimedia screen With the vehicle stopped, press the 6 switch to deactivate parking distance control. Warning light 5 in the switch lights up. Press again on the 6 switch to activate the function. The indicator light built into the 5 switch goes out.
  • Page 267 PARKING DISTANCE CONTROL (5/7) – select “Beep volume” to adjust the – when an operating fault is detected. volume of Park Assist using control 8 Note: if the vehicle is fitted with a or 9. towbar recognised by the system, only the rear Park Assist function is deacti- vated.
  • Page 268 PARKING DISTANCE CONTROL (6/7) System servicing/repairs – In the event of an impact, the alignment of the sensors may be altered and their operation may consequently be affected. Deactivate the function and consult an authorised dealer. – Any work in the area where the sensors are located (repairs, replacements, etc.) must be carried out by a qualified profes- sional.
  • Page 269 PARKING DISTANCE CONTROL (7/7) Limitation of the system operation – The area around the sensors must be kept clean and free of any modifications in order to ensure the proper operation of the system. – Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system. –...

  • Page 270: Reversing Camera

    REVERSING CAMERA (1/3) Operation Fixed clearance gauge 3 4 moving guide line: The fixed clearance gauge comprises This is shown in blue on the multimedia When the vehicle is reversing, the coloured markers A, B and C indicating screen 2. camera 1 on the luggage compart- the distance behind the vehicle: ment lid transmits a view of the area...
  • Page 271 REVERSING CAMERA (2/3) Operating faults When reverse gear is engaged, if the system detects an operating fault, a black screen is displayed temporarily The screen shows a reverse mirror on the multimedia screen 2. image. This may be caused by a fault affecting The frames are a representation the camera or screen (clearness, fixed projected on a flat surface.
  • Page 272 REVERSING CAMERA (3/3) Difference between the Reversing towards a steep downhill Reversing towards a protruding slope object estimated distance and actual distance The fixed guidelines 3 show the dis- Position H seems further than posi- tances as further than they actually are. tion J on the screen.

  • Page 273: Parking Exit Warning

    PARKING EXIT WARNING (1/4) Special feature Using information from the radars in- stalled on each side of the rear bumper Make sure that the radar area A is not (area A), the system notifies the driver obscured (by stickers, mud, snow etc.). The system’s detection capability when another vehicle appears in the depends on the vehicle’s surround-...
  • Page 274 PARKING EXIT WARNING (2/4) Activation/deactivation from Operation The indicators 4 on the multimedia screen show you on which side the ap- the multimedia screen 1 The function warns you if a vehicle is in proaching vehicle has been detected. area B and is approaching your vehicle. To activate or deactivate the function, Note: clean the camera regularly so refer to the multimedia instructions.
  • Page 275 PARKING EXIT WARNING (3/4) Operating faults If the system detects a fault, the mes- sage “Side radars to check” is displayed on the instrument panel. Consult an ap- proved dealer. Limitation of the system operation – The radar area should be kept clean and free of any modifications in order to ensure the proper operation of the system.
  • Page 276 PARKING EXIT WARNING (4/4) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. The system should under no circumstances be taken to be an obstacle detector or an anti-collision system.

  • Page 277: Assisted Parking

    ASSISTED PARKING (1/5) Switching on Special features Using ultrasonic detectors as indicated by the 3 arrows installed in the vehicle While the engine is running, vehicle Ensure that the ultrasonic detectors bumpers, this function helps to find ac- stationary or driving at less than ap- indicated by the arrows 3 are not ob- cessible parking spaces and assists in proximately 19 mph (30 km/h):...
  • Page 278 ASSISTED PARKING (2/5) Operation Note: when starting the vehicle, or after having successfully completed parallel Parking parking using the system, the default manoeuvre proposed by the system is As long as the vehicle speed is less assistance in exiting a parallel parking than 19 mph (30 km/h), the system space.
  • Page 279 ASSISTED PARKING (3/5) The space is then indicated on the mul- – Release the steering wheel; timedia screen by a capital letter “P”. – carry out manoeuvres at the front – Stop the vehicle; and rear by following the instructions shown on the multimedia screen 1 –...
  • Page 280 ASSISTED PARKING (4/5) Cancelling the manoeuvre The switch warning light 2 goes out,  The manoeuvre is cancelled in the fol- warning light disappears lowing cases: from the instrument panel and an au- dible signal confirms that the manoeu- – the vehicle speed has exceeded vre has been suspended.
  • Page 281 ASSISTED PARKING (5/5) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. Make sure that the manoeuvre complies with the applicable traffic regulations in your location.
  • Page 282 AUTOMATIC GEARBOX, ELECTRONIC LEVER (1/6) Electronic selector lever 1 4: position of the gear engaged; The 7 triangle comes on when manual mode is activated. 5 : position accessible from the cur- R: reverse rent position by moving the selector N: Neutral lever 1 one notch forwards or back- D: automatic mode...
  • Page 283 AUTOMATIC GEARBOX, ELECTRONIC LEVER (2/6) If the brake pedal is not fully depressed, the message “Press Brake Pedal” and  the warning light are displayed on the instrument panel. Note: – if the driver opens their door to leave the vehicle and position P has not been engaged, a beep sounds and the message “P not engaged”...
  • Page 284 AUTOMATIC GEARBOX, ELECTRONIC LEVER (3/6) Driving in automatic mode To select reverse gear Economical driving When driving, always leave the lever With the vehicle stationary and the With the vehicle stationary and the in position D, keeping the accelerator engine running, move the 1 selector engine running, move the 1 selector pedal lightly depressed to ensure auto- lever two notches backwards to engage...
  • Page 285 AUTOMATIC GEARBOX, ELECTRONIC LEVER (4/6) Driving in manual mode When driving in position D you can switch to manual driving mode using paddles 8 and 9 on the steering wheel. Depending on the vehicle, two manual driving modes are available: –...
  • Page 286 AUTOMATIC GEARBOX, ELECTRONIC LEVER (5/6) Special cases – In cold weather, to prevent the – with the engine running, press the P engine from stalling, wait a few sec- button, move the selector lever 1 one In certain driving conditions (result- onds before moving the selector notch forwards or backwards then ing in, for example, engine protection,...
  • Page 287 AUTOMATIC GEARBOX, ELECTRONIC LEVER (6/6) Maintenance period In the event of engine failure or an elec- trical fault (battery fault) affecting oper- Refer to the maintenance document ation of the automatic gearbox, ensure for your vehicle or consult an Approved that the vehicle is properly immobilised.
  • Page 288 AUTOMATIC GEARBOX, MANUAL LEVER (1/4) Driving in automatic mode Put lever 1 into position D. In most road conditions you will en- counter, you will not need to touch your lever again: the gears will change au- tomatically at the right time and at the most suitable engine speed because the automatic system takes into ac- count the vehicle load and road contour...
  • Page 289 AUTOMATIC GEARBOX, MANUAL LEVER (2/4) Driving in manual mode When driving in position D you can switch to manual driving mode using paddles 5 and 6 on the steering wheel. Depending on the vehicle, two manual driving modes are available: –...
  • Page 290 AUTOMATIC GEARBOX, MANUAL LEVER (3/4) Special cases Special circumstances Parking the vehicle In certain driving conditions (result- – If the road type or weather condi- When the vehicle is stopped, move the tions (steep uphill slopes, sudden lever to position P while keeping your ing in, for example, engine protection, operation of the Electronic Stability downhill slopes, deep snow, sand...
  • Page 291 AUTOMATIC GEARBOX, MANUAL LEVER (4/4) Maintenance period Refer to the maintenance document for your vehicle or consult an Approved Dealer to check whether the automatic gearbox requires scheduled mainte- nance. If it does not need to be serviced, there is no need to top up the oil. Operating faults –...

  • Page 292: Emergency Call

    EMERGENCY CALL (1/3) If the vehicle is equipped, the emer- gency call function can be used to call the emergency services (without charge) automatically or manually in the event of an accident or illness, re- ducing the time it takes for the emer- gency services to arrive.
  • Page 293 EMERGENCY CALL (2/3) Automatic mode In the event of unintended operation, it is possible to cancel the call by press- If the automatic mode 2 warning light ing the 3 button for around two sec- appears in green this confirms that the onds, before the call is connected to automatic system is activated.
  • Page 294 EMERGENCY CALL (3/3) The system operates with a dedi- cated battery. The battery serv- ice life is approximately four years (the 1 warning light lights up in red to warn you when approaching expiry). Without the emergency call feature, Consult an approved dealer. the system is not trackable and will not be under constant surveillance.
  • Page 295 Section 3: Your Comfort Multi-Sense ..............Air Vents .

  • Page 296: Multi-Sense

    MULTI-SENSE Mode Eco The MULTI-SENSE system enables a choice between three driving modes Eco mode focuses on energy saving. that can be used to control, depending The steering is smooth, engine and on the vehicle: driving, ambient lighting, gearbox management enable fuel con- comfort and engine sound: sumption to be reduced ➥...

  • Page 297: Air Vents

    AIR VENTS, air outlets (1/2) 1 Side air vents 5 Footwell heater outlets for front 2 Demister outlets for side windows passengers 3 Windscreen demisting vents 6 Control panel 4 Centre air vents 7 Footwell heater outlets for rear passengers (depending on the vehicle) 8 Rear console air vents...
  • Page 298 AIR VENTS, air outlets (2/2) Central 4, side 1 and rear air Rear seats vents 8 (depending on vehicle) Passenger footwell heater outlets 8. Air flow To close: move the cursor 9 towards the outside of the vehicle beyond the resist- ance point.

  • Page 299: Manual Air Conditioning, Heating System

    MANUAL AIR CONDITIONING, HEATING SYSTEM (1/6) Distribution of air in the passenger compartment There are five air distribution options. Turn control 1 to choose the distribution option. The air flow is directed to the windscreen and the front side window demisting vents. ...
  • Page 300 MANUAL AIR CONDITIONING, HEATING SYSTEM (2/6) Switching air conditioning on or off Activation is not possible if the 3 control is set to “0” (control A) or “OFF” (con- trol B). Press the 6 button to deactivate the air conditioning. The button’s warning light will go out.
  • Page 301 MANUAL AIR CONDITIONING, HEATING SYSTEM (3/6) Air recirculation (isolation of Switching air conditioning on Stopping the system the passenger compartment) or off Turn the 3 control to “OFF” or “0” to switch off the system or press the 4 Air recirculation is for: In automatic mode, the system switches button.
  • Page 302 MANUAL AIR CONDITIONING, HEATING SYSTEM (4/6) Switching the air recirculation on Press button 4: the button’s warning light comes on. Under these conditions, air is taken from the passenger com- partment and is recirculated, with no air being taken from outside the vehicle. If the air conditioning is not acti- Air recirculation is for: vated (“A/C”...
  • Page 303 MANUAL AIR CONDITIONING, HEATING SYSTEM (5/6) Adjusting the air temperature Turn control 5 to obtain the desired temperature. The further towards the red the slide is, the higher the tempera- ture will be. When the air conditioning system is used for long periods, it may begin to feel cold.
  • Page 304 MANUAL AIR CONDITIONING, HEATING SYSTEM (6/6) Rear screen de-icing/ Rapid demisting demisting Turn controls 1, 3 and 5 to: With the engine running, press – demisting button 2. The operating tell-tale comes – the fan speed in position 3 or 4; This function permits rapid demisting/ –...

  • Page 305: Automatic Climate Control

    AUTOMATIC CLIMATE CONTROL (1/4) Adjusting the ventilation speed. In automatic mode, the system uses the most suitable amount of air to reach and maintain the desired comfort level. You can still adjust the ventilation speed by turning control 1 to increase or reduce the ventilation speed.
  • Page 306 AUTOMATIC CLIMATE CONTROL (2/4) Clear View function Press the 2 button: the integrated indi- cator light comes on. This function quickly demists and de- ices the windscreen, the rear screen, the front side windows, and the door mirrors (depending on the vehicle). It automatically activates the air condi- tioning and rear screen de-icing func- tions.
  • Page 307 AUTOMATIC CLIMATE CONTROL (3/4) Rear screen de-icing/ Switching air conditioning on demisting or off Press the 8 button: the integrated in- In automatic mode, the system switches dicator light comes on. This function the air conditioning system on or off, enables rapid demisting or de-icing of depending on the climate conditions.
  • Page 308 AUTOMATIC CLIMATE CONTROL (4/4) Stopping the system Turn the control 1 to “OFF” to stop the system. To start it, turn the control 1 again, then adjust the fan speed or press the button 4. Air recirculation (isolation of Manual use the passenger compartment) Press the 7 button: the integrated indi- cator light comes on.
  • Page 309 AIR CONDITIONING: information and operating instructions (1/2) Advice on use Fuel consumption Operating faults In some situations (air conditioning off, You will normally notice an increase in As a general rule, contact your ap- air recirculation activated, ventilation fuel consumption (especially in town) proved dealer in the event of an oper- speed at zero or low etc.), you may when the air conditioning is operating.
  • Page 310 AIR CONDITIONING: information and operating instructions (2/2) Ñ Type of refrigerant fluid Additional information Depending on label and depending on  Type of oil in the air condi- the type of refrigerant: tioning circuit Refrigerant fluid R-134yf  Inflammable product –...

  • Page 311: Multimedia Equipment

    MULTIMEDIA EQUIPMENT (1/3) Multimedia system A, B or Multimedia sockets 2 The sockets USB can also be used to recharge accessories with a maximum radio C You can use the USB sockets to access power rating of 12 Watts (5 Volts) per the multimedia content of your acces- The location and operation of equip- socket, which have been approved by...
  • Page 312 MULTIMEDIA EQUIPMENT (2/3) Steering column controls 4 Microphone 8 You can use the hands-free telephone 6 and voice recognition 7 controls on ve- hicles fitted with these. 3.18...
  • Page 313 MULTIMEDIA EQUIPMENT (3/3) Wireless charger 9 (depending on the vehicle) ➥ 3.29 Using the telephone We remind you of the need to conform to the legislation in force concerning the use of such equipment. 3.19...

  • Page 314: Electric Windows

    ELECTRIC WINDOWS (1/2) These systems operate with the igni- tion on or off, until one of the front doors is opened (limited to about 3 minutes). Driver’s responsibility Never leave your vehicle with the card or key inside, with a child, adult who is not self-sufficient or a pet in the vehicle, even for a short while.
  • Page 315 ELECTRIC WINDOWS (2/2) One-touch electric windows Remote control window Operating faults (continued) closing In case of a fault when closing a window, the system reverts to normal Note: if the window detects resistance When the doors are locked from the mode: pull the switch concerned up as when closing (e.g.

  • Page 316: Electric Sunroof

    ELECTRIC SUNROOF (1/3) Driver’s responsibility Never leave an animal, child or non-autonomous adult alone in your vehicle, even for a short time. The reason for this is that the child may endanger himself or others by starting the engine, activating equip- ment such as the window winders for example, or locking the doors.
  • Page 317 ELECTRIC SUNROOF (2/3) Closing the sunroof by remote control If you press the locking button on the card twice in quick succession, the windows and sunroof will close auto- matically. It is recommended that the user only operates the system when the vehi- cle can be seen clearly and no one is inside.
  • Page 318 ELECTRIC SUNROOF (3/3) Precautions during use – Vehicle with loaded roof bars. As a general rule, if there is a load on the roof, use of the sunroof is not recommended. Before using the sunroof, check the objects and/or accessories (bike racks, roof boxes, etc.) attached to the roof bars: they should be prop- Driver’s responsibility...

  • Page 319: Sun Visor

    SUN VISOR Front sun visor Lower sun visor 1. Courtesy mirrors (depending on the vehicle) Lift the cover 2. The light 3 switches on automatically. When driving, ensure the courtesy mirror cover is closed. Risk of injury. 3.25...

  • Page 320: Interior Lighting

    INTERIOR LIGHTING (1/3) Courtesy light A Reading lights B or C Press switch 1 for: Press the 2 switch for the driver, 3 switch for the front passenger, for per- – permanent lighting; manent lighting. – lighting controlled by the unlocking of Note: on vehicles fitted with a multime- the vehicle or by opening one of the dia screen, you can use the multime-...
  • Page 321 INTERIOR LIGHTING (2/3) Courtesy light D Map reading lights E Press switch 4 for: Press switch 5 6 or 7 for constant light- – permanent lighting; Note: on vehicles fitted with a multime- – lighting controlled by the unlocking of dia screen, you can use the multime- the vehicle or by opening one of the dia screen to deactivate/activate the...
  • Page 322 INTERIOR LIGHTING (3/3) Glove box light Luggage compartment light Depending on the vehicle, the 8 light Light 9 comes on when the luggage switches on when the cover is opened. compartment is opened. Unlocking and opening the doors or tailgate switches on the timed cour- tesy lights and lights.

  • Page 323: Passenger Compartment Storage, Fittings

    PASSENGER COMPARTMENT STORAGE, FITTINGS (1/4) Front door storage pockets 1 Sun blind storage Centre console storage compartment 2 compartment/induction They can hold a 1.5-litre bottle. charging zone 3 This can be used for storing motorway tickets, cards, etc. For more information on the induction charging zone, please refer to the mul- timedia instructions.
  • Page 324 PASSENGER COMPARTMENT STORAGE, FITTINGS (2/4) Centre console storage Passenger storage Passenger storage drawer compartment 4/ induction compartment To open, press the button 7 to unlock charging zone 5 the drawer and pull the handle 8. Pull handle 6 to open it. For more information on the induction The glove box can hold A4-sized docu- charging zone, please refer to the mul-...
  • Page 325 PASSENGER COMPARTMENT STORAGE, FITTINGS (3/4) Centre armrest storage Cup holders 12 compartment 11 Depending on the vehicle, the cup holder may be equipped with retaining Lift the cover 9 of the sliding armrest by hooks to keep the cup in place. pressing the 10 button.
  • Page 326 PASSENGER COMPARTMENT STORAGE, FITTINGS (4/4) Rear door storage Rear seat storage pockets 14 Grab handle 15 compartment 13 This offers support and can be held when the vehicle is moving. They can hold a 0.5-litre bottle. Do not use it for getting into or out of the vehicle.

  • Page 327: Accessories Socket

    ACCESSORIES SOCKET Accessories socket 1 You can use the 1 socket. It is provided for connecting accessories approved by our Technical Department. Connect accessories with a maximum power of 120 watts (12 V) only. When several accessory sockets are used at the same time, the total power of the connected accessories must not exceed 180 watts.

  • Page 328: Rear Headrests

    REAR HEAD RESTS Position for use To refit the headrest When the headrest is set at the lowest position, this is for storage Lift the headrest fully until it locks. Enter the rods in their housing and only. It should not be in this position push down the headrest until it locks to Check that the bonnet is correctly when a seat is occupied.

  • Page 329: Rear Bench Seat: Functions

    REAR BENCH SEAT: functions (1/2) Pull the vane 1 and lower the seat- back B. Note: for safety reasons, the seat- back B is equipped with a retaining system. You may experience resist- ance when handling. To replace the seatback, proceed in the reverse order to removal.
  • Page 330 REAR BENCH SEAT: functions (2/2) To move forwards or backwards Lift the lever 2 from the rear seats to unlock the bench seat. Move the seat forwards or back to the required position. For safety reasons, carry out any adjustments when Release the lever 2 and ensure that the the vehicle is not being bench seat is properly locked.

  • Page 331: Luggage Compartment

    BOOT To open Opening the doors manually from the inside Press the 1 button to open the luggage compartment lid a few centimetres. If it is impossible to unlock the tailgate, it can be done manually from inside: Lift the luggage compartment lid. –...

  • Page 332: Rear Parcel Shelf

    REAR PARCEL SHELF Removal – Unhook the two straps 1 of the door of the boot; – lift the shelf 2 to unclip it (move- ment A); – pull the shelf towards you. To refit, proceed in the reverse order to removal.
  • Page 333 BOOT ARRANGEMENTS Mobile floor 1 Intermediate position Storage position (depending on the vehicle) In the blocked position, it allows you to Flat position access the tools stored under the boot This allows for more space to store Enables you to flatten the floor by fold- carpet.

  • Page 334: Transporting Objects In The Luggage Compartment

    TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT Always position the objects transported so that the largest surface is against: – the rear bench seatback, for normal loading (example A); – the front seatbacks with the rear seat- backs folded down, as is the case for maximum loads (example B).

  • Page 335: Transporting Objects Towbar

    TRANSPORTING OBJECTS towbar Permissible nose weight, maxi- - mum permissible towing weight braked and unbraked: ➥ 6.9. Choice and fitting of towing equipment Maximum weight of towing equip- ment: – 10 kg on a vehicle with towing pre-equipment; Maximum dimension A: 837 mm. –...

  • Page 336: Roof Bars, Spoiler

    ROOF BARS, SPOILER (1/2) For information on the range of equipment adapted to your vehi- cle, we advise you to consult an ap- proved Dealer. Refer to the fitting instructions for in- formation on how to fit roof bars and Accessing the mounting Vehicles not fitted with longitudinal conditions of use.
  • Page 337 ROOF BARS, SPOILER (2/2) Precautions during use Handling the tailgate Before handling the tailgate, check the objects and/or accessories (bike rack, roof box, etc.) fitted to the roof bars: these must be correctly positioned and secured, so as not to hinder the opera- tion of the tailgate.
  • Page 338 3.44...
  • Page 339 Section 4: Maintenance Bonnet ............... . Engine oil level: general information .

  • Page 340: Bonnet

    BONNET (1/2) Unlocking the bonnet catch Opening the bonnet To open the bonnet, open a door and pull the 1 handle, located on the left- To unlock, push tab 2 at the same time Lift the bonnet and release stay 5 from hand side of the dashboard.
  • Page 341 BONNET (2/2) Ensure that the bonnet is properly locked. Check that nothing is pre- venting the catch from lock- ing (gravel, cloth, etc.). Closing the bonnet After any procedure in the Before closing the bonnet, make sure engine compartment, make that nothing has been left in the engine sure that you do not forget compartment.

  • Page 342: Engine Oil Level: General Information

    ENGINE OIL LEVEL: general information It is normal for an engine to use oil for Adding engine oil lubrication and cooling of moving parts and it is normal to top up the level be- Use a funnel or protect the tween oil changes.

  • Page 343: Engine Oil Level: Topping Up, Filling

    ENGINE OIL LEVEL: topping up, filling, oil change (1/3) Topping up/filling – Unscrew cap 1; The vehicle must be parked on level – top up the level (capacity between ground and the engine should be cold “mini” and “maxi” of the gauge 2 and (for instance, before the engine is between 0.9 to 2 litres according to started up for the first time in the day).

  • Page 344: Oil Change

    ENGINE OIL LEVEL: topping up, filling, oil change (2/3) Oil change Service interval: refer to the mainte- nance document for your vehicle. Oil change capacity Exceeding the maximum Please refer to the maintenance doc- engine oil level ument for your vehicle, or contact an Under no circumstances authorised dealer.

  • Page 345: Levels

    ENGINE OIL LEVEL: topping up, filling, oil change (3/3) Consult your approved dealer at once if you notice an abnormal or repeated drop in any of the fluid levels. When working in the engine compartment, ensure that the windscreen wiper stalk is in the park position.
  • Page 346 LEVELS, FILTERS (1/3) Frequency of checking coolant level Replacement interval Check the coolant level regularly Refer to the Maintenance Document for (very severe damage is likely to be your vehicle. caused to the engine if it runs out of coolant). If the level needs to be topped up, only use products approved by our Technical Department which ensure:...

  • Page 347: Brake Fluid

    LEVELS, FILTERS (2/3) Level 2 It is normal for the level to drop as the brake shoes become worn, but it must never drop lower than the “MINI" warn- ing line. If you wish to check the disc and drum wear yourself, you should obtain the document explaining the checking pro- cedure from the manufacturer’s net-...

  • Page 348: Windscreen Washer Reservoir

    LEVELS, FILTERS (3/3) Filters Liquid Only use windscreen washer fluid con- The replacement of filter components taining antifreeze. (air filter, cabin filter, diesel filter, etc.) is scheduled in the maintenance opera- We advise you to consult an approved tions for your vehicle. dealer or a qualified professional.

  • Page 349: Tyre Pressure

    TYRE PRESSURE (1/2) Vehicle fitted with a tyre pressure loss warning system In the event of under-inflation (punc-  tures, under-inflation etc.), the warning light appears on the instrument panel. ➥ 2.40. Label A B: dimension of the tyres fitted to the vehicle.
  • Page 350 TYRE PRESSURE (2/2) Tyre safety and chain fitting: for infor- Vehicles used fully laden mation on servicing conditions and, de- (Maximum Permissible pending on the vehicle version, the use All-up Weight) and towing of chains. ➥ 5.12. a trailer The maximum speed must be lim- For your safety, please re- ited to 62 mph (100 km/h) and the spect the speed limit.

  • Page 351: Battery

    BATTERY (1/2) Depending on the vehicle, a system continuously checks the battery charge status. If this decreases, the “Battery Now In Standby Mode” message ap- pears on the instrument panel followed by “Battery Low Start Engine”. In this case, start the engine and the message on the instrument panel will disappear.
  • Page 352 BATTERY (2/2) For your own safety and for the proper operation of the vehicle's electrical equip- ment (lights, windscreen wipers, ABS, etc.), any intervention on the battery (removal, disconnec- tion, etc.) must categorically be per- Label A formed by a specialist professional. Observe the indications on the battery: Risk of serious burns or electric –...
  • Page 353 SECONDARY BATTERY For your own safety and for Depending on the vehicle, a secondary Label A the proper operation of the battery 1 is located under the front pas- vehicle's electrical equip- Label A is located on the battery 1: senger seat in a specific compartment: ment (lights, windscreen –...

  • Page 354: Bodywork Maintenance

    BODYWORK MAINTENANCE (1/3) You should A well-maintained vehicle will last Respect local regulations about wash- longer. ing vehicles (e.g. do not wash your ve- Wash your car frequently, with the hicle on a public highway). It is therefore recommended to main- engine off, with cleaning products rec- tain the exterior of the vehicle regularly.
  • Page 355 BODYWORK MAINTENANCE (2/3) What you should not do Vehicles with a matte paint Degrease or clean using finish Wash the vehicle in bright sunlight or high-pressure cleaning freezing temperatures. This type of paint requires certain pre- equipment or by spray- cautions.
  • Page 356 BODYWORK MAINTENANCE (3/3) Using a roller type car wash Cleaning the headlights, Cleaning stickers, decorative sensors and cameras films, etc. Return the wiper stalk to the park posi- tion ➥ 1.101. Use a soft cloth or cotton wool. You should do the following Check the mounting of external ac- If this does not clean them properly, Use a soft cloth or cotton wool.

  • Page 357: Interior Trim Maintenance

    INTERIOR TRIM MAINTENANCE (1/2) Glass instrument panel Textiles (seats, door trim, etc) A well-maintained vehicle will last longer. It is therefore recommended to (e.g. instrument panel, clock, exterior Vacuum-clean the textiles regularly. maintain the interior of the vehicle reg- temperature display etc.) ularly.
  • Page 358 INTERIOR TRIM MAINTENANCE (2/2) Removal/replacing removable You should not: equipment originally fitted in Position objects such as deodorants, the vehicle scents etc. near air vents as this could damage your dashboard trim. If you need to remove equipment in order to clean the passenger com- partment (for example, mats), always ensure that they are correctly refitted and are the right way around (the driv-...
  • Page 359 Section 5: Practical Advice Puncture, emergency spare wheel ..........Tyre inflation kit .

  • Page 360: Puncture, Emergency Spare Wheel

    PUNCTURE, EMERGENCY SPARE WHEEL (1/2) If the emergency spare wheel has been stored for several years, have it checked by your Dealer to ensure that it is safe to use. Vehicle fitted with an emergency spare wheel that differs from the other wheels: –...
  • Page 361 PUNCTURE, EMERGENCY SPARE WHEEL (2/2) Note: in the absence of an emergency spare wheel or tyre inflation kit, do not load the bottom of the luggage com- partment. Depending on the vehicle, the tool block is located under or above the spare wheel, attached to the wall under the luggage compartment carpet Emergency spare wheel...
  • Page 362 TYRE PRESSURE KIT (1/3) Do not attempt to use the The kit is only approved for inflation kit if the tyre has inflating the tyres of the ve- been damaged as a result hicle originally equipped of driving with a puncture. with the kit.
  • Page 363 TYRE PRESSURE KIT (2/3) Engine running, handbrake applied: If a minimum pressure of 1.8 bar is – Disconnect any accessories previ- not reached after 15 minutes, repair is not possible; do not drive the ve- ously connected to the vehicle’s ac- cessories sockets;...
  • Page 364 TYRE PRESSURE KIT (3/3) – Start immediately and drive at a speed between 12 to 37 mph (20 to 60 km/h) in order to distribute the product evenly in the tyre; after driv- ing a distance of 2 miles (3 km), stop and check the pressure.

  • Page 365: Tools

    TOOLS (1/2) The tools included in the tool kit A B The tool kit B is located in the tray The tool kit C is located on the storage or C depend on the vehicle. under the spare wheel compartment wall. After use, ensure the tools are correctly stored.
  • Page 366 TOOLS (2/2) Hubcap tool 3 This tool is used to remove the wheel trims. Wheel bolt guide 4 To finish loosening or starting to tighten the wheel bolts. Tow eye 5 ➥ 5.36 Wheelbrace 6 Locks or unlocks the wheel bolts and Lever 1 tow eye 5.

  • Page 367: Wheel Trims - Wheel

    WHEEL TRIMS - WHEEL Remove the wheel trim using hubcap tool 1 (located in the tool kit) by en- gaging the hook in the opening near valve 2. To refit it, align it with valve 2. Push the retaining hooks in fully, starting with Do not leave the tools un- side A near the valve, followed by B secured inside the vehicle...

  • Page 368: Changing A Wheel

    CHANGING A WHEEL (1/2) Vehicles equipped with a jack Start cranking the jack by hand, posi- tioning the 4 jack support plate in the and wheelbrace slightly indented groove underneath If necessary, remove the wheel trim. the vehicle, located between the two notches 5 and in the direction of the Use the wheelbrace 1 to slacken off the arrow 3.
  • Page 369 CHANGING A WHEEL (2/2) Undo the bolts and take off the wheel. Vehicle fitted with a tyre pressure loss warning system Fit the emergency spare wheel on the central hub and turn it to locate the In the event of under-inflation (punc- ...

  • Page 370: Tyres (Tyre And Wheel Safety, Use In Winter)

    TYRES (1/3) Tyre pressures Tyre and wheel safety The tyres are the only contact between Adhere to the tyre pressures (including the vehicle and the road, so it is essen- the emergency spare wheel). The tyre tial to keep them in good condition. pressures should be checked at least once a month and additionally before You must make sure that your tyres...
  • Page 371 TYRES (2/3) Fitting new tyres Pressures should be checked when the Vehicle fitted with a tyre pressure tyres are cold; ignore higher pressures loss warning system which may be reached in hot weather In the event of under-inflation (punc- or following a fast journey. ...
  • Page 372 TYRES (3/3) Use in winter Snow or Winter tyres We would recommend that these be Chains fitted to all four wheels to ensure that For safety reasons, fitting snow your vehicle retains maximum adhe- chains to the rear axle is strictly for- sion.

  • Page 373: Headlights: Changing Bulbs

    HEADLIGHTS: changing bulbs Your vehicle is fitted with lights with LED, contact an Approved Dealer for replacement. Direction indicators/dipped beam headlights/LED main Any operation on (or modi- beam headlights 1 fication to) the electrical system must be performed Please see an authorised dealer. by an approved dealer since an incorrect connection might LED daytime running lights/...

  • Page 374: Rear Lights And Side Lights (Replacing Bulbs)

    REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/3) LED side light/brake light 1 Direction indicators 2 – release the light assembly from out- side the vehicle by pulling towards Consult an approved dealer – Open the boot; the rear; –...
  • Page 375 REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/3) Fog lights and LED reversing High-level LED brake light 7 Refitting lights 6 To refit, proceed in the reverse order, Consult an approved dealer. taking care not to damage the wiring. Consult an approved dealer 5.17...
  • Page 376 REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/3) LED number plate lights 8 Number plate lights 9 LED side repeaters 11 (depending on the vehicle) – Unclip the light by pressing the Consult an approved dealer. tab 10 Consult an approved Dealer. –...

  • Page 377: Interior Lighting: Changing Bulbs

    INTERIOR LIGHTING: changing bulbs (1/3) Courtesy light A Map reading light B LED reading lights C – Unclip the lens (using a flat-blade – Unclip the cover (using a flat-blade Consult an authorised dealer. screwdriver or similar); screwdriver or similar); –...
  • Page 378 INTERIOR LIGHTING: changing bulbs (2/3) Courtesy light D LED reading lights E – Unclip the lens (using a flat-blade Consult an authorised dealer. screwdriver or similar); – remove the bulb concerned. Bulb type: W5W. 5.20...
  • Page 379 INTERIOR LIGHTING: changing bulbs (3/3) Luggage compartment light Glovebox light Courtesy mirror lights 3 – Unclip the light 1 by pressing the tab – Unclip the light 2 by pressing the tab Please consult an authorised dealer. on its left side (using a flat-bladed on its left side (using a flat-bladed screwdriver or similar);...

  • Page 380: Remote Control Key: Battery

    REMOTE CONTROL KEY: BATTERY: battery (1/2) Replacing the battery Note: It is not advisable to touch the electronic circuit in the key cover when Open the case at slot 1 using a flat- replacing the battery. blade screwdriver or similar, and re- When refitting, ensure that the cover is place the battery 2, observing the type correctly clipped on and the screw tight-...
  • Page 381 REMOTE CONTROL KEY: BATTERY: battery (2/2) Operating faults If the battery is too weak to ensure cor- rect operation, you will still be able to start and lock/unlock the vehicle ➥ 1.16. Precautions relating to Do not throw away your used bat- batteries: teries;...

  • Page 382: Hands-Free" Card: Battery

    “HANDS-FREE” CARD: battery (1/2) The batteries are available from ap- proved Dealers, and their service life approximately two years. Check that there is no dye on the battery: risk of an incorrect electrical con- tact. If they need to be replaced, Replacing the battery When refitting, proceed in the reverse be sure to use the same...
  • Page 383 “HANDS-FREE” CARD: battery (2/2) Operating faults If the battery is too weak to ensure cor- rect operation, you will still be able to start and lock/unlock the vehicle ➥ 1.16. Precautions relating to batteries: – keep (new or used) bat- teries out of reach of chil- dren;...

  • Page 384: Battery: Troubleshooting

    BATTERY: troubleshooting (1/3) To avoid all risk of sparks: Connecting a battery charger – Ensure that any power consumers The battery charger must be com- (courtesy lights, etc.) are switched patible with a battery with nominal off before disconnecting or recon- voltage of 12 volts.
  • Page 385 BATTERY: troubleshooting (2/3) Starting the vehicle using the battery from another vehicle If you have to use the battery from an- other vehicle to start, obtain suitable jump leads (with a large cross section) from an approved dealer or, if you al- ready have jump leads, ensure that they are in perfect condition.
  • Page 386 BATTERY: troubleshooting (3/3) Start the engine of the vehicle supply- ing the current and run it at an interme- diate engine speed. If your vehicle’s engine does not start immediately, switch off the ignition and wait a few seconds before repeating the operation.

  • Page 387: Fitting A Radio

    FITTING A RADIO – In all cases, it is very important to follow the manufacturer’s instruc- tions carefully. – The specifications of the brack- Radio location 1 Front door speakers 2 ets and wires (available from our network) vary depending on the Unclip the blanking cover.

  • Page 388: Accessories

    INSTALLATION AND USE OF ACCESSORIES: important recommendations Electrical and electronic accessories Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po- sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer. Before connecting an accessory to a socket, please ensure that you do not exceed the maximum power authorised for the socket ➥...

  • Page 389: Fuses

    FUSES (1/3) Fuse box Fuses located in the passenger Tweezers 3 compartment behind a flap in the B Remove the fuse using the tweezers 3 If any electrical component does not glovebox on the back of the flap. work, check the condition of the fuses. Unclip the access flap 2.
  • Page 390 FUSES (2/3) Allocation of fuses (the presence of certain fuse depends on the vehicle equipment level) Symbol Allocation Windscreen washer Multimedia accessories socket, multimedia î screen Æ Front and rear second row accessories socket Ì Horn Ý Towbar socket  Heated rear view mirrors Use the fuse allocation label in the ×...
  • Page 391 FUSES (3/3) Fuses in engine compartment C 4 fuse: LPG circuit shut-off. Please note when work- ing close to the engine that Some functions are protected by fuses it may be hot. In addition, located in the engine compartment the engine cooling fan may (unit C).

  • Page 392: Wiper Blades: Replacement

    WIPER BLADES: replacement (1/2) Replacing the windscreen To refit wiper blades 2 To refit the wiper blade 2, insert it in its To replace the wipers, first put them in housing in the arm 3, then clip it until the service positionB. you hear a click.
  • Page 393 WIPER BLADES: replacement (2/2) To refit To refit the wiper blade, proceed in re- verse order to removal. Make sure that the blade is correctly locked in position. – In frosty weather, make sure that the wiper blades are not stuck by ice (to avoid the risk of the motor overheating).
  • Page 394 TOWING: breakdown recovery (1/2) Before carrying out any towing, posi- The speed specified by current legis- tion the gearbox in neutral position (po- lation for towing must always be ob- sition N on vehicles equipped with an served. If you are driving the towing automatic gearbox), unlock the steering vehicle, do not exceed the permissible column then release the parking brake.
  • Page 395 TOWING: breakdown recovery (2/2) Tighten the towing hitch 5 fully: first by hand until it stops, then finish by locking it with the wheel brace or, de- pending on the vehicle, the lever. Only use the towing hitch 5 and the wheelbrace or lever provided with the tools.

  • Page 396: Operating Faults

    OPERATING FAULTS (1/7) Using the card POSSIBLE CAUSES WHAT TO DO The card does not lock or unlock the Card battery is flat. Replace the battery. You will still be able to doors. lock/unlock and start your vehicle. ➥ 1.16 and ➥...
  • Page 397 OPERATING FAULTS (2/7) The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact an approved dealer as soon as possible. Using the remote control POSSIBLE CAUSES ACTION REQUIRED The remote control does not lock or The remote control battery is flat.
  • Page 398 OPERATING FAULTS (3/7) The starter is activated POSSIBLE CAUSES ACTION REQUIRED The instrument panel indicator lights are Battery terminals not tight, bat- Retighten or reconnect the terminals, or clean them if weak or fail to light up and the starter tery terminals disconnected or they are oxidised.
  • Page 399 OPERATING FAULTS (4/7) On the road POSSIBLE CAUSES WHAT TO DO Vibrations. Tyres not inflated to correct pres- Check the tyre pressures: if this is not the sures, incorrectly balanced or dam- problem, have them checked by an ap- aged. proved Dealer.
  • Page 400 OPERATING FAULTS (5/7) On the road POSSIBLE CAUSES WHAT TO DO Steering becomes heavy. Assistance overheating. Drive carefully at reduced speed, be aware of the level of force in the steering wheel needed to turn the wheels. Fault with the electric assistance Consult an authorised dealer.
  • Page 401 OPERATING FAULTS (6/7) Electrical equipment POSSIBLE CAUSES WHAT TO DO The wipers do not work. Wiper blades stuck. Free the blades before using the wipers. Faulty electrical circuit. Consult an approved dealer. Fuse damaged. Replace the fuse or have it replaced ➥...
  • Page 402 OPERATING FAULTS (7/7) Electrical equipment POSSIBLE CAUSES WHAT TO DO Traces of condensation in the head- Traces of condensation may be a nat- lights or rear lights. ural phenomenon caused by varia- tions in temperature and humidity. In this case, the traces will disappear slowly once the lights are switched The front seat belt reminder light An object is stuck between the floor...
  • Page 403 Section 6: Technical Specifications Vehicle identification plate ............Technical Information for the emergency services .

  • Page 404: Vehicle Identification Plate

    VEHICLE IDENTIFICATION PLATES The information shown on the ve- 4 MMAC (Maximum permissible hicle identification plate should be all-up weight). quoted on all correspondence or 5 MTR (Gross train weight: vehicle orders. fully loaded, with trailer). 6 MMTA (Maximum Permissible The presence and location of the in- Weight) front axle.

  • Page 405: Technical Information For The Emergency Services

    TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES The QR Code on the A label allows emergency workers using a tablet or smartphone to immediately access the technical information useful for working on the vehicle in the event of an acci- dent. Ensure that the A label is always visible and present on the windscreen as well as the rear screen.

  • Page 406: Engine Identification

    ENGINE IDENTIFICATION Please quote the engine identifica- tion information in area A in all cor- respondence or orders. (Location varies depending on engine) 1 Engine type. 2 Engine suffix. 3 Engine serial number.

  • Page 407: Dimensions

    DIMENSIONS (in metres) 0,876 2,639 0,712 1,554 4,227 1,576* à 1,585* 1,541 2,003 * unladen...

  • Page 408: Engine Specifications

    ENGINE SPECIFICATIONS (1/3) Versions 1.6 SCe 1.0 TCe 1.3 TCe 1.5 dCi Engine type H4D Turbo H5H Turbo K9K Turbo (see engine plate) Cubic capacity (cc) 1598 1 330 1461 Type of fuel Petrol Diesel Octane rating You must use unleaded petrol with the octane The label located in the fuel filler flap indicates rating stated on the label inside the fuel filler the authorised fuels.
  • Page 409 ENGINE SPECIFICATIONS (2/3) Versions 1.6 SCe 1.0 TCe 1.3 TCe 1.5 dCi Engine type H4D Turbo H5H Turbo K9K Turbo (see engine plate) Cubic capacity (cc) 1598 1 330 1461 Fuel types that meet European standards and are Unleaded petrol compliant with Diesel fuel compliant with stand- compatible with the engines standard EN 228 contains up...
  • Page 410 ENGINE SPECIFICATIONS (3/3) Versions 1.6 SCe 1.0 TCe 1.3 TCe 1.5 dCi Engine type H4D Turbo H5H Turbo K9K Turbo (see engine plate) Cubic capacity (cc) 1598 1 330 1461 Spark plugs Only use the spark plugs specified for your vehicle’s engine.

  • Page 411: Weights

    WEIGHTS (in kg) The weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. Consult your approved Dealer. Maximum Authorised Mass (MMAC) Maximum Permissible Weight (MMTA) Weights indicated on the vehicle identification plate ➥ 6.2 Gross Train Weight (MTR) Braked Trailer Weight* found by calculating: MTR - MMAC...

  • Page 412: Replacement Parts And Repairs

    REPLACEMENT PARTS AND REPAIRS Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same level of quality as the parts fitted originally. If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the repair order.

  • Page 413: Service Sheets

    SERVICE SHEETS (1/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km):...
  • Page 414 SERVICE SHEETS (2/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km):...
  • Page 415 SERVICE SHEETS (3/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km):...
  • Page 416 SERVICE SHEETS (4/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km):...
  • Page 417 SERVICE SHEETS (5/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km):...
  • Page 418 SERVICE SHEETS (6/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp Service                                 □ ........      □ Anti-corrosion check: OK □    Not OK* □ *See specific page Date: Miles (Km):...

  • Page 419: Anticorrosion Check

    ANTICORROSION CHECK (1/5) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Stamp Repair to be carried out: Date of repair: Repair to be carried out: Stamp Date of repair: 6.17...
  • Page 420 ANTICORROSION CHECK (2/5) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Stamp Repair to be carried out: Date of repair: Repair to be carried out: Stamp Date of repair: 6.18...
  • Page 421 ANTICORROSION CHECK (3/5) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Stamp Repair to be carried out: Date of repair: Repair to be carried out: Stamp Date of repair: 6.19...
  • Page 422 ANTICORROSION CHECK (4/5) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Stamp Repair to be carried out: Date of repair: Repair to be carried out: Stamp Date of repair: 6.20...
  • Page 423 ANTICORROSION CHECK (5/5) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Stamp Repair to be carried out: Date of repair: Repair to be carried out: Stamp Date of repair: 6.21...
  • Page 424 6.22...
  • Page 425 ALPHABETICAL INDEX (1/8) assisted parking....1.62, 2.133 → 2.142, 2.147 → 2.151 ABS ..............1.60, 2.46 → 2.50 audible and visual signals..........1.99 AUTO mode ............1.93 → 1.95 access vehicle ............0.2, 1.2 → 1.12 Autohold ................2.29 accessories ............2.8, 5.30 automatic gearbox accessories - installation ........... 5.30 breakdown recovery ............ 5.36 accessories socket ........3.17 – 3.18, 3.33 automatic gearbox (use) ....2.24, 2.28, 2.152 → 2.157, ...
  • Page 426 ALPHABETICAL INDEX (2/8) changing a wheel............ 5.10 – 5.11 dimensions ................6.5 changing gear .....1.60, 2.24, 2.30 – 2.31, 2.152 → 2.157,  dipstick................. 4.4 display ............1.58 → 1.70, 3.17 2.154 → 2.161 child restraint/seat ......1.37 – 1.38, 1.40 → 1.50 doors.......... 1.14 – 1.15, 1.60, 1.83 – 1.84 child safety....0.3, 1.2 – 1.3, 1.7, 1.9, 1.13, 1.15, 1.33, doors and tailgate ........1.2 – 1.3, 1.9 → 1.12 1.37 – 1.38, 1.40 → 1.53, 3.20 → 3.22, 3.24 doors/tailgate ......
  • Page 427 ALPHABETICAL INDEX (3/8) engine front seat adjustment technical specifications ........6.6 → 6.8 electric controls ............1.21 front seat adjustment ..........1.21 – 1.22 engine coolant ....... 1.61, 1.65, 1.67 – 1.68, 4.8 engine identification ............0.7, 6.4 front seats engine oil ..............4.4 → 4.7 adjustment ..........1.21 → 1.23, 1.92 engine oil capacity .............4.5 → 4.7 fuel...
  • Page 428 ALPHABETICAL INDEX (4/8) heating and air conditioning system ......3.5 → 3.15 heating system ............3.5 → 3.14 lane centring ............2.123 → 2.132 Hill Start Assist............2.46 → 2.50 lane departure warning .........1.62, 2.51 → 2.61 horn ................... 1.99 Lane Keeping Assist ..........2.56 → 2.61 horn: lane keeping: assistance ........2.56 → 2.61 flash ................1.99 levels ..............0.8, 4.8 → 4.10 hubcap tool ..............5.7 → 5.9 levels: brake fluid ..............
  • Page 429 ALPHABETICAL INDEX (5/8) side lights ........1.93, 1.97, 5.15 – 5.16 lights-on warning buzzer............ 1.96 oil change ..............4.5 → 4.7 load permitted on the roof............ 6.9 opening the doors ..........1.14 → 1.20 locking ..............1.24 → 1.27 opening/closing locking the doors ..1.4, 1.6 → 1.12, 1.14 → 1.20, 1.83 – 1.84 luggage compartment ............ 1.4 locking/unlocking the opening elements sunroof ................
  • Page 430 ALPHABETICAL INDEX (6/8) running in ................2.2 radio fitting a radio ..............5.29 safety distance warning .........2.69 → 2.72 radio...............3.17 → 3.19 safety distances .............2.69 → 2.72 radio frequency remote control/key SCR: selective catalytic reduction ..... 1.113 → 1.116 battery ............... 5.22 – 5.23 screen use ...............1.2 → 1.4 navigation display ..........3.17 → 3.19 range with fuel .......
  • Page 431 ALPHABETICAL INDEX (7/8) special features of petrol vehicles ......2.16 – 2.17 towing rings ............... 3.40 speed limiter ..........1.62, 2.94 → 2.97 towing weights ..............6.9 traction control ..........1.60, 2.46 → 2.50 spoiler ................3.43 starting ................1.80 traction control system: ASR ........2.46, 2.48 starting the engine ...........2.3 → 2.15 transporting children ......1.37 – 1.38, 1.40 → 1.50 steering wheel transporting objects...
  • Page 432 ALPHABETICAL INDEX (8/8) weights ................6.9 welcome aboard your vehicle ..........0.1 wheelbrace ..........5.7 – 5.8, 5.10 – 5.11 wheels (safety) ............5.12 → 5.14 windows ................0.2 windscreen de-icing/demisting .......3.8, 3.11 → 3.14 windscreen washer .........1.101 → 1.107, 1.107 windscreen washer/wiper ....1.83 – 1.84, 5.34 – 5.35 wiper blades .........
  • Page 434 à999107581Sê ú ò ä 5N RENAULT S.A.S. SOCIÉTÉ PAR ACTIONS SIMPLIFIÉE AU CAPITAL DE 533 941 113 € / 122-122 BIS, AVENUE DU GENERAL LECLERC 92100 BOULOGNE-BILLANCOURT R.C.S. NANTERRE 780 129 987 — SIRET 780 129 987 03591 / renaultgroup.com...

Table of Contents

Save PDF
