Ascon tecnologic TLK94-A Operating Instructions Manual

TLK94-A
ELECTRONIC CONTROLLER
OPERATING INSTRUCTIONS
12/04 - Code: ISTR_M_TLK94_E_02_--
ASCON TECNOLOGIC S.r.l.
Viale Indipendenza 56
27029 Vigevano (PV) ITALY
TEL.: +39 0381 69871 - FAX: +39 0381 698730
http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com
FOREWORD
This manual
necessary for the product to be installed
correctly
maintenance and use; we therefore recommend
that the utmost attention is paid to the following
instructions and to save it.
This document is the
Tecnologic which forbids any reproduction and divulgation ,
even in part, of the document, unless expressly authorized.
Ascon Tecnologic reserves the right to make any formal or
functional changes at any moment and without any notice.
Whenever a failure or a malfunction of the device may cause
dangerous situations for persons, thing or animals, please
remember that the plant has to be equipped with additional
devices which will guarantee safety.
Ascon Tecnologic and its legal representatives do not
assume any responsibility for any damage to people, things or
animals deriving from violation, wrong or improper use or in
any case not in compliance with the instrument's features.
DIGITAL
contains the
and also instructions
exclusive property
Ascon Tecnologic - TLK 94-A - OPERATING INSTRUCTIONS - PAG. 1
INDEX
1 INSTRUMENT DESCRIPTION
1.1 GENERAL DESCRIPTION
1.2 FRONT PANEL DESCRIPTION
2 PROGRAMMING
2.1 FAST PROGRAMMING OF SET POINT
2.2 SELECTION OF CONTROL STATE AND PARAMETER
PROGRAMMING
2.3 PARAMETER PROGRAMMING LEVELS
2.4 CONTROL STATES
2.5 RESET PARAMETERS TO DEFAULT VALUE/LEVEL
3 INFORMATION ON INSTALLATION AND USE
3.1 PERMITTED USE
3.2 MECHANICAL MOUNTING
3.3 ELECTRICAL CONNECTIONS
3.4 ELECTRICAL WIRING DIAGRAM
4 FUNCTIONS
4.1 MEASURING AND VISUALIZATION
4.2 OUTPUTS CONFIGURATION
4.3 ON/OFF CONTROL
4.4 NEUTRAL ZONE ON/OFF CONTROL
4.5 SINGLE ACTION PID CONTROL
4.6 DOUBLE ACTION PID CONTROL
4.7 AUTO-TUNING FUNCTION
4.8 ALARM FUNCTIONS
4.9 HEATER BREAK ALARM FUNCTION
4.10 PARAMETERS CONFIGURATION BY A01
5 PROGRAMMABLE PARAMETERS
6 PROBLEMS , MAINTENANCE AND GUARANTEE
6.1 ERROR SIGNALLING
6.2 CLEANING
WARRANTY AND REPAIRS
6.3
7 TECHNICAL DATA
7.1 ELECTRICAL DATA
7.2 MECHANICAL DATA
7.3 MECHANICAL DIMENSIONS, PANEL CUT-OUT AND
MOUNTING
7.4 FUNCTIONAL DATA
7.5 MEASUREMENT RANGE TABLE
7.6 INSTRUMENT ORDERING CODE
1 - INSTRUMENT DESCRIPTION
information
1.1 - GENERAL DESCRIPTION

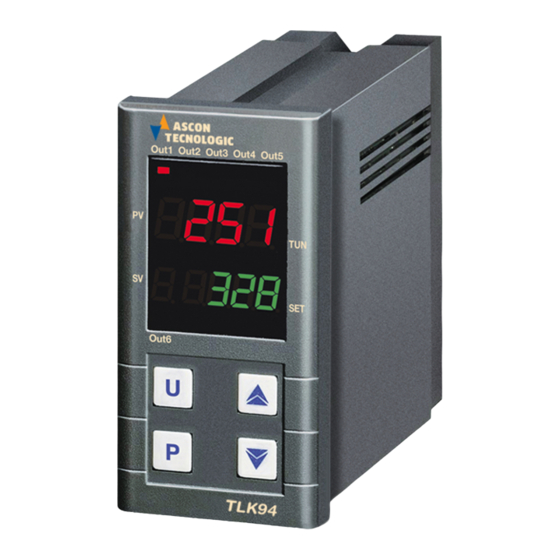

TLK 94-A is a "single loop" digital microprocessor-based controller,
for its
with ON/OFF, Neutral Zone ON/OFF, PID single action, PID dual
action (direct and reverse) control and with AUTO-TUNING
function (FAST or OSCILLATING type), and automatic calculation
of the FUZZY OVERSHOOT CONTROL parameter for PID control.
Ascon
of
The PID control has a particular algorithm with TWO DEGREES
OF FREEDOM
independently in the event of process disturbance and Set Point
variations.
The process value is visualized on 4 red display, the Set value is
visualized on 4 green display while the outputs state is indicated by
6 led.
The instrument can have up to 5 outputs: relay type or to drive solid
state relays type (SSR).
The input is programmable and accepts temperature probes
(Thermocouples J,K,S,B,C,E,L,N,R,T; Thermo-resistances Pt100,
Pt1000; Thermistors PTC and NTC; Infrared sensors mod.
TECNOLOGIC IRS) and normalized analogue signals (0/4..20 mA,
0/1..5 V, 0/2..10 V, 0..50/60 mV, 12..60 mV).
The instrument can be equipped with an input for the current
transformer, working as a Heater Break Alarm function
that optimises the instrument's features
