Sealey CP18V Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. GENERAL SAFETY
! Disconnect the drill from the battery unit before changing accessories, servicing or performing any maintenance.
! Maintain the drill and battery in good condition. Check moving parts alignment on a regular basis.
! Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Non-authorised parts may be dangerous
and will invalidate the warranty.
! Ensure the drill is switched off before installing the battery pack.
! Keep the drill and charging base clean for best and safest performance.
! Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
! Use in adequate working area for its function. Keep area clean, tidy and free from unrelated materials. Ensure there is adequate lighting.
! Evaluate your working area before using the drill e.g. ceiling, floors and enclosures may contain electrical items or water piping.
! Ensure battery pack is correctly inserted into the drill handle and latched in place before attempting to switch on drill.
! Secure loose work pieces with a clamp, vice or other adequate holding device.
! Avoid unintentional starting.
! Wear approved safety eye protection (standard spectacles are not adequate).
! Maintain correct balance and footing. Ensure the floor is not slippery and wear non-skid shoes.
! Be aware that this drill does not need to be plugged into the mains power.
! Keep chuck direction switch in the locked position until the drill is required for use.
! Keep children and unauthorised persons away from the working area.
% DO NOT use the drill where there are flammable liquids, solids or gases, such as paint solvents, etc.
% DO NOT allow children to operate the drill.
% DO NOT operate the drill if any parts are missing as this may cause failure or possible personal injury.
% DO NOT hold unsecured work piece in your hand.
% DO NOT leave the drill operating whilst unattended.
% DO NOT carry the drill with your finger on the power switch. Keep chuck direction switch in the locked position.
% DO NOT force the drill to achieve a task it was not designed to perform.
% DO NOT operate the drill when you are tired, under the influence of alcohol, drugs or intoxicating medication.
% DO NOT get the drill or battery charger wet or use in damp or wet locations.
! Keep drill and charger in the case and store in a safe, dry, childproof area where the temperature will not exceed 104
1.2. BATTERY SAFETY INSTRUCTIONS.
F WARNING! Battery contains nickel-cadmium which is dangerous. Handle with care to avoid damage, fire, corrosion or personal injury.
! Charge battery prior to its first use. The battery pack will have been shipped in a low charge state.
! Use only the charging base provided to charge the drill battery.
% DO NOT charge battery when room temperature is below 50
% DO NOT attempt recharging the battery by means of an engine generator or a DC power source.
% DO NOT short-circuit the battery by linking both terminals with a metal object, or your fingers etc.
% DO NOT store the battery (or drill) in locations where the temperature may exceed 104
or metal buildings in summer.
F WARNING! dispose of spent batteries correctly as they contain nickel-cadmium. DANGER! DO NOT attempt to disassemble the battery pack.
For safety and environmental reasons DO NOT discard in domestic waste or by burning. ONLY discard or recycle according to local authority regulations.
F WARNING! DO NOT allow a leaking battery to contact your person. If you come into contact with battery liquid take the following immediate action:
Fa) Skin contact: Wash immediately with soap and water, then wash flesh in either lemon juice or vinegar.
Fb) Eye contact: Wash with a strong solution of boric acid, and seek immediate medical attention.
1.3. ELECTRICAL SAFETY.
REGARDING DIRECT MAINS POWER USE WITH THE CHARGING BASE AND TRANSFORMER PLUG ONLY.
F
WARNING! It is the user’s responsibility to read, understand and comply with the following electrical instructions:
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An RCCB (Residual Current Circuit
p
Breaker) should be incorporated in the main distribution board. We also recommend that an RCD (Residual Current Device) is used with all
electrical products, particularly portable equipment which is plugged into an electrical supply not protected by an RCCB.
You must also read and understand the following instructions concerning electrical safety.
1.3.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by
a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.3.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.3.3. You must ensure that you:
!Inspect the transformer plug, cable, adaptor and the charging base for wear and damage to ensure items are safe before connecting
to the mains power supply. If worn or damaged DO NOT use, immediately replace, or contact a qualified electrician.
!Check cables are always protected against short circuit and overload.
p
Instructions for:

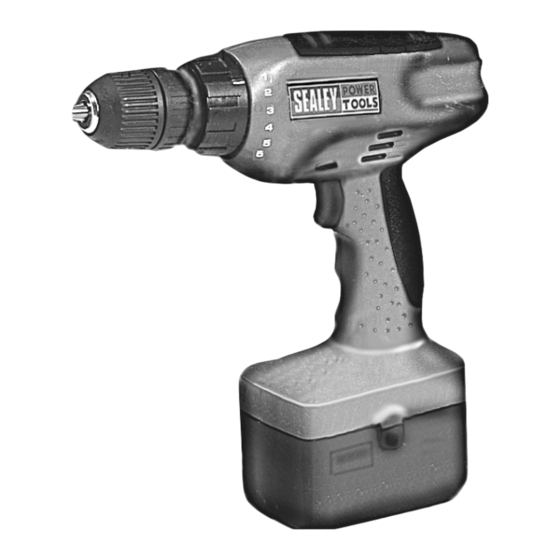

CORDLESS DRILL / DRIVER
Model:
F (10 C) or above 104 F (40 C).
O O O O
F (40
O
CP18V
F (40 C).
O O
C) such as outside sheds, above heaters,
O
CP18V - 1022 - (1) - 180599
