Sealey CP4VSD Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
1.1. GENERAL SAFETY
Maintain the screwdriver in good condition. Check moving parts alignment on a regular basis.
9
Keep the screwdriver and charger clean for best and safest performance.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
9
Secure loose workpieces with a clamp, vice or other adequate holding device.
9
Avoid unintentional starting.
9
Wear approved safety eye protection.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT allow children to operate the screwdriver.
8
DO NOT hold unsecured workpiece in your hand.
8
DO NOT carry the screwdriver with your finger on the trigger.
8
DO NOT use the screwdriver for a task it is not designed for.
8
DO NOT operate the screwdriver when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT get the screwdriver or battery charger wet or use in damp or wet locations.
8
Keep screwdriver and charger in a safe, dry, child proof area where the temperature will not exceed 104°F (40°C).
9
1.2. ELECTRICAL SAFETY FOR USE OF USB CABLE
1.2.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a
qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.2.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the
appliance and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.2.3. You must ensure that you:
Inspect the charge cable and connector for wear and damage to ensure items are safe before connecting to the power supply. If worn or
9
damaged DO NOT use.
DO NOT use any other type of charger with this product.
8
DO NOT try to take the unit and charge lead apart.
8
DO NOT get the screwdriver wet, or use in wet, damp conditions.
8
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
‰
situations that may occur. It must be understood that common sense and caution are factors which must be applied by the operator.
1.3. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, dismantle, modify or service the battery.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water. DO NOT expose to temperatures above 60°C (140°).
8
Recycle or dispose of used equipment as stipulated by local regulation.
9
2. INTRODUCTION

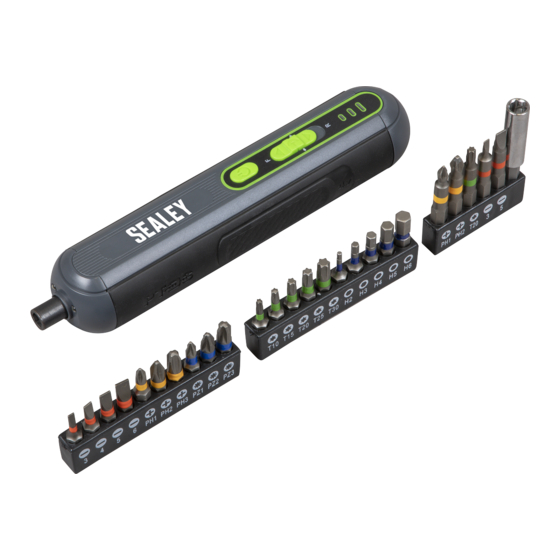

Small and compact rechargeable 4V screwdriver. Torques screws to a maximum of 5Nm and also allows screws to be further tightened with
manual torque up to 10Nm. Supplied in a storage case with 20 screwdriver bit set including a magnetic 1/4" extension bit holder. Built in LED
illuminates work piece upon operation. Also features LED battery level indicator.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CP4VSD
Battery: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4V 2Ah Li-ion
Charging Time: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 minutes
Maximum Torque: . . . . . . . . . . 5Nm automatic, 10Nm manual
No Load Speed: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-260rpm
Vibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.408m/s²
Uncertainty: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5m/s²
Noise Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59dB(A) L
Noise Pressure: . . . . . . . . . . . . . . . . . . . . . . . . . . . .70dB(A)L
© Jack Sealey Limited
4V CORDLESS SCREWDRIVER WITH 26PC
BIT SET
MODEL NO:
Wear face mask
WA
PA
Original Language Version
CP4VSD
CP4VSD Issue 1 16/03/2023
