Sealey VS0042 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
Follow workshop Health & Safety rules, regulations and conditions when using this equipment.
9
WARNING! Disconnect from air supply before changing accessories or servicing.
‰
Maintain the equipment in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts
9
may be dangerous and will invalidate the warranty.
WARNING! Check that correct air pressure is maintained and DOES NOT exceed 100psi.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure all connections are secure.
9
Wear approved safety gloves and eye and ear protection.
9
Keep VS0042 clean and in good working order for best and safest performance.
9
DO NOT use the VS0042 for a task it is not designed to perform.
8
WARNING! DO NOT use VS0042 if damaged or thought to be faulty. Contact your local service agent.
‰
DO NOT drop, throw or abuse the VS0042.
8
DO NOT carry the VS0042 by the air hose, or yank the hose from the air supply.
8
DO NOT operate the VS0042 if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT direct air from the air hose at yourself or others.
8
Keep children and unauthorised persons away from the work area.
9
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
WARNING! The warnings, cautions and instructions referred to in this instruction manual cannot cover all possible conditions and
‰
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
2. INTRODUCTION
Dramatically reduces cooling system refill time, without mess and without introducing air-locks. No more time consuming cooling system
bleeding and no more messy spills to clean up. Simply plug into the workshop air line, attach to the cooling system header tank and create
a vacuum. Complete the process by attaching the filler hose and opening the valve allowing your premixed coolant to flow into the system.
Supplied with three adaptors and storage case.
3. SPECIFICATION
Model: ....................................................................... VS0042
Air Consumption: ......................................................... 12cfm
Air Inlet Size: .............................................................1/4"BSP
Fluid Hose Length: ..................................................... 900mm
Recommended Air Pressure: ........................................ 90psi

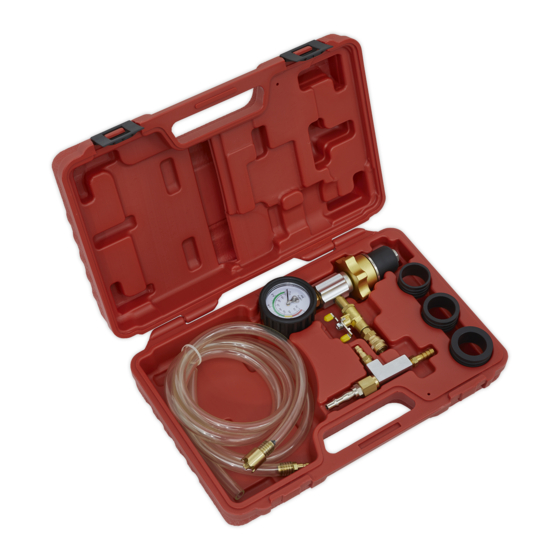

4. CONTENTS
PART No: ITEM
VS0042-01 COOLING SYSTEM ADAPTOR (c/w GAUGE)
VS0042-02 VACUUM PUMP
VS0042-03 COOLANT HOSE (c/w ADAPTOR)
VS0042-04 RUBBER BUSH (35mm)
VS0042-05 RUBBER BUSH (39mm)
VS0042-06 RUBBER BUSH (44mm)
© Jack Sealey Limited
COOLING SYSTEM VACUUM PURGE &
REFILL KIT
MODEL NO:
Wear protective
Wear safety
gloves
footwear
Original Language Version
VS0042
Wear protective
clothing
VS0042 Issue 2 (H,F,3) 10/08/22
