Sealey VS0045 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Ensure all Health & Safety, local authority, and general workshop practice regulations are strictly adhered to when
‰
using product.
WARNING! Ensure the engine and cooling system have cooled down, before opening the radiator cap.
‰
Maintain tools in good and clean condition for best and safest performance. DO NOT use funnel kit if damaged.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9
Operate in a well ventilated area and avoid breathing in exhaust fumes.
9
Keep yourself, tools, and test equipment away from hot engine parts.
9
DO NOT use this tool for any purpose other than that for which it is designed.
8
Never lay tools on the vehicle's battery. This may short the terminals together, causing harm to yourself, the tools, or the battery.
9
Account for all tools and parts being used and do not leave any in the engine bay.
9
Keep children and other unauthorised persons away from the working area.
9
Keep test kit parts clean and keep this in a safe, dry, childproof location.
9
IMPORTANT: Always refer to the vehicle manufacturer's service instructions, or a proprietary manual to establish the current procedure
and data. These instructions are provided as a guide only.
2. INTRODUCTION
i
Unique design prevents overfilling and air bubbles by turning the rotary switch. Suitable for most vehicles with added adaptors for

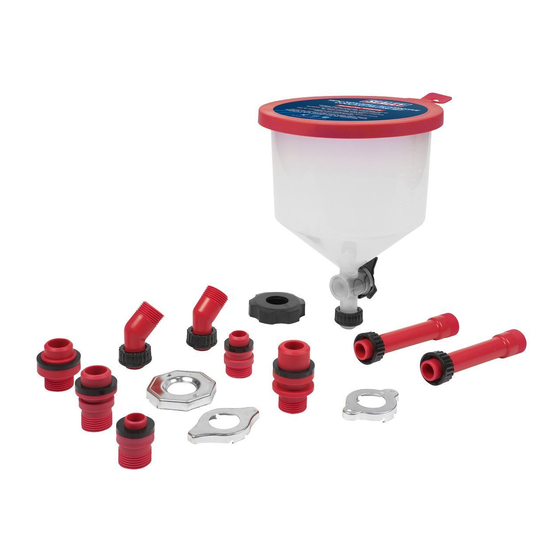

Ford and GM vehicles. The 5" extensions are designed for hard-to-reach filling expansion bottles. Contents - Funnel with switch, lid,
caps large, medium and small, threaded cap, GM adaptor, Ford adaptor, 5" extension x2 and 45° elbow x2.
3. SPECIFICATION
Model no: ......................................................... VS0045
Automotive coolant filling set: ................... No spill 15pc
4. OPERATION
4.1. Install the appropriate adapter and cap to the radiator or coolant tank.
4.2. Press the funnel into the adapter. If an angled adapter and/or extension is needed, it must be installed prior to installing the funnel.
4.3. Slowly pour coolant into the funnel until the funnel is approximately a third full.
4.4. With the funnel attached, start the engine.
4.5. Add coolant until the cooling system is full.
4.6.
If fluid remains in the funnel, squeeze and hold the large radiator hose while pressing down the fluid stopper into the closed position.
4.7. Remove the funnel and empty the remaining fluid into an appropriate container.
4.8.
Remove adapters and reinstall the cooling system cap.
© Jack Sealey Limited
15PC NO-SPILL AUTOMOTIVE COOLANT FILLING
SET
MODEL NO:
Wear Wear
protective protective
gloves clothing
Original Language Version
VS0045
VS0045 Issue:1 07/03/23
