ROBOTICS

Product manual

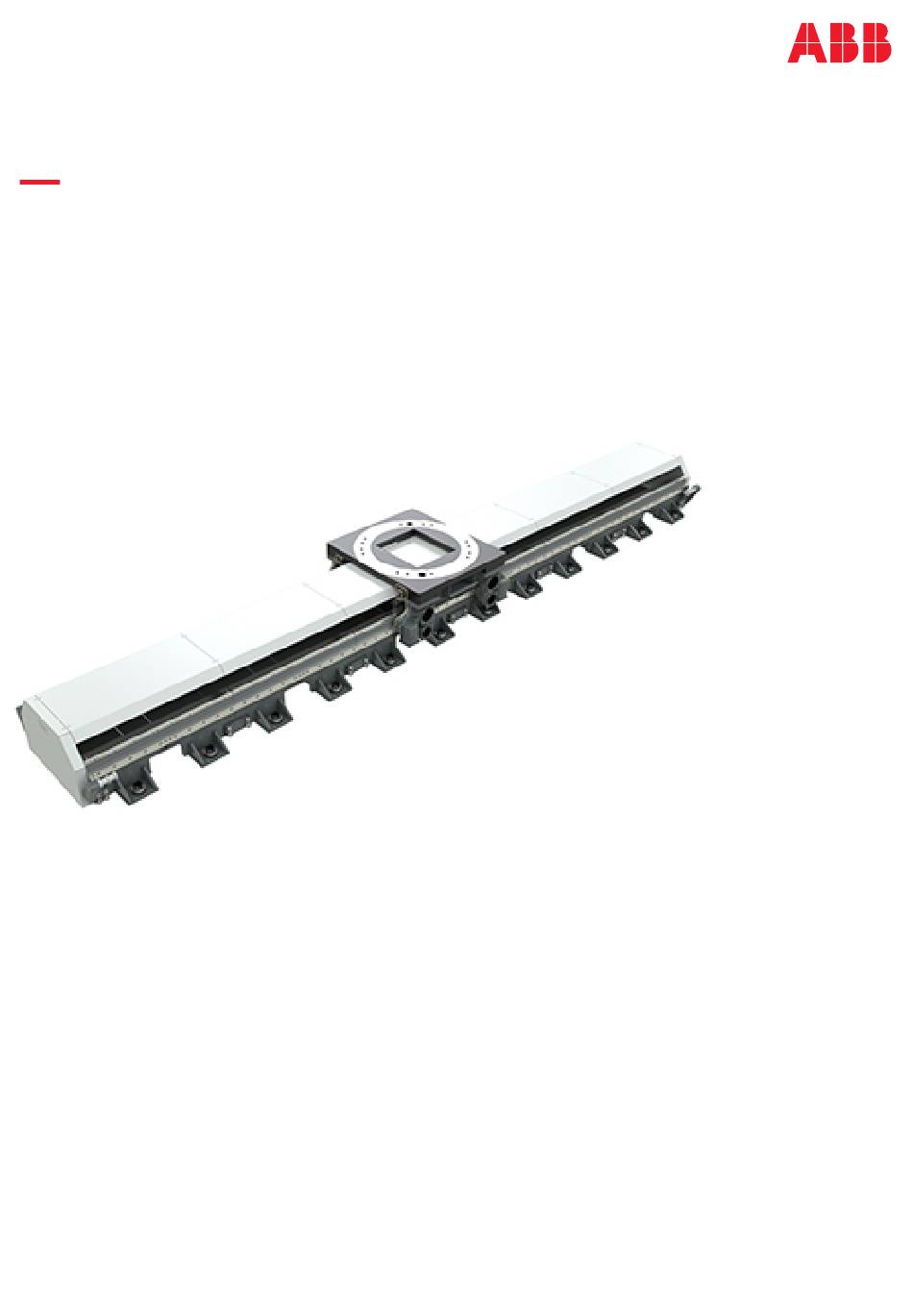

IRT 710

Table of Contents

Summary of Contents for ABB IRT 710

Page 1 ROBOTICS Product manual IRT 710...
Page 2 Trace back information: Workspace Systems version a40 Checked in 2023-10-18 Skribenta version 5.5.019...
Page 4 Except as may be expressly stated anywhere in this manual, nothing herein shall be construed as any kind of guarantee or warranty by ABB for losses, damage to persons or property, fitness for a specific purpose or the like.
Page 5: Table Of Contents
Track motion IRT 710 overview ..............3.4.2 Track motion IRT 710 layout ..............3.4.3 Lifting with lifting accessories ..............3.4.3.1 Lifting and moving track motion IRT 710 .......... Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 6 3.4.7 Assembling the track motion IRT 710 ............3.4.7.1 Assembling the sections ............... 3.4.7.2 Recommendations for floor mounting ..........3.4.7.3 Geometric alignment of track motion IRT 710 ........3.4.8 Assembling the pedestal (option) ............... 3.4.9 Assembly of the manipulator ..............
Page 7 Scrapping of robot ..................... Reference information Introduction ...................... Applicable standards ..................Unit conversion ....................Screw joints ....................Weight specifications ..................Standard toolkit ....................Special tools ....................Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 8 Table of contents Lifting accessories and lifting instructions .............. Spare parts Spare part lists and illustrations ................10 Circuit diagrams Index Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 9: Overview Of This Manual
The robot described in this manual has the following protection types: • Standard Product manual scope The manual covers all variants and designs of the IRT 710. Some variants and designs may have been removed from the business offer and are no longer available for purchase. Usage This manual should be used during: •...
Page 10 Updated creating and downloading a system procedures. • Added harness outlet chapter. • Updated IRB 6660 with 500 mm riser. • Updated illustrations throughout the manual accordingly. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 11: Product Documentation
Product documentation Categories for user documentation from ABB Robotics The user documentation from ABB Robotics is divided into a number of categories. This listing is based on the type of information in the documents, regardless of whether the products are standard or optional.
Page 12 The operating manuals describe hands-on handling of the products. The manuals are aimed at those having first-hand operational contact with the product, that is production cell operators, programmers, and troubleshooters. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 13: How To Read The Product Manual
Likewise, certain work methods or general information that is valid for several product models, can be illustrated with illustrations that show a different product model than the one that is described in the current manual. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 14 This page is intentionally left blank...
Page 15: Safety
Limitation of liability Any information given in this manual regarding safety must not be construed as a warranty by ABB that the IRT 710 (hereinafter, the Product) will not cause injury or damage even if all safety instructions are complied with.
Page 16 Unauthorized modifications of the originally delivered product/system are prohibited. Without the consent of ABB it is forbidden to attach additional parts through welding, riveting, or drilling of new holes into the castings. The strength could be affected.
Page 17: Requirements On Personnel
The plant liable must make sure that the personnel is trained on the robot, and on responding to emergency or abnormal situations. Personal protective equipment Use personal protective equipment, as stated in the instructions. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 18: Safeguarded Space
If the recalculated value ≤ 500mm, then S should be set as 500 mm. Note The used light curtain should follow type 4 from IEC61496 standards. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 19 If the recalculated value ≤ 500mm, then S should be set as 500 mm. Note The interlock device should follow the dual channel requirements. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 20 200 mm. Note The height of the fence should be at least or higher than 2200 mm. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 21 1 Safety 1.1.3 Safeguarded space Continued Note The height of the opening between the ground and the bottom of the fence should no exceed 180 mm. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 22: Safety Actions
1 Safety 1.2.1 Personal protective equipment 1.2 Safety actions 1.2.1 Personal protective equipment Note Always wear non-slip safety shoes for any commissioning/maintenance/repair procedure. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 23: Fire Extinguishing
1.2.2 Fire extinguishing 1.2.2 Fire extinguishing Note Use a CARBON DIOXIDE (CO ) extinguisher in the event of a fire in the Product or controller. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 24: Emergency Release
When releasing the holding brakes, the Product parts may move very quickly and sometimes in unexpected ways. Make sure no personnel is near or beneath the Product. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 25: Make Sure That The Main Power Has Been Switched Off
Wait for 5 minutes to let the capacitors discharge after the power has been switched off. DANGER Even if the main switch is switched off, the capacitors can cause electric shock if not given the time to discharge. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 26: Safety Risks
Corrective maintenance must only be carried out by qualified personnel who are familiar with the entire installation as well as the special risks associated with its different parts. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 27 Product and as a result of that affect the active or passive safety operation. ABB is not liable for damages caused by the use of non-original spare parts and special equipment. ABB is not liable for damages or injuries caused by unauthorized modifications to the Product.
Page 28: Moving Equipment Is Potentially Lethal
The hold-to-run function is used in manual mode, not in automatic mode. Make sure no personnel are present within the working range of the Product before pressing the start button. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 29: First Test Run May Cause Injury Or Damage
If maintenance or repair has been done, pay special attention to the function of the part that was serviced. Collision risks CAUTION When programming the movements of the Product, always identify potential collision risks before the first test run. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 30: Work Inside The Working Range Of The Product
Product will move unexpectedly when its parts are moved using the three-position enabling device or during other work inside the working range of the Product. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 31: Enabling Device And Hold-To-Run Functionality
How to operate the hold-to-run function for IRC5 is described in Operating manual - IRC5 with FlexPendant. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 32: Risks Associated With Live Electric Parts
A danger of low voltage is associated with the Product in: • The power supply for the motors. • The user connections for tools or other parts of the installation. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 33 Tools, material handling devices, etc., may be live even if the Product system is in the OFF position. Power supply cables which are in motion during the working process may be damaged. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 34: Hot Parts May Cause Burns
Wait until the potentially hot component has cooled if it is to be removed or handled in any other way. Do not put anything on hot metal surfaces, e.g. paper or plastic. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 35: Brake Testing
For Products with the option SafeMove, the Cyclic Brake Check routine is recommended. See the manual for SafeMove in References on page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 36: Safety Risks During Handling Of Batteries
Risk of fire or explosion. Operating temperatures are listed in Pre-installation procedure on page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 37: Safety Risks During Work With Gearbox Lubricants (Oil Or Grease)
Possible pressure build-up in gearbox Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 38 The magnetic oil plugs will take Contaminated oil in care of any remaining metal gear boxes chips. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 39: Safety Signals And Symbols
Signal word used to indicate important facts and conditions. Signal word used to indicate where to find additional information or how to do an operation in an easier way. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 40: Safety Symbols On Product Labels
Prohibition Used in combinations with other symbols. xx0900000839 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 41 Brake release Pressing this button will release the brakes. This means that the parts of the Product can fall down. xx0900000808 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 42 Risk of heat that can cause burns. (Both signs are used) xx0900000818 xx1300001087 Brake release buttons xx0900000820 xx1000001140 Lifting bolt xx0900000821 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 43 Used in combination with Do not disassemble symbol. xx0900000825 Pressure Warns that this part is pressurized. Usually contains additional text with the pressure level. xx0900000826 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 44 Warns that stepping on these parts can cause damage to the parts. xx1400002648 Must wear safety helmet xx1800002608 Must wear non-slip safety shoes xx2200001149 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 45 1 Safety 1.4.2 Safety symbols on product labels Continued Symbol Description No entering Warns that entering the working areas can cause injuries or damages. xx1800002609 Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 46: Product Stopping Functions
After emergency stop triggered Check the rectangular rail where the robot stopped for: • no "step" while passing the rectangular rail junction; xx2200001185 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 47 1 Safety 1.5 Product stopping functions Continued • no gap between the rectangular rail and section. xx2200001192 Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 48: Safety During Installation And Commissioning
Lock and tag shall be considered. Harnesses between controller and manipulator shall be fixed and protected to avoid tripping and wear. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 49 Before the robot system is put into operation, verify that the safety functions are working as intended and that any remaining hazards identified in the risk assessment are mitigated to an acceptable level. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 50: Safety During Operation
Unexpected movement of product WARNING Hazards due to the use of brake release devices and/or gravity beneath the manipulator shall be considered. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 51 Note The robot should avoid the arm to be totally straightened horizontally or vertically during high-speed movement. This may lead to unexpected hazards. xx2200001196 xx2200001197 Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 53 Operating temperatures are listed in Operating conditions on page See safety instructions for the batteries in Material/product safety data sheet - Battery pack (3HAC043118-001). Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 54 Hazards due to the use of brake release devices and/or gravity beneath the manipulator shall be considered. Related information See also the safety information related to installation and operation. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 55: Emergency Release Of The Product Axes
When releasing the holding brakes, the Product axes may move very quickly and sometimes in unexpected ways. Make sure no personnel is near or beneath the robot. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 56: Safety During Troubleshooting
The product can move unexpectedly at any time. DANGER Troubleshooting on the controller while powered on must be performed by personnel trained by ABB or by ABB field engineers. A risk assessment must be done to address both product and robot system specific hazards.
Page 57: Safety During Decommissioning
Decommissioning on page 361. Unexpected movement of product WARNING Hazards due to the use of brake release devices and/or gravity beneath the manipulator shall be considered. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 58 This page is intentionally left blank...
Page 59: Technical Data
1000 xx2200001281 Value of N is equal to the number of sections. Valid if the length is N + 0.5 m Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 60 Overall height differ- ence ≤ 10 mm Mechanical stops There are no adjustable mechanical stops on the IRT 710. This needs to be considered while doing a risk assessment of the complete installation, the track can however be order in different lengths.
Page 61 CP/CS harness, welding cables, media pipes and etc. There are three types carriages used in IRT 710. For more information, see 710 carriage overview on page The following table takes the large robot carriage weight into count.
Page 62 10212 10837 8261 9293 8858 9933 10478 11103 23.5 8369 9401 8966 10041 10586 11223 8595 9670 9189 10307 10852 11489 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 63 15678 14533 16339 16908 17569 Note The weight does not include additional options, tools and other equipment fitted on the robot. Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 64 Max. Transfer Load 3,000 kg Note The payloads listed above are estimated for a wide range of IRT 710 applications. Robot payload is specified in the Product Specification for the robot. Airborne noise level The sound pressure level outside the working space.
Page 65 A power consumption measurement of a track motion with manipulator could be done with a simulated cycle in RobotStu- dio. See Operating manual - RobotStudio. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 66: Working Range
6006 Standard> -309 6197 6506 Mirrored -309 6197 6506 Standard> -309 6697 7006 Standard> -309 7197 7506 Mirrored -309 7197 7506 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 67 Standard> -309 17697 18006 Standard> -309 18197 18506 Mirrored -309 18197 18506 20.5 Standard> -309 18697 19006 Standard> -309 19197 19506 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 68 -309 29197 29506 31.5 Standard> -309 29697 30006 Standard> -309 30197 30506 Mirrored -309 30197 30506 32.5 Standard> -309 30697 31006 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 69 38506 40.5 Standard> -309 38697 39006 Double carriages Please check the layout of work range attached file and dimension information. xx2200000402 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 70 7236 10.5 Standard -309 7427 Standard -7539 7736 Standard -309 7927 Standard -8039 8236 Standard -309 7927 Mirrored -309 7927 8236 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 71 15927 16236 Mirrored -16039 Mirrored -309 15927 16236 19.5 Standard -309 16427 Standard -16539 16736 Standard -309 16927 Standard -17039 17236 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 72 25236 Standard -309 24927 Mirrored -309 24927 25236 Mirrored -25039 Mirrored -309 24927 25236 28.5 Standard -309 25427 Standard -25539 25736 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 73 -33539 33736 Standard -309 33927 Standard -34039 34236 Standard -309 33927 Mirrored -309 33927 34236 Mirrored -34039 Mirrored -309 33927 34236 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 74 Please check the layout of work range attached file and dimension information. xx2200000403 Description 813 mm B minim- 1270 mm Stroke Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 75 Standard -1039 11427 12466 Standard -309 12657 Standard -12769 Standard -1039 11927 12966 Standard -12769 Standard -309 12657 Standard -12039 12966 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 76 -23039 23966 28.5 Standard -309 24157 Standard -24269 Standard -1039 23427 24466 Standard -309 24657 Standard -24769 Standard -1039 23927 24966 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 77 -1039 34927 35966 Standard -35769 Standard -309 35657 Standard -35039 35966 40.5 Standard -309 36157 Standard -36269 Standard -1039 35427 36466 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 78 Please check the layout of work range attached file and dimension information. xx2200000404 Description 813 mm B minim- 1270 mm Stroke Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 79 -309 13387 Standard -13499 Standard -1039 12657 Standard -12769 13696 Mirrored -13499 Mirrored -309 13387 Mirrored -12769 Mirrored -1039 12657 13696 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 80 -309 24887 Standard -24999 Standard -1039 24157 Standard -24269 25196 Standard -309 25387 Standard -25499 Standard -1039 24657 Standard -24769 25696 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 81 Mirrored -309 34387 Mirrored -33769 Mirrored -1039 33657 34696 40.5 Standard -309 34887 Standard -34999 Standard -1039 34157 Standard -34269 35196 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 82: Information Labels
SECTION A-A xx2200000872 Item Description ABB Logo Rating Label Lifting Label NO SHOCK Warning Label Instruction Plate Electric shock Warning Label High Temperature Warning Label Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 83: Irt 710 Terms
Maximum stroke of the carriage. SMB Box The Serial Measurement Board Box, a control box which in- cludes the SMB card for the IRT 710 axis as well as the resolver position backup battery. The Serial Measurement Board is a integrated circuit board used to measure and store the position of each robot axes.
Page 84 This page is intentionally left blank...
Page 85: Installation And Commissioning
Safety on page 15 before performing any installation work. Note Always connect the IRT 710 and the robot to protective earth and residual current device (RCD) before connecting to power and starting any installation work. For more information see: •...
Page 86: Overview Of Installation And Commissioning Procedure
Lift the track motion. Lifting track motion using lifting slings. Assemble the track motion. Assembling the track motion IRT 710 on page 120 Assembling the pedestal (option). Assembling the pedestal (option) on page 139 Assemble the manipulator.
Page 87: Unpacking
Clean the unit with a lint-free cloth, if necessary. Note Do not clean any of the pre lubricated parts of the track motion IRT 710. Make sure that the lifting accessory used (if required) is suitable to handle the weight...
Page 88 3.3.1 Pre-installation procedure Continued Number of sections on pallets If the complete track motion IRT 710 consists of more than 6 sections, the delivery is divided on several pallets. The table below specifies the number of sections on each pallet.
Page 89: Acceptance Inspection
Variant: IRT 710-XX/X Carriage type Carriage number Length R, T 1, 2, 3, 4 3, 3.5, 4,...40 xx2200000408 *: R represents Robot; T represents Transfer. Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 90: Storage
The chain can either be folded so that the chain is lying on itself or laid on its side. xx1300000884 Continues on next page Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 91 For complete chains with or without strapping in place or strapping in place and the strapping plate not connected to the chain, the chain can be rolled up and stored lying on its side xx1300000885 Product manual - IRT 710 3HKA00000186299-001 Revision: B © Copyright 2023 ABB. All rights reserved.
Page 92: On-Site Installation
