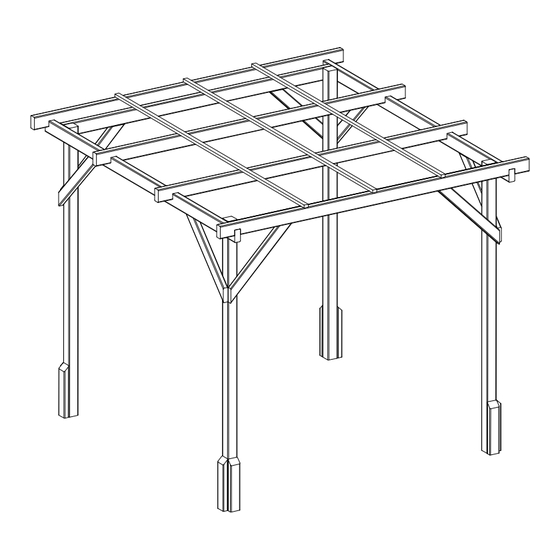

- Page 1 Installation Manual Utopia Pergola 2m x 2m H4-GS2X2MK2PRG Unique product reference number ................. www.dunsterhouse.co.uk...
- Page 2 Email: cs@dunsterhouse.co.uk Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your postcode so we can locate your order.
- Page 3 Components required for Utopia Pergola 2m x 2m 70x70x1965 4x Pressure Treated Post 1965 70x35x650.C 70x35x350.C 8x Pressure Treated Brace 8x Pressure Treated Post Fascia 86x43x2000 2x Pressure Treated Beam 2000 86x43x2300 2x Pressure Treated Beam 2300 86x43x2300.N 4x Pressure Treated Beam 2300 30x20x2300 3x Pressure Treated Trim...
- Page 4 Utopia Pergola 2m x 2m Installation Manual Step 1 Components required: Post - 70x70x1965 (4 required) Beam - 86x43x2000 (2 required) Beam - 86x43x2300 (2 required) 70mm Screws (16 required) Please remember to pre-drill all holes before fixing, to avoid the splitting of timber. Fix the components 86x43x2000 and 86x43x2300 in the positions shown using 2x 70mm screws per end.
- Page 5 Utopia Pergola 2m x 2m Installation Manual Step 2 70x35x650.C Components required: 70x35x650.C Brace - 70x35x650.C (8 required) 70mm Screws (24 required) 95mm Screws (8 required) Once the frame is assembled, fix the braces 70x35x650.C in the positions shown using 3x 70mm screws and 1x 95mm screw per brace.
- Page 6 Utopia Pergola 2m x 2m Installation Manual Step 4 Components required: Trim - 30x20x2300 (3 required) 50mm Screws (12 required) Once the main beams are in place, you are ready to fix 3x 30x20x2300 trims on top of the beams. Place the trims in the opposite direction to the beams, with an even spacing, as shown in the diagram.
- Page 7 Utopia Pergola 2m x 2m Installation Manual Step 5 Components required: Post Fascia - 70x35x350.C (8 required) 70mm Screws (16 required) On the base of the posts, fix 2x 70x35x350.C to each post on the outside of the Pergola. The angled end of this component needs to be pointing upwards.
- Page 8 Installation Manual Utopia Pergola (Additional Wall Panel Pack) Unique product reference number ................. http://www.dunsterhouse.co.uk Dunster House Ltd.
- Page 9 Utopia Pergola 2m x 2m - Pack may contain 2m Solid Wall Panel Pressure Treated 1860 Solid Wall Panel Pressure Treated 2860 Glass Wall Panel Pressure Treated 1860 LOOSE COMPONENTS Horizontal Beading Timber - Per Window Pressure Treated Vertical Beading Timber - Per Window Pressure Treated Page 9...
- Page 10 Utopia Pergola 2m x 2m - Pack may contain Glass Wall Panel Pressure Treated 2860 LOOSE COMPONENTS Horizontal Beading Trim - Per Window Pressure Treated Vertical Beading Trim - Per Window Pressure Treated ACCESSORIES PART NUMBER 70mm Screw For Panels Varies Varies 40mm Pin Nail For Beading Trims...
- Page 11 Utopia Pergola 2m x 2m - Additional Panel Assembly Full Height Wall Panel Assembly • 3m Solid Wall Panel • 2m Solid Wall Panel **Quantity of components will vary, depending on your purchase • 70mm Screws • Position the solid wall panels between posts as shown in the diagram below. •...
- Page 12 Utopia Pergola 2m x 2m - Additional Panel Assembly Half Height Wall Panel Assembly • 3m Solid Wall Panel • 2m Glass Wall Panel **Quantity of components will vary, • 3m Glass Wall Panel • 70mm Screws depending on your purchase •...
- Page 13 Principle of Glass Installation 1x - Glass 16x - Pin Nail **Quantity of components will vary, depending on your purchase 2x - Horizontal Beading Trim 2x - Vertical Beading Trim Please Note: This diagram represents how to install one window panel frame. Please apply this procedure to all window frames purchased.
