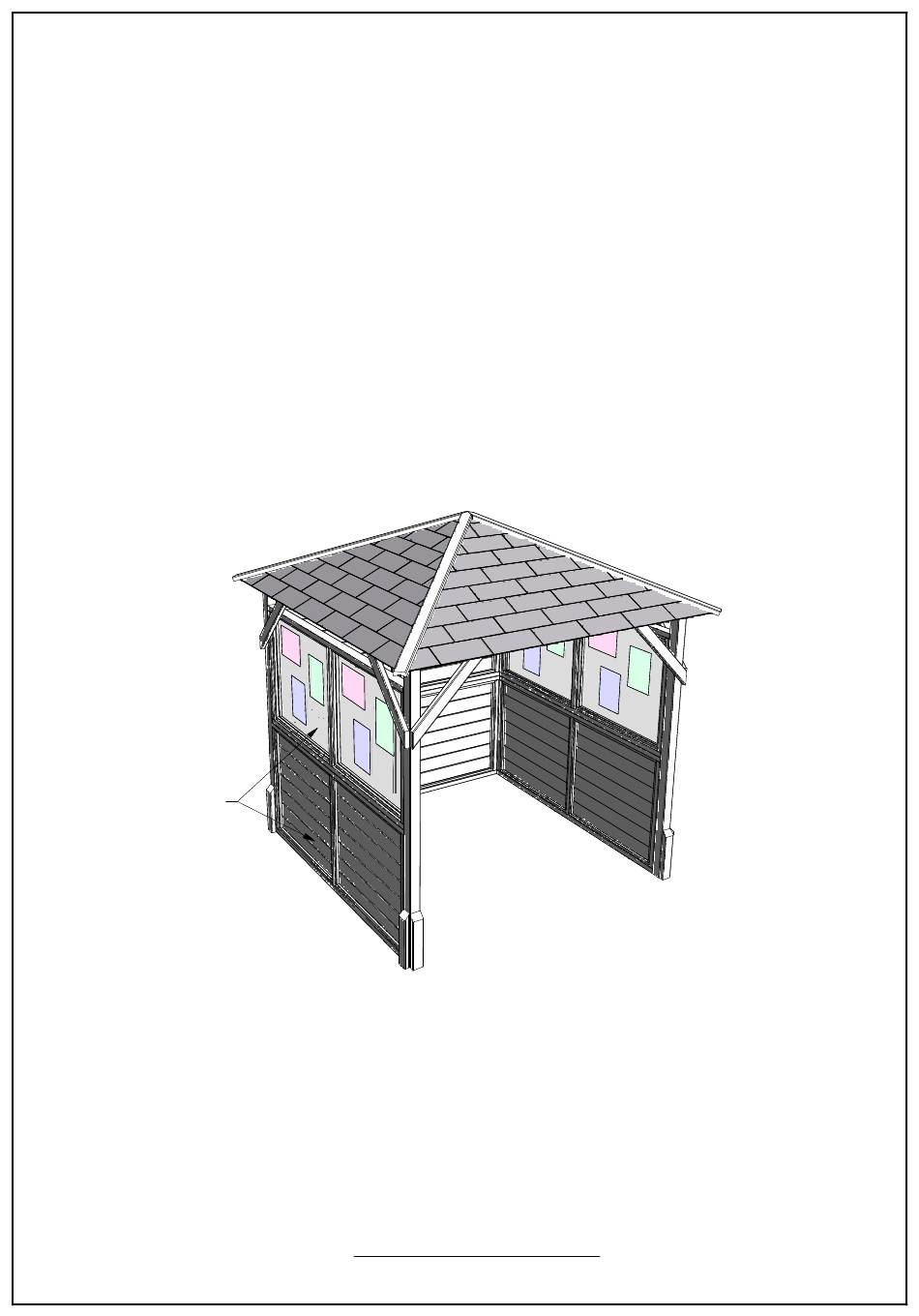

- Page 1 Installation Manual Utopia Gazebo 2x2m MKII Wall Panels (optional extra) Unique Gazebo Reference Number. ____________________ www.dunsterhouse.co.uk...
- Page 2 E-Mail: cs@dunsterhouse.co.uk Fax: (01234) 224497 Post: Dunster House Ltd., Caxton Road, Elms Farm Industrial Estate, Bedford MK41 0EB, England. Our Customer Service is aim to respond within 2-3 hours of receipt, however, this may be longer during busy periods. Please include your Sales Order (SO) number in any correspondence with Customer Services to enable them to locate your file.
-
Page 3: Getting Ready
Utopia Gazebo 2x2m MKII Installation Manual The Nature of Wood The wood provided for your gazebo is soft wood which has been kiln dried and is pressure treated. Wood is a natural product, which may have knots, knotholes, imperfections, cracks and warping. - Page 4 Utopia Gazebo 2x2m MKII Installation Manual Preparation for Assembly To build your gazebo you will need: Two people, a stepladder, hammer, sharp knife, drill with drill bits, spirit level, screwdriver, saw, pair of pliers and a measuring tape. As a precautionary measure, protective gloves can be worn.
-
Page 5: Roof Panel
Utopia Gazebo 2x2m MKII Installation Manual 70x70x1900.C 1900 4 of required 70x35x350.C 70x35x650.C 8 of required 8 of required bottom cap 65x35x2000.C 1 of required Ø 4 of required 2000 70x35x1700.C 4 of required 1694 SHIPx2175 Bottom Roof boards 4 of required... - Page 6 Utopia Gazebo 2x2m MKII Installation Manual Start by assembling the main frame for the Utopia Gazebo. Make sure notches on Please remember to pre-drill all holes components '70x70x1900.C' before fixing, to avoid the splitting of are facing inside the Gazebo.
- Page 7 Utopia Gazebo 2x2m MKII Installation Manual Fix the 'roof panels' to the Gazebo frame. Lift the 'roof panels' into position and fix the supports of the panels to the frame of the gazebo. For each corner you are required to use...
- Page 8 Utopia Gazebo 2x2m MKII Installation Manual Fix the 'SHIPx2175.A' to the 'Roof Panel'. Use 4x35mm screws per shiplap board to fix SHIPx2175 SHIPx2175 into position. Equally space out the screws and fix by screwing through the shiplap and into '65x35x2000.C'.
- Page 9 Utopia Gazebo 2x2m MKII Installation Manual Fix '70x35x350.C' to the bottom of the Gazebo posts. On the base of the main support posts, fix 2x '70x35x350.C' to each post on the outside of the gazebo. The angled end of this component needs to be pointing upwards.
- Page 10 Utopia Gazebo 2x2m MKII Installation Manual Once you have fixed the bottom row on shingles (with the cut outs pointing towards the roof) you can now fully cover the roof of your gazebo with shingles. All of the strips of shingles will now have the cut outs pointing towards the ground.
