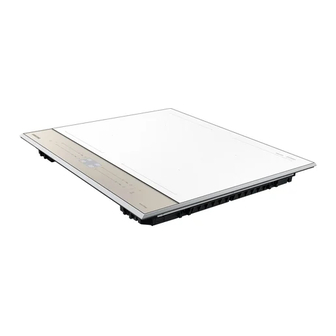

Induction Hob
User manual
NZ64B5067Y**

Advertisement

Table of Contents
loading

Related Manuals for Samsung NZ64B5067Y Series

Summary of Contents for Samsung NZ64B5067Y Series

  • Page 1 Induction Hob User manual NZ64B5067Y**...

  • Page 2: Table Of Contents

    Contents Contents Operation Using this manual Switching the appliance on The following symbols are used in this User Manual: Switching the appliance off Model name & serial number Selecting cooking zone and power level Safety instructions Max Boost Using the Flex zone Disposing of the packaging material Timer Proper disposal of your old appliance...

  • Page 3: Using This Manual

    Using this manual Safety instructions Please take the time to read this owner’s manual, paying particular attention to the The safety aspects of this appliance comply with all accepted technical and safety safety information contained in the following section, before using your appliance. standards.
  • Page 4 Safety instructions This Appliance should be allowed to disconnection from the The appliance is not intended to be operated by means of an supply after installation. The disconnection may be achieved by external timer or separate remote-control system. having the plug accessible or by incorporating a switch in the CAUTION: The cooking process has to be supervised.
  • Page 5 The surfaces are liable to get hot during use. CAUTION This appliance can be used by children aged from 8 years and Be sure the appliance is properly installed and grounded by a above and persons with reduced physical, sensory or mental qualified technician.
  • Page 6 Safety instructions Do not use the hob to heat aluminium foil, products wrapped Always keep the control panels clean and dry. in aluminium foil or frozen foods packaged in aluminium Never place combustible items on the hob, it may cause fire. cookware.

  • Page 7: Disposing Of The Packaging Material

    This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, visit: www.samsung.com/uk/aboutsamsung/ sustainability/environment/our-commitment/data/ English 7...

  • Page 8: Installing The Hob

    Installing the hob Tools you will need WARNING Be sure the new appliance is installed and grounded only by qualified personnel. Please observe this instruction. The warranty will not cover any damage that may occur as a result of improper installation. Technical data is provided at the end of this manual.

  • Page 9: Installing Into The Countertop

    Installing into the countertop WARNING Pay attention (conformity) to phase and neutral allocation of house connection and NOTE appliance (connection schemes); otherwise, components can be damaged. Warranty does not cover damage resulting from improper installation. Make a note of the serial number on the appliance rating label prior to installation.
  • Page 10 Installing the hob Normal Installation Type Unit : mm Unit : mm min. min. 500 mm 500 mm min. min. 50 mm 50 mm ±1 ±1 ±1 ±1 max. R25 max. R25 min. 55 min. 55 min. 50 min. 50 Flushed Fit Type (Only NZ6******FK model can be installed) Drawer Oven...

  • Page 11: Components

    Before you start Cooking zones NZ64B5067Y* Induction cooking zone Components Control panel Induction hob Bracket Spring English 11...

  • Page 12: Control Panel

    Before you start Control panel Induction heating • The Principle of Induction Heating: Control panel - NZ64B5067Y* When you place your cookware on a cooking zone and you turn it on, the electronic circuits in your induction hob produce “induced currents” in the bottom of the cookware which instantly raise cookware’s temperature.

  • Page 13: Safety Shutoff

    Safety shutoff Residual heat indicator If one of the cooking zones is not switched off or the power level is not adjusted When an individual cooking zone or the hob is turned off, the presence of residual after an extended period of time, that particular cooking zone will automatically heat is shown with an (for “hot”) in the corresponding cooking zone display.

  • Page 14: Cookware

    Before you start Cookware Cookware for induction cooking zones The Induction burner can only be turned on when cookware with a magnetic base Use flat-bottomed cookware that completely is placed on one of the cooking zones. You can use the cookware identified as contacts the entire cooking zone.
  • Page 15 Other induction cookware Suitability test Some cookware has thin magnetic material on the bottom to work with an Cookware is suitable for induction cooking induction heating hob. These cookware has weak magnetism and may not work if a magnet sticks to the bottom of the well.
  • Page 16 Before you start Correct positioning Energy saving tips Follow these tips to save power Correct Incorrect consumption. • Always put cookware on a cooking zone before you turn the corresponding burner on. • Keep the cooking zones and cookware Flat-bottomed cookware and straight Cookware with curved or warped bases clean.

  • Page 17: Using The Touch Buttons

    Operation Using the touch buttons Switching the appliance on To operate the touch buttons, touch the desired button with the tip of your pointed The appliance is switched on using the On/Off key. Press the On/Off key for finger until the relevant displays illuminate or go out, or until the desired function approximately 1-2 seconds.

  • Page 18: Selecting Cooking Zone And Power Level

    Operation Selecting cooking zone and power level Suggested settings for cooking specific foods The numbers in the table below are guidelines. The power level required for For selecting the cooking zone, press the corresponding Control bar. various cooking methods depend on a number of variables, including the quality For setting and adjusting the power level, use the Control bar.

  • Page 19: Max Boost

    Max Boost Using the Flex zone The Max Boost function makes additional power available to the each cooking The Flex function can operate complete 1 side cooking zone for using large size zones. (example : bring a large volume of water to the boil) cookware.

  • Page 20: Pause/Resume

    Operation Pause/Resume Child safety lock The Pause/Resume function simultaneously switches all cooking zones that are You can use the child safety lock to safeguard against unintentionally turning on a switched on to the low power setting and then back to the power level that was cooking zone and activating the cooking surface.

  • Page 21: Maximum Power Limit

    Maximum power limit Sound on/off This function allows you to adjust the maximum power of the unit. Press the On/Off key for approximately 1-2 seconds. Keep the power off. Press the right front Timer key for 2 seconds within 10 seconds after the Press the left front Max Boost key and left rear Timer key at the same time power has turned on.

  • Page 22: Smart Connect

    Wi-Fi signal. How to connect the hob Follow the Bluetooth instructions of the hood control model and activate the Before you can use the remote features of your Samsung hob, you must pair it to Bluetooth connection. the SmartThings app.

  • Page 23: Maintaining Your Appliance

    Maintaining your appliance Stubborn soiling To remove food that has boiled over WARNING and stubborn splashes, use a glass Cleaning agents must not come into contact with a heated ceramic glass surface: scraper. All cleaning agents must be removed with adequate amounts of clean water after Place the glass scraper at an angle to cleaning because they can have a caustic effect when the surface becomes hot.

  • Page 24: Problem Dirt

    Maintaining your appliance Problem dirt Hob frame (option) Remove burnt-on sugar, melted plastic, WARNING aluminium foil or other materials with Do not use vinegar, lemon juice or scale remover on the hob frame; otherwise dull a glass scraper immediately and while blemishes will appear.

  • Page 25: Troubleshooting And Service

    Troubleshooting and service Troubleshooting Information code Possible cause Solution A fault may result from a minor information that you can correct yourself with There is a problem with the Restart the appliance the help of the following instructions. Do not attempt any further repairs if the burner temperature sensor.

  • Page 26: Service

    Troubleshooting and service What should I do if the cooking zone will not switch on or off? Service This could be due to one of the following possibilities: Before calling for assistance or service, please check the section “Troubleshooting”. • The control panel is partially covered by a damp cloth or liquid.
  • Page 27 Memo...
