- Page 1 HW-K950 User Manual For further information, refer to the Web Manual. Web manual : www.Samsung.com Support → → Product name search → HW-K950 * Design, specifications and App screen are subject to change without prior notice.
-
Page 2: Safety Information
SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make any CAUTION kind of contact with any internal part of this product. - Page 3 Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
- Page 4 FEATURES Lets you enjoy TV sound after connecting the Soundbar to your TV with or without a cable. You can enjoy rich and realistic TV sound through the Soundbar connected to your TV with or without a cable. c Refer to Method 1 on page 7 to see how to connect the Soundbar to your TV using an HDMI Cable. c Refer to Method 2 on page 8 to see how to connect the Soundbar to your TV using a wireless network.
-
Page 5: Checking The Components

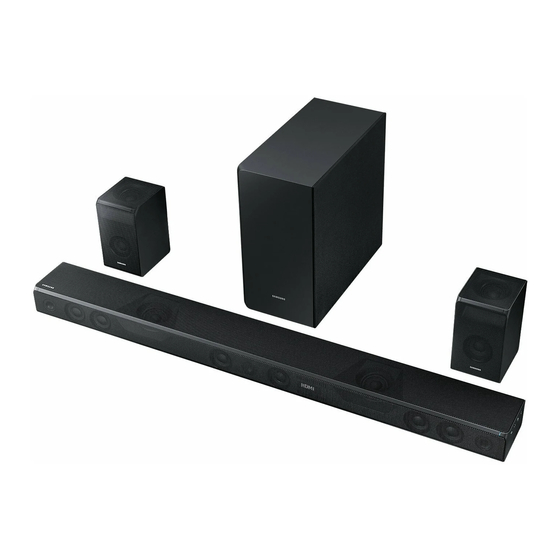

CHECKING THE COMPONENTS Soundbar Main Unit 3 AC Plug 4 AC/DC Adapter (Depending on the country and model) Remote Control / Batteries Subwoofer Surround Speaker SOUND SOURCE EFFECT LEVEL Left Right WOOFER SOUNDBAR 1 Power Cord 2 Power Cord c To distinguish the left surround speaker from the right, check the label on the rear of each speaker. CONNECTING ELECTRICAL POWER Use the power components (1, 2, 3, 4) to connect the power supplies in the following order: Subwoofer ... -
Page 6: Recommended Speaker Layout
CONNECTING SUBWOOFER AND SURROUND SPEAKERS TO THE SOUNDBAR MAIN UNIT You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit. Recommended Speaker Layout Soundbar Main Unit Soundbar Main Unit Subwoofer Subwoofer 90°... - Page 7 Connecting the Subwoofer and Surround Speakers Manually if the Automatic Connection Fails c Before You Begin • Make sure that the Soundbar, the subwoofer, and the surround speakers are plugged in. • Make sure that the Soundbar is turned on. 1.
-
Page 8: Connecting To Your Tv
CONNECTING TO YOUR TV You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable. c Important: Before you begin, put the batteries into the remote. See page 17 for instructions. Method 1. Connecting with a Cable Check the HDMI IN (TV-ARC) port on your TV. - Page 9 Samsung Multiroom Internet Wireless Router Smart Device 3. Install the Samsung Multiroom app on your smart device (smart phone, tablet, etc.). 4. Launch the Samsung Multiroom app. Samsung Multiroom Android Samsung Multiroom app 5. Complete the initial settings by following the instructions on the app screen.
- Page 10 Adding the Soundbar to an Existing Multiroom Audio System If the Samsung Multiroom app is already installed for use with another multiroom audio device, follow these steps to add the Soundbar. Wi-Fi SETUP SPK ADD 1. Press and hold the SPK ADD button on the bottom of the Soundbar for more than 1 second.
- Page 11 You can connect your TV to the Soundbar through a wireless network and enjoy the TV sound. c Important: Make sure that the TV and Soundbar are connected to the same network. (How to check your Samsung TV network : Home menu Network Network Status) Configuring Settings from your Samsung Smart TV c To play sound via the Soundbar, make sure that your TV model supports the Multiroom feature (Samsung Smart TVs released after 2014).
-
Page 12: Connection Via Bluetooth
4. Play music on the connected device. [If failed to connect to the Bluetooth device / If device searching is needed again] • If "[AV] Samsung Soundbar Kxxx" is found in the search results on the Bluetooth device, delete it. • Press and hold either the button on the right side of the Soundbar or the SOURCE button on the remote control to switch to BT PAIRING mode, then select "[AV] Samsung Soundbar Kxxx"... - Page 13 • Check the audio output options using the settings menu on your BD player, or other device. • Make sure that "No Encoding" is selected for bitstream in the audio output options. e.g., On a Samsung Player: Home menu Settings Sound Digital Output: Select Bitstream (Unprocessed).
-
Page 14: Connecting An External Device
USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) search for the model name download the firmware from the customer support menu option. -
Page 15: Installing The Wall Mount
Wallmount Components INSTALLING THE WALL MOUNT You can use the wall mount bracket to mount this unit on a wall. I nstallation Precautions Bracket-Wall Mount (2 EA) • Install on a vertical wall only. • Do not install the Soundbar system in a location with high temperature and/or humidity. - Page 16 2. Align the Paper Template's Centre Line with the 5. Push a screw (not supplied) through each centre of your TV (if you are mounting the Holder-Screw, and then screw each screw Soundbar below your TV), and then fix the Wall firmly into a support screw hole.
- Page 17 For more information, please refer to the Wall Mount's manual. c Samsung Electronics is not liable for any damage to the product due to the product being installed inappropriately. c Take care not to install the speakers sideways or upside down.
-
Page 18: Inserting Batteries Before Using The Remote Control (Aa Batteries X 2)
REMOTE CONTROL BUTTONS & FEATURES Inserting Batteries before using the Remote Control (AA batteries X 2) Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) in the correct +/- polarity. Slide the battery cover back into position. - Page 19 • Anynet+: If connected through an HDMI cable, you can control your Soundbar with a Samsung TV remote control. Press and hold the Right button for 5 seconds to toggle Anynet+ ON and OFF. • Auto Power Link: If connected through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV.
- Page 20 LEVEL Surround Surround Soundbar Main Unit Speaker L Speaker R The ATMOS Soundbar has 5.1.4 channel sound. Use this button to adjust the volume of each of the speakers. Press this button, use the Left/Right buttons to select a speaker, and then use the Up/Down buttons to increase or decrease the level (volume).
-
Page 21: Troubleshooting
È Push the WOOFER button on your remote control up or down to adjust its value (between -12, -6 ~ +6). OPEN SOURCE LICENCE NOTICE For further information on Open Sources used in this product, please visit the website: http://opensource.samsung.com · 20 · English... -
Page 22: Important Note About Service
25mW at 5.725GHz – 5.825GHz • Nominal specification – Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. – Weight and dimensions are approximate. – For more information about the power supply and power consumption, refer to the label attached to the product. - Page 23 Bluetooth Port deactivation method turn Bluetooth On / Off. • Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.
- Page 24 EIRE UNITED KINGDOM This Samsung product is warranted for the period of 4. This product is not considered to be defective in twelve (12) months from the original date of purchase, materials nor workmanship by reason that it against defective materials and workmanship. In...
- Page 25 © 2016 Samsung Electronics Co., Ltd. All rights reserved. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Contact Centre Contact Centre Country Web Site...
