Orthoralix 8500 DDE Installation Manual

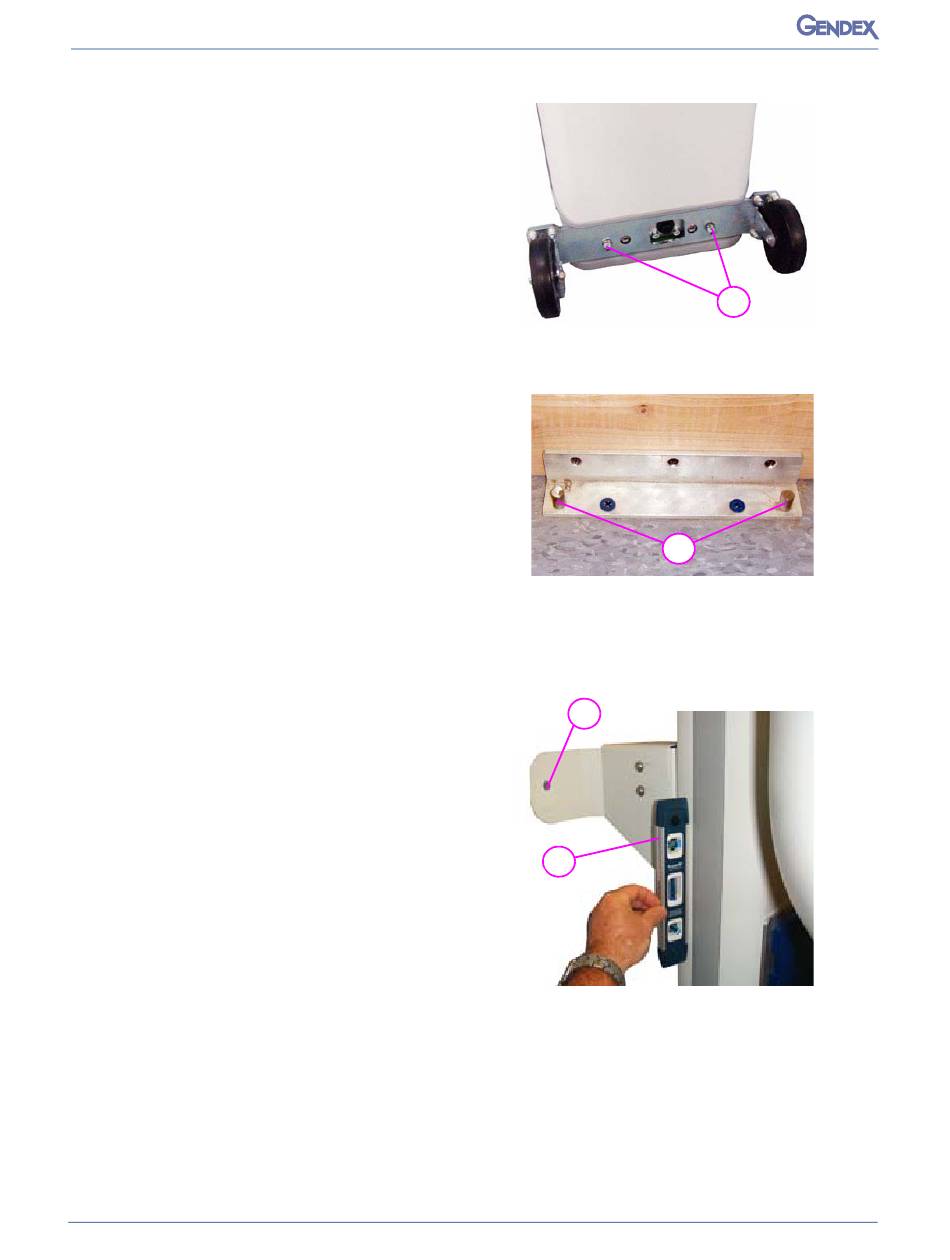

6.
Have your assistant tilt the device to
remove the wheel assembly from
bottom of column (two socket screws).
Reinstall the socket screws into the
column and tighten.
Note the floor mount pins and the
7.
corresponding holes in the bottom
column bracket.
Move the device into place; tip up
device until floor pins engage into
bottom bracket of column.
8.
Using a level, ensure that the unit is
plumb (side to side).
9. Mark the mounting bracket hole
locations.
10. With an assistant, move the device so
that you may drill the mounting
bracket pilot holes.
3-4
6
7
9
8
032-0246-EN Rev 2
