6 Setup
6.1

General information

The figures in brackets refer to the following illustrations.
On the electronics module you will find the following display and

adjustment elements:

•
Potentiometer for switching point adaptation
•
DIL switch for mode adjustment - A/B
•
Control lamp
Note:
As a rule, always set the mode with the mode switch (5) before start-
ing setup VEGACAP 27. The switching output will change if you set
the mode switch (5) afterwards. This could possibly trigger other con-
nected instruments or devices.
6.2 Adjustment elements
1

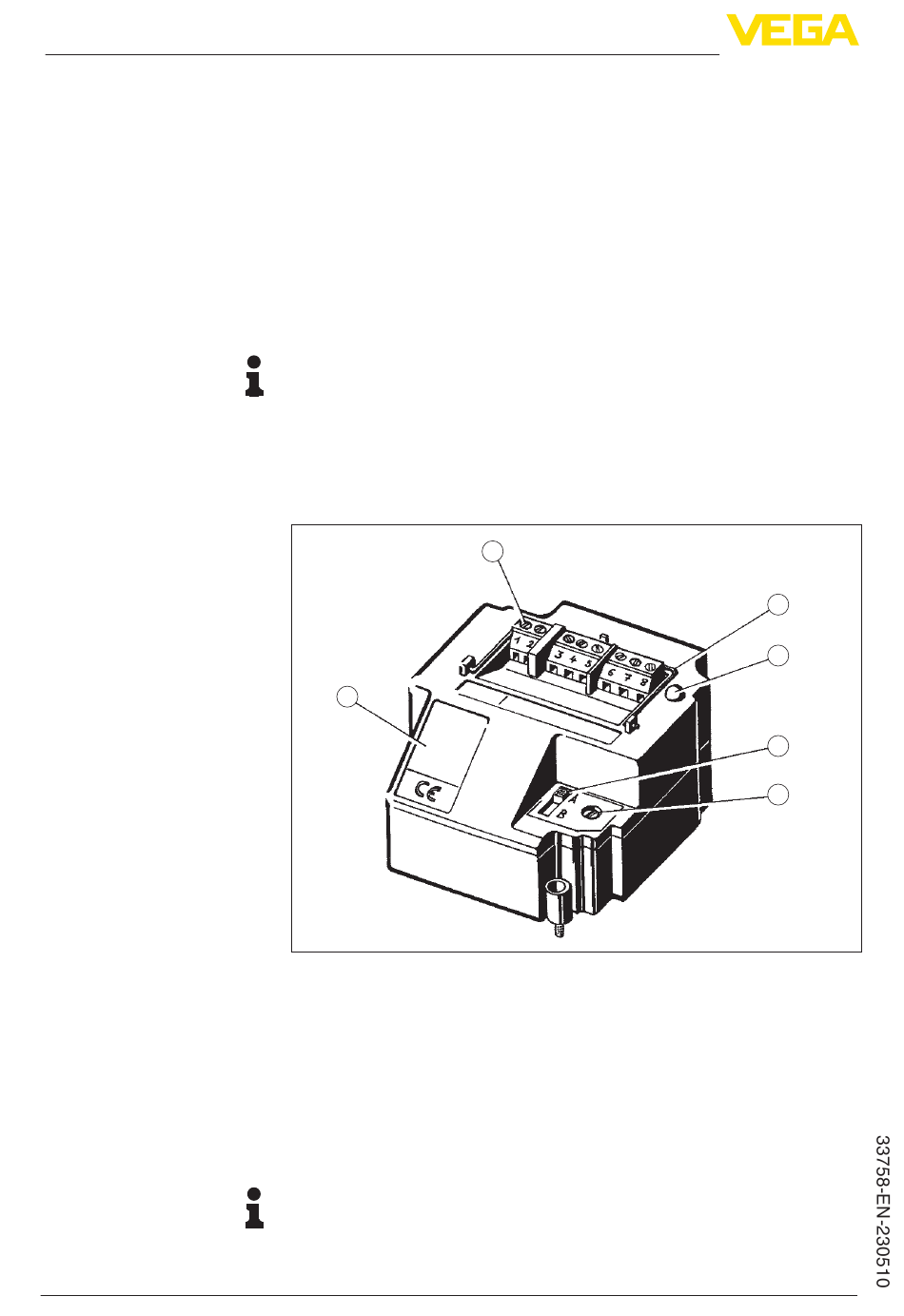

Fig. 6: Electronics module with relay output
1 Type label
2 Connection terminals
3 Tensile proving ring
4 Control lamp
5 DIL switch for mode adjustment
6 Potentiometer for switching point adaptation
The switching status of the electronics can be checked with closed
housing (only plastic housing), see " Function table".
Note:
When placing the housing cover, make sure that the inspection glass
is above the signal lamp (LED) of the electronics module.
2
VEGACAP 27 • Relay (DPDT)
