Sharp SSG3061JS Installation Manual

IMPORTANT NOTICE
• Read and save these instructions for future reference.
• Installation and service must be performed by a qualified
installer.
• Save this installation manual for local electrical inspector's
use.
WARNING
• If the information in this manual is not followed exactly, a fire or
explosion may occur and cause property damage, personal injury
or death. In the event of a fire or explosion, move away from the
appliance immediately and call the local fire department.
• NEVER attempt to extinguish oil/grease fire with water.
• Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
• Installation and service must be performed by a qualified installer,
serviceperson or the gas supplier.
IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in the building.
• Immediately contact the local gas supplier from a neighbor's
phone and follow the instructions of the gas supplier.
• If the local gas supplier is unreachable, call the fire department.
SAFELY LIFT AND MOVE UNIT
• Two people are required to safely lift and move this unit.
• Do not move unit by pushing or pulling on the door or control
panel. Do not lift by the cooktop edges. Push, pull or lift only
on the body or structural areas, such as oven, oven face or back
corners of range.
• Move range by lifting, not sliding, to prevent damage to floors.
Use cardboard, plywood or stiff plastic to protect floors if sliding
is necessary.

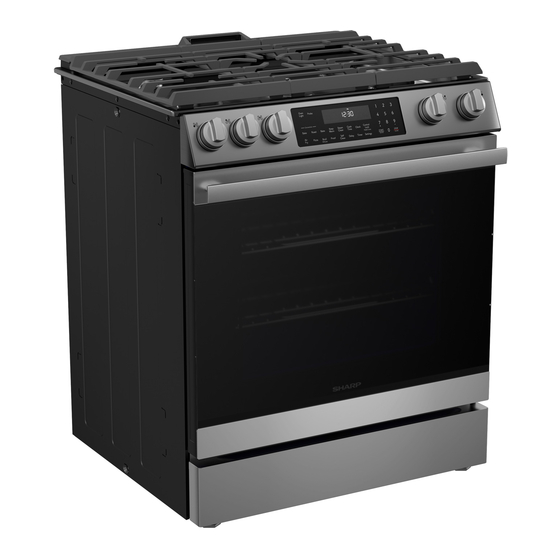

SSG3061JS, SSG3065JS, SSG3071JS
30" SLIDE-IN GAS RANGE
INSTALLATION MANUAL
UNPACKING APPLIANCE
• Remove all packing materials from inside the appliance. Remove
the feature sticker, if there is one, from the outside of the oven.
• Check the appliance for any damage. If there is any damage,
do not operate the appliance and contact your dealer or a Sharp
Authorized Servicer.
• Record the model and serial number.
IMPORTANT NOTES TO THE INSTALLER
• Leave these instructions with the consumer after installation.
• Read the entire Installation Manual before installing the appli-
ance.
• Remove all packing material before connecting the electrical
and gas supply.
• This appliance is shipped from the factory set for use with Natural
Gas. It can be converted for use with LP (propane). The conver-
sion must be performed by a qualified technician in accordance
with the installation instructions and local codes. The agency
performing this work assumes responsibility for the conversion.
• To convert the range for use with Propane, have a qualified
technician follow the included instructions with the LP
Conversion kit.
INSTALLATION LOCATION
• The dimensions and clearances in this manual indicate minimum
clearance required.
• Minimum distance between rangetop and overhead cabinetry
is 30".
• The contact surface and floor on which the appliance rests must
be solid and level.
• Ensure installation location has proper electrical supply.
• A manual valve is to be installed in an accessible, external
location for the purpose of turning on or off gas supply to the
appliance.
• Any openings in the wall behind the appliance and in the floor
under the appliance must be sealed.
• DO NOT install this appliance with a ventilation system that
blows air downward toward the appliance. Use of a ventilation
system that blows air downward toward the appliance can cause
ignition and combustion problems with gas cooking appliances
and cause risk of personal injury or unintended operation.
