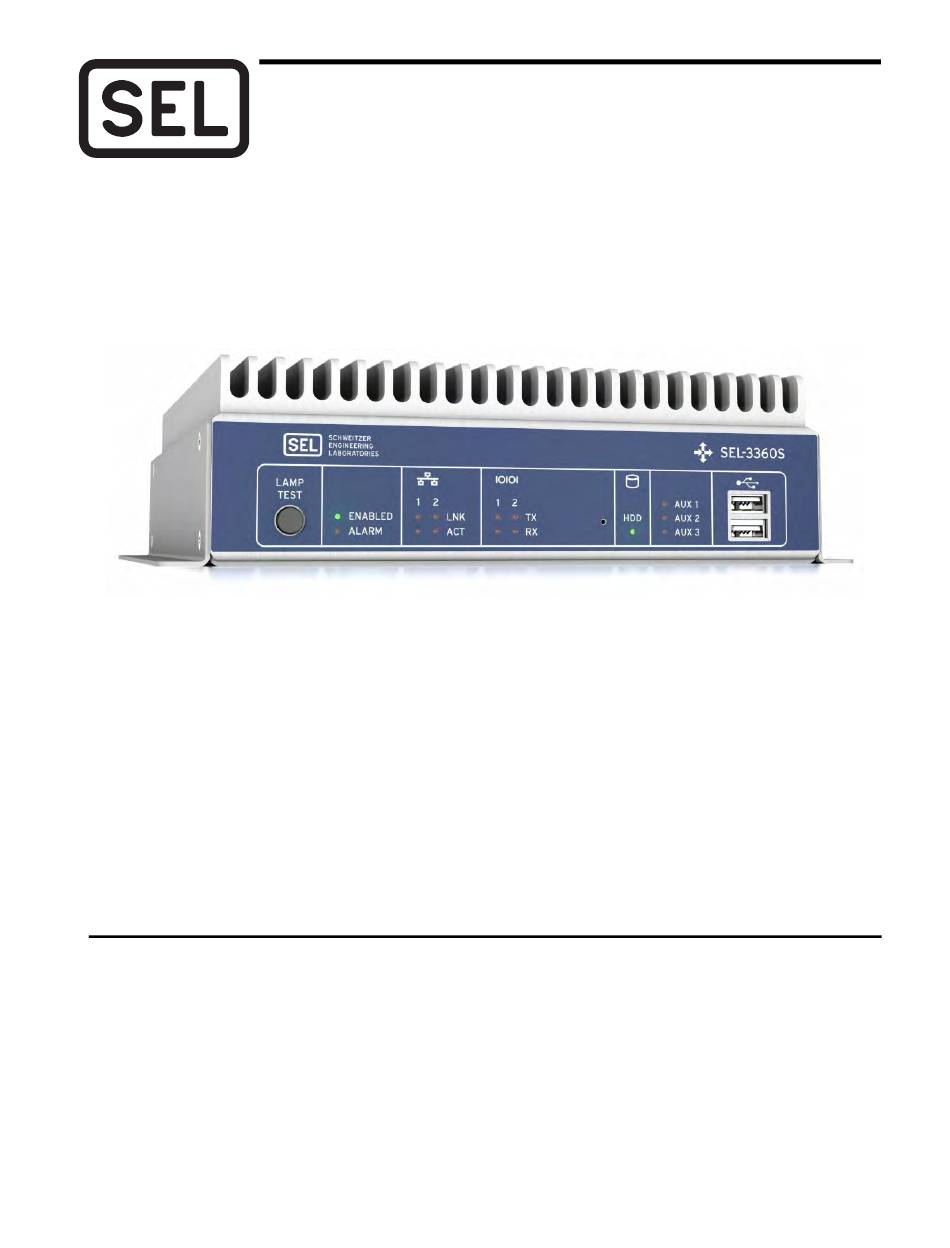

SEL-3360 Automation Controller
Improve Reliability, Availability, and
Serviceability With a Rugged, Compact
Industrial Automation Controller
The SEL-3360 Automation Controller uses a high-performance x86-64 architecture processor to support
modern operating systems like Microsoft Windows and Linux. The extremely rugged SEL hardware of the
SEL-3360 enables you to use your choice of automation controller operating system and software in very
harsh environments not suitable for general-purpose computers.
Integrate the SEL-3360 in computing applications that demand high performance, reliability, and low mainte-
nance in extreme, harsh environments. The SEL-3360 offers a mean time between failure (MTBF) of at least
ten times that of typical industrial computers by eliminating all moving parts, including rotating hard drives
and fans; using high-quality solid-state drives; and by using error-correcting memory technology. By elimi-
nating vent holes, the SEL-3360 significantly reduces dust buildup and foreign contaminants. Power the
SEL-3360 from 12 Vdc power sources with voltage ranging from 10.0–16.6 Vdc, enabling simple integration
with common power sources and battery-powered systems with high float-charge levels. You can install soft-
ware from SEL and third-party software vendors to customize the SEL-3360 for your specific applications.
Every SEL-3360 comes with the unprecedented ten-year, worldwide SEL warranty.
Key Features and Benefits
The SEL-3360 provides a rugged, easy-to-use automation controller platform for substation, industrial, or
other harsh environments.
➤
x86-64 Architecture. The SEL-3360 uses the latest Intel Core i7 microprocessor architecture to
deliver very high performance and broad operating system and software compatibility. Multiple pro-
cessor cores and Intel Hyper-Threading Technology enable you to run multiple time-critical applica-
tions simultaneously.
➤
Operating System Choices. The SEL-3360 may be purchased as hardware only, or with a variety of
modern Microsoft Windows operating systems to provide extreme flexibility and functionality along
with enhanced security features.
Schweitzer Engineering Laboratories, Inc.
SEL-3360 Data Sheet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-3360 and is the answer not in the manual?

Questions and answers

Related Manuals for Sel SEL-3360

Summary of Contents for Sel SEL-3360

  • Page 1 Integrate the SEL-3360 in computing applications that demand high performance, reliability, and low mainte- nance in extreme, harsh environments. The SEL-3360 offers a mean time between failure (MTBF) of at least ten times that of typical industrial computers by eliminating all moving parts, including rotating hard drives and fans;...
  • Page 2 I/O—all with protection against electrical shock and surge. ➤ Power Supply. The SEL-3360S can be powered from any 12 Vdc source, such as the robust, reliable SEL-9331 power supply module. The SEL-3360E has an integral power supply that can be powered from low- and high-voltage ac and dc power sources.

  • Page 3: Functional Overview

    SEL-2725 Five-Port Ethernet Switch Outdoor Control Cabinet SCADA Figure 1 SEL-3360 in Monitoring and Control Applications Watchdog Functionality Time The COM 1 serial port accepts IRIG-B time-code input for An embedded controller provides an extra level of auto- mation controller system reliability. One function of the precise time input from a GPS clock or other source.

  • Page 4: Application Examples

    Virtualization for HMI and Other Security Applications Applications Improve security with a single sign-on, enabled through using the SEL-3360 as a local Lightweight Directory Access Pro- tocol (LDAP) server. Centrally manage user accounts and Application group memberships with Microsoft Active Directory or with...
  • Page 5 HDD Activity Indicator. Illuminates when SATA drives are accessed. u AUXILIARY Status Indicators. Three programmable, bicolor LEDs for your custom application. i USB Ports. Two easily accessible ports to connect USB 2.0 peripherals. Figure 7 Front-Panel Diagram Schweitzer Engineering Laboratories, Inc. SEL-3360 Data Sheet...
  • Page 6 POWER Input Terminals. The rated input voltage is clearly marked on the chassis near the terminals. a ALARM. The Form C alarm contact output enables both normally closed and normally open wiring connections. s PCI Expansion Slots. Install SEL or third-party PCI Express expansion cards for additional network, serial, or other application-specific I/O.
  • Page 7 CHASSIS WITH CHASSIS WITH STANDARD HEATSINK CONDUCTION-COOLED HEATSINK (mm) Figure 9 SEL-3360S Dimensions Diagram CHASSIS WITH CHASSIS WITH STANDARD HEATSINK CONDUCTION-COOLED HEATSINK (mm) Figure 10 SEL-3360E Dimensions Diagram Schweitzer Engineering Laboratories, Inc. SEL-3360 Data Sheet...

  • Page 8: Specifications

    RAID level 0, 1 Hot-Swap Support Time Code: Demodulated IRIG-B TTL compatible Optional SATA Drives: Industrial-Grade SLC SSD Note: Output generated from either IRIG-B input or SEL-3360 clock. 30–250 GB Real-Time Clock/Calendar 10-year warranty Industrial-Grade iMLC SSD Battery Type: IEC No. BR-2330A Lithium 120–480 GB...
  • Page 9 Peak Inrush: 15 A Maximum Rated Negative input power terminal is internally tied to chassis ground. Voltage: 250 Vdc, 277 Vac SEL-9331 160 W LV Power Supply Breaking Capacity: 1500 A at 277 Vac Voltage Rating: 48 Vdc Type: Time-lag T Voltage Range: 38–58 Vdc...

  • Page 10: Product Standards

    1.0 kV peak common mode RoHS Compliance IEEE C37.90.1-2012 Severity Level: Compliant with European Union’s RoHS directive 2.5 kV oscillatory 4 kV fast transient Weight 4.1 kg (9 lb) maximum (SEL-3360S) 6.8 kg (15 lb) maximum (SEL-3360E) SEL-3360 Data Sheet Schweitzer Engineering Laboratories, Inc.
  • Page 11 Severity Level: 40°C, 240 hours, >93% r.h. IEC 61850-3:2013 Dry Heat, Operational: IEC 60068-2-2:2007 Severity Level: SEL-3360S With i7-3355LE CPU: 16 hours at 75°C SEL-3360S With i7-3612QE CPU: 16 hours at 60°C SEL-3360E With i7-3555LE CPU: 16 hours at 60°C...

  • Page 12: Technical Support

    USB Ports 0.8 A, +5 Vdc, 4 W each Technical Support We appreciate your interest in SEL products and services. If you have questions or comments, please contact us at: Schweitzer Engineering Laboratories, Inc. 2350 NE Hopkins Court Pullman, WA 99163-5603 U.S.A.
