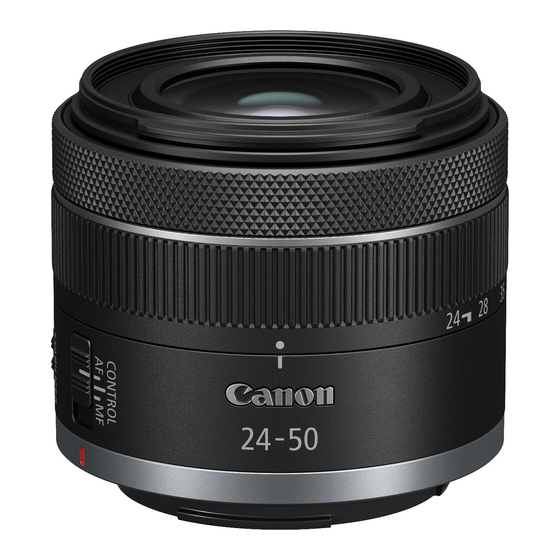

Canon RF 24-50mm F4.5-6.3 IS STM Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions
ENG

Advertisement

Table of Contents
loading

Related Manuals for Canon RF 24-50mm F4.5-6.3 IS STM

Summary of Contents for Canon RF 24-50mm F4.5-6.3 IS STM

  • Page 1 Instructions...
  • Page 2 Thank you for purchasing a Canon product. Canon RF24-50mm F4.5-6.3 IS STM is a Camera Firmware and Camera standard zoom lens for use with EOS R series Applications cameras. Please use the latest versions of firmware and “IS” stands for Image Stabilizer.

  • Page 3: Safety Precautions

    Safety Precautions Precautions to ensure that the camera is used safely. Read these precautions thoroughly. Make sure all details are observed in order to prevent risks and injury to the user and other people. Details pertaining to risks that may Warning result in death or serious injury.

  • Page 4: General Precautions

    General Precautions Handling Precautions Shooting Precautions Do not leave the product in excessive heat such as Focus again after recovering from the auto power in a car in direct sunlight. High temperatures can off status. cause the product to malfunction. To maintain the focus position in the shooting-ready If the lens is taken from a cold environment into a status, set [Auto power off] to [Disable] on the...
  • Page 5 This device complies with Part 15 of the FCC Rules. CAN ICES-3 (B) / NMB-3 (B) Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Nomenclature Focus mode/control selector switch (→ 8) Lens retracted position index(→ 7) Focusing/Control ring (→ 8) Zoom position index (→ 7, 10) Hood mount (→ 13) Filter mounting thread (→ 14) Zoom ring (→ 7, 10) Image stabilizer switch (→ 11) Contacts (→...

  • Page 7: Attaching And Detaching The Lens

    1. Attaching and Detaching the Lens Lens mount index Set the camera’s power switch to OFF when attaching or detaching the lens. Attach the lens cap before detaching the lens from the camera. After detaching the lens, place the lens with the rear end up and attach the dust cap to prevent the lens surface and contacts from getting scratched.
  • Page 8 2. Shooting Preparations and Retracting Lens The lens is fitted with a retraction mechanism. This enables the length of the lens to be shortened in comparison to when shooting. Shooting is not possible when the lens is stored. Observe the following procedure to set the lens in the position for shooting. Preparations from Retraction to Shooting Retracting Lens Rotate the zoom ring from the shooting...
  • Page 9 3. Focusing/Control ring Table: List of Focus Mode and Focusing/Control The focusing/control ring can be used as either a focusing ring or a control ring. Ring Functions Using the Focus Mode/ Control Selector Switch Focusing/Control ring Focus mode/ Control selector switch *1 AF *3 CONTROL *2 MF...
  • Page 10 Focusing/Control ring Delayed focus may occur if the focusing ring The lens’ focusing ring (focusing/control ring) is (focusing/control ring) is quickly turned. electronic. Setting the focus mode/control selector switch to With a camera capable of electronic full-time CONTROL will fix the focus mode as AF. Table*4 manual focus, manual focusing is possible However, depending on the camera used, it is in both One-Shot AF and Servo AF modes.
  • Page 11 4. Zooming To zoom, turn the lens’ zoom ring. Be sure to finish zooming before focusing. Zooming after focusing can affect the focus. Blurring may temporarily occur if the zoom ring is quickly turned. Please be careful not to let your fingers get caught in between the lens’...

  • Page 12: Image Stabilizer

    5. Image Stabilizer This function provides image stabilization The Image Stabilizer cannot compensate for a appropriate for shooting conditions (such as blurred shot caused by a subject that moved. shooting still subjects and panning shots). The Image Stabilizer may not be fully effective if you shoot from a violently shaking vehicle or other transportation.
  • Page 13 Image Stabilizer The Image Stabilizer for this lens is suited to hand-held shots in the following conditions. In semi-darkened areas such as indoors or outdoors at night. In locations where the flash cannot be used, such as art museums and theater stages. In situations where your footing is uncertain.
  • Page 14 6. Hood (Sold separately) The custom lens hood reduces unwanted light that causes flare and ghosting and protects the front of the lens from rain, snow, and dust. Attachment position mark Red dot Detaching the Hood Red dot Red dot Stop position mark Attachment position mark Rotate the hood in the direction of the arrow until...
  • Page 15 7. Filters (Sold separately) You can attach filters (Φ58) to the filter mounting thread on the front of the lens. Only one filter may be attached. ENG-14...

  • Page 16: Specifications

    Specifications Focal Length/Aperture 24-50mm 4.5-6.3 Lens Construction 8 groups, 8 elements Maximum Aperture 4.5-6.3 (1/3 stops), 4.5-6.7 (1/2 stops) Minimum Aperture 22-32 Angle of View Horizontal: 74° - 40°, Vertical: 53° - 27°, Diagonal: 84° - 46° Min. Focusing Distance 0.30 m/0.98 ft. (at 24 mm), 0.35 m/1.15 ft. (at 50 mm) Max.
  • Page 17 * EOS R, RP, Ra, R5, R6 There are cases in which using the zoom function during continuous shooting may result in conspicuous image distortion. All data listed is measured according to Canon standards. Product specifications and appearance are subject to change without notice. ENG-16...
  • Page 18 CT1-D256-A 1022Ni © CANON INC. 2022...
