Pro-Form SPORT 5.5 User Manual

Hide thumbs Also See for SPORT 5.5:

Advertisement

Table of Contents

Model No. PFTL50921-INT.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
MEMBER CARE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
USER'S MANUAL
iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPORT 5.5 and is the answer not in the manual?

Questions and answers

Jessica Boyer
February 27, 2025

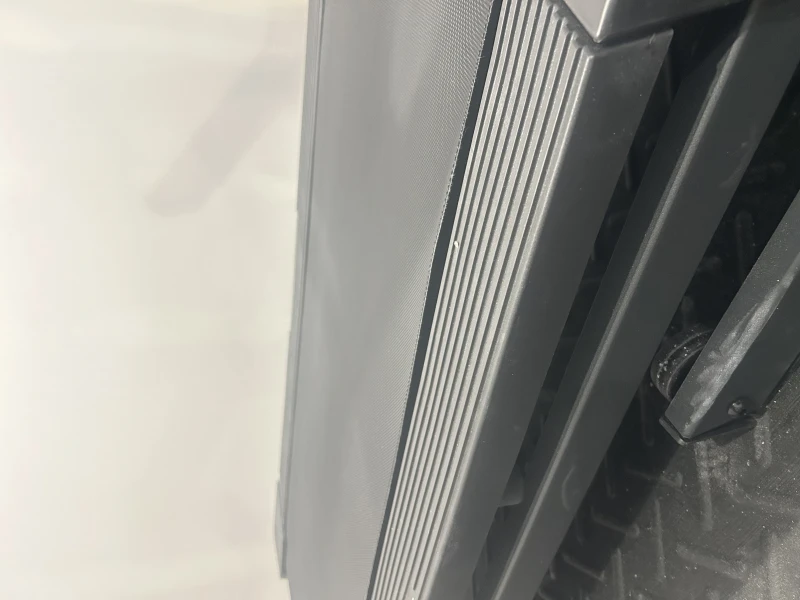

My treadmill is new and I tightened the belt to try to fix it, but it is not making this lip part go down… It’s making noise and rubbing on the back of the treadmill when it goes through.

User image 67c0a0cc3f946
0
1 comments:
Mr. Anderson
February 27, 2025

To fix noise and rubbing issues with the Pro-Form SPORT 5.5 treadmill belt, follow these steps:

1. Check Belt Tension – If the walking belt is too loose or too tight, adjust it by tightening or loosening the belt evenly using the adjustment bolts at the rear of the treadmill.

2. Align the Walking Belt – If the belt is rubbing against the sides, adjust the rear roller bolts slightly to center the belt.

3. Lubricate the Walking Belt – The treadmill comes with a high-performance lubricant. Do not apply silicone spray or other substances unless instructed by an authorized service representative. If lubrication is needed, refer to the front cover of the manual.

4. Inspect the Reed Switch and Magnet – Ensure the Magnet on the Pulley is aligned with the Reed Switch with a gap of about 3 mm (1/8 in.). If needed, loosen the screws, adjust the Reed Switch, and retighten.

5. Test the Treadmill – Walk on the treadmill for a few minutes to check if the noise or rubbing issue is resolved.

If the issue persists, consult the manual or contact customer support.

This answer is automatically generated

0
Andrew Smith
April 13, 2025

Everything switches on and was working perfectly until the belt started speeding up and slowing down on its own. Belt is not touching sides and now the belt doesn't move at all. Have tried the reset but same thing persists. The motor operates the incline and fan modes but belt will not drive. If we push the belt manually it will move.

0
2 comments:
Mr. Anderson
April 13, 2025

Possible causes for the Pro-Form SPORT 5.5 treadmill belt speeding up and slowing down on its own or not moving at all include:

1. The treadmill is in demo mode. To turn off demo mode, hold down the Stop button for a few seconds. If displays stay lit, see the settings mode instructions.
2. The power switch may not be in the reset position. Ensure the switch on the treadmill frame is set correctly.
3. The treadmill may have been exposed to cold temperatures. Let it warm to room temperature before use to avoid damage to electrical components.
4. A circuit breaker may be tripping. If connected to an AFCI-equipped outlet, and the breaker trips repeatedly, an arc filter may be needed.
5. The walking belt may be overtightened or misaligned, which can affect performance. Unplug the power cord and adjust the belt if necessary.

This answer is automatically generated

0
Andrew Smith
April 14, 2025

@Mr. Anderson Thank you for your reply. Unfortunately I have tried all of these remedies. I checked the demo mode and pressed the stop button to get it out of demo mode. The switch was in the reset position. I live in the Dominican Republic so no cold temperatures. Checked the circuit breakers and all up and working, Checked the walking belt and the material you walk/ run upon is between the two foot boards and rolls equally. Do you ahve any other suggestions please.

0

Related Manuals for Pro-Form SPORT 5.5

Summary of Contents for Pro-Form SPORT 5.5

  • Page 1 Model No. PFTL50921-INT.0 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal MEMBER CARE UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd. Unit 4, Westgate Court Silkwood Park OSSETT...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 20. When a person is walking on the treadmill, 26. Do not change the incline of the treadmill by the noise level of the treadmill will increase. placing objects under the treadmill. 21. Keep fingers, hair, and clothing away from 27.

  • Page 5: Before You Begin

    Thank you for selecting the new PROFORM reading this manual, please see the front cover of this ® SPORT 5.5 treadmill. The SPORT 5.5 treadmill pro- manual. To help us assist you, note the product model vides an impressive selection of features designed number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • Assembly requires two persons. • Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.” • Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing •...
  • Page 8 2. Make sure that the power cord is unplugged. Remove the tie securing the Upright Wire (80) to the front of the Base (88). Next, identify the Right Upright (79). Have a second person hold the Right Upright near the Base (88).
  • Page 9 4. Set the Right Upright (79) on the Base (88) as shown. Make sure not to pinch the Upright Wire (80). Then, slide the Right Upright so that the 3/8" x 2 3/8" Screw (2) in the Base is inserted into the slot (E) in the Right Upright. Do not tighten the Screw yet.
  • Page 10 6. Remove and save the four indicated 5/16" x 3/4" Screws (13). 7. Attach a Handrail (72) to the Right Upright (79) with two 5/16" x 2" Screws (5) and two 5/16" Star Washers (7); start both Screws, and then tighten them. Do not pinch the Upright Wire (80).
  • Page 11 8. Attach the other Handrail (72) to the Left Upright (78) with two 5/16" x 2" Screws (5) and two 5/16" Star Washers (7); start both Screws, and then tighten them. Then, remove and discard the two indicated screws (F). 9.
  • Page 12 10. Set the Console Base (74) face down on a soft surface to avoid scratching the Console Base. Remove and discard the two indicated screws (G). Then, remove the Handrail Crossbar (75). Next, identify the Left and Right Trays (85, 86). Attach the Trays to the Console Base (74) with eight #8 x 1/2"...
  • Page 13 12. With the help of a second person, hold the con- sole assembly (H) near the Handrails (72). Connect the ground wire (I) from the console assembly (H) to the Console Ground Wire (76) on the Handrail Crossbar (75). Next, insert the Upright Wire (80) through the two indicated looped ties (J).
  • Page 14 14. Attach the Handrail Crossbar (75) to the console assembly (H) with four #8 x 3/4" Screws (11); start all four Screws, and then tighten them. Do not overtighten the Screws. Firmly tighten the four 5/16" x 3/4" Screws (13). 15.
  • Page 15 16. Tighten all eight indicated Screws (2, 3, 4) from steps 4 and 5. 2, 3, 4 2, 3, 4 17. Raise the Frame (54) to the upright position. Have a second person hold the Frame until step 19 is completed. Remove the two 5/16"...
  • Page 16 18. Remove the 5/16" Nut (51) and the 5/16" x 1 3/4" Bolt (104) from the bracket on the Base (88). Next, orient the Storage Latch (52) as shown. Attach the lower end of the Storage Latch (52) to the bracket on the Base (88) with the 5/16" x 1 3/4"...

  • Page 17: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO PLUG IN THE POWER CORD Follow the steps below to plug in the power cord. This product must be earthed. If it should malfunc- 1. Plug the indicated end of the power cord (A) into the tion or break down, earthing provides a path of least socket (B) on the treadmill.
  • Page 18 CONSOLE DIAGRAM FEATURES OF THE CONSOLE To turn on the power, see page 19. To use the manual mode, see page 19. To use an iFIT workout, see page 21. To connect a heart rate monitor to the The treadmill console offers a selection of features console, see page 23.
  • Page 19 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before you turn on the power. If you do See HOW TO TURN ON THE POWER at the left.
  • Page 20 4. Follow your progress with the display. Scan mode—The console also has a scan mode that will display workout information in a repeating The display can show the following workout cycle. To turn on the scan mode, press the Scan information: button (H);...
  • Page 21 5. Turn on the fan if desired. HOW TO USE AN IFIT WORKOUT The fan features several The console offers access to a large and varied library speed settings. Press the of iFIT workouts when you download the iFIT app to Fan buttons repeatedly to your smart device and connect it to the console.
  • Page 22 4. Select an iFIT workout. Note: The calorie goal shown in the workout description is an estimate of the number of In the iFIT app, touch the buttons at the bottom of calories that you will burn during the workout. The actual number of calories that you burn the screen to select either the home screen (Home will depend on various factors, such as your...
  • Page 23 HOW TO CONNECT A HEART RATE MONITOR TO THE SETTINGS MODE THE CONSOLE 1. Select the settings mode. The console is compatible with all Bluetooth® Smart heart rate monitors. For information about purchas- To select the settings mode, press ing an optional heart rate monitor, see page 25. the gear button (K).
  • Page 24 Display Test—This screen is intended to be used Demo Mode—The currently selected demo mode by service technicians to identify whether the option will appear in the display. The console display is working correctly. features a demo mode, designed to be used if the treadmill is displayed in a store.
  • Page 25 THE OPTIONAL HEART RATE MONITOR THE OPTIONAL TABLET HOLDER Whether your The optional goal is to tablet holder (I) burn fat or to will hold your strengthen your tablet securely cardiovascular in place and system, the key enable you to achieving the to use your best results is tablet while...

  • Page 26: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero before you fold the treadmill. Then, remove left.

  • Page 27: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes Regular maintenance is important for optimal per- as shown (A), the switch has tripped. To reset the formance and to reduce wear. Inspect and properly power switch, wait for five minutes and then press tighten all parts each time the treadmill is used.
  • Page 28 SYMPTOM: The displays of the console do not SYMPTOM: The walking belt slows when walked on function properly a. If an extension cord is needed, use only a 3-conduc- a. Remove the key from the console and UNPLUG tor, 14-gauge (2 mm ) cord that is no longer than THE POWER CORD.
  • Page 29 SYMPTOM: The walking belt is not centered SYMPTOM: The walking belt slips when walked on between the foot rails a. First, remove the key and UNPLUG THE POWER IMPORTANT: If the walking belt rubs against CORD. Using the hex key, turn both idler roller the foot rails (D), the walking belt may become screws clockwise, 1/4 of a turn.

  • Page 30: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.
  • Page 31 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 32 NOTES...
  • Page 33 NOTES...

  • Page 34: Part List

    PART LIST Model No. PFTL50921-INT.0 R0821A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Ground Screw Plastic Tie 3/8" x 2 3/8" Screw 5/16" Nut 3/8" x 1 1/4" Screw Storage Latch 3/8" x 1 1/2" Screw Motor Belt 5/16"...
  • Page 35 Key No. Qty. Description Key No. Qty. Description Controller Clamp 5/16" x 2 1/4" Bolt Filter 5/16" x 1 3/4" Bolt #8 x 1/2" Machine Screw Latch Crossbar Motor Isolator – User’s Manual Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.

  • Page 36: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL50921-INT.0 R0821A...
  • Page 37 EXPLODED DRAWING B Model No. PFTL50921-INT.0 R0821A...
  • Page 38 EXPLODED DRAWING C Model No. PFTL50921-INT.0 R0821A 24 36...
  • Page 39 EXPLODED DRAWING D Model No. PFTL50921-INT.0 R0821A...

  • Page 40: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
