Powersmart PSSW24 Instruction Manual

24 inch two stage gas snow thrower
Hide thumbs Also See for PSSW24:

Advertisement

Table of Contents

INSTRUCTION MANUAL
EN 24 inch Two Stage Gas Snow Thrower
FR 24 inch Souffleuse à Neige à Deux Phase
ES Quintanieves De Gas De 24 Pulgadas Con Dos Etapas
Model
#
PSSW24
Have product questions or need technical support? Please feel free to contact us!
Website:
www.Amerisuninc.com
www.PowerSmartUSA.com
Toll free: 1-800-791-9458 Mon-Fri 9-5 EST
Email: support@amerisuninc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSSW24 and is the answer not in the manual?

Questions and answers

Rosemarye Copeland
February 9, 2025

How do i turn off the light on the snow blower?

0
tim albertson
February 17, 2025

spark plug gap

0
Richard chevrier
March 2, 2025

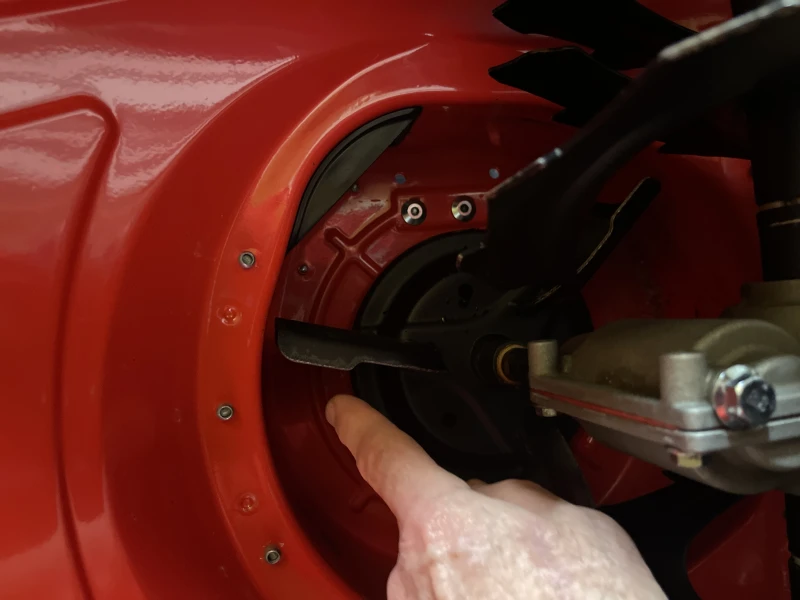

Have a problem my snowblower does not throw snow the front turns but the 3 bladed thrower does not turn so snow stays on ground checked straps everything seemed ok

User image 67c49a90c77c0
0
1 comments:
Mr. Anderson
March 2, 2025

The Powersmart PSSW24 snowblower may not be throwing snow even though the front turns due to a clogged chute or auger. The manual mentions that snow and ice can become lodged in the chute assembly, preventing proper discharge. It is recommended to use the clean-out tool, which is fastened to the rear of the auger housing, to clear any blockages. Additionally, ensure that the auger blades and impeller are properly engaged and functioning.

This answer is automatically generated

0

Related Manuals for Powersmart PSSW24

Summary of Contents for Powersmart PSSW24

  • Page 1 EN 24 inch Two Stage Gas Snow Thrower FR 24 inch Souffleuse à Neige à Deux Phase ES Quintanieves De Gas De 24 Pulgadas Con Dos Etapas Model PSSW24 Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com www.PowerSmartUSA.com...

  • Page 3: Table Of Contents

    32.3x24.8x22inc Weight: 147 lbs Thank you for purchasing PowerSmart products. It is crucial and highly recommended that you read this instruction manual in its’ entirety, as this is an invaluable tool and reference point in understanding the operation of your unit.

  • Page 4: Introduction

    INTRODUCTION ® Thank you for purchasing a PowerSmart Product. This manual provides detailed information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of ® the information in this document. PowerSmart reserves the right to change this product and specifications at any time without prior notice.
  • Page 5 TRAINING Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference. • Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
  • Page 6 PERSONAL SAFETY • Engine exhaust, and certain vehicle components contain or emit chemicals known to cause cancer, birth defects or other reproductive harm. • Read, understand and follow all instructions on your snow thrower unit and in this instruction manual before attempting to assemble and operate your machine.
  • Page 7 • Never over fill fuel tank. • Replace gasoline cap and tighten securely. • If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine. • Never store the machine or fuel container inside where there is an open flame, spark or pilot light (e.g. furnace, water heats, space heater, clothes dryer etc.).
  • Page 8 • Plan your snow-throwing pattern to avoid snow discharge towards windows, walls, cars etc., thus avoiding possible property damage or personal injury caused by a ricocheting debris. • Never direct discharge at children, bystanders and pets or allow anyone in front of the machine. •...
  • Page 9 This process will keep the machine in safe working condition. Also, visually inspect machine for any damage. • Verify that the auger gearbox, located between your right and left auger blades, has substantial lubricant in the casing. The gearbox fill and drain plugs (bolts) are the only “vertical” plugs (bolts) on the gearbox assembly when viewed in the standing position.

  • Page 10: Knowing Your Snow Thrower

    KNOWING YOUR SNOW THROWER Use the illustrations below to become familiar with the locations and functions of the various components and controls of this snow thrower. Drive Control Lever Auger Blade Drive Speed/Gear Control Skid Shoe Chute Deflector Control Wheel Tire Auger Control Lever Belt Cover Chute Rotation Handle...
  • Page 11 Fuel Tank Cap Switch Key Primer Bulb Choke Lever Drive Control Lever Located on the right side of the upper handle, the Drive Control Handle is used to engage and disengage the drive wheels. Squeeze the Drive Control Handle against the upper handle to engage the wheels; release to disengage.

  • Page 12: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS The following section describes steps necessary to prepare the snow thrower for use. If after reading this section, you are unsure about how to perform any of the steps please call (800) 791-9458 Mon-Fri 9-5 EST for customer service assistance. Failure to perform these steps properly can damage the snow thrower.
  • Page 13 3. When attaching Assembly Hardware, make sure ALL cables are underneath the Frame (Upper & Lower) Handles after installation as indicated in Figure 3. VERY IMPORTANT!!!*** Figure 3 ***Assembling Drive & Auger Cables over the top of the Frame Handle will cause unnecessary tension in the cables, resulting in the Snow blower propelling forward when starting the engine and may cause damage to the drive &...
  • Page 14 Step 3: Installing Speed Control Connection Rod Install the connection rod to the hole in the Frame as indicated on Figure 4 (1-2). Install another side of connection rod to the hole in the trigger as indicated on Figure 4(3-4). Fig.4-3 Fig.4-4 Fig.4-2...
  • Page 15 Step 4: Installing The Chute Assembly 1. Insert Lower Discharge Chute/Support Tube Assembly into the designated Chute opening for the Lower Discharge Chute, while inserting the Support Tube into the designated base of the Frame. (See Figure 5). 2. Secure Support Tube to base with (2) Screws and nuts provided. Figure 5 Step 5: Installing the Chute Handle 1.
  • Page 16 Verify that ALL cables are clear and not obstructing the Chute Handle operation of your snow thrower unit. Clip the cable into the hook. (See Figure 8) Figure 8 Step 6：Installing Clean Out Tool 1. Insert the clean out tool into the lower tube bracket Figure 9...
  • Page 17 Step 7 – Skid shoes installation and adjustments 1. Locate the set of skid shoes from parts bag and remove the bolts. 2. Loosely install the skid shoes using the bolts and hex nuts as shown on each side of the auger housing. Make sure the skid shoe tip faces out.

  • Page 18: Snow Thrower Preparation

    SNOW THROWER PREPARATION ADD OIL The snow thrower is shipped without oil. User must add the proper amount of oil before operating the snow blower for the first time. The oil capacity of the engine crankcase is 16 fl. oz. For general use, we recommend 5W-30, 4-stroke engine oil.
  • Page 19 • NOTE: After completing the above preparation, the engine is ready to be started. WARNING! Keep the area of operation free from foreign objects that can be thrown by the auger and/or impeller blades. Perform a thorough inspection of the area since some objects may be hidden from view by surrounding snow.
  • Page 20 3. When finished clearing a snow path, release the auger control lever (handle) and the drive control lever (handle). Drive Control Auger Control Lever (Handle) Lever (Handle) Attention: Release (disengage) the auger and drive control lever (handles) before adjusting the drive speed control lever.

  • Page 21: Operating Your Snow Thrower

    OPERATING YOUR SNOW THROWER MANUAL START THE ENGINE To manual start the engine, perform the following steps: 1. Check the oil and fuel levels. 2. Move the choke lever to the “CLOSE” position. 3. Make sure insert the switch key. 4.

  • Page 22: Maintenance

    3. Engage/depress the drive control lever (handle) and direct the snow thrower into the snow to be cleared. NOTICE: NEVER change speed/gear positions while the drive control lever (handle) is engaged. Disengage the drive control handle BEFORE changing speeds or directions. If the snow is deeper than the height of the auger, remove it in several steps taking narrower swaths.
  • Page 23 MAINTENANCE PROCEDURES TIRE INFLATION Before each use of your Snow Thrower, check the tire pressure. The pressure in each tire should be in the range of 20-24 psi for the best performance. The pressure can be checked using an ordinary tire pressure gauge.
  • Page 24 NOTICE: Never replace the shear pins with standard pins or fasteners. Damage may occur to the snow blower and drive systems. DRIVE SPEED CONTROL ADJUSTMENT The speed/gear control lever is connected to connection rod that work in tandem to control machine speed and direction.
  • Page 25 3. Loosen the belt guide pin hex screw (installed on engine crankcase) and rotate the pin away from the pulley. Screw 4. Left Side - Loosen the hex nuts attaching the auger housing to the main frame. 5. Right Side - Remove the hex nuts, lock washers and flat washers attaching the auger housing to the main frame.
  • Page 26 Note: The belt guide pin helps keep the belt in the pulley when the belt is disengaged. The pin should not be tight to the belt. The pin should be loose enough to allow the belt to spin freely but not allow the belt to jump off the pulley.

  • Page 27: Storage & Cleaning

    STORAGE & CLEANING PROPER STORAGE PROCEDURES WARNING! Never store your snow shrower for extended periods of time with fuel in the tank or carburetor. Fuel stabilizer can be added to the fuel in can to extend its shelf life for storage. Store the unit in a locked, dry place out of the reach of children to prevent unauthorized use or damage.

  • Page 28: Troubleshooting

    TROUBLESHOOTING Problem Causes Remedy WARNING - Before attempting to make any inspections, repairs or adjustments, stop the engine, wait for all moving parts to stop moving and carefully disconnect the engine spark plug wire. If tipping or turning the snow blower is required for any inspection or repair, first wait until the engine is cool to the touch and then drain the engine of all fuel and oil into suitable containers and store or dispose of in a proper manner.
  • Page 29 Problem Causes Remedy Drive system Check drive belt tension pulley for damage or incorrect tension, repair as necessary. Replace No forward or Drive belt loose or damaged drive belt. reverse drive movement when Friction drive wheel is worn or damaged Replace friction drive wheel drive handle Allow snow blower to dry and or warm up or...
  • Page 30 Problem Causes Remedy Auger System Auger tension pulley arm return spring broken or missing Replace tension arm return spring Auger tension pulley arm stuck or binding Repair or replace tension arm as necessary Auger tension pulley arm or pulley Repair, replace or align tension arm and or misaligned or damaged pulley as necessary Auger belt broken,...

  • Page 31: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST Panel Assembly Item Stock# Description Item Stock# Description 303020498 Hex Flange Screw M8X18 203070105 Handle Cover 303080555 Lower Handle 303181183 Left Operation Trigger Washer Φ8 303020461 303010193 Screw 6×16 Flat Washer φ6×φ16×2 303043010 T-screw M8×55 303042042 203020336A Knob...
  • Page 32 Chute Assembly Item Stock # Description Item Stock # Description 203050514 Chute 303181164 Small Support Tube Welded 303030087 Hex Flang Lock Nut M6 303030077 Locknut M8 Pressure Spring φ3 303071344 Cable Seat 303130325 303020244 Hex Flang Bolt M6×14 303071056 Locating Plate 303200117 Chute Cable 303020165...
  • Page 33 Frame Assembly...
  • Page 34 Item Stock # Description Item Stock # Description Grooved Deep Groove Ball 9999960501 Engine 212CC 303100051 Bearing 303160192 Small Tensioning Plate Spacer 303160799 Six Square Axis Flat Wsher Φ10*Φ22*2 303070202 Small Tensioning Plate 303042004 Flat Washer φ8×φ28×3 303042005 303343043 Locknut M10 303020279 Outer Hex Flange Bolt M8×25 303525287...
  • Page 35 Auger Housing Assembly...
  • Page 36 Item Stock# Description Item Stock# Description 303020245 Hex Flange Bolt M8X14 303020332 Bolt M8×14 303070234 Bearing Block 303181158 Impeller 203060013 Plastic Bearing 303030032 Lock Nut M6 Hex Washer Bolt φ6×35 203060012 Auger Sleeve 303020442 303180409 Right Auger Welding 303020166 Bolt M8×18 203050108 Spacer Bush 1 303070197...
  • Page 37 Engine Explode View and Bom List...
  • Page 38 Item Stock# Description Item Stock# Description Hexagon Head Flange Bolt 303020444 9534960101 Split cotter M6X12 9020960102 Breathing cover 9158960301 Camshaft assembly 9051960302 muffler pipe 9158960501 Bearing Cylinder Head Cover 9122960501 Crankshaft assembly 9245960103 Gasket Speed regulating driven 9438960101 303020382 Screw M6X12 gear combination 9140960103 Location pin...
  • Page 39 9140960102 Location pin 9529960301 Fuel tank assembly 9113960102 Exhaust valve 9121960101 Governing gear shaft 9113960101 Intake valve 303043040 Washer 9564960501 Piston ring assembly 9092960101 Slide bushing 9146960501 Gudgeon pin circlip 303020382 Bolt M6X12 9129960501 Piston 9221960101 Flywheel side housing 9140960501 Piston pin 9247960101 O-ring...

  • Page 40: Two (2) Years Limited Warranty

    Limited Warranty, you must return the entire power tool product; transportation prepaid, to PowerSmart Include a legible copy of the original receipt, which lists the date of purchase (month and year) and the name of the company purchased from.
