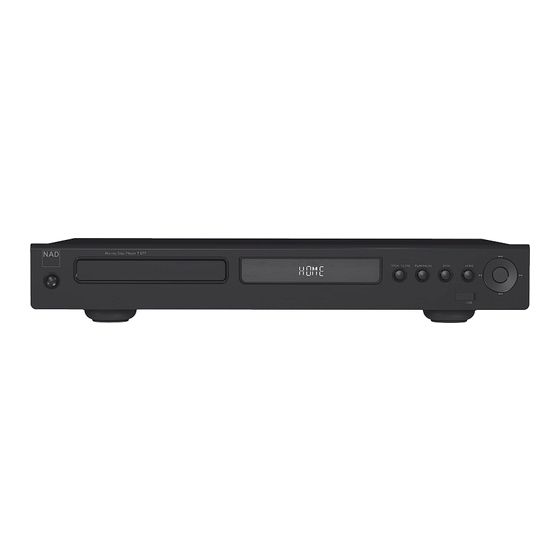

T 577
®
Blu-ray Disc™ Player
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for NAD T577

Summary of Contents for NAD T577

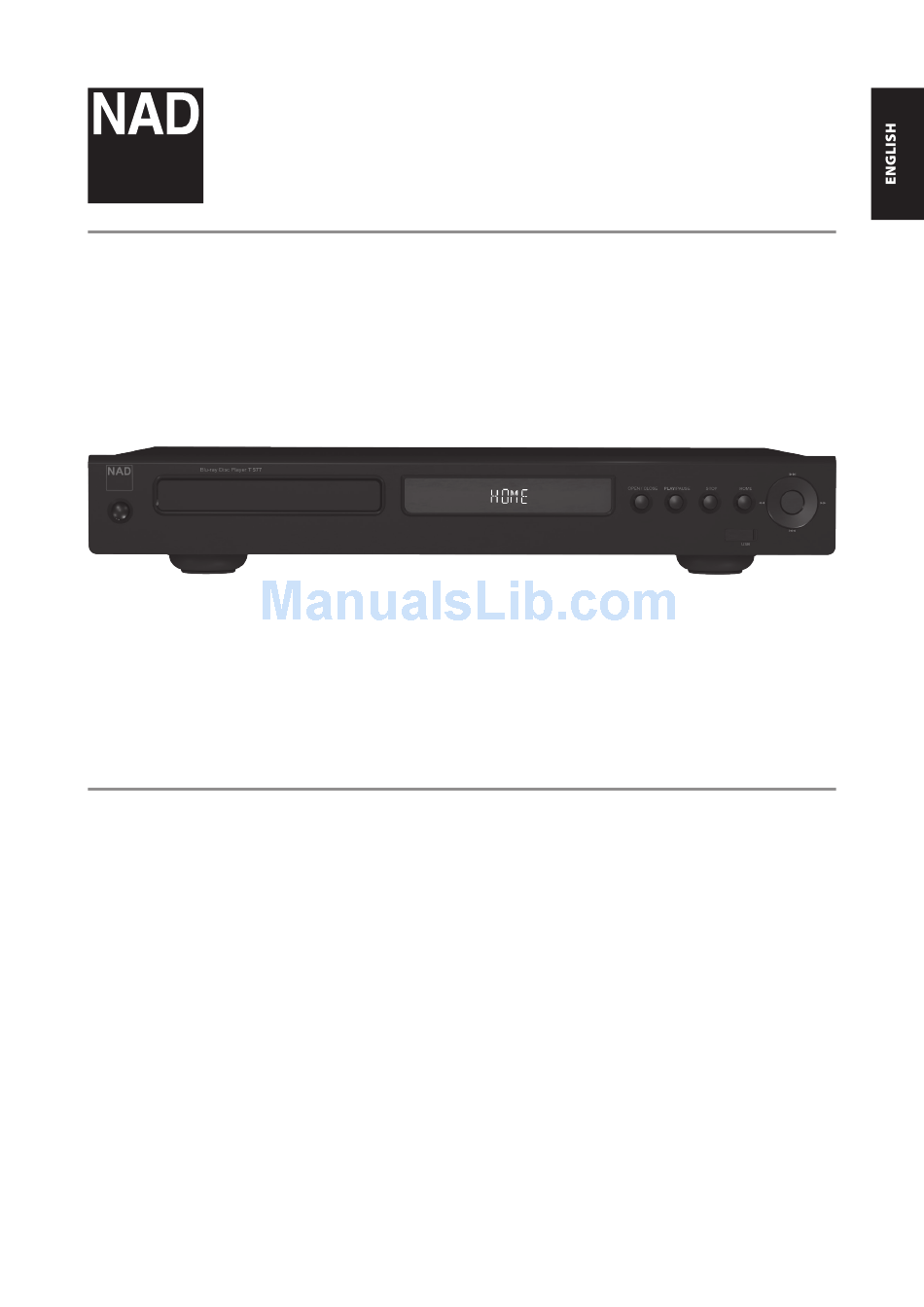

  • Page 1 T 577 ® Blu-ray Disc™ Player Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR LATER USE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT. 1 Read instructions - All the safety and operating instructions should be read before the product is operated. 2 Retain instructions - The safety and operating instructions should be retained for future reference.
  • Page 3 THE LITERATURE ACCOMPANYING THE APPLIANCE. CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the user’s authority to operate this equipment. CAUTION REGARDING PLACEMENT To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) that is equal to or greater than shown below.
  • Page 4 For your future convenience, we suggest that you record these numbers here: NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2010, NAD Electronics International, a division of Lenbrook Industries Limited Batteries bearing any of these symbols indicate that they should be treated as “separate collection”...

  • Page 5: Table Of Contents

    T 577. One more thing: We urge you to register your T 577 ownership on the NAD Worldwide Web site: http://NADelectronics.com/warranty...

  • Page 6: Introduction

    QUICK START In case you simply cannot wait to experience the performance of your new NAD T 577, we provide the following “Quick Start” instructions to get you underway. Please make all the connections to your T 577 with the unit unplugged. It is also advisable to power down or unplug all associated components while making or breaking any signal or AC power connections.

  • Page 7: Region Management Information

    REGION MANAGEMENT INFORMATION The T 577 is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc or Blu-ray disc. If the Region or BD code described on the disc does not correspond to the Region or BD code shown on the T 577 rear panel, the T 577 cannot play that disc.

  • Page 8: Identification Of Controls

    IDENTIFICATION OF CONTROLS FRONT PANEL 1 STANDBY: Press this button to switch ON the T 577. The display window will illuminate. If there is disc loaded, the display window will show the playback time status of the disc. If there is no disc loaded, the VFD will briefly show “NO DISC”...

  • Page 9: Rear Panel

    9 IR IN: This input is connected to the output of an IR (infrared) repeater (Xantech or similar) or the IR output of another component to allow control of the T 577 from a remote location. Most NAD products with IR OUT are fully compatible with the T 577.

  • Page 10: Br 2 Remote Control

    IDENTIFICATION OF CONTROLS BR 2 REMOTE CONTROL 1 ON: Switch T 577 ON. 2 OFF: Switch T 577 OFF. 3 AUDIO: Select an audio language. SUBTITLE: Select a subtitle language. ZOOM: Enlarge video image. PICTURE: Display or exit the Picture Mode menu.

  • Page 11: Operation

    You may operate the T 577 from its front panel or via the BR 2 remote control. Since the remote control will be the primary controller for most cases, we will focus on remote-controlled operations. Be sure also to read the section, “IDENTIFICATION OF CONTROLS - FRONT PANEL”.
  • Page 12 OPERATION USING THE T 577 RESOLUTION The T 577 provides several video output resolutions for the HDMI OUT and COMPONENT VIDEO OUT jacks. Resolution can be changed via the “Resolution” option in the DISPLAY SETUP menu or by toggling the [RES] button of the BR 2 remote control.

  • Page 13: Language Setup Menu

    COMPONENT VIDEO OUT CONNECTION • For the 1080p resolution setting with unprotected media, the COMPONENT VIDEO OUT resolution will change to 1080i. • When a protected media is loaded for playback, 720p, 1080i or 1080p resolution settings of COMPONENT VIDEO OUT will change to either 480i/576i or 480p/576p (depends upon the connectivity of a HDMI cable - plugged-in or unplugged).

  • Page 14: Audio Setup Menu

    OPERATION USING THE T 577 AUDIO SETUP MENU Each DVD disc has a variety of audio output options. Set the T 577’s AUDIO options according to the type of audio system you use. HDMI/SPDIF (DIGITAL AUDIO OUTPUT) Select the audio output setting for HDMI OUT or DIGITAL AUDIO OUT port. PCM Stereo: Select when connected to a two-channel digital stereo decoder.

  • Page 15: Lock Setup Menu

    LOCK SETUP MENU (APPLICABLE TO BD AND DVD PLAYBACK ONLY) Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated depending on the country.

  • Page 16: Network Setup Menu

    OPERATION USING THE T 577 NETWORK SETUP MENU The NETWORK settings are needed to use the BD Live feature. By connecting the T 577 to the internet, special BD-ROM sites can be enabled by some BD-ROM discs. Online contents can be downloaded and watched if a BD-ROM site contains links to future movie trailers, bonus contents and other related features.

  • Page 17: Wireless Network

    CONNECTION STATUS Selecting “Connection Status” will test and consequently display the status of your network connection. The status of your network connection will be displayed like “Success” (as in above OSD) or “Fail”. NOTES ON NETWORK CONNECTION • NAD is not responsible for any malfunction of the T 577 and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection or other connected equipment. • NAD is not responsible for the functionality or continued availability of the features of BD-ROM discs made available through the Internet Connection. Some disc related material available by the Internet...

  • Page 18: Others Setup Menu

    OTHERS SETUP MENU SKIN Change the background or wallpaper of the OSD. The default “Skin” is “Skin 1” which is actually the NAD logo. BD STORAGE SELECT The T 577 can store some BD-ROM disc related information, including downloaded on-line content such as movie trailers and special features into the internal Flash Memory or an USB device.

  • Page 19: Using The T 577 - Features

    5 Press [ ] to select a track or file. 6 Press [ ] or [ENTER] to start playback. NOTES • Playback may start automatically if an Audio CD is loaded. • If you are in a file list and want to return to the previous Folder list, use the ] buttons on the remote to highlight the folder and press [ENTER]. • Use BR 2’s red (A), green (B), yellow (C) or blue (D) buttons as indicated in the OSD – go to the first file/page, move up or down the file/page list or jump to last file/page. • During playback, press [RTN] once or twice to go back to the previous menu/page/OSD. IMPORTANT NOTICES • Customers should note that permission is required in order to download MP3/WMA files and music from the Internet. NAD ELECTRONICS INTERNATIONAL has no right to grant such permission. Permission should always be sought from the copyright owner. • Maximum files per disc/USB: less than 2000 (total number of files and folders).

  • Page 20: Viewing A Photo File

    OPERATION USING THE T 577 - FEATURES VIEWING A PHOTO FILE The T 577 allows the playback or viewing of PHOTO files. 1 Load the applicable disc or connect USB containing files. Select “Photo” from the “Home” menu. Press [ENTER]. 2 The PHOTO menu appears on the TV screen.

  • Page 21: Using "My Media" Features

    USING “MY MEDIA” FEATURES The T 577 can browse and play movies, music and photo stored on DLNA Certified media servers connected on your home network. 1 Check your network connection and settings. Refer to the section about NETWORK SETUP MENU under the USING THE T 577 segment of the main OPERATION heading.

  • Page 22: Adjusting The Picture Mode

    OPERATION USING THE T 577 - FEATURES FILE REQUIREMENTS 1 File extensions: “.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”, “ .mp3”, “.mkv”, “.mp4”, “.wma”, “.pcm” (LPCM) 2 Maximum Files/Folder: Less than 2000 (total number of files and folders) 3 Music Files • Sampling frequency: within 8 - 48kHz (WMA), within 11 - 48kHz(MP3), 44.1 and 48kHz (LPCM) • Bit rate: within 8 - 320kbps (WMA, MP3), 768kbps and1.536Mbps (LPCM)

  • Page 23: Using The T 577 - Function Control

    Depending on the media, the following basic function controls of the T 577 can be accessed directly using the BR 2 remote control. AUDIO The AUDIO button will allow one to switch the audio language or format only if the media supports the AUDIO button feature. Press [AUDIO] repeatedly to select desired audio language or format.

  • Page 24: Marker, Search, Clear

    OPERATION USING THE T 577 – FUNCTION CONTROL MARKER, SEARCH, CLEAR Use the [MARKER] button to selectively mark a scene that you wish to playback. ENTER A MARKER Press [MARKER] at the desired point on the disc. The marker icon appears on the screen briefly.

  • Page 25: Reference

    RESOLUTION SETTINGS PLAYBACK OF UNPROTECTED MEDIA RESOLUTION HDMI OUT 480i/576i 480p/576p 480p/576p 480p/576p 720p 720p 1080i 1080i 1080p/24Hz mode 1080p/24Hz mode 1080p/50Hz/60Hz 1080p/50Hz/60Hz PLAYBACK OF COPY PROTECTED MEDIA RESOLUTION HDMI OUT 480i/576i 480p/576p 480p/576p 480p/576p 720p 720p 1080i 1080i 1080p/24Hz mode 1080p/24Hz mode 1080p/50Hz/60Hz 1080p/50Hz/60Hz...

  • Page 26: Language Code List

    REFERENCE LANGUAGE CODE LIST Use this list to input your desired language for the following settings: DISC AUDIO/DISC SUBTITLE/DISC MENU language. Language Code Language 6566 Abkhazian Fiji 6565 Afar Finnish 6570 Afrikaans French 8381 Albanian Frisian Ameharic 6577 Galician 6582 Arabic Georgian 7289...

  • Page 27: Area Code

    Enter the appropriate code number for setting up the “Area Code”. CODE Country CODE Country Afghanistan Chad Albania Chile Algeria China American Samoa Christmas Island Andorra Cocos (Keeling) Angola Islands Anguilla Colombia Antarctica Comoros Antigua and Congo Barbuda Cook Islands Argentina Costa Rica Armenia...

  • Page 28: Troubleshooting

    REFERENCE TROUBLESHOOTING CONDITION No power. The power is on, but the T 577 does not work. No picture. No sound. The T 577 does not start playback. BD-Live feature does not work. The remote control does not work properly. NOTES ON DISCS HANDLING DISCS Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. STORING DISCS After playing, store the disc in its case.

  • Page 29: Specifications

    SYSTEM Total Harmonic Distortion Wireless LAN (internal antenna) OUTPUT Component (Pb/Pr signal) 7.1 channel audio output GENERAL Unit Dimension (W x H x D) * - IEEE 802.11n is not applicable to T 577’s Russian version model. ** - Gross dimensions include feet, extended buttons and rear panel terminals. Specifications are subject to change without notice.
  • Page 30 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
