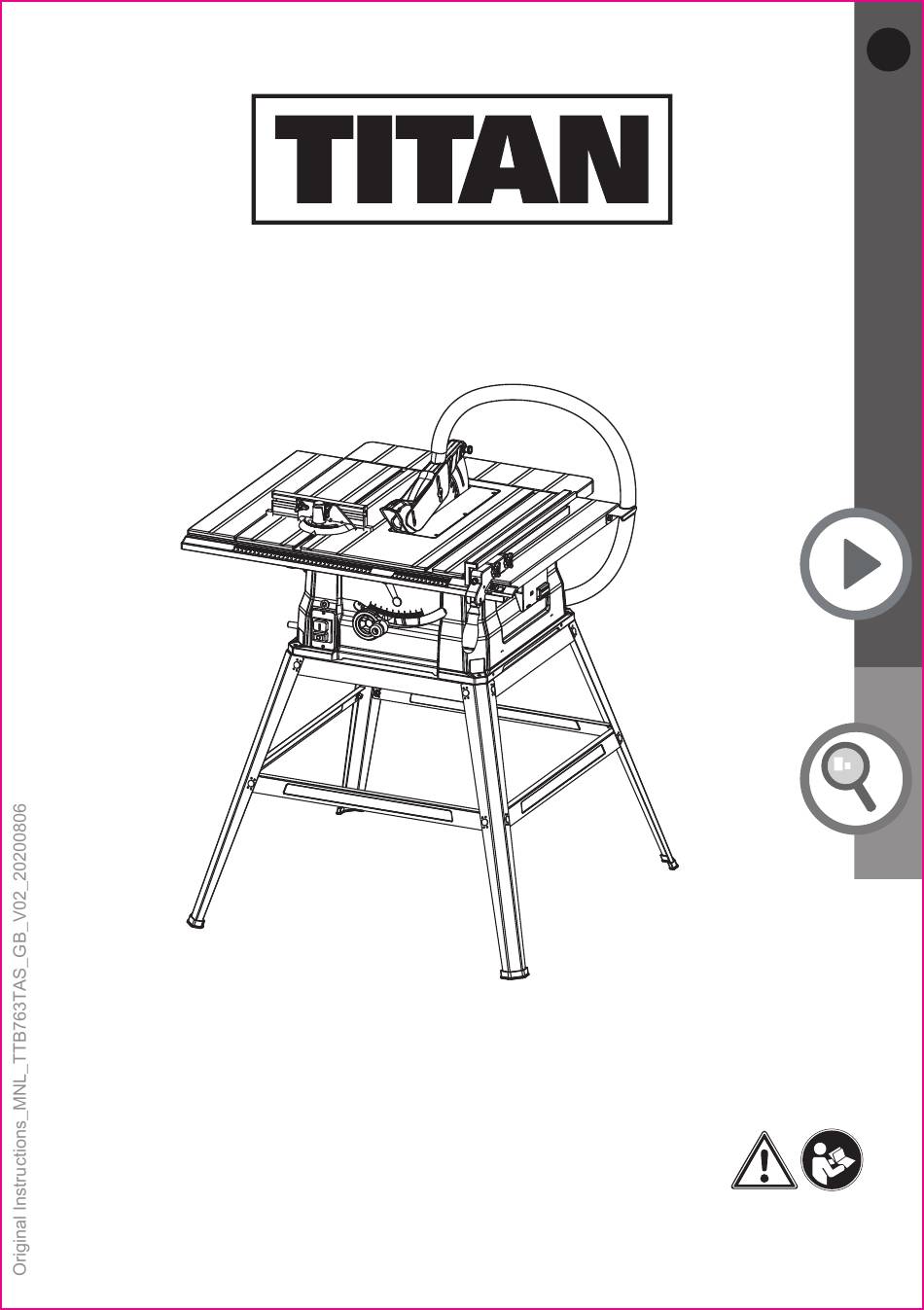

  • Page 1 1500W Table Saw TTB763TAS EAN: 5057741202182 WARNING! Read the instructions before using the product! BX220IM...
  • Page 3 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
  • Page 4 TTB763TAS by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start detail... more Product functions...

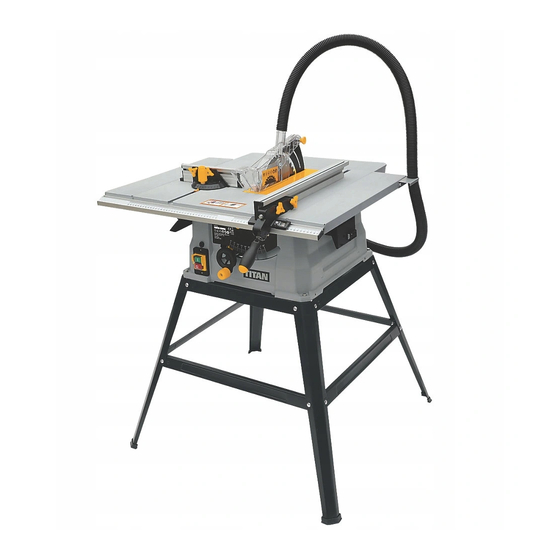

  • Page 5: Your Product

    Your product TTB763TAS by TITAN Your product...
  • Page 6 Your product TTB763TAS by TITAN 1. Dust extraction adapter 15. Dust extraction hose 2. Right extension table 16. Rear extension table 3. Riving knife 17. Table insert 4. Rubber foot 18. Hose hold 5. Stand 19. Rip fence 6. Height adjusting handle 20.

  • Page 7: Technical Specifications

    Technical and legal TTB763TAS by TITAN information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input S1 1500 W > No Load Speed 4500min > Degree of Protection IP20 > Blade Size ø254mm × ø30mm × 2.8mm, 40T > Main Table Size 554 ×...
  • Page 8 Technical and legal TTB763TAS by TITAN information and granite. It is also commonly found in many construction materials such as concrete and mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting,...
  • Page 9 Technical and legal TTB763TAS by TITAN information requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
  • Page 10 Technical and legal TTB763TAS by TITAN information Health surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.

  • Page 11: Safety Instruction

    Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. TTB763TAS Designation of the tool (TTB - TITAN, TAS - Table saw, 763 - Version number) Safety instruction For your own protection and for the protection of your electrical tool, pay...
  • Page 12 Technical and legal TTB763TAS by TITAN information c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
  • Page 13 Technical and legal TTB763TAS by TITAN information 4. Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
  • Page 14 Technical and legal TTB763TAS by TITAN information b) Always use the guard and the riving knife for cuts. For cuts where the saw blade cuts completely through the thickness of the workpiece, the guard and other safety devices reduce the risk of injuries.
  • Page 15 Technical and legal TTB763TAS by TITAN information that your hand remains at a safe distance to the saw blade. e) Use only the supplied push stick of the manufacturer. The push stick provides sufficient distance of the hand from the saw blade.
  • Page 16 Technical and legal TTB763TAS by TITAN information a) Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as the fence rail. Kickback may propel the workpiece at high velocity towards anyone standing in front and in line with the saw blade.
  • Page 17 Technical and legal TTB763TAS by TITAN information b) Never leave the table saw unattended when in operation. Turn if off and don't leave the tool until it has come to a complete stop. An unattended running saw is an uncontrolled hazard.
  • Page 18 Technical and legal TTB763TAS by TITAN information - The manufacturer assumes no liability for any damage caused by neglect of these operating instructions. - Please also observe the special safety instructions in the respective chapters. - Where applicable, follow the legal directives or regulations for the prevention of accidents pertaining to the use of table saws.
  • Page 19 Technical and legal TTB763TAS by TITAN information Cutting hazard, even with the cutting tool at standstill! - Wear gloves when changing cutting tools. - Store saw blade in such manner that nobody will get hurt. Danger from workpiece kickback! - Always work with a properly set riving knife.
  • Page 20 Technical and legal TTB763TAS by TITAN information Danger from blocking workpieces or workpiece parts! If blockage occurs: - Switch machine off, - Unplug mains cable, - Wear gloves, - Clear the blockage using a suitable tool.

  • Page 21: Intended Use

    Before you start TTB763TAS by TITAN Intended use When used for its intended purpose, this tool corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction. The tool is intended for longitudinal and cross-cutting of solid wood, coated wood, chip board, block board and similar woodlike materials.
  • Page 22 Before you start TTB763TAS by TITAN Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 23 Before you start TTB763TAS by TITAN Hex nuts M6 Flat washer 6 Spring washer 6 Hex bolts M6 x 16 [31] x 7 [29] x 15 [30] x 13 [32] x 13 For stand Rubber foot Flat washer 6 Spring washer 6...

  • Page 24: You Will Need

    Before you start TTB763TAS by TITAN You will need (items not supplied) (items supplied) > Phillips screwdriver > Blade wrench (2 pcs) > 10mm Wrench or adjustment wrench > 4mm Hex key > Square > Triangle square WARNING: Risk of injury! Always pull out the mains plug (disconnect the product from its power supply) before commencing work on the product.
  • Page 25 Before you start TTB763TAS by TITAN > Attached the left/right extension tables [13,2] to the working table [24] with flat washers 6 [29], spring washers 6 [30] and hex bolts M6 x 16 [32]. (Fig. 1b-1c) NOTE: Only one hole [42,41] on the side of the extension tables must be in the front after finished.
  • Page 26 Before you start TTB763TAS by TITAN To assemble the riving knife > Loosen the six cross-screws [43] with the screwdriver and remove the table insert [17]. (Fig. 3a) Fig. 3a > Loosen the blade bevel locking handle [10] and set the bevel angel to 0°. Tighten the bevel locking handle [10] afterward.
  • Page 27 Before you start TTB763TAS by TITAN > Reinstall the table insert [17]. NOTE: The riving kinfe must be aligned with saw blade after finished and the distance between the outside edge of the saw blade and the riving knife must be three to eight millimetres. If not, please contact with your dealer, because riving knife of this table saw not need be adjusted.
  • Page 28 Before you start TTB763TAS by TITAN > Slide the two knurled screws [48] into the slot of the rip fence. Turn the locking knob clockwise to tighten the rip fence locking handle [22] on the rip fence [19] with the flat washers [49] and knurled screws [48]. Rip fence locking handle [22] can be mounted on left or right of the rip fence [19] as shown in Fig.
  • Page 29 Before you start TTB763TAS by TITAN > Carefully offer the rip fence [19] into the channel of the front rail [11] and push the rip fence [19] completely to the saw blade [23] and hold firmly. > Move the front rail [11] in such a way that the red line marking [50] on the guide pointer [51] is in the zero position on the scale.
  • Page 30 Before you start TTB763TAS by TITAN To assemble the blade guard WARNING: Risk of injury! The saw blade guard [14] must be in position at all times to prevent contact with the saw blade. It should lift up and onto the work piece when the work piece is passed through the saw.

  • Page 31: To Assemble The Stand

    Before you start TTB763TAS by TITAN To attach the mitre gauge > Push the guide rail [56] of the mitre gauge [12] into one of the guide grooves [57] of the working table intended for this purpose. Fig. 6 To assemble the stand >...
  • Page 32 Before you start TTB763TAS by TITAN Fig. 7 Attach the table saw to the stand > Place the stand on a flat surface. > Place the table saw on top of the stand, aliging the holes in the base with the holes in the stand.
  • Page 33 Before you start TTB763TAS by TITAN Fig. 8 To mount the table saw onto the workbench If the stand is not used, the table saw must be properly secured to a sturdy workbench using the four mounting holes on the saw base.
  • Page 34 Before you start TTB763TAS by TITAN Fig. 9a > Attach the dust extraction hose [15] to the dust ports [60] on the blade guard and the hole B [61] dust extraction adapter [1] as shown in the Fig. 9b. > For the work piece passed successfully, to fix the dust extraction hose [15] in the slot of the hose hold [18] before sawing.

  • Page 35: Check Before Starting

    Before you start TTB763TAS by TITAN Check before starting! Warning: Risk of injury! In case of malfunctions, press the red 0-Button on the On/Off switch [7] and pull out the mains plug. Warning: Risk of injury! The table saw must only be put into operation if no faults are found.
  • Page 36 TTB763TAS by TITAN more detail… Product functions Care and maintenance Recycling and disposal Trouble shooting EC declaration of conformity...

  • Page 37: On/Off Switch

    Product functions TTB763TAS by TITAN OPERATION CONTROLS On/Off switch Warning: Risk of injury! Before turning on the switch make sure the blade guard is correctly installed and operating properly. Switching on: > To start the machine by pressing the green I-button [63] on the On/Off switch [7].
  • Page 38 Product functions TTB763TAS by TITAN Warning: Risk of injury! In order to avoid injury and prevent accidental start-up when the overload reset switch is pushed, On/Off switch should be in the OFF position, and the power cord should be unplugged from the outlet while the saw is cooling down.
  • Page 39 Product functions TTB763TAS by TITAN Height adjusting handle The height adjusting handle [6] is used to raise and lower the blade. Turn clockwise to lower the blade and anticlockwise to raise it. (Fig. 11) The cut height of the saw blade must be adjusted to the height of the work piece: The saw blade must always be lowered onto the work piece.

  • Page 40: Push Stick

    Product functions TTB763TAS by TITAN Push stick Push stick [25] is a device used for safely pushing a work piece through the blade instead of using your hands. They can be made from scrap wood in various sizes and shapes to be used in a specific project. The stick must be narrower than the work piece, with a 90°...
  • Page 41 Product functions TTB763TAS by TITAN Warning: Risk of injury! Do not push the parallel profile [66] too far in the direction of the saw blade. The distance between the parallel profile and the front of the saw blade should be approx. 2.5 cm.

  • Page 42: Rip Cutting

    Product functions TTB763TAS by TITAN Neither operation can be performed safely freehand: rip cutting requires the use of the rip fence, and crosscutting requires the use of the mitre gauge. Never use the rip fence and the mitre gauge at the same time during the cutting operation.

  • Page 43: Bevel Rip Cutting

    Product functions TTB763TAS by TITAN the work piece that will pass between the blade and the fence. > Do not place your thumbs on the table top. Always hold the work piece while the blade is turning. Do not let go of it in order to reach for the push stick. When both thumbs touch the front edge of the table, complete the cut using a push stick.
  • Page 44 Product functions TTB763TAS by TITAN Rip small pieces Warning: Risk of injury! Avoid injury caused by contact with the blade. Do not use this saw to make throughcuts that are narrower than 1/2” (13 mm). > It is not safe to rip small pieces. Instead, rip a larger piece in order to obtain the size of the desired piece.

  • Page 45: Bevel Cross Cutting

    Product functions TTB763TAS by TITAN Warning: Risk of injury! In order to avoid instability, always place the larger surface of the work piece on the table when cross cutting and/or bevel cross cutting. Fig. 16 Bevel cross cutting Bevel cross cutting is the same as cross cutting, except that the saw blade bevel angle is set to an angle other than 0°.

  • Page 46: Mitre Cross Cutting

    Product functions TTB763TAS by TITAN Mitre cross cutting Mitre cross cutting is the same as cross cutting, except that the mitre gauge is locked at an angle other than 90°. > Adjust the mitre gauge to the desired mitre angle. Make sure the mitre gauge locking handle is locked firmly.

  • Page 47: Adjusting The Bevel Stops

    Product functions TTB763TAS by TITAN ADJUSTMENT Adjusting the bevel stops This saw has positive stops that will quickly position the saw blade at 90° or 45° to the working table. The angle settings of the saw have been set at the factory and, unless damaged in shipping, should not require setting during assembly.
  • Page 48 Product functions TTB763TAS by TITAN > Set the 45° stop in the same way with a triangle square [69]. The set screw [70] for the 45° stop is located at the right of the bevel track on the front. Fig. 22...

  • Page 49: General Cleaning

    Care and maintenance TTB763TAS by TITAN The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove chips from it after each use and before storage.
  • Page 50 Care and maintenance TTB763TAS by TITAN Lubrication > All motor bearings are permanently lubricated at the factory, and do not require any additional lubrication. > Use graphite or silicone to lubricate all mechanical parts of the table saw where a pivot or threaded rod is present.

  • Page 51: Plug Replacement

    Care and maintenance TTB763TAS by TITAN WARNING! Product damage! When installing, make sure to heed the turning direction of the saw blade! NOTE: During installation, make sure that the saw blade is sitting correctly on the arbor. WARNING! Risk of injury! The arbor nut may not be tightened too much.
  • Page 52 Care and maintenance TTB763TAS by TITAN 10 AMP fuse Connect approved to Blue to BS 1362 N(Neutral) Brown L(Live) Outer sleeve Cable grip firmly clamped Fig. 25 Warning: Never connect live or neutral wires to the earth terminal of the plug, which is marked with E.
  • Page 53 Care and maintenance TTB763TAS by TITAN Warning: Risk of injury! During transportation the upper part of the saw blade should be covered; for example by the guard. Storage Warning: Risk of injury! Store the product so that it cannot be switched on by unauthorized persons.

  • Page 54: Recycling And Disposal

    Recycling and disposal TTB763TAS by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.

  • Page 55: Troubleshooting

    Trouble shooting TTB763TAS by TITAN Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these...
  • Page 56 Trouble shooting TTB763TAS by TITAN Problem Possible cause Solution The work piece is 1. The fence is not being 1. Use the fence. touching the back used. of the saw blade 2. The saw blade is 2. Replace blade or mount...

  • Page 57: Ec Declaration Of Conformity

    Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 1500W TABLE SAW, TTB763TAS Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following Directives: EC Machinery Directive 2006/42/EC Certificate registration number: M6A 094667 0080 Rev.01...
  • Page 60 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK Manufacturer Kingfisher International Products Limited, 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
