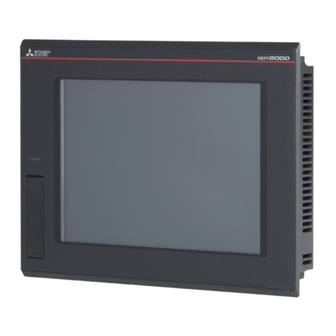

Mitsubishi Electric GT2708-STBA Manual

GOT2000 Series Operator
Terminals
Human-Machine Interfaces
Installation Manual for
GT2708-STBA, GT2708-VTBA,
GT2708-STBD, GT2708-VTBD
Art. no.: 280291 ENG, Version A, 23092014
Safety Information
For qualified staff only
This manual is only intended for use by properly trained and qualified electri-
cal technicians who are fully acquainted with automation technology safety
standards. All work with the hardware described, including system design,
installation, setup, maintenance, service and testing, may only be performed
by trained electrical technicians with approved qualifications who are fully
acquainted with the applicable automation technology safety standards and
regulations.
Proper use of equipment
The GOT2000 series operator terminals (GT2708) are only intended for the spe-
cific applications explicitly described in this manual or other manuals. Please
take care to observe all the installation and operating parameters specified in
the manual. All products are designed, manufactured, tested and documented
in agreement with the safety regulations. Any modification of the hardware or
software or disregarding of the safety warnings given in this manual or printed
on the product can cause injury to persons or damage to equipment or other
property. Only accessories and peripherals specifically approved by
MITSUBISHI ELECTRIC may be used. Any other use or application of the prod-
ucts is deemed to be improper.
Relevant safety regulations
All safety and accident prevention regulations relevant to your specific appli-
cation must be observed in the system design, installation, setup, mainte-
nance, servicing and testing of these products.
In this manual special warnings that are important for the proper and safe use
of the products are clearly identified as follows:
DANGER:
P
Personnel health and injury warnings.
Failure to observe the precautions described here can result
in serious health and injury hazards.
E CAUTION:
Equipment and property damage warnings.
Failure to observe the precautions described here can result
in serious damage to the equipment or other property.
Further information
More information about the operator terminals of the GOT2000 series and the
configuration tool MELSOFT GT Works3 is available free of charge through the
internet (https://eu3a.mitsubishielectric.com).
If you have any questions concerning the installation, configuration or opera-
tion of the equipment described in this manual, please contact your relevant
sales office or department.
Dimensions
GT2708
241
All dimensions are in „mm".
Panel cut out
A space of at least 10 mm at
the upper and lower side of
10 or more
the GOT is required to allow for
the attachment of mounting
fixtures.
B
Cut Out [mm]
GOT
A
GT2708 227
10 or more
A
Unit: mm
Distances to other devices
When mounting the GOT, please maintain the following clearances from other
devices.
B
Other device
C D
E
GOT
A
Panel*
* Panel thickness: 2.0 to 4.0 mm
Minimum clearances [mm]
Distances to other
devices
A B C D
SD card not used 48 (18) 78 (18) 50 (20) 50 (20) 100 (20)
SD card used 48 (18) 78 (18) 50 50 (20) 100 (20)
The values enclosed in parenthesis apply to the case where no other equipment
generating radiated noise (such as a contactor) or heat is installed nearby.
Installation and Wiring
52
P
DANGER
6
● Switch OFF the power supply of the operator terminal before starting
the installation work or wiring and before mounting or removing the
option function board.
● When the communication between the operation terminal and the
PLC fails it is impossible to operate keys or devices via the operation
terminal. Therefore emergency stops and other safety functions must
not be controlled via the PLC.
E
CAUTION
● Do not disassemble or modify the unit. Doing so can cause a failure,
malfunction, injury or fire.
● Use the GOT in the environment that satisfies the general specifica-
tions described in this manual. Don't mount the operation terminal in
an enviroment that contains high explosive risks, strong magnetic
fields, direct sunlight or large, sudden temperature changes.
B
● Never allow fluids, metal filings or wiring debris to enter any openings
+2 +2
176
in the operator terminal. This may cause short circuits and fire.
–0 –0
Mounting
A GOT is designed to be installed into the door of a control cabinet or into
a control panel.
When the temperature inside the control cabinet or
control panel is 40 to 55 °C the mounting angle
105°
should be in the range 60° to 105° degrees.
GOT
60°
Prepare a hole in the panel with the dimensions shown on the left.
Insert the GOT from the front of the
panel or the control cabinet into
the cut out.
E
GOT
Place the mounting fittings (sup-
plied) into the provided openings
of the GOT and tighten the screws
until the GOT is fixed. Please use all
four supplied mounting fittings
and tighten the mounting screws
with a torque of 0.36 to 0.48 Nm.
After mounting, remove the protection film from the operator terminal
display.
Power Supply Wiring
E
CAUTION
● Do not lay signal cables close to the main circuit, high-voltage power
lines, or load lines. Otherwise effects of noise or surge induction are
likely to take place. Keep a safe distance of more than 100 mm from
the above when wiring.
● When connecting the power supply please confirm the rated voltage
and the polarity. Not doing so can cause a fire or failure.
Connect the power supply to the power terminals on the back panel of the GOT.
GT2708-STBA, GT2708-VTBA
INPUT
100-240VAC
(LG) (FG)
Grounding
100 to 240 V AC
Use the thickest cable possible (max. 2 mm
start twisting them close to the connection terminals. Tighten the terminal
screws securely with a torque of 0.5 to 0.8 Nm.
Use commercially available terminal ends for M3 screws for connection of the
power supply (see figure below).
Wiring of one cable to
one terminal
3.2 mm
6.2 mm
or less
3.2 mm
6.2 mm
or less
: Terminal screw
: Solderless terminal
Grounding
Ground the GOT using the ground terminal at the lower left corner of the oper-
ator terminal (Refer to the figure at the top of this column).
● The grounding resistance should be 100
● The grounding point should be close to the GOT. Keep the grounding wires
as short as possible.
Cut out
● The ground wire size should be at least 2 mm
● Independent grounding should be performed for best results. When inde-
pendent grounding is not performed, perform "shared grounding" of the
Magnified illustration
following figure.
Other
GOT GOT
equipment
Independent grounding Shared grounding
Mounting
Best condition Good condition
fitting
Mounting
screw
Connection to the control system
An operator panel of the GOT2000 series can be connected not only to PLCs
from Mitsubishi Electric but also to inverters, servo amplifiers, CNC as well and
to PLCs from third party manufacturers and many other devices. For further
information please refer to the Connection Manual for the GOT2000 series.
Mitsubishi Electric Europe B.V. /// FA - European Business Group ///
Germany /// Tel.: +49(0)2102-4860 /// Fax: +49(0)2102-4861120 ///
https://eu3a.mitsubishielectric.com
GT2708-STBD, GT2708-VTBD
INPUT
24VDC
- +
(LG) (FG)
Grounding
24 V DC
2
) to minimize the voltage drop and
Wiring of two cables to
one terminal
or less.
2
.
Other Other
GOT
equipment equipment
Common grounding
Not allowed
