Sealey RS16 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: pLease ReaD tHese instRUctions caRefULLY. note tHe safe opeRationaL ReQUiReMents, WaRninGs & cAUTIonS. Use tHe
pRoDUct coRRectLY anD WitH caRe foR tHe pURpose foR WHicH it is intenDeD. faiLURe to Do so MaY caUse DaMaGe anD/oR
peRsonaL inJURY anD WiLL inVaLiDate tHe WaRRantY. Keep tHese instRUctions safe foR fUtURe Use.
1. SAfETy
3
Select a work area suitable for the saw table and keep the area clean, tidy and free from unrelated materials. ensure there is adequate
lighting.
3
Stand the saw table on a stable floor strong enough to take the weight of the saw and the saw table.
3
Maintain the table in good condition, check moving parts alignment regularly.
3
Replace or repair damaged parts. Use recommended parts only, unauthorised parts may be dangerous and will invalidate the warranty.
3
Remove ill fitting clothing, remove ties, watches, rings and other loose jewellery and contain long hair.
3
Maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
3
Keep children and unauthorised persons away from the work area.
2. InTRoDUcTIon
Hard wearing, height adjustable wood-composite top, suitable for sawing, planing and sanding. extending twin rollers aid material handling and
increase productivity making it ideal for use with mitre saws and table saws.
3. specification
Model No: . . . . . . . . . . . . . . . . . . . . RS16
Size Folded (WxdxH): . . . . . . . . . . . 640x130x1010mm
Board Size (WxdxT): . . . . . . . . . . . . 585x480x18mm
Roller Height Adjustment: . . . . . . . . 0-450mm
Roller extension: . . . . . . . . . . . . . . . 690-1460mm
Height Adjustment: . . . . . . . . . . . . . 690-880mm
4. ASSEMBLy
Fold out legs (1), fit extension tubes (8) and raise them to a comfortable working height using pins (2) and knobs (3).
4.1.
Place Ø8x18x21 spacer into the top of each of the extension tubes (8). Use a thin strip of paper underneath it to prevent the spacer from
4.2.
falling down inside the tube (see fig.2).
Attach Latch plate to the outside of each of the extension tubes. Use M8x40 bolt through the lower hole.The M8x45 bolt plus the 8x12x3
4.2.
spacer goes through the upper hole. The table will pivot on the spacers (see fig.3). (Top bolt is shown in fig.3 to show its location once the
table is fitted).
© Jack Sealey limited
INSTRUCTIONS FOR:

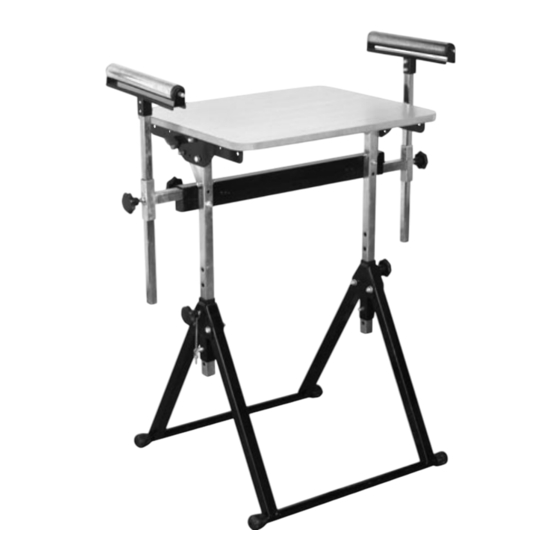

ADJUSTABLE MITRE SAw STAnD
RS16
MOdel NO:
fig.1
Original Language Version
fig.2
fig.3
RS16 Issue: 1 - 14/03/14
