Sealey SA299.V2 Instruction Manual

PARTS INFORMATION FOR:
1" AIR IMPACT WRENCH
MODEL:
52
Issue : 1
Date : 140705
ITEM PART NO DESCRIPTION ITEM PART NO
1 SA29.V3-01 OIL SEAL 19 SA29.V3-19
2 SA29.V3-02 HOUSING 20 SA29.V3-20
3 SA29.V3-03 SCREW 21 SA29.V3-21
4 SA29.V3-04 WASHER 22 B/6205ZZ
5 SA29.V3-05 WASHER 23 SA29.V3-23
6 SA29.V3-06 SCREW 24 SA29.V3-24
7 SA29.V3-07 HANDLE 25 SA29.V3-25
8 SA29.V3-08 SEAL PLATE 26 SA29.V3-26
9 SA29.V3-09 BUSHING 27 SA29.V3-27
10 SA29.V3-10 RETAINER RING 28 SA29.V3-28
11 SA29.V3-11 O-RING 29 SA29.V3-29
12 SA299.V2-12 ANVIL 30 SA29.V3-30
13 SA29.V3-13 HAMMER PIN 31 SA29.V3-31
14 SA29.V3-14 HAMMER 32 SA29.V3-32
15 SA29.V3-15 DRIVE CAM 33 SA29.V3-33
16 SA29.V3-16 HAMMER CAGE 34 SA29.V3-34
17 B/6208ZZ BEARING, 6208ZZ 35 SA29.V3-35
18 SA29.V3-18 HOUSING 36 SA29.V3-36
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
01284 757500
SA299.V2
DESCRIPTION ITEM PART NO DESCRIPTION
NUT 37 SA29.V3-37 SET PIN
NUT 38 SA29.V3-38 SPRING
O-RING 39 SA29.V3-39 STEEL BALL
BEARING, 6205ZZ 40 SA29.V3-40 SET PIN
FRONT PLATE 41 SA29.V3-41 O-RING
SET PIN 42 SA29.V3-42 SWITCH
CYLINDER 43 SA29.V3-43 SLEEVE
ROTOR 44 SA29.V3-44 PIN
VANE 45 SA29.V3-45 O-RING
SET PIN 46 SA29.V3-46 CUP PLUG
OIL SEAL 47 SA29.V3-47 PLUG
REAR COVER 48 SA29.V3-48 SPRING
SCREW 49 SA29.V3-49 O-RING
TRIGGER 50 SA29.V3-50 AIR INLET
SET PIN 51 SA29.V3-51 INLET SCREW
SET PIN 52 SA29.V3-52 REAR COVER
BRASS SLEEVE
PLUNGER
E-mail: sales@sealey.co.uk
01284 703534
Web: www.sealey.co.uk

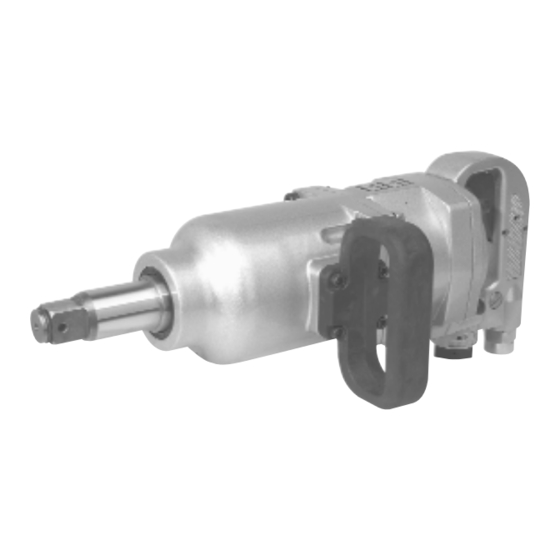

INSTRUCTION MANUAL FOR:
1" AIR IMPACT WRENCH
MODEL:
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
WARNING! Ensure health & safety, local authority, and
!
1. SAFETY INSTRUCTIONS
general workshop practice regulations are adhered to
when using this equipment.
! WARNING! Disconnect from air supply before changing
accessories or servicing.
" Maintain the wrench in good condition and replace
any damaged or worn parts. Use
g e n u i n e p a r t s o n l y. Unauthorised parts may be
dangerous and will invalidate the warranty.
! WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
" Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
" Only use impact sockets which are specifically designed for use with an impact wrench.
" Wear approved safety eye/face shield, ear defenders, and hand protection.
! WARNING! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection.
" Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
" Keep children and non essential persons away from the working area.
# DO NOT use the wrench for a task it is not designed to perform.
! WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
# DO NOT use wrench unless you have been instructed in its use by a qualified person.
# DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
# DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.
# DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
# DO NOT direct air from the air hose at yourself or others.
" When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATIONS
Tough 'straight line' Impact Wrench fitted with side handle and incorporating reverse action.
Drive size . . . . . . . . . . . . . . . . . . .1"Sq
Working/Max torque . . . .1170/1460ft.lb
Operating pressure . . . . . . . . . . .90psi
Weight . . . . . . . . . . . . . . . . . . . 13.0kg
Sound pressure . . . . . . . . . . . . . .86dB
SA299.V2
Air inlet size . . . . . . . . . . 1/2" BSP
Ultimate torque . . . . . . . . .1520ft.lb
Air consumption . . . . . . . . . 15cfm
Vibration level . . . . . . . . . .1.9m/s
2
Sound Power . . . . . . . . . . . .98dB
SA299.V2 - 1 - 140705
