4. Measuring Thickness

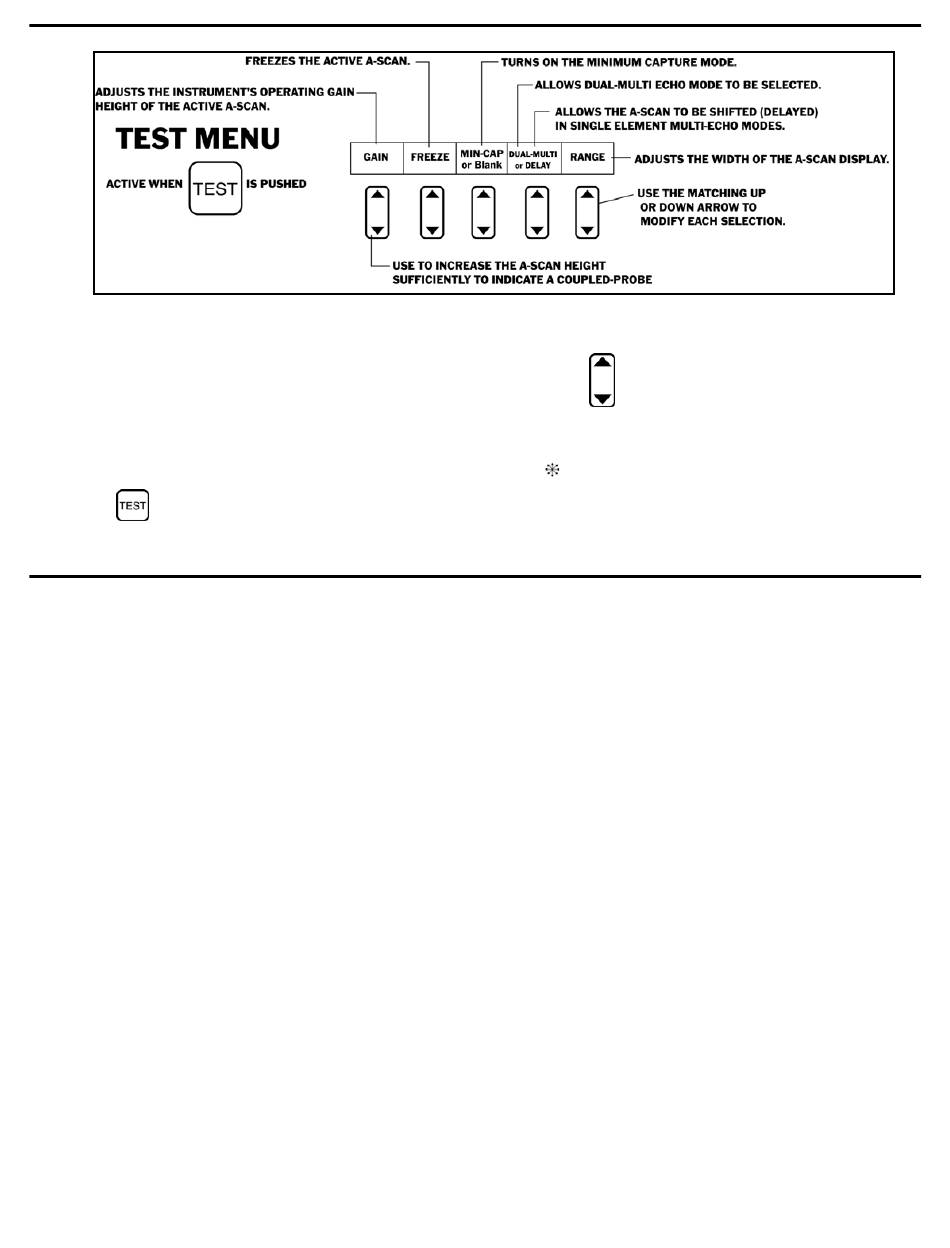

FIGURE 4-2—This is the Test Menu. It will appear across the bottom of the display screen whenever the
instrument is in the Test mode.

4.1.2 Freezing the A-scan Display (TEST-FREEZE)

Freezing the A-scan display allows the user to more closely
evaluate the measurement and/or adjust the A-scan range
and gates. Follow this procedure to freeze the A-scan
display.
Step 1: Activate the TEST Menu (if it's not already activated)
by pressing . Five selections will appear across the
bottom of the display screen.
Page 94
Step 2: Press below the selection titled FREEZE. You'll
note that the following choices are available:
• ON—Freezes the A-scan display. Note that the Freeze
Icon will appear when ON is chosen (the location of
this icon is shown in Figure 4-3)
• OFF—Unfreezes the displayed measurement data and
allows the user to return to normal measurement func-
tions (The A-scan is now "live.")
DMS 2 Operating Manual
