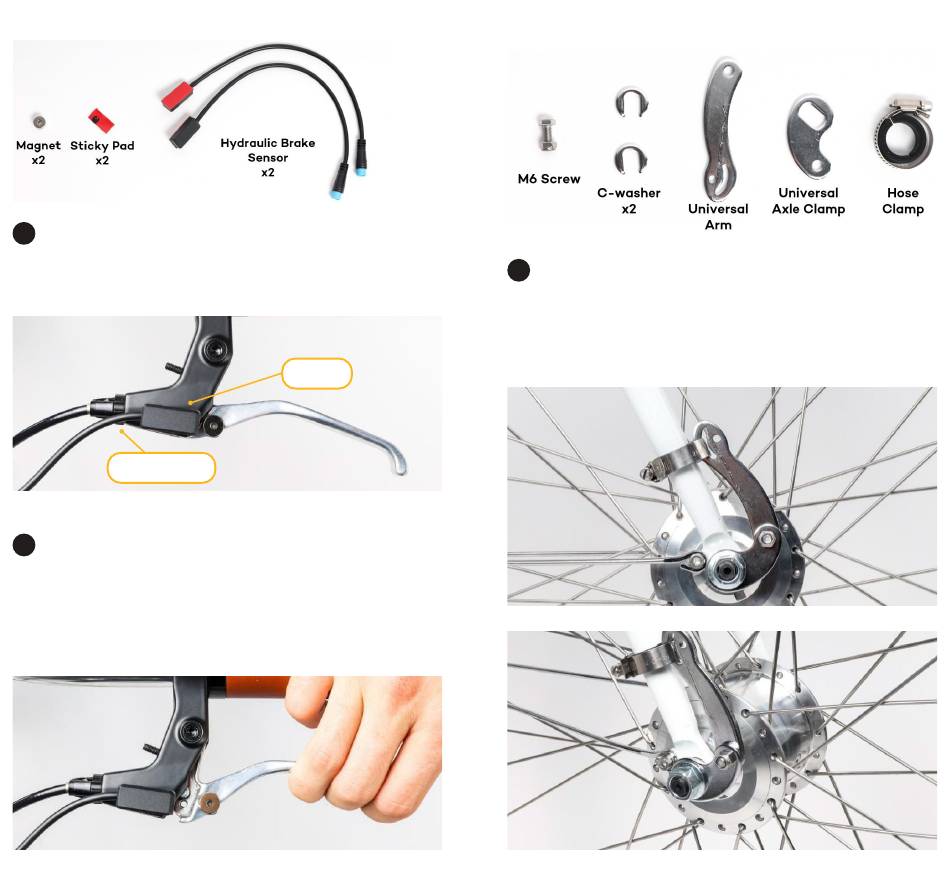

7.2 Hydraulic Brake Sensors

1
Fit the hydraulic brake sensor to the outside of the
brake lever.
-Stick the sensor to the brake lever base.
-Stick the magnet to the brake lever.
Brake Sensor
2
Check the position of the sensor.
- The magnet should be close when the brake lever is not
used & far when brake is engaged.
- Test by turning on the Power Pack and holding the (-)
button to activate the walk mode and check the brake
sensor stops the motor turning.
46
Magnet

7.4 Universal Torque Arm

1
Fit the Universal Torque Arm
- Use the side opposite to the motor wire.
- Use the C-Washer or screw washers if necessary, to help
with the fit.
- Tighten all screws and the wheel nut before riding.
47
