Sealey TRMK Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
‰
DO NOT use tools if damaged.
8
DO NOT use this tool for purposes other than for which it is designed.
8
Maintain tools in good and clean condition for best and safest performance.
9
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
Keep children and unauthorised persons away from the work area.
9
DO NOT use the thread repair set when you are tired or under the influence of alcohol, drugs or intoxicating medicine.
8
Account for all tools and parts being used, DO NOT leave them in or near an engine. Return all parts to the case and store this in a
9
safe, dry, childproof location.
WARNING! Failure to comply with these instructions may result in damage to the thread repair set or work piece and/or personal injury.
‰
WARNING! The warnings referred to in this guide cannot cover all possible conditions and situations that may occur. It must be
‰
understood that common sense and caution are factors which cannot be built into this product, but must be applied by the operator.

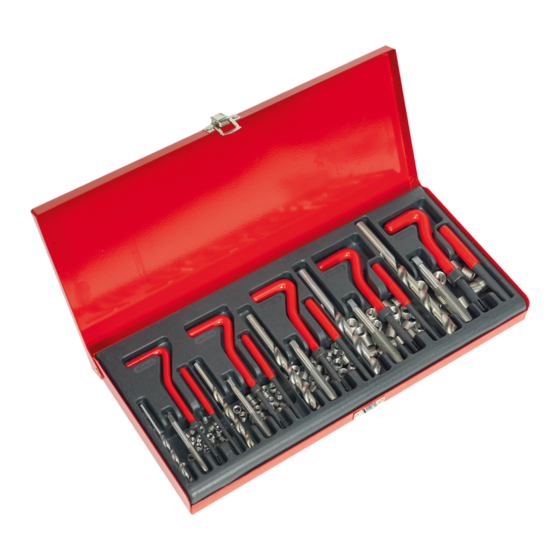

2. INTRODUCTION
Suitable for five common sizes of thread. Creates a stronger internal thread in soft metals. Ideal for repairing damaged or stripped internal
threads. Protects tapped threads against wear and damage. Includes drill bits, thread taps, stainless steel thread inserts, insert installation and
lug breaking tools. Supplied in metal storage case.
3. SPECIFICATION
Model No: .................................................................... TRMK
Replacement Inserts:
.......................TRM5R, TRM6R, TRM8R, TRM10R, TRM12R
Thread Lengths:
...................................M5 x 4.5mm (x25), M6 x 5.5mm (x25),
............ M8 x 8 (x25), M10 x 10mm (x25), M12 x 11mm (x10)
Thread Size:
........ M5 x 0.8, M6 x 1, M8 x 1.25, M10 x 1.5, M12 x 1.75mm
4. CONTENTS
Item Description
1 Twist Drill 5.2mm Bit
2 Screw Tap M5x0.8
3 Installation Tool
4 Breaking Pin Tool
5 Twist Drill 6.3mm Bit
6 Screw Tap M6x1.0
7 Installation Tool
8 Breaking Pin Tool
9 Twist Drill 8.3mm Bit
10 Screw Tap M8x1.25
11 Installation Tool
12 Breaking Pin Tool
13 Twist Drill 10.5mm Bit
© Jack Sealey Limited
THREAD REPAIR MASTER KIT
TRMK
MODEL NO:
Part No. Item
TRM5.V2-01 14
TRM5.V2-02 15
TRM5.V2-03 16
TRM5.V2-04 17
TRM6.V2-01 18
TRM6.V2-02 19
TRM6.V2-03 20
TRM6.V2-04 Thread Insert M5x0.8mm for TRM5
TRM8.V2-01 Thread Insert M6x1mm for TRM6
TRM8.V2-02 Thread Insert M8x1.25 for TRM8
TRM8.V2-03 Thread Insert M10x1.5mm for TRM10
TRM8.V2-04 Thread Insert M12x1.75mm for TRM12
TRM10.V2-01
Original Language Version
Description
Screw Tap M10x1.5
Installation Tool
Breaking Pin Tool
Twist Drill 12.5mm Bit
Screw Tap M12x1.75
Installation Tool
Breaking Pin Tool
TRMK Issue:2 (H,2,F) 04/04/22
Part No.
TRM10.V2-02
TRM10.V2-03
TRM10.V2-04
TRM12.V2-01
TRM12.V2-02
TRM12.V2-03
TRM12.V2-04
TRM5R
TRM6R
TRM8R
TRM10R
TRM12R
