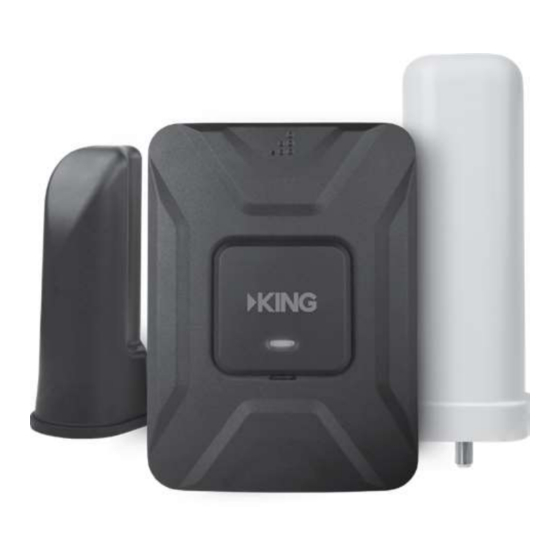

- Page 1 EXTEND KX1000 LTE/CELL SIGNAL BOOSTER User Manual ® powered by weBoost...
-
Page 2: Table Of Contents
BEFORE YOU START Read through this manual before installing or operating the KING Extend. If you have any questions, call KING Customer Service at (952) 345-8147. CONTENTS CONTENTS ....................2 IMPORTANT POINTS ................. 3 COMPONENT LOCATIONS ............... 4 OUTSIDE ANTENNA MOUNTING OPTIONS ..........5 INSTALLATION .................. -
Page 3: Important Points
IMPORTANT POINTS You will need a drill and drill bit, roof-compatible sealant and appropriate fasteners to install all components and wiring. The installer is responsible for determining the most appropriate fasteners to secure the antenna bracket to the roof. Depending on the roof material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and T anchors may be used, and should always be used in combination with a roof-compatible sealant. -
Page 4: Component Locations
COMPONENT LOCATIONS components in their chosen locations, completing the setup instructions, and verifying the system works as desired. (Route the cable through an open door or window for the soft install.) NOTE: It is up to the installer to determine the best component locations. Page 4... -
Page 5: Outside Antenna Mounting Options
OUTSIDE ANTENNA MOUNTING OPTIONS Page 5... -
Page 6: Installation
INSTALLATION 1. Fasten the outside antenna to the mounting bracket with the supplied screws and washers (see page 5). 2. Connect the separate 20’ cable to the antenna (LARGE CONNECTOR). will penetrate the roof. 4. Fasten bracket to roof. Make sure fastener holes and fastener heads are properly sealed. - Page 7 5. Route the cable to where it will enter the vehicle. IMPORTANT! Make sure to avoid any cabling, pipes, etc. that may be damaged by drilling. 6. Drill an appropriately sized hole and feed the cable into the vehicle. 7. Seal the roof hole so it is completely waterproof (inside and outside). 8.
-
Page 8: Measuring Booster Performance
MEASURING BOOSTER PERFORMANCE Note it here: iPhone ® Dial *3001#12345#* then press Call. 2 Release the power button. 3 Hold the Home button until your main screen appears. If you want to check 3G/1x but your iPhone is picking up 4G/LTE signal , go to Settings>Cellular>Cellular Data Options>Enable LTE>Select Off. - Page 9 All Other Phones and Alternate Methods • https://www.weboost.com/test-mode-instructions/ All Phones: • Keep track of the network (3G or 4G) the phone is connected to. readings from other carriers, you will need phones from each carrier. by dialing *3001#12345#* and pressing Call. Press the signal strength at the top left of the screen to toggle between numbers and bars.
-
Page 10: Signal Booster Status Light
SIGNAL BOOSTER STATUS LIGHT SOLID GREEN This indicates your booster is functioning properly and there are no issues with installation. BLINKING RED, THEN SOLID GREEN This indicates one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built-in safety feature to prevent harmful interference with a nearby cell tower. -
Page 11: Troubleshooting
3. Increase the separation distance until the condition is corrected and/ or desired coverage area is achieved. NOTE: Horizontal separation of the two antennas typically requires a shorter separation distance than perpendicular separation. call KING Customer Service at (952) 345-8147. Page 11... -
Page 12: Specifications
SPECIFICATIONS Page 12... - Page 13 Each signal booster is individually tested and factory set to ensure FCC compliance. The signal booster cannot be adjusted without factory reprogramming or disabling the hardware. The signal booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized will reduce gain until a signal is detected.
-
Page 14: Safety Guidelines
SAFETY GUIDELINES damage your equipment. The signal booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of this range. The desktop antenna must have at least 3 feet of separation distance from all active separation distance from all active users. -
Page 15: Warranty
KING Customer Support at (952) 345-8147. In no event shall KING be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty. - Page 16 ™ Simply better, by design. For patents go to: weboost.com/us/patents. © 2019 KING...
