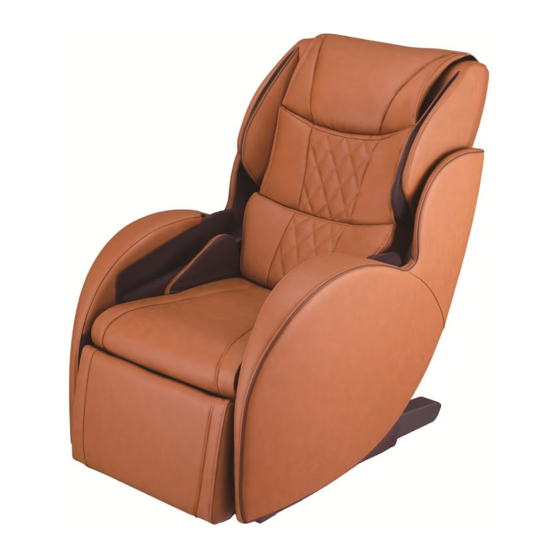

( 家用 ) 電動按摩椅 Model No. EP-MAC8 型號 English 繁體中文 Thank you for purchasing this Panasonic product. Before operating this unit, please read these instructions completely and save them for future use. Issued date: 2019-06-18 感謝您購買本Panasonic 產品。 發行日期:2019-06-18 Panasonic Corporation Printed in China 使用本產品之前,...
As a massager, of course, it can usually be used as a comfortable chair for relaxation. Contents When you select "AUTO", Adjust the comfort Before Use it reclines to Massage cushion position to be position automatically. a pillow. IMPORTANT SAFETY INSTRUCTIONS ..EN4 The height where GROUNDING INSTRUCTIONS .....
IMPORTANT SAFETY INSTRUCTIONS Always follow these instructions This section contains instructions that you must follow to prevent personal injury or damage to property. ■ The instructions are classified according to the level of injury or damage that may occur due to the mistaken use of this unit. ■...
IMPORTANT SAFETY INSTRUCTIONS (continued) WARNING CAUTION Symptoms Before and during use Power plug, power cord etc Persons who are otherwise healthy but have any of the Do not use the massage heads on your head, Check that the massage heads are in the ...
Preface (Installation place) Parts and functions Main unit Please decide the place to install before taking Pillow Backrest it out of the box. Front Massage heads: Shoulder side · Massaging function by massage section kneading mechanism · Built-in heater section Secure enough space Hip massage section to operate the power...
Installation Parts and functions (continued) Controller 1 ) Open the packing box and take out the item 2 ) Loading and installing the item Since it is a heavy item, please be careful not to hurt Check the main unit and accessories your back etc when moving in.
Page 7
Before starting massage each time Installation (continued) (Check the main unit ) ❶ ❸ When installing, using a caster to move 3 ) Install the backrest away from the wall Check the surrounding area Confirm that foreign objects is ❶ not sandwiched in the main unit Make sure there are no objects, persons, or Check whether it hits the wall...
Before starting massage each time (Check the main unit) (continued) ❹ ❻ ❽ ❿ Check the power cord Touch and check that the Adjust the position of Adjust the reclining angle massage heads are in the the comfort cushion and and power plug as necessary retracted position...
How to use the reclining chair When using massage, reclining, legrest ▶When you finish using it, please do "End the massage" EN30 to EN31 ▶"Check the main unit" EN13 to EN15 You want a massage How to use the How to use the When using the legrest reclining function...
Select a menu and start massaging "AUTO" massage is pressed to enter mode to select WARNING "Course selection mode" course of "AUTO" massage Start using a gentle "RELAX" massage. Do not massage for more than 15 minutes once. (In the course selection mode, the display section turns off ...
Page 11
"AUTO" massage (continued) ❷ Select course, press When you want to change the type of massage When the beep sounds, and Be sure to put your head against It will automatically assume a massage position the backrest before starting Reclined flashes, adjust the position of approx.
Rough content of massage course "MANUAL" massage About the rough operation contents of is pressed to enter mode (A typical movement of each course) "Operation selection mode" the "AUTO" massage to select type and action of "MANUAL" massage (In the action selection mode, the display section turns off when no operation is performed for more than 3 minutes) Complete deep Neck/shoulder firm...
Page 13
"MANUAL" massage (continued) When you want to further When you want to combine multiple massage actions Screen examples meet your needs [Example] Combination of "Knead ("Knead during massage (EN28) up")", "Tap" ("Normal"), "Full back roll" ("Partial") Displays the time remaining When you want to change ①...
"AIR / STRETCH" massage Operation contents of "AIR" massage Holds the lower back from the side, is pressed to enter mode to massages the buttocks from below. [Action / position selection mode] Calf select action and position of Massages the "AIR /STRETCH"...
To further meet your needs Adjustment of massage heads Operations ◀ ▶ (Massage heads) ▲▼ (Massage heads) Action When you want to adjust the vertical When you want to adjust the width of "HEAT", "SOLE HEAT", "AUTO" You can select the unnecessary You can You can adjust position of massage heads...
End the massage ❶ ❹ ❸ Timer function Return the slide of the Turn the power off Stow the controller in the leg/foot massage section Massage stops automatically controller pocket about 15 minutes after it starts. The leg/foot massage section will lower ...
Cleaning and maintenance Q&A The sole section does not warm up ... "SOLE HEAT" warms only the tip of the fabric. zNever use chemicals such as thinner, benzine, alcohol, etc. Can I use the unit if I have an Please put the toe firmly against the heater illness that requires regular section.
Troubleshooting Sounds and sensations of the unit Investigate the "Problem" and apply the "Remedy" below. The following sounds and sensations occur while using the unit. If the problem still exists after following the remedy, contact an authorized service center. However, they occur due to the construction of the unit and are perfectly normal. Sounds when the massage heads changes from "push"...
Error display Specifications Power supply 220 V ~ 50 Hz 145 W (when "off" at the controller, approx. 0.3 W) Power consumption Remaining time Electric heating device display part <Example of error display> 38 W power consumption zFor the error "U10" Massage area Approx.
