6.7 Undo / Redo
Note: The following parameters are not included as part of
a configuration upload and download:
– Instrument Serial Number
– Security passwords and Settings
– Display Contrast & Brightness settings
– Input and Output calibration data
These parameters are unique to the instrument, and settings
must be adjusted accordingly.
1. Use the Undo, Redo icons to undo or redo changes made
to the configuration.

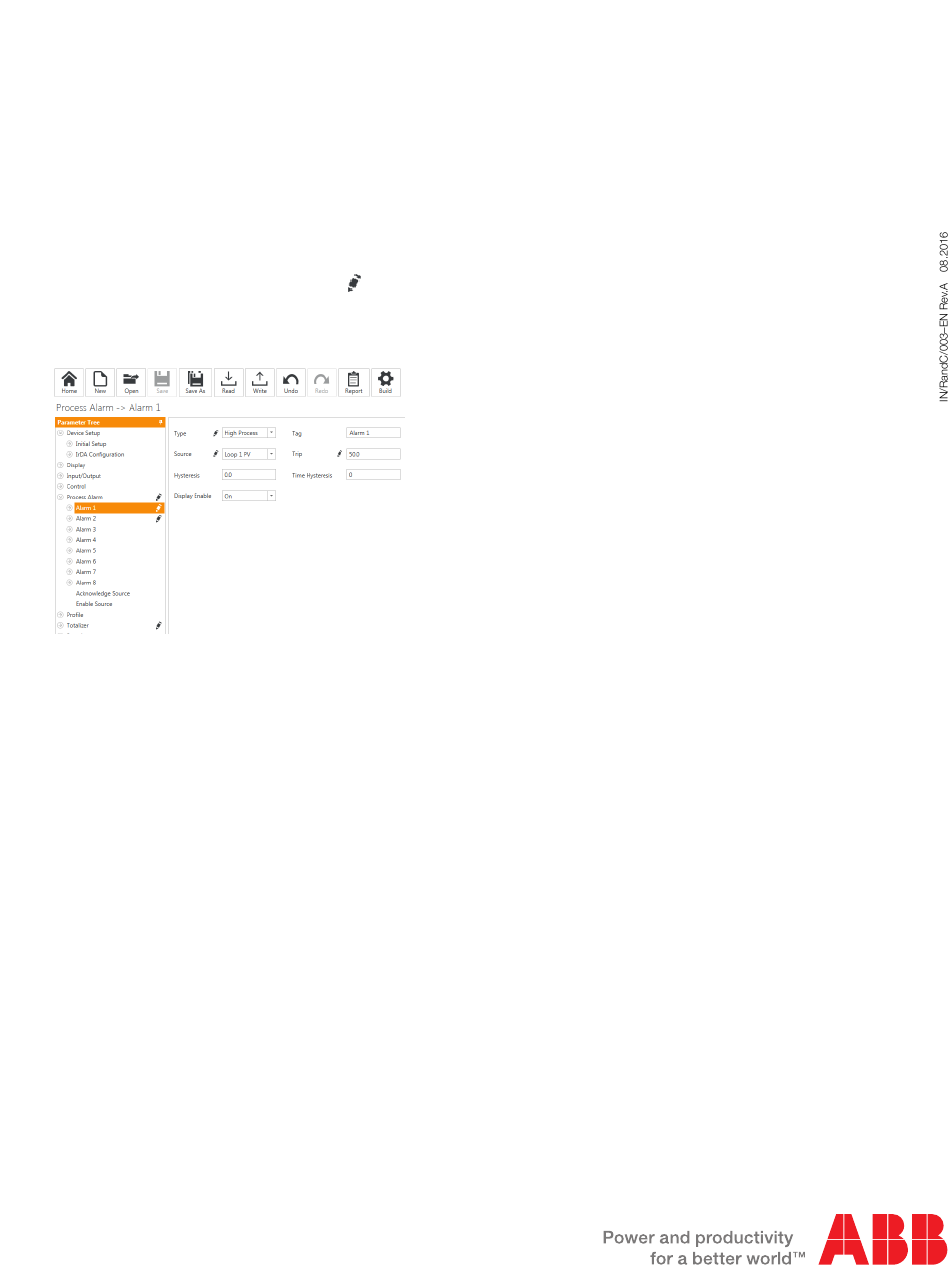

Changed parameters are indicated by the
next to a changed parameter and also within the parameter
tree to indicate where configuration changes have been
made.
: The pencil icon disappears once the configuration
Note
has been saved. Unsaved writes to the instrument are
identified by the pencil icon, but closing ConfigPilot loses
any changes still marked with the pencil.
6.8 Generating a configuration report
1. Select the Report icon to open the report generation
window.
2. By default all parameters are included in the report.
Parameters can be excluded / included at the menu level
by selecting from the tree view on the left hand side and
clicking on the Update button.
3. When the required parameters have been selected the
report can by saved in Word
directly printed from the application.
6.9 Changing build options for the configuration
1. Select the Build icon to open the build options window.
2. The build of the instrument you want to create a
configuration for can be modified.
3. Once completed, press OK to return to the Configuration
window.
6.10 Application settings
1. Select the Settings icon to change the application language
and theme.
6.11 Application information
1. Select the About icon to change the application and
compatible instruments.
icon placed
® ®
, Excel or PDF formats, or
Note. While it is possible to open multiple sessions of
ConfigPilot, usually it is only possible to connect to an
instrument through the first session (only 1 session at a time
may perform read and write to the ControlMaster).
