Summary of Contents for Samsung NZ63R3727BK

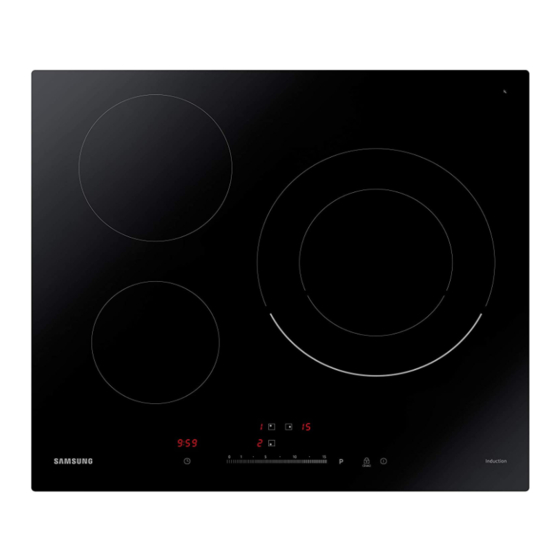

- Page 1 INDUCTION HOB Model : NZ63R3727BK SERVICE Manual Precaution Product Specification Disassembly and Reassembly Trouble Shooting Wiring Diagrams...
- Page 2 6. Exploded view and Parts List NZ63R3727BK - 27 -...
- Page 3 6. Exploded view and Parts List NZ63R3727BK - 28 -...
- Page 4 Midea Samsung Midea Part Name Description (BOM) Q'ty Unit SA / SNA part number part number NZ63R3727BK/UR,12566000A18188,ASSY 12566000A18188 DG81-02844A A/S-GLASS ASSEMBLY TOP PLATE, Dual Ring NZ64F3NM1AB,17466000000117,GLASS 11303119000006 DG81-01423A A/S-SCREW SCREW NZ64F3NM1AB,17466000000191,TOP 17466000000194 DG81-01448A A/S-TEMP SENSOR SENSOR, LR BURNER NZ64F3NM1AB,12666100000009,TOP 17466000000191...
- Page 5 12166000002937 DG81-02680A A/S-CORD PRESS PANEL NZ64N3NM1BS/UR,12166000002937,Cord Press Panel,SEG NZ64N3707AS/UR, 17466000A00501 DG81-02683A A/S-POWER CORD NZ64N3NM1BS/UR,17466000A00501,5*2.5 mm2 Power CABLE,SEG 12266000000054 DG81-02855A A/S-SUPPORT ALUMINUM PLATE NZ63R3727BK/UR,12266000000054 NZ63F3NM1AB,12166000000029,280mm 17466000000085 DG81-01428A A/S-280COIL GROUPWARE w-coil NZ63F3NM1AB,17466000000107,180mm 17466000000117 DG81-01425A A/S-180COIL GROUPWARE w-coil 17466000005465 DG81-02856A A/S-WIRE HARNESS NZ63R3727BK/UR,17466000005465...
