Communication Ports

The RUGGEDCOM RS400 can be equipped with various types of communication ports
to enhance its abilities and performance. To determine which ports are equipped on
the device, refer to the factory data file available through RUGGEDCOM RS400 . For
more information on how to access the factory data file, refer to the RUGGEDCOM
ROS Configuration Manual for the RUGGEDCOM RS400.
Each communication port type has a specific place in the RUGGEDCOM RS400
chassis.
1
2
3

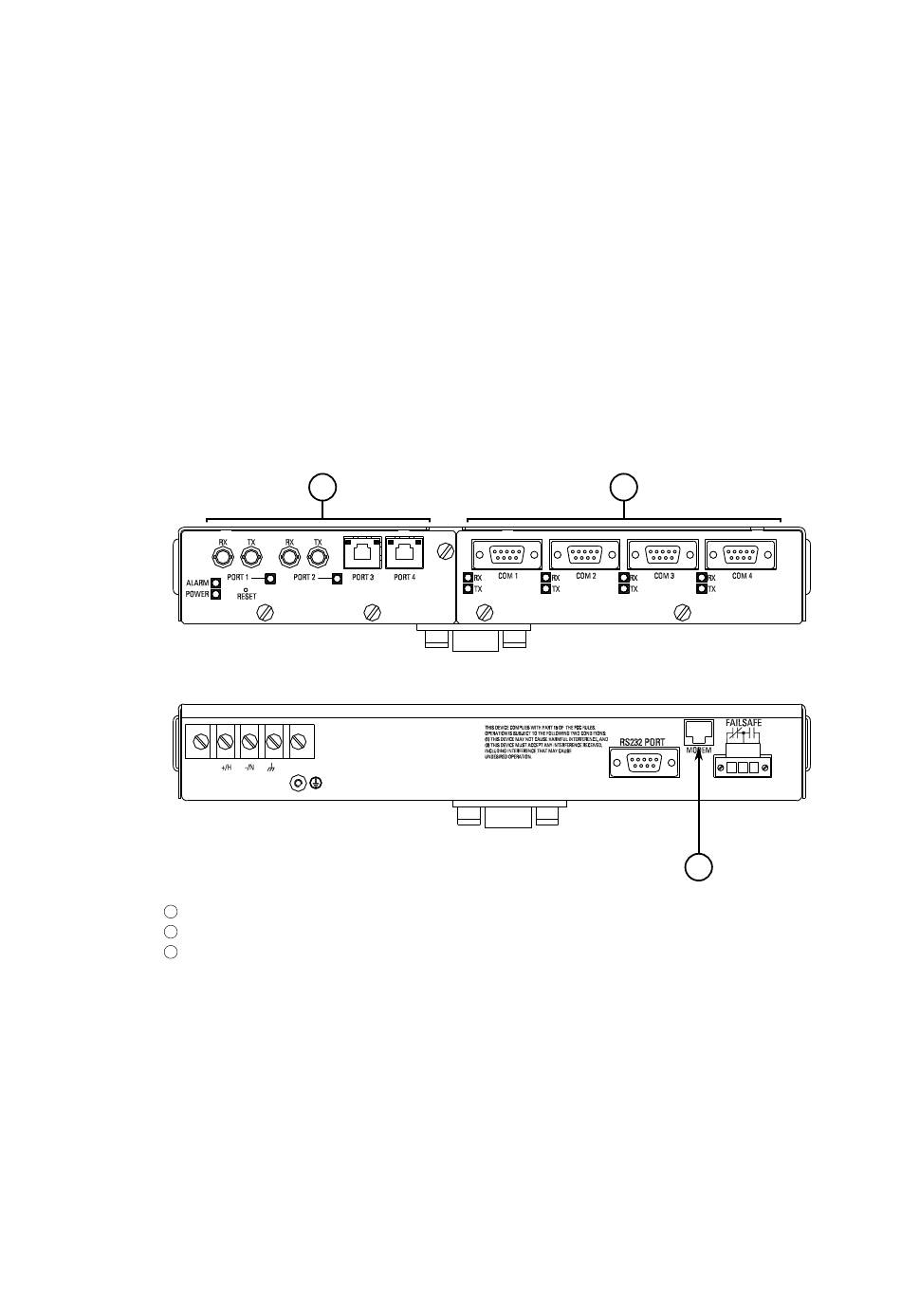

Figure 4.1
4.1

Copper Ethernet Ports

The RUGGEDCOM RS400 supports several 10/100Base-TX Ethernet ports that allow
connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cables with
RJ45 male connectors. The RJ45 connectors are directly connected to the chassis
ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
RUGGEDCOM RS400
Installation Manual, 01/2021, C79000-G8976-1016-11
1
Copper or Fiber Ethernet Ports
Serial Ports
Modem Port (Optional)
Port Assignment
2
3
4
