Room Adjustment

For vertical adjustment, do as follows:
1.

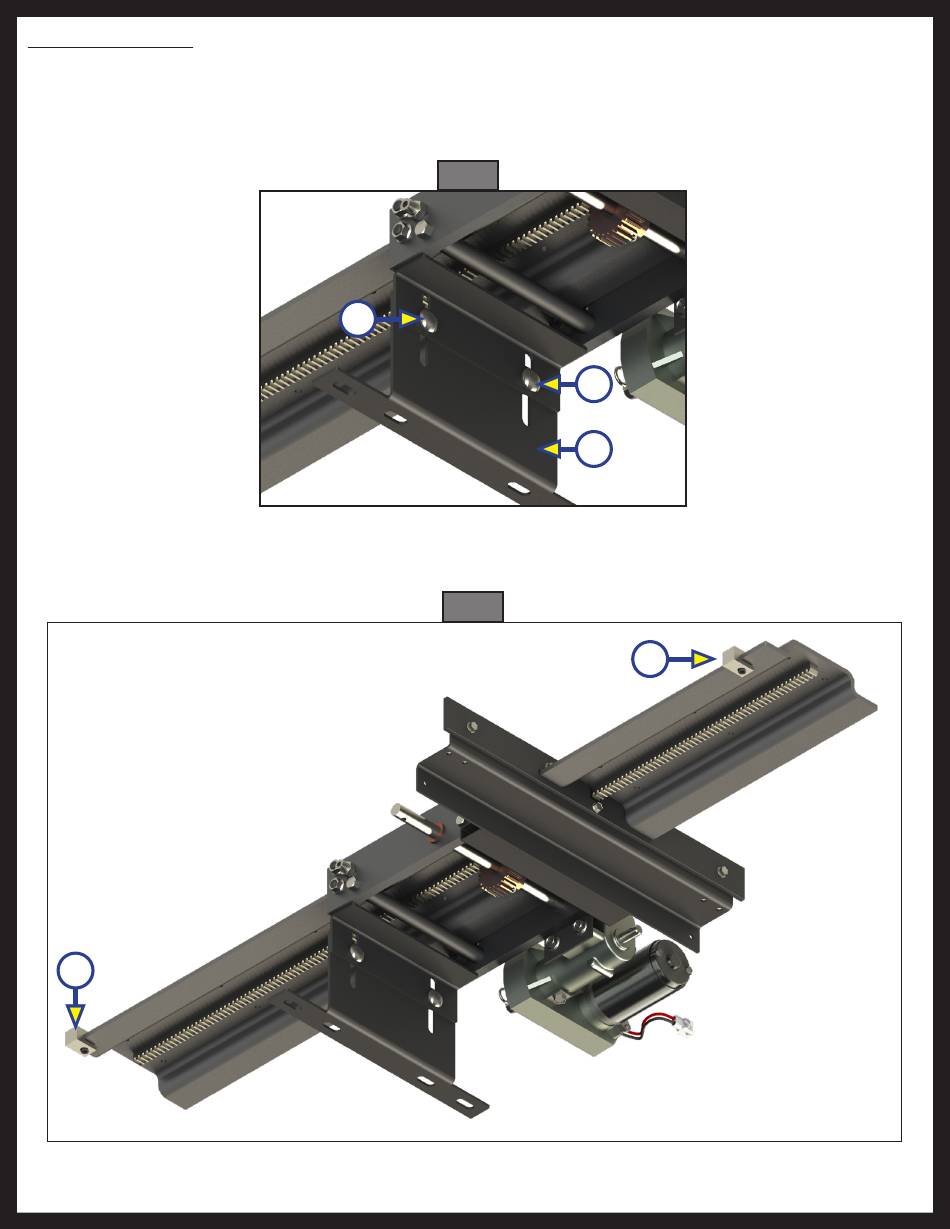

Loosen the two carriage bolts (Fig. 3A) just enough to release tension on the interior mounting plate (Fig. 3B).
2.
Adjust the room to desired location.
3. Tighten the two carriage bolts before operating room.
4.
For "out" stop (Fig. 4A) or "in" stop (Fig. 4B) adjustment, loosen the set screw (Fig. 4A or 4B) on the stop block.
5.
Adjust the stop block to desired location.
6. Tighten the set screw.
