Panasonic VL-SWD501BX Quick Start Manual

Key Features
Check visitors on Wireless Monitor, respond promptly and talk from living room, kitchen, everywhere home and while you are doing something else. UP to 6 wireless
monitor connectable. Max wireless range is 100m with no obstacles. You can add on repeaters expand the range. UP to 2 DECT repeater connectable.
The main monitor has a large, 5 inch wide screen that clearly shows each visitor's face. You can simply touch the screen to activate an approximate 2x zoom
horizontally and vertically.
Wide-angle lens covers approximately 170 degrees horizontally and 115 degrees vertically.
Automatically record video images of visitors to SD card. It will record up to 3,000 visitors (30 seconds per visitor). (The SD Memory Card is sold separately.)
By installing the optional DECT Wireless Sensor Camera, you can use human (heat) and motion sensors to monitor locations that you are concerned about.
UP to 4 wireless sensor camera connectable.

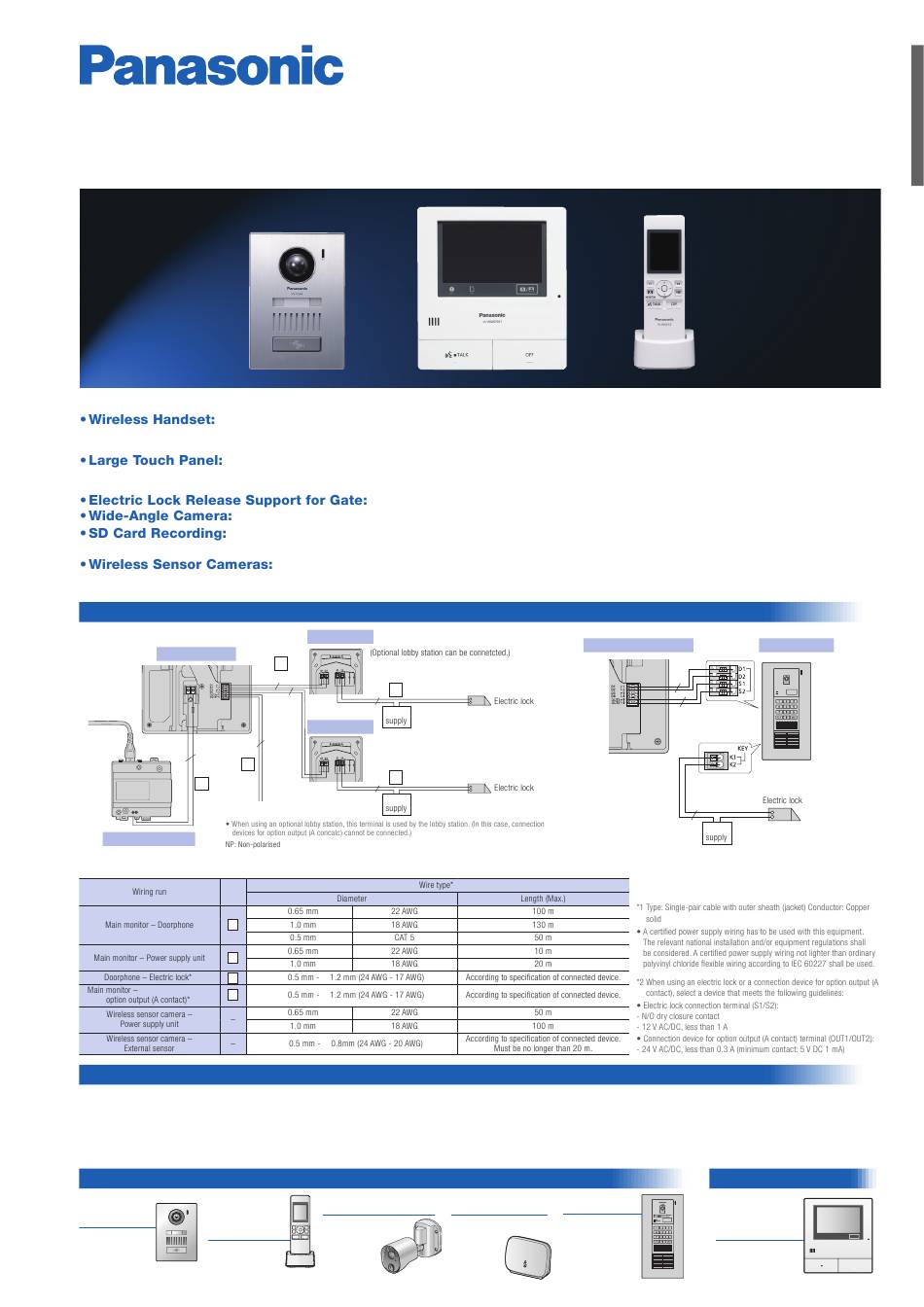

Wiring Schematic Diagram
MAIN MONITOR
220-240 V AC
NP
NP
D
B
24 V DC
Connection device for option output (A contact)
POWER SUPPLY UNIT
Wire type and length
A
B
2
C
Connection device for
D
2
Accessory Information
For the Sub Monitor:
AC adaptor × 2 (PNLV226BX [2 pin AC plug] / PNLV226E [3 pin AC plug]), Rechargeable batteries × 2, Charger × 1
For the Door Station:
<VL-V554BX> Mounting base × 1 & screw (3.8 mm x 20 mm) × 2, Screw (4 mm x 12 mm) × 4, Name plate × 2, Hex wrench × 1
<VL-V554UBX> Flush mounting box × 1, Screw (4 mm x 25 mm) × 4, Name plate × 2, Hex wrench × 1
For the Main Monitor Station:
Optional Accessories

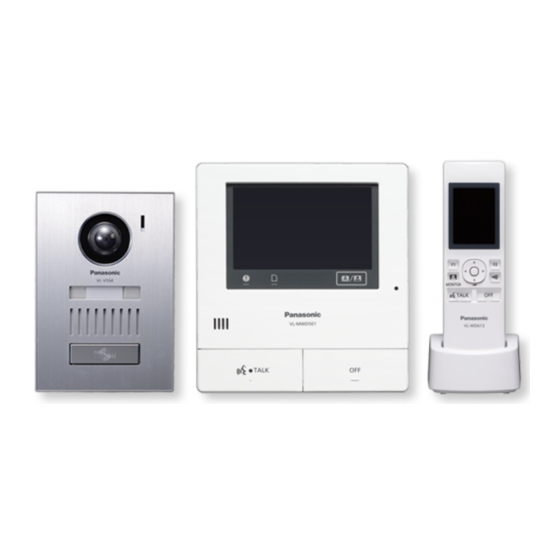

Door Station Wireless
(Doophone) Monitor Station
(Sub monitor)
VL-V554BX
VL-V554UBX VL-WD613BX
VL-SWD501BX/UBX
The gate or door lock can be easily and quickly released even from the second floor of the house.
DOORPHONE 1
A
NP
C
NP
NP Power
12 V AC/DC
DOORPHONE 2
C
NP Power
12 V AC/DC
φ
φ
φ
φ
φ
φ φ
φ φ
φ
φ
φ φ
Power supply unit* (VL-PS241) × 1, Mounting bracket × 1, Cable binder × 1, Screw (4 mm x 16 mm) × 2
*Including AC cable × 2, Cable binder × 1, Screw (4 mm x 40 mm) × 2
Wireless Sensor Camera
VL-WD812BX
Wireless Video Intercom System
MAIN MONITOR STATION
1
DECT Repeater Lobby Station
VL-FKD2BX VL-V590BX
VL-V590CX
Up to 20 Main
monitors
connectable
LOBBY STATION
<Rear view>
NP
NP
<Rear view>
NP
Power
30 V AC/
24 V DC
Relative Product
Main Monitor
Station
(Main monitor)
VL-MWD501BX
