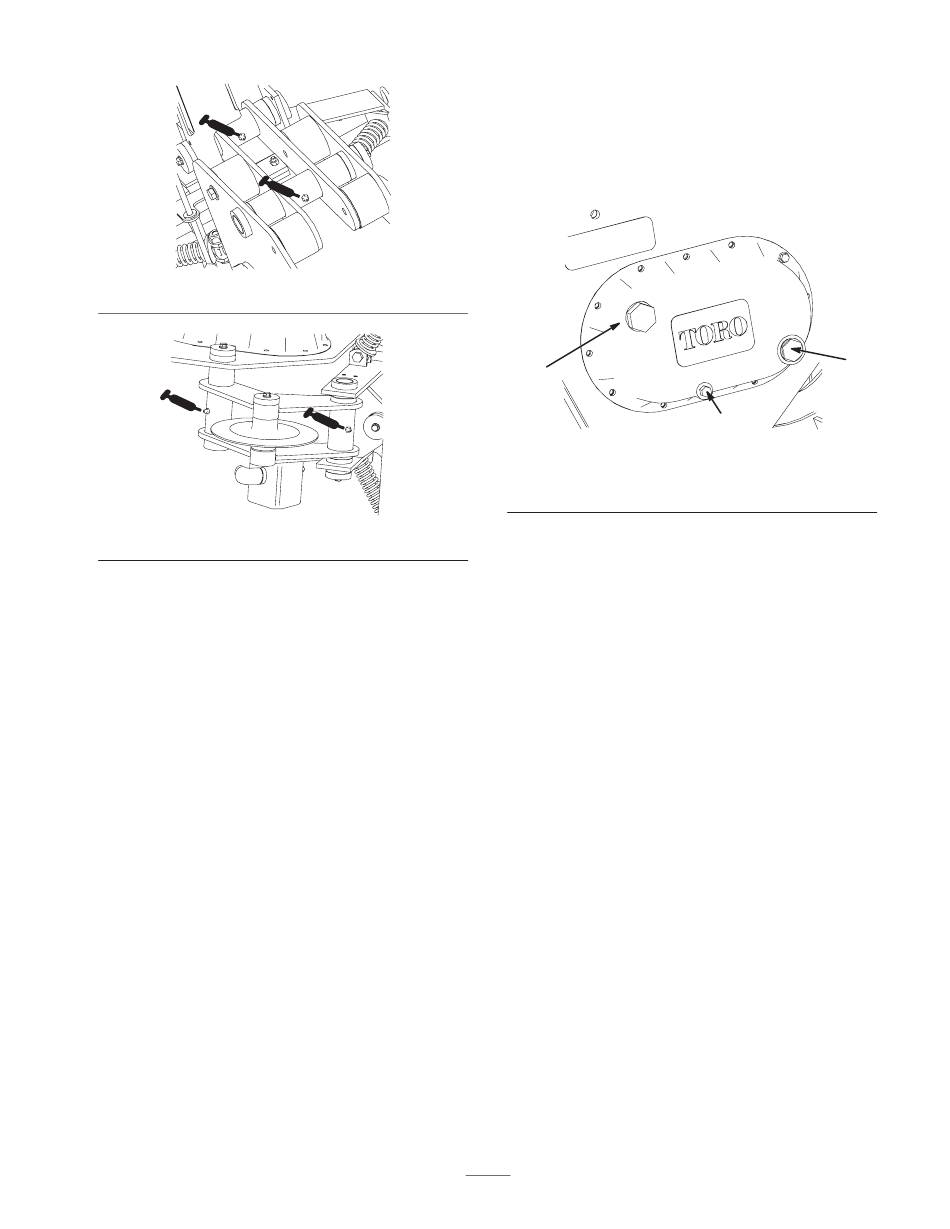

Figure 10
Figure 11
How to Grease
1. Lower the plow/loader arms, stop the engine, and
remove the key.
2. Clean the grease fittings with a rag.
3. Connect a grease gun to the fittings.
4. Pump grease into the fittings until grease begins to
ooze out of the bearings.
5. Wipe up any excess grease.

Lubrication

Service Interval/Specification
Check the gear lubrication oil level in the gear case every
25 operating hours and change it every 200 operating
hours or once a year, whichever occurs first.
Gear lube type: SAE 90–140 API service GL–4 or GL–5
Refill capacity: 3 pints.
Checking Gear Lube
1. Position the traction unit and plow on a level surface
and lower the attachment lift so that the plow is on the
ground.
2. Stop the engine and remove the key.
3. Check the clear glass gauge on the side of the gear
case (Fig. 12). The gear lube should be at the level of
the red dot in the center of the gauge.
4. If the gear lube level is low, remove the fill plug
(Fig. 12) and fill the case with gear lube until it is
level with the red dot in the gauge.
m–4150
3
1. Glass gauge
2. Drain plug
m–4151
5. Replace the fill plug.
Changing Gear Lube
1. Position the traction unit and plow on a level surface
and lower the attachment lift so that the plow is on the
ground.
2. Stop the engine and remove the key.
3. Prepare an appropriate container to catch the used oil
under the plow.
4. Remove the drain plug (Fig. 12), allowing the oil to
spill out into the container.
5. When finished, replace the drain plug, ensuring that it
is tight.
6. Remove the fill plug (Fig. 12) and fill the case with
gear lube until it is level with the red dot in the gauge.
7. Replace the fill plug.

Replacing the Coulter

If the coulter becomes excessively worn or damaged,
replace it.
1. Back out the coulter pin screw about 0.5 in. (1.3 cm),
then strike it several times with a hammer to loosen
the pin (Fig. 13).
2. Completely remove the coulter pin screw, washer,
coulter, and coulter pin (Fig. 13).
3. Put the new coulter into the coulter bracket (Fig. 13).
9
2
m–4147
Figure 12
3. Fill plug
1
