GASOLINE VEHICLE - FUEL SYSTEM
FUEL PUMP MODULE INSTALLATION
1.
Clean the groove on top of fuel tank.
2.
Install the new fuel module o-ring (9) into groove on top of fuel tank (Figure 21-20, Page 21-19).
3.
Lower the fuel pump module (8) into fuel tank noting correct orientation marked before removal. See following
NOTE and CAUTION.
NOTE: If equipped with a fuel level sending unit, carefully maneuver module so as to avoid damaging the float
arm mechanism.
CAUTION
• Ensure o-ring stays seated in place during fuel pump module installation.
4.
Install the hold down ring (7)
5.
Install the ground wire (6) and screws (5). See following WARNING. Tighten the screws in a crisscross pattern
to 66 in·lb (7.5 N·m).
WARNING
• Always install ground wires during reassembly.
6.
Connect the fuel line (4) to fuel pump module. See Fuel Line Installation. See following DANGER.

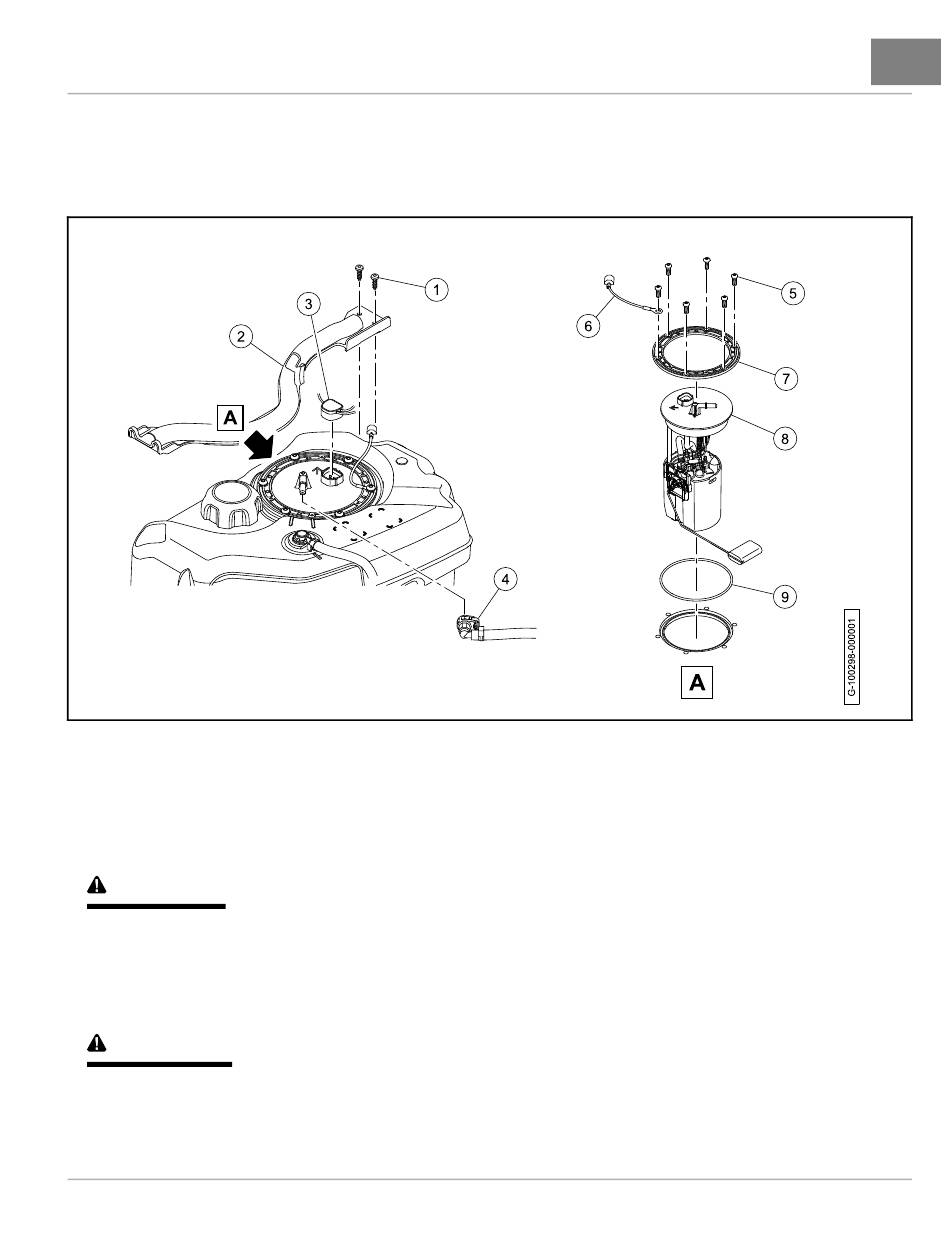

Figure 21-20 Fuel Pump Module Installation
2020 Precedent,Villager 2 and 4 Maintenance and Service Manual
21
Fuel Pump Module
Page 21-19
