TOW/RUN SWITCH
See General Warnings on page 1-2.
TESTING THE TOW/RUN SWITCH
See Test Procedure 3 – Tow/Run Switch on page 12-15.
TOW/RUN SWITCH REMOVAL
1.
Disconnect the batteries and discharge the controller. See Disconnect the Batteries – Electric Vehicles
on page 1-4.
2.
Remove the electronics module cover to access back side of the Tow/Run switch (2). See Electronics Module
Cover Removal on page 13-6.
3.
Remove Tow/Run switch boot/hex nut (1) (Figure 13-9, Page 13-8).
4.
Remove Tow/Run switch (2) from electronics module and disconnect the pink wire (3) and light green wire (4).
TOW/RUN SWITCH INSTALLATION
1.
Installation is reverse of removal. Make sure flat on switch is aligned with flat part of D-shaped hole in electronics
module (Figure 13-9, Page 13-8). Tighten Tow/Run switch boot/hex nut (1) to 16 in·lb (1.8 N·m).
2.
Place the Tow/Run switch in the TOW position and connect the batteries. See Connect the Batteries – Electric
Vehicles on page 1-5.
1

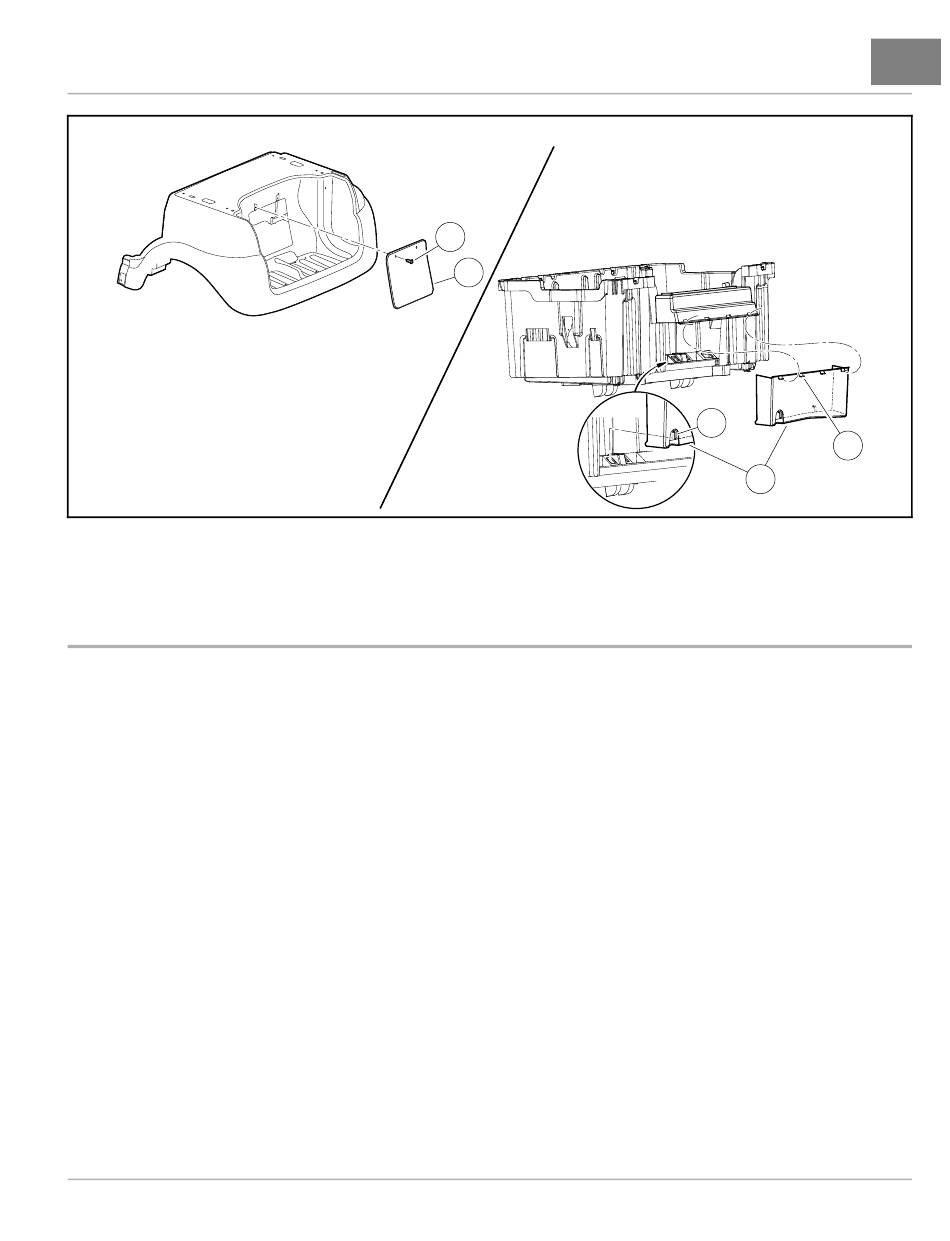

Figure 13-8 Access and Remove Electronics Module Cover
