Band Select; Dial Knob Change; Aprs Menu Operations - Yaesu FT5Dr Advance Manual

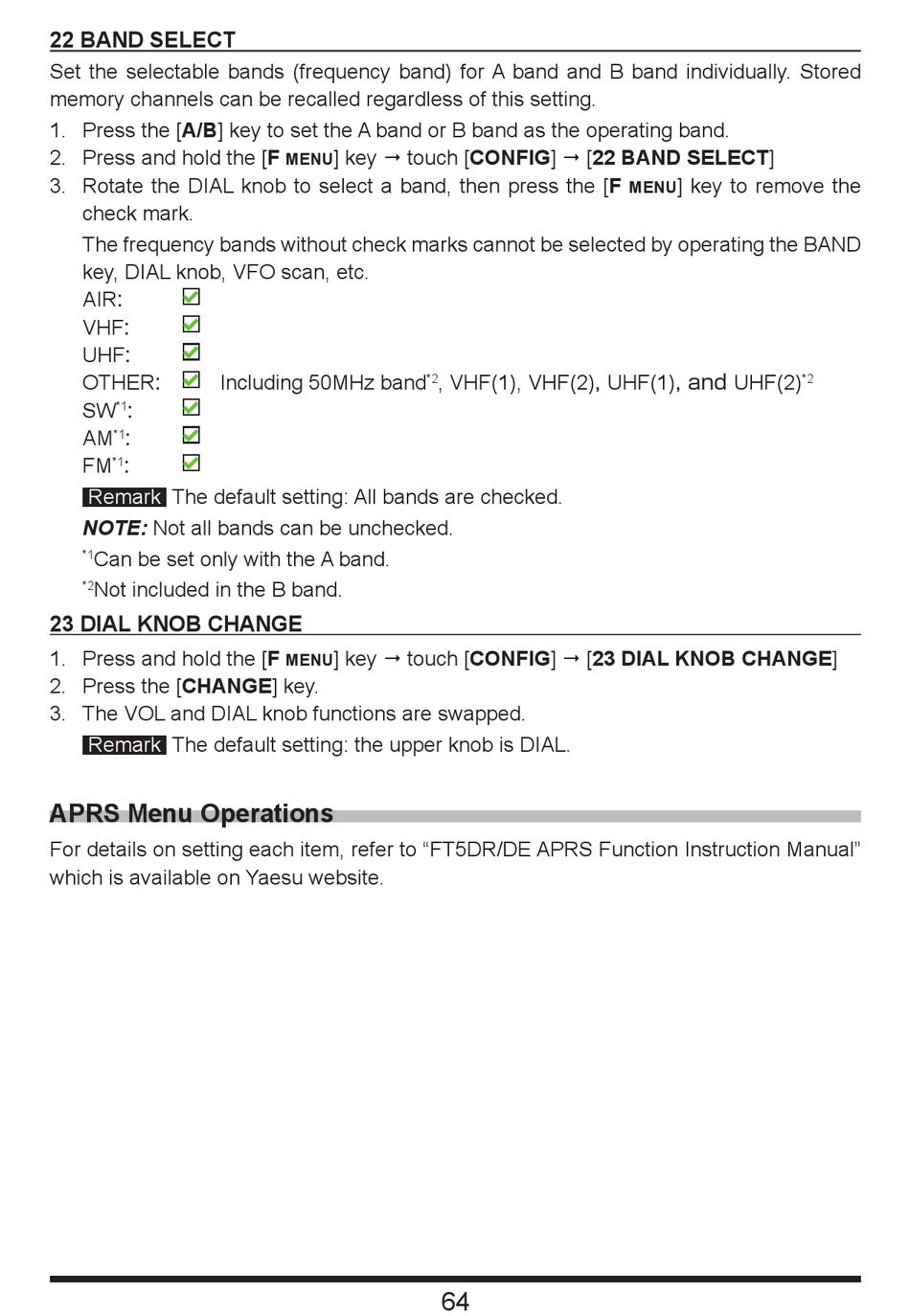

22 BAND SELECT

Set the selectable bands (frequency band) for A band and B band individually. Stored
memory channels can be recalled regardless of this setting.
1. Press the [A/B] key to set the A band or B band as the operating band.
2. Press and hold the [F
3. Rotate the DIAL knob to select a band, then press the [F
check mark.
The frequency bands without check marks cannot be selected by operating the BAND
key, DIAL knob, VFO scan, etc.
AIR:
VHF:
UHF:
OTHER: Including 50MHz band
:
SW
*1
:
AM
*1
:
FM
*1
Remark The default setting: All bands are checked.
NOTE: Not all bands can be unchecked.
Can be set only with the A band.
*1
Not included in the B band.
*2

23 DIAL KNOB CHANGE

1. Press and hold the [F
2. Press the [CHANGE] key.
3. The VOL and DIAL knob functions are swapped.
Remark The default setting: the upper knob is DIAL.

APRS Menu Operations

For details on setting each item, refer to "FT5DR/DE APRS Function Instruction Manual"
which is available on Yaesu website.
] key  touch [CONFIG]  [22 BAND SELECT]
MENU
, VHF(1), VHF(2), UHF(1), and UHF(2)
*2
] key  touch [CONFIG]  [23 DIAL KNOB CHANGE]
MENU
64
] key to remove the
MENU
*2
