- Page 1 User Manual Robot Vacuum Cleaner Applicable for M201 Please read these instructions carefully before using the product and keep it in a safe place...
- Page 2 Instruction Manual, please contact our Customer Service Center where atechnician can address your specific problem or question. For more information, please visit the Lefant ROBOTICS official website: www.lefantlife.com or send email to support@lefantlife.com The Company reserves the right to make technological and design changes to...
-
Page 3: Table Of Contents
Contents 1. Important Safety Instructions ····························· 2. Product Composition ········································ 3. Product Operating and Programming ··················· 3.1 Notes Before Cleaning ············································ 3.2 Quick Start ························································· 3.3 APP Download and Network Configuration ···················· 4. Maintenance ··················································· 4.1 Dust Bin and Filters ··············································... -
Page 4: Important Safety Instructions
28. When not using the Charging Dock for a long period of time, please unplug it. 29. The Appliance must be used in accordance with the directions in this Instruction Manual. LEFANT ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use. -
Page 5: Product Composition

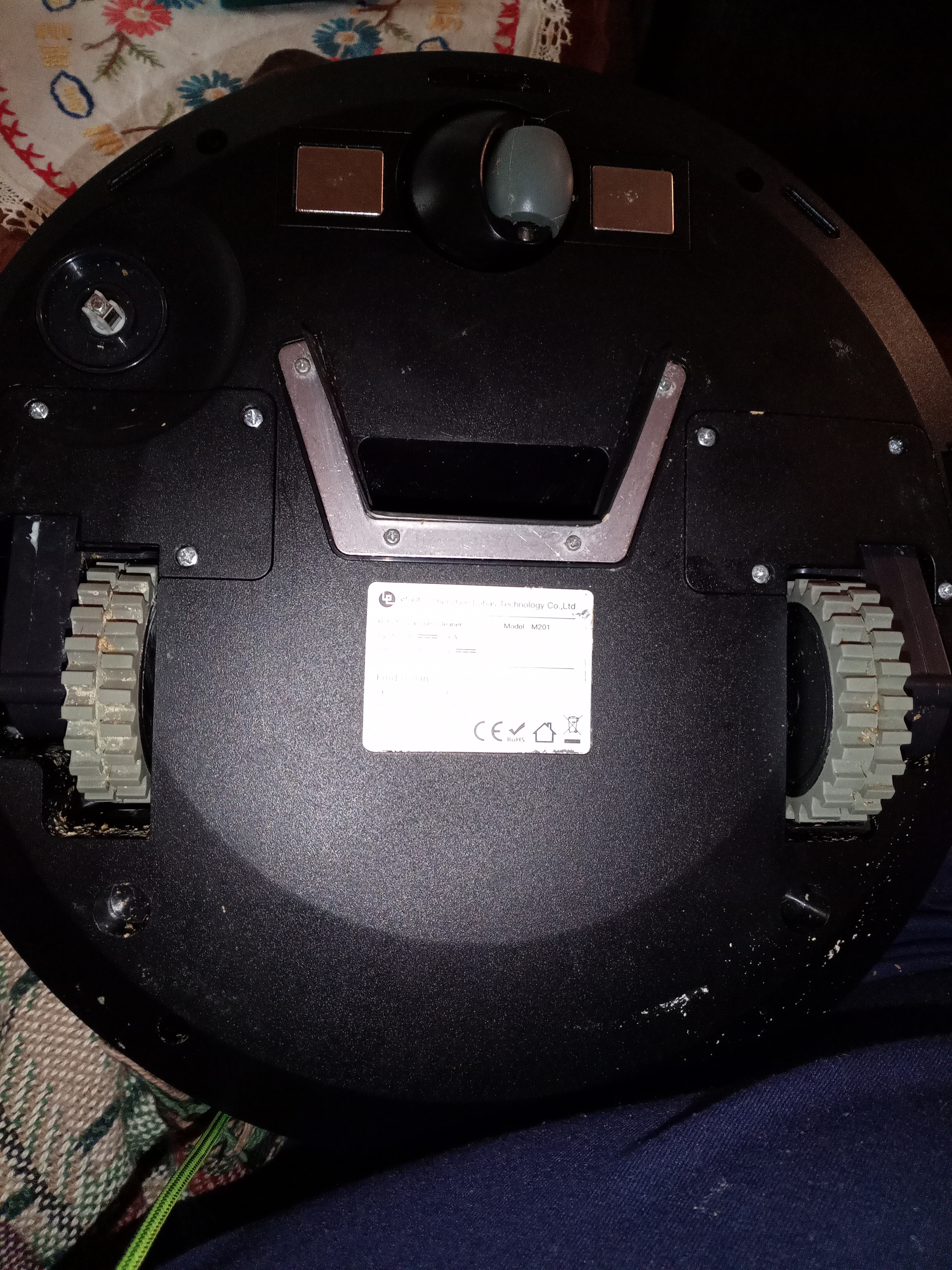

2.Product Composition Robot Start/Pause Button Top Cover Dust Bin Universal Wheel Anti-Drop Sensor Charging Contact Charging Contact Suction Assembly Side Brush Anti-Drop Sensor Anti-Drop Sensor Driving Wheel Driving Wheel Top Cover Anti-Collision Sensors Bumper Strip Power Switch... - Page 6 2.Product Composition Charging Dock Multi-Function Cleaning Tool Power Indicator Light Power Adapter Charging Dock Pins Power Adapter Port Dust Bin Dust Bin Cover Filter Net High Efficiency Filter (HEPA) HEPA Cover...
-
Page 7: Product Operating And Programming
3.Operating and Programming 3.1 Notes Before Cleaning Please refer to the following guidelines to check the cleaning area before using the robot. The product is not suitable for use on long-pile Remove power cords and small objects from the carpet. Before using the product near an area rug floor that could entangle the products. -
Page 8: Quick Start
3.Operating and Programming 3.2 Quick Start Charging Dock Placement Connect the adapter to the charging Dock Place the Charging Dock on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 2m (6.6’ ) in front of the charger and 1 m (3.3’ ) on both sides of the charger clear of objects and reflective surfaces. - Page 9 3.Operating and Programming Start to Charge Turn on the Robot Turn the robot’ s Side Power Switch to the ON position. “-” indicates power ON and “O” indicates power OFF. Robot is powered ON when button glows a continuous BLUE. Charge Robot Make sure to turn the robot’...
-
Page 10: App Download And Network Configuration
Scan the QR code to download and install the app This app is compatible with IOS9.0 and Android 4.0 or above. ios system: Please search “Lefant life” in the app store. Android system: Please scan the QR code or search "Lefant Life" on google play to download. - Page 11 3.Operating and Programming Open the app and select add device, the interface as follows: If you experience with network pairing failure, please restart the robot and start over again. Or try the AP mode network pairing method instead. AP MODE Network paring AP mode (Only 2.4G Wi-Fi can be supported)
- Page 12 3.Operating and Programming Add Manually- Wi-Fi-AP Mode Press and hold the start/Pause Turn on the side switch button for 6 seconds until you Turn on the side switch hear two beeps sound and release...
- Page 13 3.Operating and Programming Connect your phone to a Wi-Fi that starts with then name “SmartLife” . After successfully connecting to the Wi-Fi, return the the APP and start the network configuration.
-
Page 14: Maintenance
4.Maintenance 4.1 Dust Bin and Filters Open the Top Cover to take out the Dust Bin, open the Dust Bin Cover and empty the Dust Bin. Remove the Dust Bin, open the Dust Bin Cover, and empty the Dust Bin. Remove the High Efficiency Filter. -
Page 15: Sucking Assembly And Side Brush
4.Maintenance 4.2 Suction Assembly and Side Brush Clean the suction port Cleaning the Side Brush If there is a lot of dust in the suction Remove the Side Brush. Wipe the Side port, use a cloth clean up. Brush and their slot with a dry cloth. Clean the Driving Wheels to Use the Multi-Function Cleaning maintain their effectiveness. -
Page 16: Other Components
4.Maintenance 4.3 Other Components ■ Clean Anti-Collision Sensors. ■ Wipe the Anti-drop Sensors with the brush or the felt side of the Multi- Function Cleaning Tool to maintain their effectiveness. ■ Wipe the Charging Contacts and Charging Dock Pins with the brush of the Multi-Function Cleaning Tool or a dry clean cloth to maintain their effectiveness. -
Page 17: Indicator Light And Alarm Sounds
5. Indicator Light and Alarm Sounds 5.1 Indicator Light Robot Status Indicator Light Charging Glows a solid PINK or BLUE Finished Charging The BLUE goes out Has a Problem Flashes RED or glows a solid RED Low Battery Glows a solid RED Cleaning Mode Glows a solid BLUE Before starting network pairing... -
Page 18: Troubleshooting
Your smartphone’ s operating system Update your smartphone’ s operating system. The needs to be updated. Lefant life App runs on iOS9.0 and above, Android 4.0 and above. Robot is not switched ON. Switch ON robot. Robot has not connected to the Be sure that the robot’... -
Page 19: Technical Parameters
7.Technical Parameters Robot Model： M201 Working Voltage(V): 12.8 Power Rating(W): 15 Charging Stand Rated Input Voltage(V): 19 Rated output current(A): 0.6... - Page 20 Official website Shenzhen Lohas Technology Co.， LTD http://www.lefantlife.com / support@lefantlife.com Eastern area, 4th Floor, Factory Building 3, Longcheng Industrial Park, Huanggekeng Community, Longcheng Street, Longgang District, Shenzhen M2-20200818 V1.3...
