Summary of Contents for lefant M210P
- Page 1 User manual Lefant M210P Robot Vacuum Cleaner...
- Page 3 Should you encounter situations that have not been properly addressed in this User Manual, please contact our Customer Service Center, we will solve your specific problem.For more information, please visit the Lefant ROBOTICS official website: www.lefant.com or send email to support@lefant.com.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. For Household use only When using an electrical appliance, basic precautions should always be followed, including the following: 1.
- Page 5 21. Do not use the Docking Station if it is damaged. modified batteries may exhibit unpredictable behavior resulting in fire, 22. Do not use the robot or the Docking Station if it is not working properly, explosion or risk of injury. has been dropped, damaged, left outdoors, or come in contact with water.
- Page 6 SAVE THESE INSTRUCTIONS To satisfy RF exposure requirements, a separation distance of 20 cm or more Short-circuit-proof safety isolating transformer should be maintained between this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recom- mended.
- Page 7 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a RF exposure warning Class B digital device, pursuant to Part 15 of the FCC Rules. This equipment complies with FCC radiation exposure limits set forth for These limits are designed to provide reasonable protection against harmful an uncontrolled environment.This equipment must be installed and interference in a residential installation.
-
Page 8: Table Of Contents
Contents · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1. -
Page 9: Product Introduction
Docking Station & AC Adapter Dust bin High Efficient Particulate Air (HEPA) Filter User manual Lefant M210P Robot Vacuum Cleaner Robot vacuum cleaner Side brush Cleaning tool User manual Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice. -
Page 10: Part Name
1. Product introduction / 1.2 Part Name Front view Internal view Pannel Power Switch (I=ON.O=OFF) Start/pause button Start/pause button Dust bin Anti-collision sensor Bottom view Docking Station Anti-falling sensor Power adapter Universal wheel Indicator light Charging electrode Side brush Infrared signal transmitter Suction mouth Charging electrode Drive wheel... - Page 11 1. Product introduction / 1.2 Part Name Dust bin handle Pre-filter HEPA Filter...
-
Page 12: Preparation
2. Preparation / 2.1 Assemble and charge Remove the protective film on the robot Install the side brushes Placement of the charging base / and docking station connection of power supply * Place the docking station on an open place. * Connect the power supply and tidy up the power cord to avoid twining. -
Page 13: Using Environment Preparation
2. Preparation / 2.2 Using environment preparation Tidy up the room Organize the items on the floor, such as If the rug at home has fringed edges, wires, slippers and other sundries to avoid please put the edges under the rug in affecting the operation of the robot advance. - Page 14 3. Using the product / 3.1 How to use buttons Indicator Meaning Single press: Start/pause Double press: Automatic return and charge Robot status Indicator status Keep pressing for 6 seconds: Entering Wi-Fi pairing mode Cleaning Blue light on Blue light on Pause/standby Charging Blue light flash...
- Page 15 Method I : Scan the following QR code, and then download and install App as prompted. Lefant_2.4G Lefant_5G Method II : Search "Lefant" in the App store, download and install the Lefant app. Tips: * Follow the guidance in the Lefant app to register, login, and pair the robot.
-
Page 16: Using The Product
3. Using the product / 3.3 Maintenance * When cleaning and maintaining the robot and its accessories, please unplug the charging stand. Open the faceplate and take out the Open the dust bin latch and dump the Warning dust bin garbage The HEPA Filter should not touch the water. - Page 17 3. Using the product / 3.3 Maintenance * When cleaning and maintaining the robot and its accessories, please unplug the charging stand. 1. Clean the anti-drop sensor to ensure the sensitivity of the sensor 6. Clean the Anti-collision sensors to ensure sensitive obstacle avoidance 2.
- Page 18 4. Abnormal symptoms / 4.1 Symptoms prompts When the robot runs into trouble, its red indicator light will be on or flash and beep with different durations and separations. The following table summarizes the corresponding causes: Prompt sound Fault cause Solutions The red light is on Please check whether the driving wheel is tangled , and clean up it.
-
Page 19: Abnormal Symptoms
4. Abnormal symptoms / 4.2 Troubleshooting If the following problems occur in the application process of the product, users can resolve them independently by comparison and inquiry. Fault Possible causes Solutions It is recommended to replace consumables regularly, such as high-efficiency filters Cleaning components blockage Abnormal (HEPA), pre-filter, side brushes, etc. -
Page 20: Technical Parameters
5. Technical parameters Product model M210P Rated input of machine 0.6A, 11.4W Docking Station Model Rated Output Voltage Rated Output Current 0.6A Power Adapter Model AD-0121900060US/UK Power Adapter Input 100-240V~ 50-60Hz 0.5A Power Adapter Output DC 19V, 0.6A, CLASS II Less than 0.5W... - Page 21 Warranty This warranty covers the repair or replacement of the malfunction device at our company’s discretion for a period of 1-year. In addition this certificate is void if altered. The serial number must be provided as well as all accessories to be eligible for warranty coverage. Please kindly fill in below form accurately and completely.
- Page 24 Official website Website: www.lefant.com Email: support@lefant.com Facebook: @LEFANTOFFICIAL Community: facebook.com/groups/Lefantofficalcommunity Shenzhen lohas Technology Co., LTD. Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen-Shanwei Special Cooperation Zone, Shenzhen, Guangdong, China. M210P-LH20220609-V01...
Need help?
Do you have a question about the M210P and is the answer not in the manual?
Questions and answers
How many watts in the 210 lefant
The Lefant M210P has 1492 watts.
This answer is automatically generated
What are the pads for that come with this product
The Lefant M210P is compatible with Jegehoyo replacement mop pads, which are washable, reusable, and made from soft microfiber. These pads are designed specifically for Lefant M210, M210B, M210P, M213, and M213S robot vacuum cleaners.
This answer is automatically generated
will not charge I have cleaned it checked everything help...
The Lefant M210P is not charging because it does not stop at the charging station and continues moving toward it without connecting properly. The user received a replacement vacuum and a new charging station, but the issue persists. This suggests a possible problem with the vacuum's charging contacts or sensors.
This answer is automatically generated

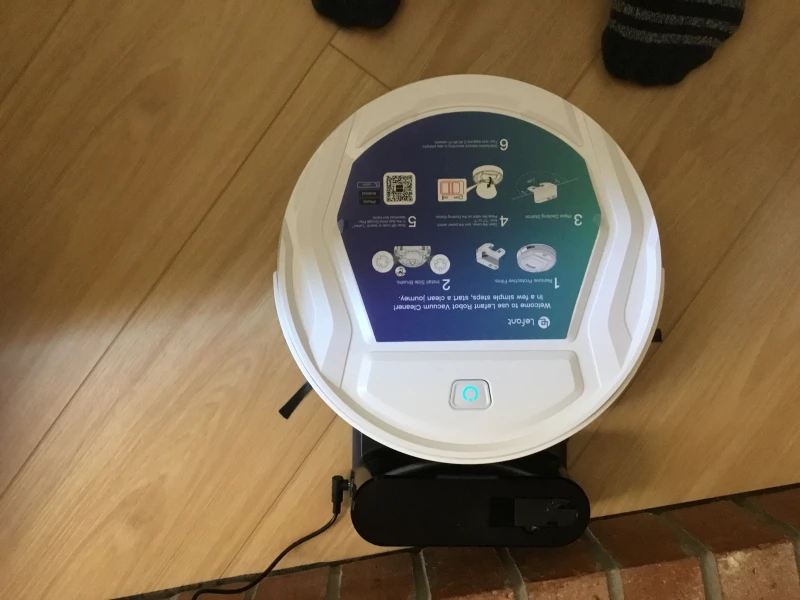

I am trying to set up my new Lefant vacuum cleaner but the blue light keeps flashing and I do not hear any voice. What do I do now?
If the blue light on your Lefant M210P vacuum cleaner keeps flashing and there is no voice, the vacuum is in Wi-Fi pairing mode. Follow these steps:
1. Ensure your phone is connected to a 2.4GHz Wi-Fi network.
2. Download and install the “Lefant” app.
3. Open the app and follow the instructions to register, log in, and pair the robot.
This will complete the Wi-Fi setup.
This answer is automatically generated
