ABB VSN300s Manual

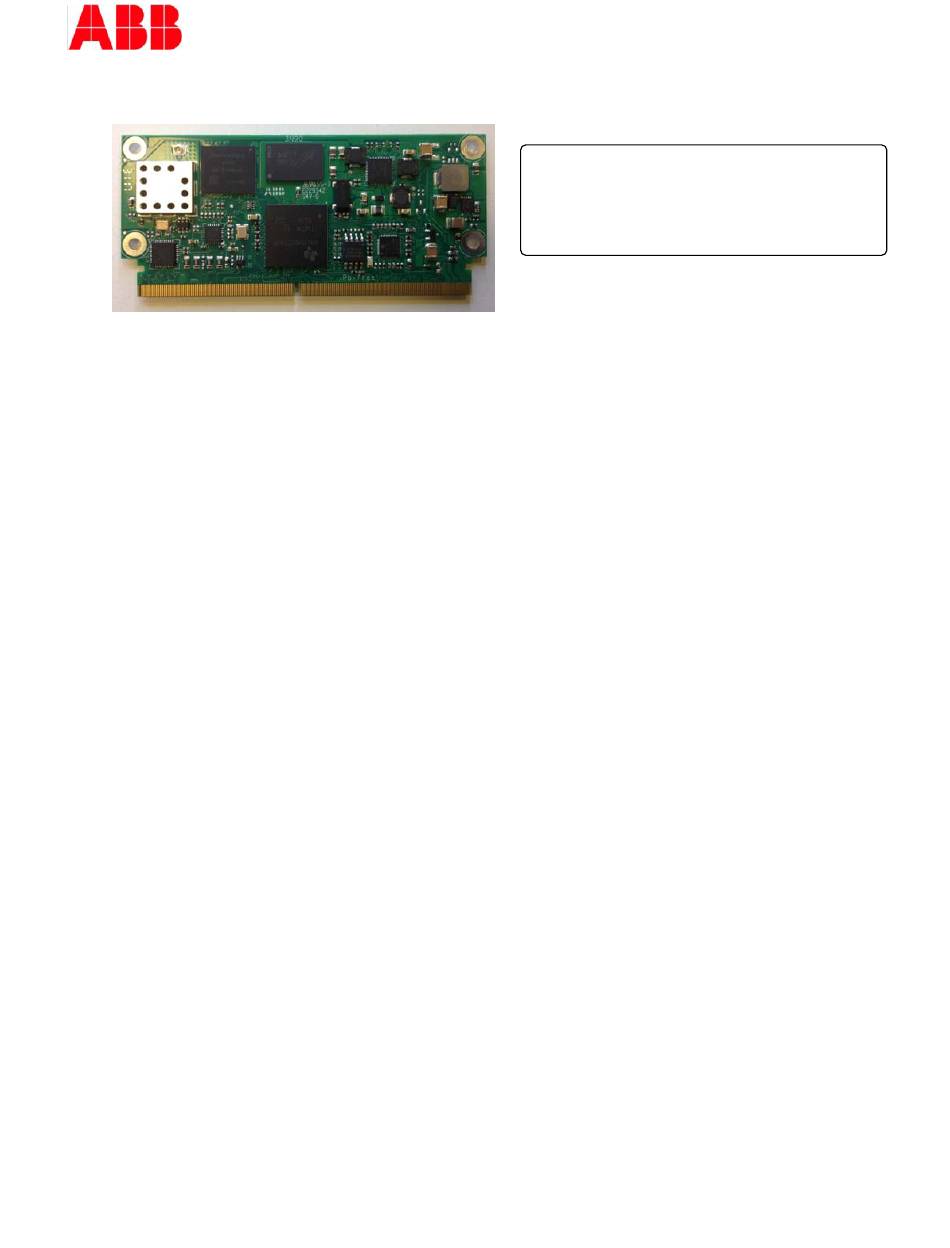

VSN 300s – General Connectivity Module is a
factory optionally assembled communication
board proper to be used for instance on PVS
inverter series but not limited to this product
family.
This communication board provides the fol-
lowing features:
- Wireless bidirectional communication 802.11
b/g/n compliant;
- Dual mode, access point + station;
- Data logging capabilities;
- 4GByte Flash disk storage;
- Integrated web server
- Dual LAN ports for Ethernet connectivity
- USB ports for expanded connectivity
- ADC/PWM/LCD support
It is a pluggable board directly connected to
PVS logic board through a dedicated con-
nector.
Its installation on inverter is typically done by
the factory, but when installed as a spare part
in a repairing process, the installation has to
be executed by trained personnel only.
The board is powered by the inverter.
Proper connector for antenna is available on
board.
The board uses a Murata LBEP5CLXRC-701,
an 802.11b/g/n WLAN module built around
the Texas Instruments WL1801 chipset.
.
Release 0.5 – April 2018
© Copyright 2018 ABB. Tutti i diritti riservati.
Specifiche soggette a modifica senza preavviso.
Le immagini di prodotto sono solo a scopo dimostrativo.
VSN300s – General Connectivity Module
MODEL: VSN300s
FCC ID: X6W-VSN300S
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including in-
terference that may cause undesired opera-
tion.
The manufacturer is not responsible for any
radio or TV interference caused by unauthor-
ized modifications to this equipment. Such
modifications could void the user's authority to
operate the equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital de-
vice, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference in
a residential installation. This equipment gen-
erates, uses and can radiate radio frequency
energy and, if not installed and used in ac-
cordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which
can be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
(continue on the next page)
