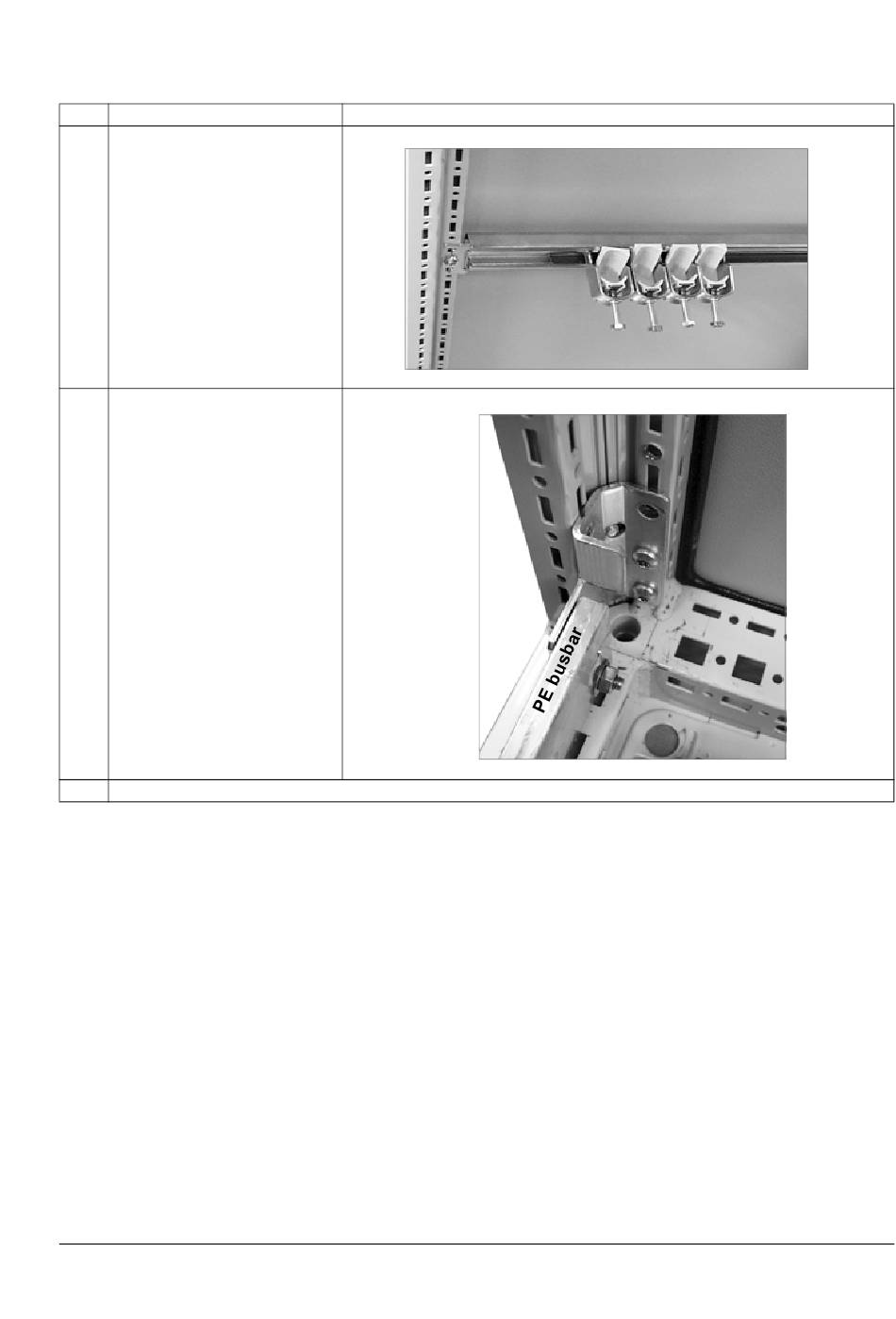

Step
Instruction
19
Install the C-rails and clamps for
cable strain relief.
20
Fasten the PE busbar.
The PE busbar is provided for
grounding of the input cable
shield and the motor cable shield
if the PE terminal of the drive
module is not used.
21
Fasten shrouds over all live parts.
Drive module of frame size R7 with bottom exit
