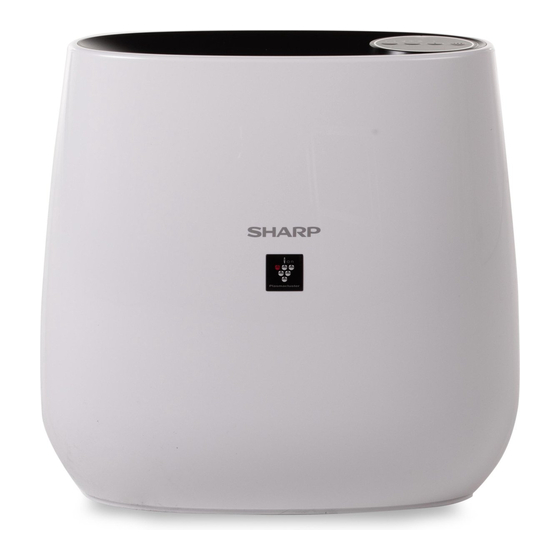

Sharp FP-J30M Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
FP-J30M
"Plasmacluster" and "Device of a cluster of grapes" are
trademarks of Sharp Corporation.
*The number in this technology mark indicates an
approximate number of ions supplied into air of 1 cm
which is measured around the center of a room with
the "high-density plasmacluster 7000" applicable floor
area (at 1.2 m height above the floor) at the medium
wind volume in air purifying mode, when an air purifier
using the high-density plasmacluster ion evolving
device is placed close to a wall. This product is
equipped with a device corresponding to this capacity.
Free standing type
OM_FP-J30Ｍ.indd
1
R
AIR PURIFIER
OPERATION MANUAL
,
3
2017/11/10
16:48:02

Advertisement

loading

Related Manuals for Sharp FP-J30M

Summary of Contents for Sharp FP-J30M

  • Page 1 AIR PURIFIER OPERATION MANUAL “Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation. *The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm which is measured around the center of a room with the “high-density plasmacluster 7000”...
  • Page 2 Please read before operating your new Air Purifier The air purifier draws in room air from the air intake, passes the air through a pre- Filter, a HEPA Filter inside of the unit, then discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the filter.

  • Page 3: Table Of Contents

    *When air is drawn through the filter system. Thank you for purchasing the SHARP Air Purifier. Please read this manual carefully. Before using this product, be sure to read the section: “Important Safety Instructions.”...

  • Page 4: Important Safety Instructions

    • Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior. • Only a Sharp Authorized Service Center should service this air purifier. Contact the nearest Service Center for any problems, adjustments, or repairs.
  • Page 5 CAUTIONS CONCERNING OPERATION • Do not block the intake and/or air outlet. • Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam. • Do not lay the unit down when using. •...

  • Page 6: Part Names

    PART NAMES FRONT BACK MODE Button, indicator light(green) Main Unit (Press 3 sec.) Plasmacluster Ion ON/OFF Button Air Outlet HEPA Filter OFF TIMER Button,Indicator Light(green) (Press 3 sec.) Filter Reset Button Deodorizing Filter Replace Filter indicator Light(orange) Back Panel (Pre-Filter) Plasmacluster Ion Indicator Light (blue) Bottom Tabs POWER ON/OFF Button...

  • Page 7: Filter Installation

    FILTER INSTALLATION Be sure to remove the power plug from the wall outlet. To maintain the quality of the fi lter, it is installed in the main unit and packed in plastic bag. Be sure to remove the fi lter from the plastic bag before using the unit. Remove the Back Panel.

  • Page 8: Operation

    OPERATION CLEAN AIR START STOP • Select the desired fan speed. • Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in. HAZE The unit operates at HIGH fan speed for 60 minutes and then alternates between Low and High level for 20 minutes each.
  • Page 9 OFF TIMER Select the time turning off the unit during operation. The unit automatically stops once the selected time is reached. ● ● CANCEL Light Control You can set the Plasmacluster Ion Indicator to OFF when the Plasmacluster Ion Indicator is bright. NOTE •...

  • Page 10: Care And Maintenance

    CARE AND MAINTENANCE To maintain optimum performance of this air purifi er, please clean the unit including the fi lter periodically. Be sure to disconnect the power cord from the wall outlet before performing any maintenance. Back Panel (Pre-fi lter) Gently remove dust from the Back Panel by using a vacuum cleaner attachment or similar tool.

  • Page 11: Replacement Guidelines

    REPLACEMENT GUIDELINES Filter Replacement timing When Replace Filter Indicator light turn on HEPA Filter Model : FZ-F30HFE HEPA Filter Model : FZ-F30DFE Deodorizing Filter Deodorizing Replace the Filter according to the instructions Filter provided with the replacement filter. After the exchange, insert the plug in socket and press the POWER button, and OFF TIMER button 3 seconds.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Before calling for repair, please review the list below, since the problem may not be a unit malfunction . SYMPTOM REMEDY (not a malfunction) Dust and smoke are not removed. • Clean or replace the filter if they appear to be heavily soiled.

  • Page 13: Specifications

    SPECIFICATIONS Power supply 220-240V 50-60Hz Fan Speed Adjustment SLEEP Speed Rated Power Operation Fan Speed 180m /hour 120m /hour /hour Recommended Room Size ~22m 2 *1 High density Plasmacluster ion recommended room size ~16m 2 *2 Cord Length 2.0m Dimensions 431mm(W)x211mm(D)x411mm(H) Weight 4.2kg...
  • Page 14 MEMO E-12 OM_FP-J30Ｍ.indd 2017/11/10 16:48:38...
  • Page 15 MEMO E-13 OM_FP-J30Ｍ.indd 2017/11/10 16:48:38...
  • Page 16 SHARP BUSINESS SYSTEMS (INDIA) PRIVATE LIMITED 487/35A, 1ST FLOOR, OUTER RING ROAD, PEERAGARHI NEW DELHI-110087 Printed in Thailand TINS-B085KKRZ 17K- OM_FP-J30Ｍ.indd 2017/11/10 16:48:38...
