Gardenline DF-003 Assembly Instructions Manual

Dual fuel barbecue
Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly
Instructions
DUAL FUEL BARBECUE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-003 and is the answer not in the manual?

Questions and answers

Related Manuals for Gardenline DF-003

Summary of Contents for Gardenline DF-003

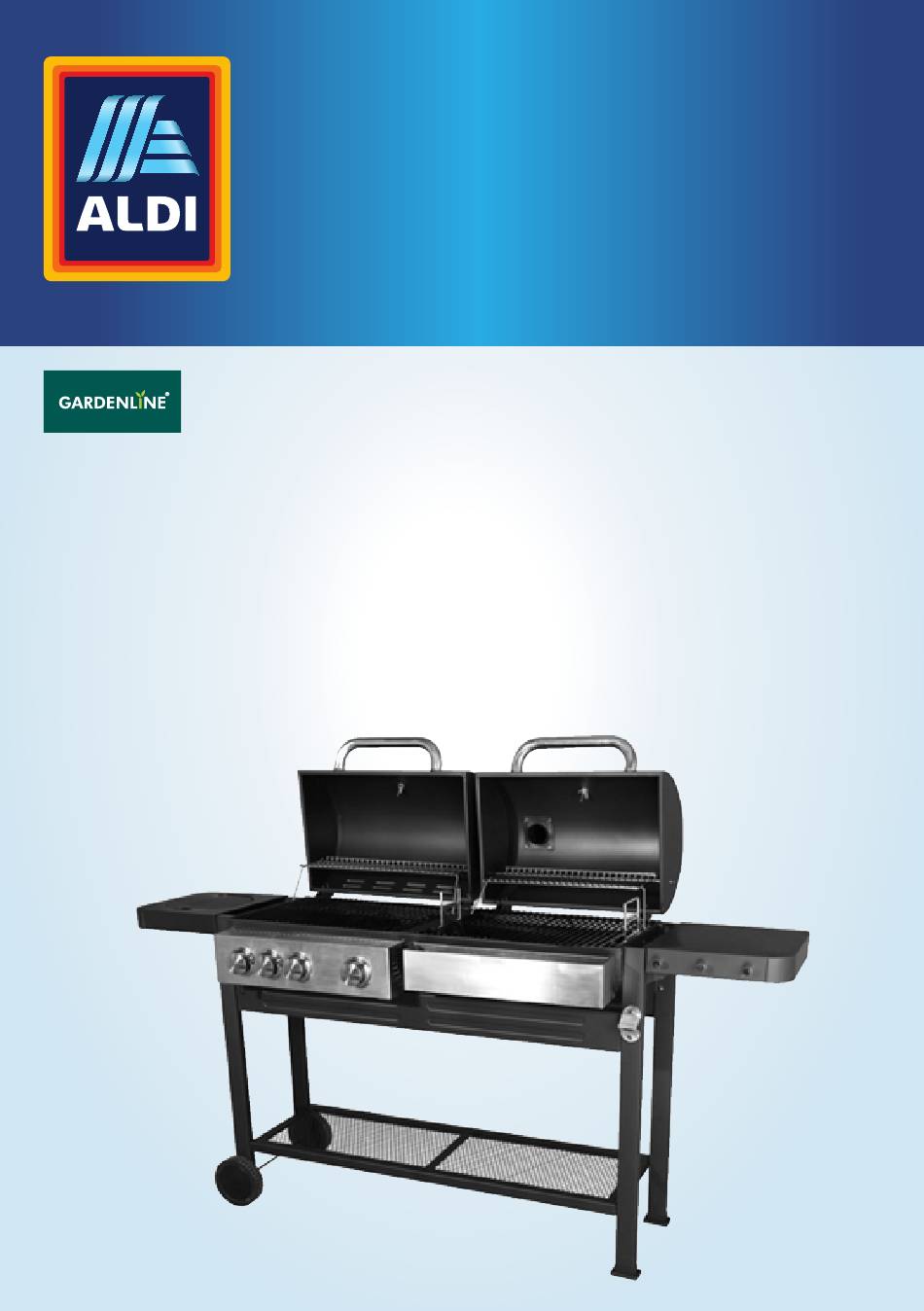

  • Page 1 Assembly Instructions DUAL FUEL BARBECUE...

  • Page 2: Overview

    Overview...
  • Page 3 Overview CC DD EE...

  • Page 4: Table Of Contents

    Table of content Table of content Overview........................2 Scope of delivery/product components..............5 General information....................7 Reading and storing the assembly instructions............7 Intended use........................7 Explanation of symbols..................... 7 Safety........................8 Safety notes........................8 Assembly instruction..................... 10 Step 1: Assemble the Legs....................12 Step 2: Assemble the Wheels...................12 Step 3: Assemble the Frame....................

  • Page 5: Scope Of Delivery/Product Components

    Scope of delivery/product components Scope of delivery/product components Components Thermometer, (×2) Gas Grill Cooking Grid, (×2) Lid of Gas Grill Gas Grill Warming Rack Chimney Side Burner Lid of Charcoal Grill Long Strut, (×2) Hinge, (×4) Foldable Shelf Base of Lid Handle, (×4) Hook, (×3) Lid Handle, (×2) Right Back Leg (RB)
  • Page 6 Scope of delivery/product components Required tools (not included) Slot or Phillips Wrench size 13 mm screwdriver Wrench size 10 mm...

  • Page 7: General Information

    General information General information Reading and storing the assembly instructions These assembly instructions are a part of the Dual Fuel Barbecue (hereinafter simply called "product"). They contain important information about assembly and use. Read the assembly instructions carefully, in particular the safety instructions, before using the product.

  • Page 8: Safety

    Safety Safety WARNING! Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality. The following signal words are used in these assembly instructions. This signal symbol/word denotes a hazard with WARNING! an average risk level that could lead to death or severe injury if it is not avoided.
  • Page 9 Safety Never dump hot charcoal or ashes where it might be stepped on or be a fire hazard. Never dump ashes or charcoal before they are fully extinguished. Allow the barbecue to cool down completely before cleaning it. During use, the screw connections can loosen and adversely affect the stability of the barbecue.

  • Page 10: Assembly Instruction

    Safety Do not use the barbecue with liquid fuels. Be prepared for a fire or an accident. Always have a fire extinguisher and a first aid kit ready. Max. fuel capacity: 1.0 kg of charcoal. Instructions for lighting Build a pyramid of charcoal in the centre of the charcoal grate and insert a couple of lighter cubes according to EN 1860-3 within the pyramid.
  • Page 11 Assembly instruction Before starting assembly, familiarise yourself with the individual parts. Step 1: Assemble the Legs..................12 Step 2: Assemble the Wheels..................12 Step 3: Assemble the Frame...................13 Step 4: Fix the Bowl to the Frame................14 Step 5: Attach the Control Panel................15 Step 6: Attach Divider....................

  • Page 12: Step 1: Assemble The Legs

    Assembly instruction Step 1: Assemble the Legs Attach the plastic feet to the right legs (RB) and (RF) 2. Fix the 4 legs (RB) , (RF) , (LF) , and (LB) to lower shelf Connecting elements: 4 × Screw M6×15 Step 2: Assemble the Wheels Insert the axle through the holes at the bottom of the left legs.

  • Page 13: Step 3: Assemble The Frame

    Assembly instruction 3. Fix the wheels to the axle. Connecting elements: 2 × Lock Nut M8 and plastic washer 4. Fix the hub caps to the wheels. Step 3: Assemble the Frame Fix the short struts to the legs. Connecting elements: 8 × Screw M6×15 2.

  • Page 14: Step 4: Fix The Bowl To The Frame

    Assembly instruction Step 4: Fix the Bowl to the Frame Fix the bowl to the frame. Connecting elements: 4 × Screw M6×15 2. Fix the bowl to the short strut beside. Connecting elements: 2 × Screw M6×12 HH, Flat washer , spring washer , and nut M6 ;...

  • Page 15: Step 5: Attach The Control Panel

    Assembly instruction Step 5: Attach the Control Panel Attach the gas control panel to the left side of the bowl. Connecting elements: 4 × Screw M6×15 2. Attach the basket to the right side of the bowl. Connecting elements: 4 × Screw M6×15...

  • Page 16: Step 6: Attach Divider

    Assembly instruction Step 6: Attach Divider Attach the right support of charcoal tray to right side of the bowl. Connecting elements: 2 × Screw M6×12 HH, Flat Washer , Spring Washer , Nut M6 see illustration for order. 2. Attach the lower divider to the bowl.

  • Page 17: Step 7: Attach Support For Burners

    Assembly instruction Step 7: Attach Support for Burners Attach support for burners to the left rear of the bowl. Connecting elements: 2 × Screw M6×15...

  • Page 18: Step 8: Install Burners

    Assembly instruction Step 8: Install Burners Put the open end of the pipe burners onto the valve. 2. Put the closed end of the pipe burners onto the support for burners. 3. Fix the pipe burners to the support for burners. Connecting elements: 3 × Screw M6×15...

  • Page 19: Step 9: Attach Hinges

    Assembly instruction Step 9: Attach Hinges Attach all hinges to the rear of the bowl. Connecting elements: 8 × Screw M6×40 , Flat Washer , Spring Washer , Nut M6 ; see illustration for order. See illustration for direction of hinge.

  • Page 20: Step 10: Assemble The Lids

    Assembly instruction Step 10: Assemble the Lids Remove the nuts from thermometers 2. Insert the sensor of thermometer into the lid of gas grill 3. Fix thermometer to lid of gas grill with nut. 4. Attach lid handle and bases of lid handle to lid of gas grill.

  • Page 21: Step 11: Attach Lids To Bowl

    Assembly instruction Step 11: Attach Lids to Bowl Attach lid of gas grill to the hinges at the left side of the bowl. Connecting elements: 4× Screw M6×40 , Flat Washer , Spring Washer , Nut M6 see illustration for order. 2.

  • Page 22: Step 12: Attach Side Burner And Shelf

    Assembly instruction Step 12: Attach Side Burner and Shelf Attach the side burner to the left legs. Connecting elements: 4 × Step Screw 2. Attach the hooks to the front of the foldable shelf . 3 × Screw M6×12 HH. 3.

  • Page 23: Step 13: Insert Gas Nozzle Into The Gas Inlet

    Assembly instruction Step 13: Insert Gas Nozzle into the Gas Inlet Remove the nut from the gas nozzle at the end of the gas hose attached to the gas control panel 2. Put the gas nozzle through the hole of the holder of the gas nozzle at the side burner 3.

  • Page 24: Step 14: Attach Warming Racks

    Assembly instruction Step 14: Attach Warming Racks Attach the gas grill warming rack to the lid of the gas grill by inserting the rod at the grid through the holes in the lid. The ridge of the warming rack faces up and back. 2.

  • Page 25: Step 15: Prepare The Barbecue

    Assembly instruction Step 15: Prepare the Barbecue Place the heat plates on the bars above the burners. 2. Put the knobs onto the valve rods. 3. Attach the handles to the outside of the charcoal tray 4. Hang the charcoal tray with the handles on the supports. 5.

  • Page 26: Step 16: Place Cooking Grids

    Assembly instruction Step 16: Place Cooking Grids Place the charcoal grill cooking grids (notches for the handles for charcoal tray) on the right side of the bowl. 2. Place the gas grill cooking grids (no notches) on the left side of the bowl.

  • Page 27: Step 17: Install Gas Hose

    Assembly instruction Step 17: Install Gas Hose Slide the grease tray into the holder. 2. Attach the gas hose to the connector. Lock the screw of the clamp tightly. WARNING! Risk of burns This barbecue will become very hot! Touching may cause burn injuries.

  • Page 28: The First Time You Grill

    - Never touch the cooking or charcoal grid, ashes, charcoal, or the grill to see if they are hot. - Let the steam escape first, if you open the lid. - WARNING! Keep children and pets away! WARNING! Risk of fire The barbecue will be hot during cooking! Combustible materials nearby may ignite.

  • Page 29: Connecting The Gas Cylinder To The Appliance

    cylinder. No part of the hose should touch any part of the appliance. So site the cylinder out to the left hand side of the appliance at the maximum distant permitted by the hose length. Connecting the gas cylinder to the appliance This product is only suitable for use with low-pressure butane or propane gas and fitted with the appropriate lowpressure regulator via a flexible hose.
  • Page 30 5. Light charcoal briquettes. A specially made steel charcoal lighting starter may be used though only by following the manufacturer’s instructions and used with great care. DO NOT overload the charcoal starter. 6. Once briquettes are glowing, set the charcoal tray to desired cooking position and replace the charcoal grill cooking grid.
  • Page 31 6. When the burner has lit, the burner rate can be adjusted by pushing down and turning the knob anticlockwise to any position between the full and low rate position. Light the remaining burners from left to right in sequence. 8.

  • Page 32: Cleaning

    Open the lid before lighting. 2. If the igniter fails to spark, use a match to light burner. Cleaning WARNING! Risk of burns This barbecue will become very hot! Touching may cause burn injuries. - Allow the barbecue to cool completely before cleaning! Clean the cooled barbecue after each use.

  • Page 33: Maintenance

    Cleaning Grease tray Please do not pull out the grease tray during use. After the grease tray is cold, pull out the grease tray in horizontal line. Burner assembly Turn the gas OFF at the control knob and disconnect the cylinder. 2.

  • Page 34: Troubleshooting

    Troubleshooting Troubleshooting Problem Possible Cause Solution Burners will not light using Gas cylinder is empty Replace with full cylinder the ignition system. Faulty regulator Have regulator checked or replace Obstructions in burner Clean burner Obstructions in gas jets or Clean jets and gas hose gas hose Electrode wire loose or Reconnect wire...

  • Page 35: Technical Data

    Technical data Technical data Model: DF-003/DF-004 Dimensions (W × D × H): 184 × 53 × 116 cm Weight: approx. 37.5 kg Fuel: Charcoal Max. fuel capacity: 1.0 kg Item number 701099 Total heat input 10 kW (G30: 727 g/h)
  • Page 36 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 701099 0121 36 80 339 01 50 60 684 www.bestbuyingsupport.com YEAR MODEL: WARRANTY DF-003/DF-004 04/2020...
