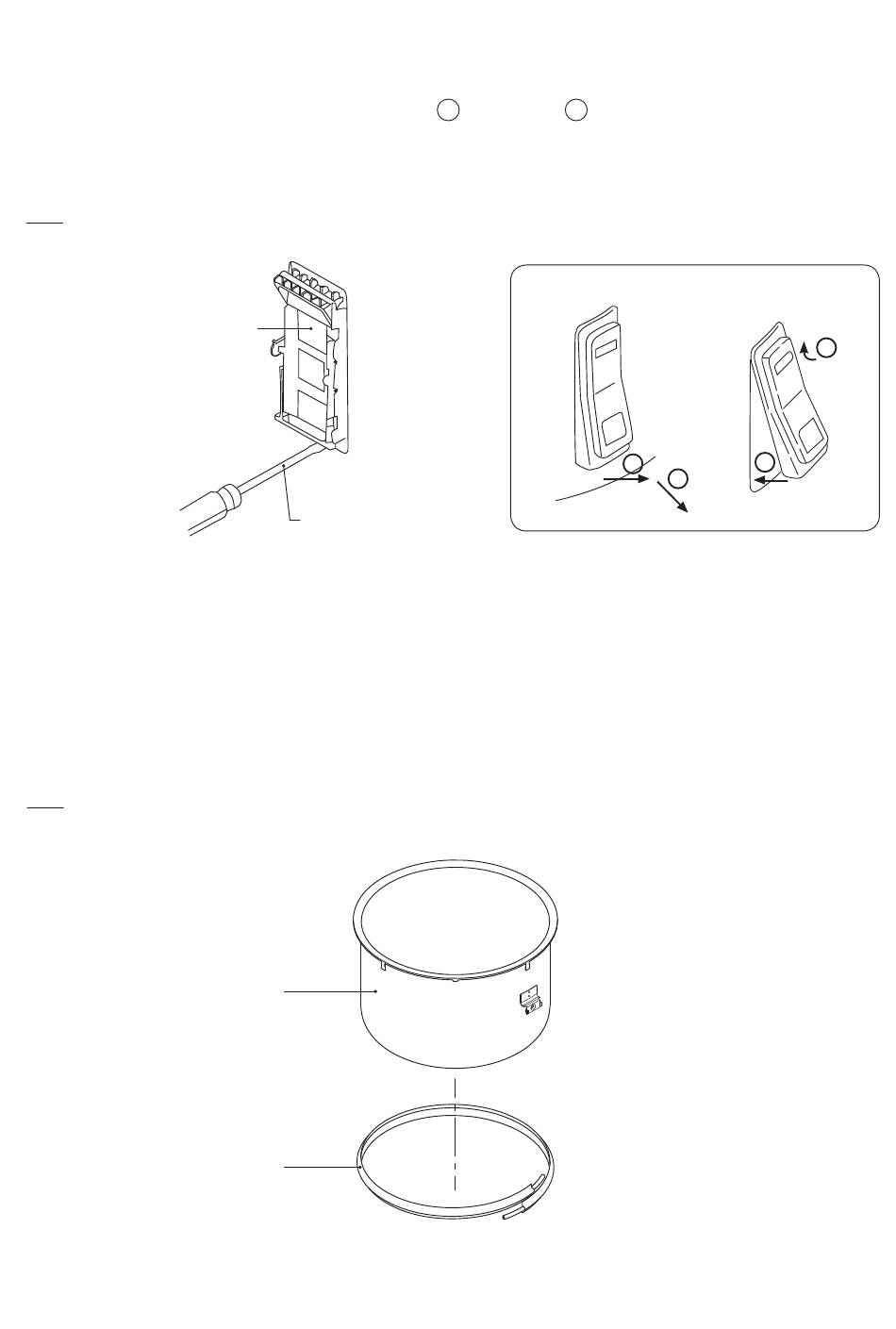

1. Remove the body in accordance with "REMOVE OF BODY".
2. Pry claws of the body lift up by a fl at type screwdriver or similar.
3. Remove the control panel from the body (position
4. Now the control panel is free. (Fig. 7)
After disengaging the claws, push up the control panel ward the lid, pull upper part (bottom side) to this
side and pull up to remove the control panel. (Fig. 8)
Note : When reassembly, bend the body pawl as it was.
Control panel
1. Remove the body in accordance with "REMOVE OF BODY".
2. Disconnect lead wires of side heater assembly from the heater plate ass'y and the micro SW., then remove
the closed terminal from the lead wire of side heater assembly.
3. Pull out the side heater ass'y from the outer pot.
Note : Before removing, put a mark for positioning of side heater ass'y on the outer pot and be sure to
reassembly, the side heater ass'y as it was.
Side heater ass'y
REMOVE OF CONTROL PANEL
Flat type screwdriver
Fig. 7
REMOVE OF SIDE HEATER ASSEMBLY
Outer pot
2
and position ).
1
Removal
Fig. 9
9
Assembly
2
1
2
Fig. 8
1
