Interface Adaptor

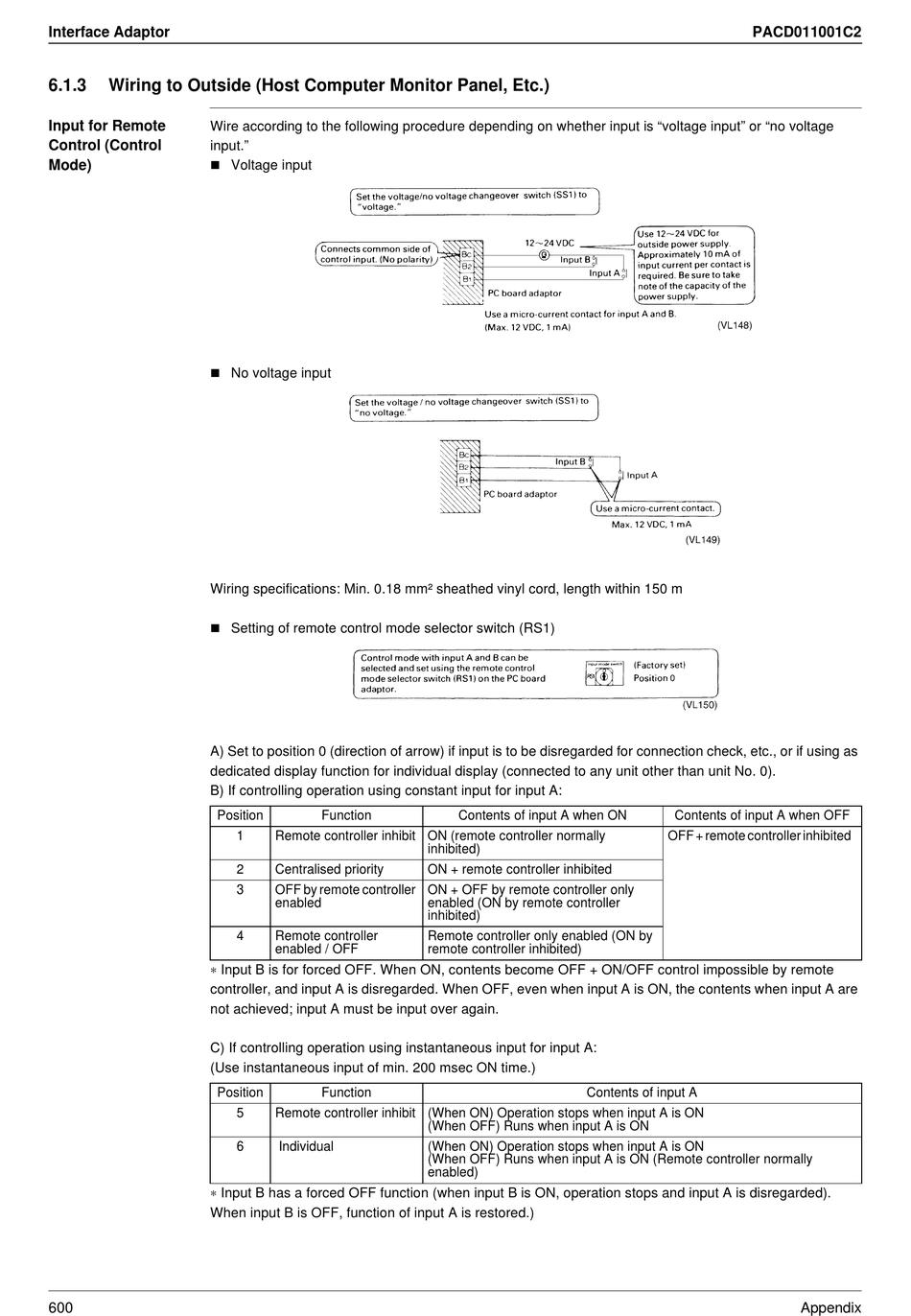

6.1.3 Wiring to Outside (Host Computer Monitor Panel, Etc.)
Input for Remote
Wire according to the following procedure depending on whether input is "voltage input" or "no voltage
Control (Control
input."
„ Voltage input
Mode)
„ No voltage input
Wiring specifications: Min. 0.18 mm² sheathed vinyl cord, length within 150 m
„ Setting of remote control mode selector switch (RS1)
A) Set to position 0 (direction of arrow) if input is to be disregarded for connection check, etc., or if using as
dedicated display function for individual display (connected to any unit other than unit No. 0).
B) If controlling operation using constant input for input A:
Position
∗ Input B is for forced OFF. When ON, contents become OFF + ON/OFF control impossible by remote
controller, and input A is disregarded. When OFF, even when input A is ON, the contents when input A are
not achieved; input A must be input over again.
C) If controlling operation using instantaneous input for input A:
(Use instantaneous input of min. 200 msec ON time.)
Position
∗ Input B has a forced OFF function (when input B is ON, operation stops and input A is disregarded).
When input B is OFF, function of input A is restored.)
600
Function
1 Remote controller inhibit ON (remote controller normally
2 Centralised priority
3 OFF by remote controller
enabled
4 Remote controller
enabled / OFF
Function
5 Remote controller inhibit (When ON) Operation stops when input A is ON
6 Individual
Contents of input A when ON
inhibited)
ON + remote controller inhibited
ON + OFF by remote controller only
enabled (ON by remote controller
inhibited)
Remote controller only enabled (ON by
remote controller inhibited)
Contents of input A
(When OFF) Runs when input A is ON
(When ON) Operation stops when input A is ON
(When OFF) Runs when input A is ON (Remote controller normally
enabled)
PACD011001C2
Contents of input A when OFF
OFF + remote controller inhibited
