Brand:
Secure
Type:
Multi-line Digital Display Panel Meter
Models: Elite 440

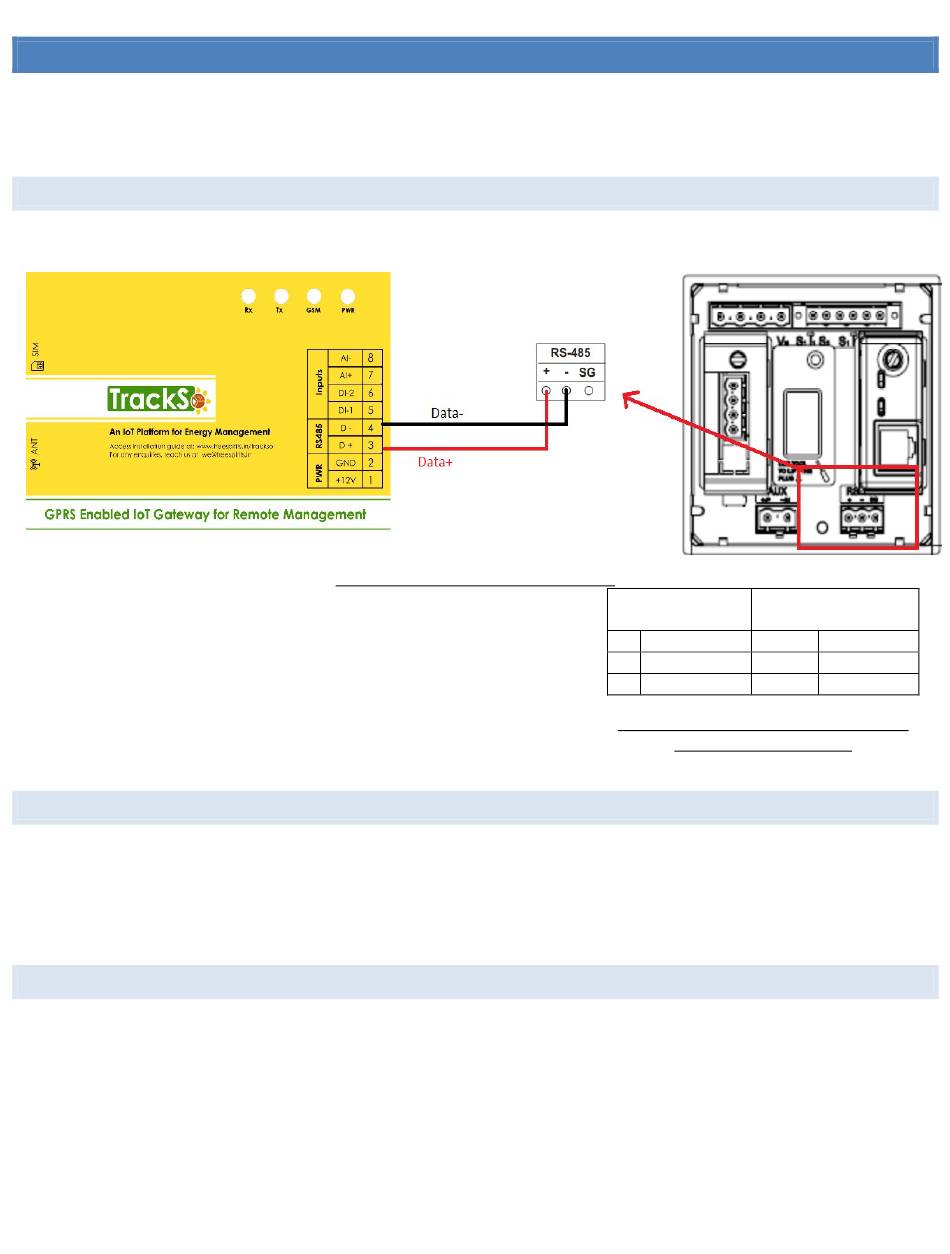

CONNECTION DIAGRAM
On the rear panel, Secure Elite 440 has an RS-485 communication socket as shown in the following figure.
1. Please unscrew the RS485 terminal as shown in Figure S1.
2. Connect the cables to the RS485 bus terminal blocks.
3. Please make the connections from Terminal Block chip to TrackSo IoT
Gateway as mentioned in the Table – ST1.
DEFAULT CONFIGURATION IN TRACKSO IOT GATEWAY
Inverter ID: 1 (Range: 1 to 247)
Baud Rate: 9600 (Default) (Values: 9600, 19200, 38400)
Data Bits: 8
Stop Bit: 1
Parity: N/A (None)
CONFIGURATION AT THE METER END
The Setup Mode can be used to configure the meter with the help of push buttons: The Setup Mode is password protected which
can be accessed only by users authorized to change the configurations
Password Entry
The following steps will guide you to access the Setup Menu:
TRACKSO INSTALLATION GUIDE FOR SECURE METER
Figure S1 – Rear view of Secure Elite 440
Secure Pin No. &
TrackSo Pin No. &
Assignment
Assignment
1
A
3
2
B
4
3
SG
-
Table ST1 – Secure RS485 chip connections
with TrackSo IoT Gateway
D+
D-
-
