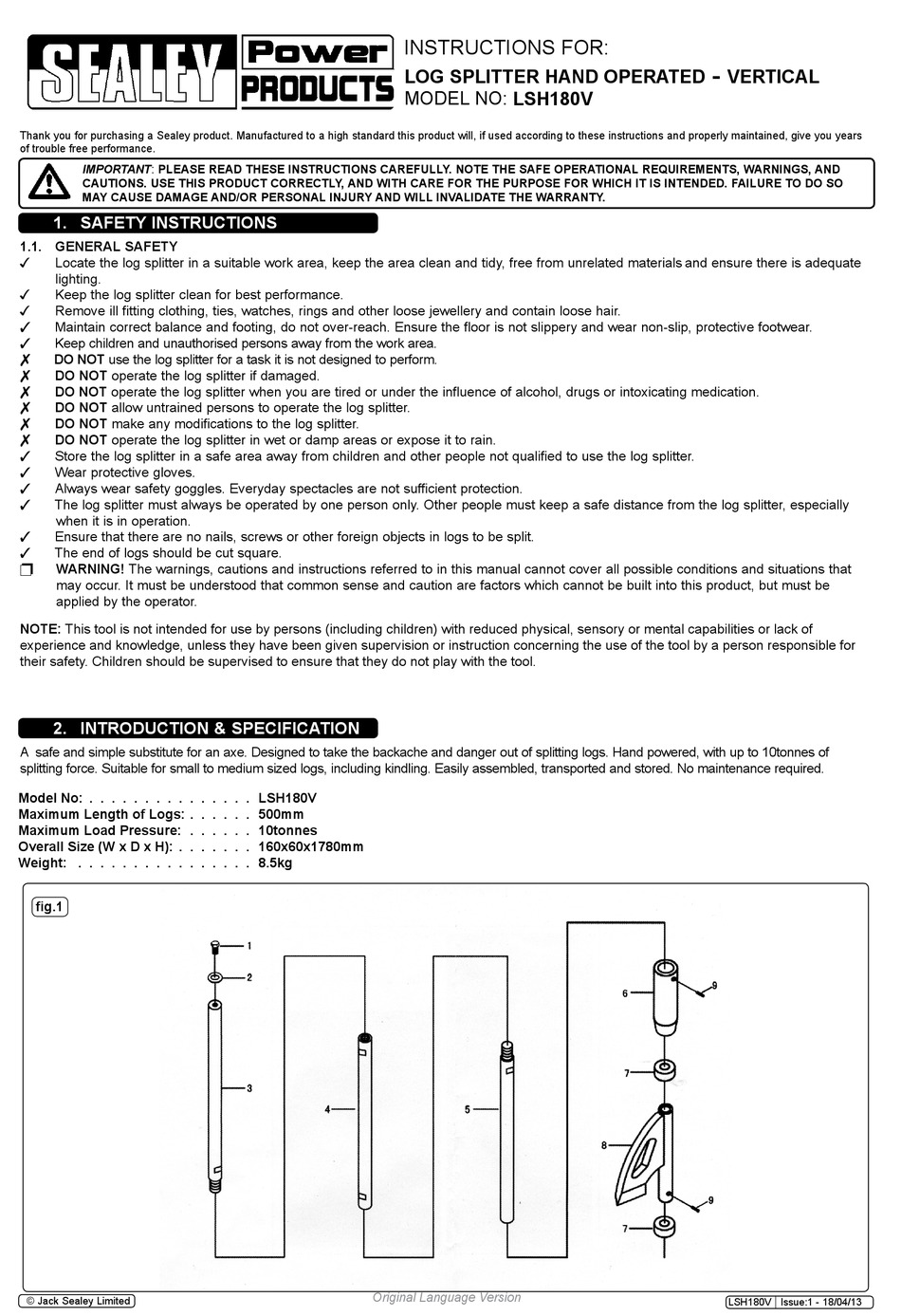

Sealey LSH180V Instructions

thank you for purchasing a Sealey product. manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years
of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRucTIONS cAREfuLLy. NOTE THE SAfE OPERATIONAL REQuIREMENTS, WARNINGS, AND
cAuTIONS. uSE THIS PRODucT cORREcTLy, AND WITH cARE fOR THE PuRPOSE fOR WHIcH IT IS INTENDED. fAILuRE TO DO SO
MAy cAuSE DAMAGE AND/OR PERSONAL INJuRy AND WILL INvALIDATE THE WARRANTy.
1. SAfETy INSTRucTIONS
1.1 GENERAL SAfETy
.
locate the log splitter in a suitable work area, keep the area clean and tidy, free from unrelated materials and ensure there is adequate

lighting.
Keep the log splitter clean for best performance.

remove ill fitting clothing, ties, watches, rings and other loose jewellery and contain loose hair.

3 maintain correct balance and footing, do not over-reach. Ensure the floor is not slippery and wear non-slip, protective footwear.
3 Keep children and unauthorised persons away from the work area.
7 DO NOT use the log splitter for a task it is not designed to perform.
7 DO NOT operate the log splitter if damaged.
7 DO NOT operate the log splitter when you are tired or under the influence of alcohol, drugs or intoxicating medication.
7 DO NOT allow untrained persons to operate the log splitter.
7 DO NOT make any modifications to the log splitter.
7 DO NOT operate the log splitter in wet or damp areas or expose it to rain.
3 Store the log splitter in a safe area away from children and other people not qualified to use the log splitter.
3 Wear protective gloves.
3 Always wear safety goggles. Everyday spectacles are not sufficient protection.
3 the log splitter must always be operated by one person only. other people must keep a safe distance from the log splitter, especially
when it is in operation.
3 Ensure that there are no nails, screws or other foreign objects in logs to be split.
3 the end of logs should be cut square.
WARNING! the warnings, cautions and instructions referred to in this manual cannot cover all possible conditions and situations that
p
may occur. it must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
NOTE: this tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the tool by a person responsible for
their safety. children should be supervised to ensure that they do not play with the tool.
2. INTRODucTION & SPEcIfIcATION
A safe and simple substitute for an axe. Designed to take the backache and danger out of splitting logs. Hand powered, with up to 10tonnes of
splitting force. Suitable for small to medium sized logs, including kindling. Easily assembled, transported and stored. No maintenance required.
Model No: . . . . . . . . . . . . . . . LSH180v
Maximum Length of Logs: . . . . . . 500mm
Maximum Load Pressure: . . . . . . 10tonnes
Overall Size (W x D x H): . . . . . . . 160x60x1780mm
Weight: . . . . . . . . . . . . . . . . 8.5kg
fig.1
© Jack Sealey limited
iNStructioNS for:
LOG SPLITTER HAND OPERATED
moDEl No: LSH180v
Original Language Version
-
vERTIcAL
lSH180V issue:1 - 18/04/13
