HUAWEI WiFi WS5200 Quick Start Guide
You have forgotten your broadband account
or password (obtain from your old router)
Step 1: Connecting the cables
WAN
HUAWEI WiFi WS5200
1 2 3 4
1000M
LAN
If the indicator stays red, this indicates that the router is not connected to the Internet.
Please refer to "Step 2: Configuring the network settings".
Step 2: Configuring the network settings 2
1. Connect your mobile phone or computer to the
new router's Wi-Fi network
(No password).
Check for the Wi-Fi name on the bottom of the router.
WiFi
WiFi
HUAWEI-XXXXXX SSID:HUAWEI-XXXXXX
Connected
3. Obtain the broadband account and password from the old router.
If your broadband provider has not provided you with a broadband account, skip to the next step.
Internet access wizard
Internet access wizard
Broadband account
Not
Broadband password
required
Old router WAN port
Touch
Retrieve
Next
4. Set new Wi-Fi and admin password.
You can use the Wi-Fi password as the router admin password.
Internet access wizard
5 GHz preferred
Wi-Fi network name
Enter
New Wi-Fi password
Use Wi-Fi password as
the router admin password
Touch
Next
Enable 5 GHz preferred: Priority usage of 5 GHz Wi-Fi band over 2.4 GHz
band when signal strength is equal to increase connection speeds.
* Extending the Wi-Fi Network with another Huawei Router
You may refer to either of the following methods to pair and connect multiple Huawei routers (with the
H or Hi button), ensuring that all rooms are covered by Wi-Fi.
Prepare two routers
Primary router
Installed and connected to the network
(see "configuring the router")
Method 1: Wired networking (recommended)
Primary router
LAN
1 2 3 4
1000M
Af t er t he n e tw o r ki n g i s co m p l e t e d a u to m a ti c al l y, t he i ndi ca t or o n t he se co nd ar y
ro u t e r w il l tu r n ste a d y g r e e n . U se th e sa me Wi - F i na me an d p as sw or d as t ha t
f o r t h e p r im a r y r o u te r to co n n e ct to th e n e tw o r k.
Manage the router with our mobile app
Scan the QR code, or search "HUAWEI SmartHome" in an app market.
You can use HUAWEI SmartHome app to manage users, set timer and
guest Wi-Fi, and control your router.
Optical/Broadband/cable modem
LAN from your broadband provider
POWER
RESET
LAN
Internet
PON
Old router
Power supply required
WAN

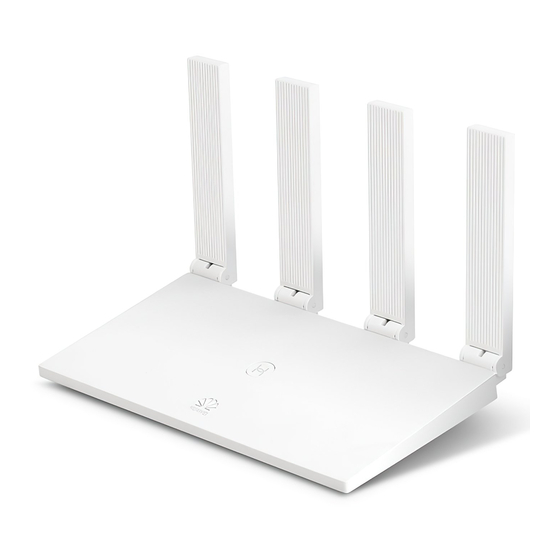

Erect the four antennas
WAN LAN LAN
upright to ensure
optimized Wi-Fi signal.
2. Open the browser, you will be
automatically redirected.
( If the page is not displayed automatically,
enter 192.168.3.1) .
Welcome to HUAWEI
WiFi WS5200
Let's Start Touch
Internet access wizard
1 2 3 4
LAN port
Back Back
Next Touch Retrieve Touch
Internet access wizard
C o n f i g u r at i o n
c o m p l et e
Please connect to the
new Wi-Fi network
(Optional)
Secondary router
New or restored to factory settings
Secondary router
WAN
1 2 3 4
1000M
This guide is for reference only and does not constitute a warranty of any kind, express or implied.
You know your broadband account and
password (connect directly)
Step 1: Connecting the cables
WAN
HUAWEI WiFi WS5200
1 2 4
3
1000M
If the indicator stays red, this indicates that the router is not connected to the Internet.
Please refer to "Step 2: Configuring the network settings".
Step 2: Configuring the network settings
1. Connect your mobile phone or computer to the
router's Wi-Fi network (No password).
Check for the Wi-Fi name on the bottom of the router.
WiFi
WiFi
SSID:HUAWEI-XXXXXX
HUAWEI-XXXXXX
Connected
3. Enter your broadband account and password.
If your broadband provider has not provided you with a broadband account, skip to the next step.
Internet access wizard
Broadband account
Enter
Broadband password
Retrieve
Next Touch
Contact your broadband provider if you have forgotten your broadband account.
4. Set new Wi-Fi and admin password.
You can use the Wi-Fi password as the router admin password.
Internet access wizard
5 GHz preferred
Wi-Fi network name
Enter
New Wi-Fi password
Use Wi-Fi password as
the router admin password
Touch
Next
Enable 5 GHz preferred: Priority usage of 5 GHz Wi-Fi band over 2.4 GHz
band when signal strength is equal to increase connection speeds.
Method 2: Wireless networking
1. Place the secondary router within 1m of
the primary router and connect it to the
power supply.
Primary router
Secondary router
Within 1m
1 2 3 4
1000M
3. Wait till the indicator on the secondary
router turns steady green.
The pairing is successful if the indicator on
the secondary router turns steady green.
You can visit the internet by entering the
same Wi-Fi name and password as that for
the primary router.
Secondary router
About half a
minute later,
the indicator will
turn steady green.
96724849_01
Optical/Broadband/cable modem
LAN
from your broadband provider
POWER
RESET
LAN
Internet
PON
Erect the four antennas
upright to ensure
optimized Wi-Fi signal.
2. Open the browser, you will be
automatically redirected.
( If the page is not displayed automatically,
enter 192.168.3.1) .
Welcome to HUAWEI
WiFi WS5200
Let's Start
Touch
Internet access wizard
C o nf ig u r at io n
c o mp le t e
Please connect to the
new Wi-Fi network
2. Press the H button on the primary router to pair
with the secondary router.
1. Wait (about a minute) till the indicator
Primary router on the primary router blinks red,
which indicates that the primary router
has detected the secondary router.
2. Press the H button on the primary
router to start pairing. The pairing is in
progress if the indicator is blinking red faster.
4. Move the secondary router to another room.
Primary
Secondary
Secondary router
router
router
Unplug the
power supply,
move to another
room
To receive better Wi-Fi connection, only one wall
in-between the two routers is recommended.
